StarTech.com MONSTND Diagram

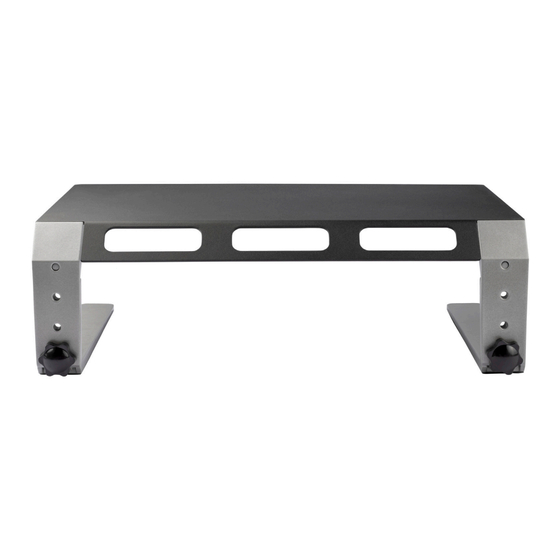

Monitor Riser - Metal - Height Adjustable

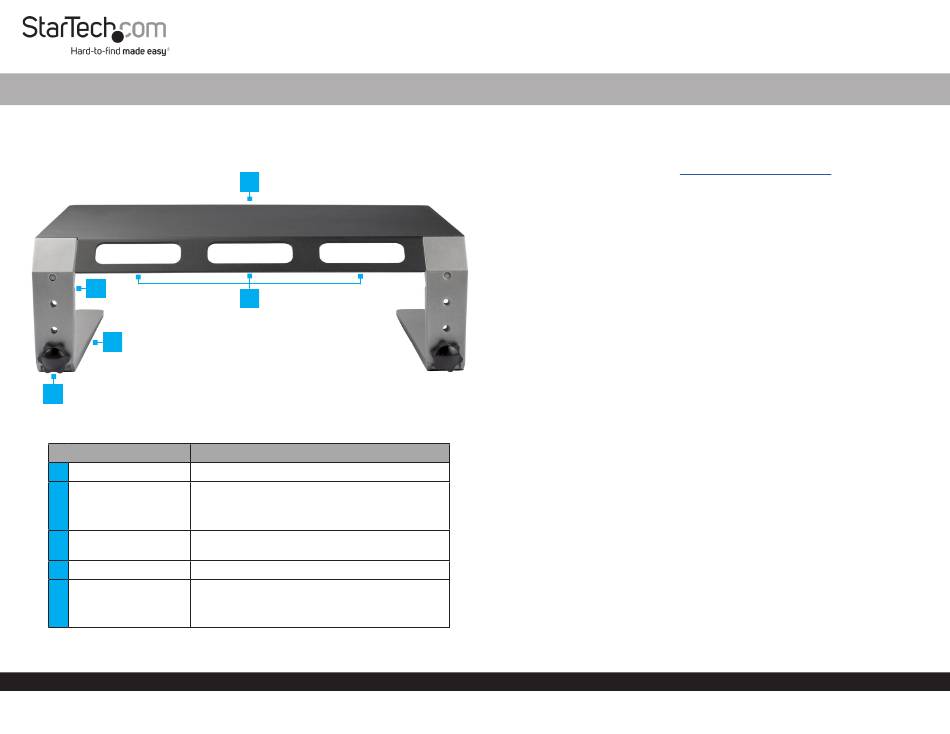

Product Diagram (MONSTND)
Rear View
2
4
5
Part
1 • Used as a platform for a Monitor or Laptop
Top Plate
• Attaches to the Top Plate
2
Upper Leg
• Configurable with three height-adjustment
Cable-Management
3 • Used for organizing and routing Cables
Slots
4 • Attaches to the Upper Leg
Lower Leg
• Used to secure the Upper Legs and Lower
Height-Adjustment
5
Screw
• Can be removed to adjust height settings
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
1
3
Function
settings
Legs together
Requirements
• Clean, Flat, and Stable Surface x 1
For the latest requirements please visit: www.startech.com/MONSTND.
Installation
Assembly
1. Place the Top Plate, top side down, onto a Clean, Flat, and Stable Surface.
2. Place the Upper Legs onto the Top Plate. Ensure the Holes in the Upper Legs are
aligned with the Holes in the Top Plate. The slanted portion of the Upper Legs
should be aligned with the slanted portion of the Top Plate.
3. Secure the Upper Legs to the Top Plate, using two M6x10 mm Screws for each
side. Fasten the M6x10 mm Screws using the 4 mm Hex Key.
4. Align the Lower Leg against the Upper Leg at the desired Monitor height setting.
5. Insert the Height-Adjustment Screw through the Upper Leg and into the Lower
Leg, then hand-tighten.
Note: Tighten the Height-Adjustment Screws by hand. Do not over-tighten.
6. Repeat steps 4 and 5 to attach the second Lower Leg.
7. Turn the Monitor Riser Assembly upright.
Operation
Height Adjustment
1. Place the assembled Monitor Riser, top side down, on a Clean, Flat, and Stable
Surface.
2. Remove the Height-Adjustment Screws.
3. Adjust the height of the Lower Legs to the desired height.
4. Insert the Height-Adjustment Screws through the Upper Legs and into the Lower
Legs, then hand-tighten.
5. Turn the Monitor Riser Assembly upright.
Quick-Start Guide
Manual Revision: March 25, 2019 2:04 PM
