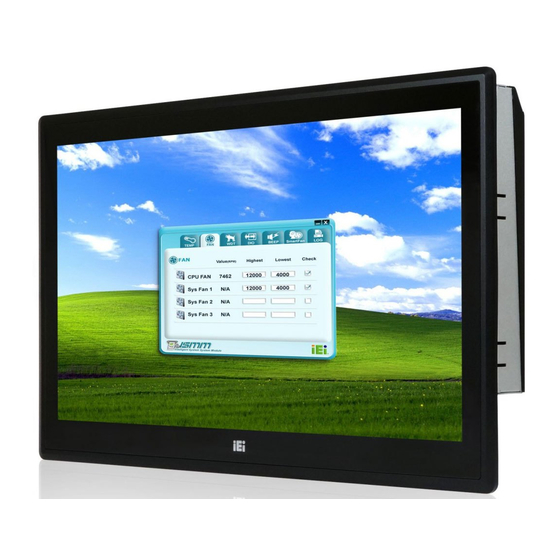

PPC-FxxA-H81 Panel PC
PPC-FxxA-H81 Panel PC
MODEL:
PPC-FxxA-H81
Industrial Panel PC for 4th Generation Intel® Core™,
Pentium® or Celeron® CPU, Intel® H81 Chipset, Touchscreen,
Dual PCIe Mini, USB 3.0, SATA 6Gb/s, Dual PCIe GbE,
iRIS-2400, IP 65 Compliant Front Panel and RoHS Compliant
User Manual
Page i
Rev. 1.01 – August 8, 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPC-F A-H81 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology PPC-F A-H81 Series

Summary of Contents for IEI Technology PPC-F A-H81 Series

  • Page 1 PPC-FxxA-H81 Panel PC PPC-FxxA-H81 Panel PC MODEL: PPC-FxxA-H81 Industrial Panel PC for 4th Generation Intel® Core™, Pentium® or Celeron® CPU, Intel® H81 Chipset, Touchscreen, Dual PCIe Mini, USB 3.0, SATA 6Gb/s, Dual PCIe GbE, iRIS-2400, IP 65 Compliant Front Panel and RoHS Compliant User Manual Page i Rev.
  • Page 2 PPC-FxxA-H81 Panel PC Revision Date Version Changes August 8, 2016 1.01 Added Section 3.8: Wireless LAN Module Installation (Optional) June 3, 2015 1.00 Initial release Page ii...
  • Page 3 PPC-FxxA-H81 Panel PC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 PPC-FxxA-H81 Panel PC Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product. NOTE These messages inform the reader of essential but non-critical information.

  • Page 5: Table Of Contents

    PPC-FxxA-H81 Panel PC Table of Contents 1 INTRODUCTION......................1 1.1 O ........................2 VERVIEW 1.2 M ....................3 ODEL ARIATIONS 1.3 F ........................4 EATURES 1.4 F ......................5 RONT ANEL 1.5 R ....................... 5 ANEL 1.6 B ......................6 OTTOM ANEL 1.7 I...
  • Page 6 PPC-FxxA-H81 Panel PC 3.8 W LAN M ) ..........32 IRELESS ODULE NSTALLATION PTIONAL RIS-2400 M ................36 ODULE NSTALLATION 3.10 AT/ATX M ..................37 ELECTION 3.11 M ..................38 OUNTING THE YSTEM 3.11.1 Wall Mounting ....................38 3.11.2 Panel Mounting ....................41 3.11.3 Rack and Cabinet Installation................
  • Page 7 PPC-FxxA-H81 Panel PC 5.1.2 Using Setup ...................... 67 5.1.3 Getting Help..................... 68 5.1.4 Unable to Reboot after Configuration Changes ..........68 5.1.5 BIOS Menu Bar....................68 5.2 M ........................70 5.3 A ....................... 71 DVANCED 5.3.1 ACPI Settings ....................72 5.3.2 RTC Wake Settings ...................
  • Page 8 PPC-FxxA-H81 Panel PC 6.7 USB 3.0 D ................120 RIVER NSTALLATION 6.8 R ........123 ESISTIVE OUCHSCREEN RIVER NSTALLATION 6.8.1 Calibrating the Resistive Type Touchscreen........... 126 6.9 K AP I ..................129 EYPAD NSTALLATION 7 INTERFACE CONNECTORS ................. 133 7.1 P ..............
  • Page 9 PPC-FxxA-H81 Panel PC 7.3.4 RJ-45 GbE and USB 2.0 Connectors (LAN2_USB2)........148 7.3.5 RJ-45 GbE and USB 3.0 Connectors (LAN1_USB1)........149 7.3.6 RS-422/485 Serial Port and VGA Connector (COM5/VGA1) ....... 150 7.4 P ..................150 RECONFIGURED UMPERS 7.4.1 Flash Descriptor Security Override Jumper (J_FLASH1) ......151 7.4.2 LVDS Panel Resolution Selection Switch (JLCD_SET1) ......
  • Page 10 PPC-FxxA-H81 Panel PC List of Figures Figure 1-1: PPC-FxxA-H81 Panel PC ....................2 Figure 1-2: Front View ........................5 Figure 1-3: PPC-F15A-H81 Rear View...................6 Figure 1-4: Bottom View ........................7 Figure 1-5: PPC-F15A-H81 Internal Components................8 Figure 1-6: PPC-F22A-H81 Internal Components................8 Figure 1-7: PPC-F15A-H81 Dimensions (mm)................9 Figure 1-8: PPC-F17A-H81 Dimensions (mm)................10 Figure 1-9: PPC-F22A-H81 Dimensions (mm)................11 Figure 1-10: PPC-F24A-H81 Dimensions (mm)................12...
  • Page 11 PPC-FxxA-H81 Panel PC Figure 3-22: Securing SMA Connector and External Antenna Installation ......35 Figure 3-23: iRIS-2400 Module Slot.....................36 Figure 3-24: iRIS-2400 Module Installation ................37 Figure 3-25: AT/ATX Mode Selection..................38 Figure 3-26: Wall-mounting Bracket ...................39 Figure 3-27: Mount the Chassis ....................40 Figure 3-28: Secure the Chassis ....................41 Figure 3-29: PPC-F15A-H81 Mounting Bracket Installation .............42 Figure 3-30: PPC-F15A-H81 Panel Cutout Dimensions ............42...
  • Page 12 PPC-FxxA-H81 Panel PC Figure 6-4: Chipset Driver Read Me File ................. 108 Figure 6-5: Chipset Driver Setup Operations ................. 109 Figure 6-6: Chipset Driver Installation Finish Screen............110 Figure 6-7: VGA Driver README FILE..................111 Figure 6-8: VGA Driver Screen ....................111 Figure 6-9: VGA Driver Welcome Screen ................
  • Page 13 PPC-FxxA-H81 Panel PC Figure 6-39: Confirm Installation ..................... 130 Figure 6-40: Keypad AP Installation Complete............... 131 Figure 6-41: Keypad AP Installation Complete............... 131 Figure 6-42: Keypad AP ......................132 Figure 7-1: Main Board Layout Diagram (Front Side) ............134 Figure 7-2: Main Board Layout Diagram (Solder Side) ............135 Page xiii...
  • Page 14 PPC-FxxA-H81 Panel PC List of Tables Table 1-1: Model Variations ......................4 Table 1-2: System Specifications....................14 Table 2-1: Packing List.........................17 Table 2-2: Optional Items......................18 Table 3-1: BIOS Options and Configured USB Ports..............57 Table 3-2: USB Power Source Setup ..................57 Table 5-1: BIOS Navigation Keys ....................68 Table 5-2: BIOS Options and Configured USB Ports..............92 Table 7-1: Peripheral Interface Connectors ................
  • Page 15 PPC-FxxA-H81 Panel PC Table 7-24: USB 2.0 Connector (USB1) Pinouts..............146 Table 7-25: Rear Panel Connectors ..................147 Table 7-26: HDMI Connector (HDMI1) Pinouts................ 148 Table 7-27: RS-232 Serial Port Pinouts ................... 148 Table 7-28: USB 2.0 Connector (USB_CON1) Pinouts............148 Table 7-29: RJ-45 GbE Connector (LAN2_USB2) Pinouts.............

  • Page 16: Introduction

    PPC-FxxA-H81 Panel PC Chapter Introduction Page 1...

  • Page 17: Overview

    PPC-FxxA-H81 Panel PC 1.1 Overview Figure 1-1: PPC-FxxA-H81 Panel PC The PPC-FxxA-H81 is a heavy industrial panel PC with rugged and trendy design which can be applied in harsh industrial environments and enriches aesthetic experience at the same time. The PPC-FxxA-H81 not only provides all the features of a PC, but also combines with resistive/projected capacitive touchscreen for mouse and keyboard free data input.

  • Page 18: Model Variations

    PPC-FxxA-H81 Panel PC 1.2 Model Variations The model numbers and model variations are listed below. Model Touchscreen Power Screen Intel® Pentium® G3220 PPC-F15AA-H81i-P/4G/R-R10 Resistive AC input 15” (dual-core, 3.0 GHz, Projected capacitive PPC–F15AA–H81i-P/4G/PC-R10 AC input 15” max. TDP=53 W) Intel® Core™ i3-4330 PPC–F15AA–H81i-i3/4G/R-R10 Resistive AC input...

  • Page 19: Features

    PPC-FxxA-H81 Panel PC Model Touchscreen Power Screen Intel® Pentium® G3220 PPC–F24AA–H81i-P/4G/PC-R10 Projected capacitive AC input 24” (dual-core, 3.0 GHz, max. TDP=53 W) Intel® Core™ i3-4330 PPC–F24AA–H81i-i3/4G/PC-R10 Projected capacitive AC input 24” (dual-core, 3.5 GHz, max. TDP=54 W) Intel® Core™ i5-4570S PPC–F24AA–H81i-i5/4G/PC-R10 Projected capacitive AC input...

  • Page 20: Front Panel

    PPC-FxxA-H81 Panel PC 1.4 Front Panel The front side of the PPC-FxxA-H81 (Figure 1-2) is a flat panel LCD screen surrounded by an aluminum frame. Figure 1-2: Front View 1.5 Rear Panel The rear panel has a fan vent, four VESA 100x100 mounting holes and several retention screw holes.

  • Page 21: Bottom Panel

    PPC-FxxA-H81 Panel PC Figure 1-3: PPC-F15A-H81 Rear View 1.6 Bottom Panel The bottom panel has the following interfaces: 1 x Power input connector 1 x Power switch 2 x USB 3.0 connectors 4 x USB 2.0 connectors 1 x Reset button 1 x Clear CMOS button 2 x RJ-45 GbE connectors 4 x RS-232 connectors (COM1, COM2, COM3 and COM4)

  • Page 22: Figure 1-4: Bottom View

    PPC-FxxA-H81 Panel PC Figure 1-4: Bottom View Page 7...

  • Page 23: Internal Overview

    PPC-FxxA-H81 Panel PC 1.7 Internal Overview An overview picture of the internal components is shown in F igure 1-6 below. Figure 1-5: PPC-F15A-H81 Internal Components Figure 1-6: PPC-F22A-H81 Internal Components Page 8...

  • Page 24: Dimensions

    PPC-FxxA-H81 Panel PC 1.8 Dimensions 1.8.1 PPC-F15A-H81 Dimensions Figure 1-7: PPC-F15A-H81 Dimensions (mm) Page 9...

  • Page 25: Ppc-F17A-H81 Dimensions

    PPC-FxxA-H81 Panel PC 1.8.2 PPC-F17A-H81 Dimensions Figure 1-8: PPC-F17A-H81 Dimensions (mm) Page 10...

  • Page 26: Ppc-F22A-H81 Dimensions

    PPC-FxxA-H81 Panel PC 1.8.3 PPC-F22A-H81 Dimensions Figure 1-9: PPC-F22A-H81 Dimensions (mm) Page 11...

  • Page 27: Ppc-F24A-H81 Dimensions

    PPC-FxxA-H81 Panel PC 1.8.4 PPC-F24A-H81 Dimensions Figure 1-10: PPC-F24A-H81 Dimensions (mm) Page 12...

  • Page 28: Specifications

    PPC-FxxA-H81 Panel PC 1.9 Specifications The technical specifications for the PPC-FxxA-H81 system are listed in Table 1-2. PPC-F15A-H81 PPC-F17A-H81 PPC-F22A-H81 PPC-F24A-H81 15” (4:3) 17” (5:4) 21.5” (16:9) 24” (16:9) LCD Display 1024 (W) x 768 (H) 1280 (W) x 1024 (H) 1920 (W) x 1080 (H) 1920 (W) x 1080 (H) Max.

  • Page 29: Table 1-2: System Specifications

    PPC-FxxA-H81 Panel PC PPC-F15A-H81 PPC-F17A-H81 PPC-F22A-H81 PPC-F24A-H81 Construction Aluminum front cover and sheet metal rear cover Material Black Enclosure Color 2 x USB 3.0 4 x USB 2.0 4 x RS-232 (COM1 ~ COM4) 1 x RS-232/422/485 (COM5) 1 x HDMI connector 1 x VGA connector I/O Ports, Switches and Buttons...

  • Page 30: Unpacking

    PPC-FxxA-H81 Panel PC Chapter Unpacking Page 15...

  • Page 31: Unpacking

    PPC-FxxA-H81 Panel PC 2.1 Unpacking To unpack the panel PC, follow the steps below: WARNING! The front side LCD screen has a protective plastic cover stuck to the screen. Only remove the plastic cover after the panel PC has been properly installed.

  • Page 32: Packing List

    PPC-FxxA-H81 Panel PC 2.2 Packing List The PPC-FxxA-H81 panel PC is shipped with the following components: Quantity Item Image PPC-FxxA-H81 Power cord (P/N: varies by regions) Screw kit Touch pen (P/N: 43125-0002C0-00-RS) (resistive type models only) User manual and driver CD One Key Recovery CD Table 2-1: Packing List If any of the above items are missing or damaged, contact the distributor or sales...

  • Page 33: Optional Items

    PPC-FxxA-H81 Panel PC 2.3 Optional Items The following items are optional accessories for the PPC-FxxA-H81: PPC-F15A-H81 PPC-F17A-H81 PPC-F22A-H81 PPC-F24A-H81 Item ARM-31 Panel mounting kit FPK-04-R10 FPK-05-R10 FPK-06-R10 Rack mounting kit FRK15-R10 FRK17-R10 STAND-A19 STAND-C19 Stand STAND-A26 STAND-B19 STAND-A26 Wall mounting kit WK-190MS-R10 Wi-Fi kit PPC-WL-KIT03-R11...

  • Page 34: Installation

    PPC-FxxA-H81 Panel PC Chapter Installation Page 19...

  • Page 35: Anti-Static Precautions

    PPC-FxxA-H81 Panel PC 3.1 Anti-static Precautions WARNING: Failure to take ESD precautions during the maintenance of the EP series may result in permanent damage to the EP series and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the PPC-FxxA-H81.

  • Page 36: Preinstalled Components

    PPC-FxxA-H81 Panel PC Mounting: The PPC-FxxA-H81 is a heavy device. When mounting the system onto a rack, panel, wall or arm, please make sure that at least two people are assisting with the procedure. Anti-static Discharge: If a user open the rear panel of the panel PC, to configure the jumpers or plug in added peripheral devices, ground themselves first and wear and anti-static wristband.

  • Page 37: Removing The

    PPC-FxxA-H81 Panel PC 3.5 Removing the Back Cover Remove all the retention screws on the back cover. Lift the cover up to remove. NOTE: The number of retention screws on the back cover varies by models. Figure 3-1: PPC-F15A-H81 Back Cover Retention Screws Page 22...

  • Page 38: Hdd Installation

    PPC-FxxA-H81 Panel PC 3.6 HDD Installation 3.6.1 PPC-F15A/F17A-H81 HDD Installation To install a 2.5” HDD into the PPC-F15A/F17A-H81, please follow the steps below: Remove the back cover. See Section Step 1: 3 .5. Remove the HDD bracket from the PPC-F15A/F17A-H81. The HDD bracket is Step 2: secured on the panel PC with four retention screws ( F igure 3-2).

  • Page 39: Figure 3-3: Hdd Retention Screws

    PPC-FxxA-H81 Panel PC Figure 3-3: HDD Retention Screws Reinstall the HDD bracket into the PPC-FxxA-H81 and fasten the four hard drive Step 5: bracket screws (Figure 3-4).Step 0: Figure 3-4: Replacing the PPC-F15A/F17A-H81 HDD Bracket Page 24...

  • Page 40: Ppc-F22A/F24A-H81 2.5"Hdd Installation

    PPC-FxxA-H81 Panel PC 3.6.2 PPC-F22A/F24A-H81 2.5＂HDD Installation The PPC-F22A/F24A-H81 allows installation of either a 2.5” or 3.5” HDD. To install a 2.5” HDD into the PPC-F22A/F24A-H81, please follow the steps below: Remove the back cover. See Section Step 1: 3 .5. Remove the HDD bracket from the PPC-F22A/F24A-H81.

  • Page 41: Figure 3-6: Connecting The Hard Drive To The Hdd Bracket

    PPC-FxxA-H81 Panel PC Attach the hard drive to the bracket. To do this, slide the hard drive onto the Step 3: bracket until it connects with the SATA connector at the back (Figure 3-6). Figure 3-6: Connecting the Hard Drive to the HDD Bracket Secure the hard drive to the bracket.

  • Page 42: Ppc-F22A/F24A-H81 3.5" Hdd Installation

    PPC-FxxA-H81 Panel PC Figure 3-8: Replacing the PPC-F22A/F24A-H81 HDD Bracket 3.6.3 PPC-F22A/F24A-H81 3.5” HDD Installation The PPC-F22A/F24A-H81 allows installation of either a 2.5” or 3.5” HDD. To install a 3.5” HDD into the PPC-F22A/F24A-H81, please follow the steps below: Remove the back cover. See Section Step 1: 3 .5.

  • Page 43: Figure 3-9: Connecting The Hard Drive To The Hdd Bracket

    PPC-FxxA-H81 Panel PC Attach the hard drive to the bracket. To do this, slide the hard drive onto the Step 3: bracket until it connects with the SATA connector at the back (Figure 3-9). Figure 3-9: Connecting the Hard Drive to the HDD Bracket Secure the hard drive to the bracket.

  • Page 44: Msata Module Installation

    PPC-FxxA-H81 Panel PC Figure 3-11: Replacing the PPC-F22A/F24A-H81 HDD Bracket 3.7 mSATA Module Installation One of the PCIe Mini card slots on the motherboard of the PPC-FxxA-H81 supports mSATA module. To install an mSATA module, please follow the steps below. Remove the back cover.

  • Page 45: Figure 3-12: Pcie Mini Card Slot Which Supports Msata

    PPC-FxxA-H81 Panel PC Figure 3-12: PCIe Mini Card Slot which supports mSATA Remove the retention screws. Remove the two retention screws as shown in Step 3: Figure 3-13. Figure 3-13: Removing the Retention Screws Page 30...

  • Page 46: Figure 3-14: Inserting The Pcie Mini Card Into The Slot At An Angle

    PPC-FxxA-H81 Panel PC Insert into the socket at an angle. Line up the notch on the card with the notch Step 4: on the slot. Slide the PCIe Mini card into the socket at an angle of about 20º (Figure 3-14). Figure 3-14: Inserting the PCIe Mini Card into the Slot at an Angle Secure the PCIe Mini card.

  • Page 47: Wireless Lan Module Installation (Optional)

    PPC-FxxA-H81 Panel PC 3.8 Wireless LAN Module Installation (Optional) To install the optional wireless LAN (WLAN) module, please follow the steps below. Remove the back cover. See Section Step 1: 3 .5. Remove the two knockouts for antenna installation. The two knockouts are Step 2: located on the top panel of the PPC-FxxA-H81 as shown in Figure 3-16.

  • Page 48: Figure 3-17: Pcie Mini Slot Location

    PPC-FxxA-H81 Panel PC Locate the PCIe Mini slot (Figure 3-17). Step 3: Figure 3-17: PCIe Mini Slot Location Remove the retention screws and the standoffs secured on the motherboard as Step 4: shown in Figure 3-18. Figure 3-18: Removing the Retention Screws and Standoffs Page 33...

  • Page 49: Figure 3-19: Installing The Standoffs

    PPC-FxxA-H81 Panel PC Install the previously removed standoffs to the screw holes for the WLAN Step 5: module (Figure 3-19). Figure 3-19: Installing the Standoffs Line up the notch on the WLAN module with the notch on the slot. Slide the Step 6: WLAN module into the slot at an angle of about 20º...

  • Page 50: Figure 3-21: Securing Wlan Module And Connecting Rf Cables

    PPC-FxxA-H81 Panel PC Secure the WLAN module with the retention screws previously removed (Figure 3-21). Step 7: Connect the two RF cables to the antenna connectors on the WLAN module Step 8: (Figure 3-21). Figure 3-21: Securing WLAN Module and Connecting RF Cables Remove the nut and washer from the SMA connector at the other end of the RF cable.

  • Page 51: Iris-2400 Module Installation

    PPC-FxxA-H81 Panel PC 3.9 iRIS-2400 Module Installation WARNING: The iRIS-2400 module slot is designed to install the iRIS-2400 module only. DO NOT install other modules into the iRIS-2400 module slot. Doing so may cause damage to the PPC-FxxA-H81. To install the iRIS-2400 module, please follow the steps below. Remove the back cover.

  • Page 52: At/Atx Mode Selection

    PPC-FxxA-H81 Panel PC Align the iRIS-2400 module with the iRIS-2400 module slot. Align the notch Step 3: on the module with the notch on the iRIS-2400 module slot (Figure 3-24). Figure 3-24: iRIS-2400 Module Installation Insert the iRIS-2400 module. Push the module in at a 20º angle (Figure 3-24). Step 4: Seat the iRIS-2400 module.

  • Page 53: Mounting The System

    PPC-FxxA-H81 Panel PC Figure 3-25: AT/ATX Mode Selection 3.11 Mounting the System WARNING! When mounting the PPC-FxxA-H81 panel PC, it is advisable to have more than one person help with the installation to prevent accidental damage to the panel and avoid personal injury. The methods of mounting the PPC-FxxA-H81 are: Wall mounting Panel mounting...

  • Page 54: Figure 3-26: Wall-Mounting Bracket

    PPC-FxxA-H81 Panel PC Secure the mounting bracket to the wall by inserting the retention screws into Step 5: the four pilot holes and tightening them (Figure 3-26). Figure 3-26: Wall-mounting Bracket Insert the four monitor mounting screws provided in the wall mounting kit into the Step 6: four screw holes on the real panel of the monitor and tighten until the screw shank is secured against the rear panel (Figure 3-27).

  • Page 55: Figure 3-27: Mount The Chassis

    PPC-FxxA-H81 Panel PC Figure 3-27: Mount the Chassis Secure the panel PC with the wall-mounting kit. To do this, stick the protective Step 9: cushion to the wall-mounting kit first. Then, put the wall-mounting kit on the top panel of the panel PC. Carefully mark the location of the wall-mounting kit screw holes on the wall.

  • Page 56: Panel Mounting

    PPC-FxxA-H81 Panel PC Figure 3-28: Secure the Chassis 3.11.2 Panel Mounting To mount the PPC-FxxA-H81 panel PC into a panel, please follow the steps below. Install the mounting brackets onto the rear panel (Figure 3-29). The required Step 13: number of mounting brackets may vary by models. Page 41...

  • Page 57: Figure 3-29: Ppc-F15A-H81 Mounting Bracket Installation

    PPC-FxxA-H81 Panel PC Figure 3-29: PPC-F15A-H81 Mounting Bracket Installation Select the position on the panel to mount the PPC-FxxA-H81. Step 14: Cut out a section of the panel that corresponds to the rear panel dimensions of Step 15: the PPC-FxxA-H81. The recommended cutout sizes are shown below F igure 3-31, Figure 3-32 and F igure 3-30, F igure 3-33).

  • Page 58: Figure 3-31: Ppc-F17A-H81 Panel Cutout Dimensions

    PPC-FxxA-H81 Panel PC Figure 3-31: PPC-F17A-H81 Panel Cutout Dimensions Figure 3-32: PPC-F22A-H81 Panel Cutout Dimensions Page 43...

  • Page 59: Figure 3-33: Ppc-F24A-H81 Panel Cutout Dimensions

    PPC-FxxA-H81 Panel PC Figure 3-33: PPC-F24A-H81 Panel Cutout Dimensions Slide the PPC-FxxA-H81 through the hole until the aluminum frame is flush Step 16: against the panel. Insert the mounting clamps into the mounting brackets and pre-formed holes Step 17: along the edges of the PPC-FxxA-H81, behind the aluminum frame (Figure 3-34).

  • Page 60: Rack And Cabinet Installation

    PPC-FxxA-H81 Panel PC Figure 3-34: Tighten the Mounting Clamp Screws 3.11.3 Rack and Cabinet Installation The PPC-FxxA-H81 flat panel PC can be installed into a cabinet or rack. The installation procedures are similar to the panel mounting installation. To do this, please follow the steps below: NOTE: When purchasing the cabinet/rack installation bracket, make sure it is...

  • Page 61: Figure 3-35: The Rack/Cabinet Bracket

    PPC-FxxA-H81 Panel PC Install the mounting brackets onto the rear panel (Figure 3-29). The required Step 1: number of mounting brackets may vary by models. Slide the rear of the PPC-FxxA-H81 flat panel PC through the rack/cabinet Step 2: bracket until the aluminum frame is flush against the front of the bracket (Figure 3-35).

  • Page 62: Figure 3-36: Secure The Rack/Cabinet Bracket

    PPC-FxxA-H81 Panel PC Figure 3-36: Secure the Rack/Cabinet Bracket Slide the PPC-FxxA-H81 with the attached rack/cabinet bracket into a rack or Step 5: cabinet (Figure 3-37). Page 47...

  • Page 63: Arm Mounting

    PPC-FxxA-H81 Panel PC Figure 3-37: Install into a Rack/Cabinet Once the flat panel PC with the attached rack/cabinet bracket has been properly Step 6: inserted into the rack or cabinet, secure the front of the rack/cabinet bracket to the front of the rack or cabinet (Figure 3-37).Step 0: 3.11.4 Arm Mounting The PPC-FxxA-H81 is VESA (Video Electronics Standards Association) compliant and...

  • Page 64: Stand Mounting

    PPC-FxxA-H81 Panel PC Once the mounting arm has been firmly attached to its surface, lift the Step 2: PPC-FxxA-H81 panel PC onto the interface pad of the mounting arm. Align the retention screw holes on the mounting arm interface with those in the Step 3: PPC-FxxA-H81 panel PC.

  • Page 65: External Peripheral Device Connection

    PPC-FxxA-H81 Panel PC Figure 3-39: Stand Mounting Retention Screw Holes Align the bracket with the screw holes. Step 2: To secure the bracket to the PPC-FxxA-H81, insert the retention screws into the Step 3: screw holes and tighten them.S t e p 0 : 3.12 External Peripheral Device Connection The following external peripheral devices can be connected to the external peripheral interface connectors on the bottom panel.

  • Page 66: Figure 3-40: Audio Connector

    PPC-FxxA-H81 Panel PC Identify the audio plugs. The plugs on your home theater system or speakers Step 1: may not match the colors on the rear panel. If audio plugs are plugged into the wrong jacks, sound quality will be very bad. Plug the audio plugs into the audio jacks.

  • Page 67: Hdmi Display Device Connection

    PPC-FxxA-H81 Panel PC 3.12.2 HDMI Display Device Connection The HDMI connector transmits a digital signal to compatible HDMI display devices such as a TV or computer screen. To connect the HDMI cable to the PPC-FxxA-H81, follow the steps below. Locate the HDMI connector. The location is shown in Figure 1-4. Step 1: Align the connector.

  • Page 68: Lan Connection

    PPC-FxxA-H81 Panel PC 3.12.3 LAN Connection The RJ-45 LAN connectors allow connections to external networks. To connect the PPC-FxxA-H81 to a network through the RJ-45 LAN connectors, follow the steps below. Locate the RJ-45 connectors. The locations of the RJ-45 connectors are Step 1: shown in F igure 1-4.

  • Page 69: Usb Device Connection

    PPC-FxxA-H81 Panel PC Insert the serial connector. Insert the DB-9 connector of a serial device into Step 2: the DB-9 connector on the bottom panel. See Figure 3-43. Figure 3-43: RS-232 Serial Device Connector Secure the connector. Secure the serial device connector to the external Step 3: interface by tightening the two retention screws on either side of the connector.

  • Page 70: Vga Connector Connection

    PPC-FxxA-H81 Panel PC Figure 3-44: USB Device Connection Insert the device connector. Once aligned, gently insert the USB device Step 3: connector into the onboard connector. 3.12.6 VGA Connector Connection The VGA connector connects to a monitor that accepts VGA video input. To connect the PPC-FxxA-H81 to a VGA monitor, follow the steps below, Locate the female DB-15 connector.

  • Page 71: Reset The System

    PPC-FxxA-H81 Panel PC Figure 3-45: VGA Connector 3.13 Reset the System The reset button enables users to reboot the system when the system is turned on. The reset button location is shown in Figure 3-46. Press the reset button to reboot the system. Figure 3-46: Reset Button Location Page 56...

  • Page 72: Clear Cmos

    PPC-FxxA-H81 Panel PC 3.14 Clear CMOS If the PPC-FxxA-H81 fails to boot due to improper BIOS settings, the clear CMOS button clears the CMOS data and resets the system BIOS information. To do this, push the clear CMOS button for three seconds, and then restart the system. The clear CMOS button location is shown in Figure 3-47.

  • Page 73: Ipmi Setup Procedure

    PPC-FxxA-H81 Panel PC 3.16 IPMI Setup Procedure The PPC-FxxA-H81 features Intelligent Platform Management Interface (IPMI) that helps lower the overall costs of server management by enabling users to maximize IT resources, save time and manage multiple systems. The PPC-FxxA-H81 supports IPMI 2.0 through the optional iRIS-2400 module.

  • Page 74: Figure 3-48: Iei Iman Web Address

    PPC-FxxA-H81 Panel PC On the remote management console, open a web browser. Enter the managed Step 2: system IP address in the web browser (Figure 3-48). Figure 3-48: IEI iMAN Web Address The login page appears in the web browser. Step 3: Enter the user name and password to login the system.

  • Page 75: System Maintenance

    PPC-FxxA-H81 Panel PC Chapter System Maintenance Page 60...

  • Page 76: System Maintenance Introduction

    PPC-FxxA-H81 Panel PC 4.1 System Maintenance Introduction The following system components may require maintenance. Motherboard Memory module Cooling fans If these components fail, they must be replaced. Please contact the system reseller or vendor to purchase replacement parts. Replacement instructions for the above listed components are described below.

  • Page 77: So-Dimm Replacement

    PPC-FxxA-H81 Panel PC To access the panel PC internal components, the back cover must be removed. To remove the back cover, please refer to Section 3 .5 for back cover removal instructions. 4.4 SO-DIMM Replacement Please read the warnings at the beginning of the previous section before attempting to access any PPC-FxxA-H81 internal components.

  • Page 78: System Cooling Fan Replacement

    PPC-FxxA-H81 Panel PC Once aligned, press down until the SO-DIMM is properly seated. Clip the two Step 6: handles into place. Step 0: Figure 4-2: SO-DIMM Module Installation 4.5 System Cooling Fan Replacement If the system cooling fans have been damaged, they must be replaced. To replace the system cooling fans, please follow the steps below.

  • Page 79: Install The New System Cooling Fans

    PPC-FxxA-H81 Panel PC Disconnect the system cooling fans from the motherboard ( Step 2: F igure 4-3). Figure 4-3: System Cooling Fans Motherboard Connectors Remove the system cooling fan retention screws from the left panel Step 3: F igure 4-4). Figure 4-4: System Cooling Fan Retention Screws Remove the system cooling fans from the chassis.
  • Page 80 PPC-FxxA-H81 Panel PC Rebundle the new fan wires and tie them to the chassis like the old fan wires. Step 2: Reconnect the new fan connector to the motherboard. Step 3: Replace the back cover.Step 0: Step 4: Page 65...

  • Page 81: Bios Setup

    PPC-FxxA-H81 Panel PC Chapter BIOS Setup Page 66...

  • Page 82: Introduction

    PPC-FxxA-H81 Panel PC 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. NOTE: Some of the BIOS options may vary throughout the life cycle of the product and are subject to change without prior notice.

  • Page 83: Getting Help

    PPC-FxxA-H81 Panel PC Function Decrease the numeric value or make changes Page up Move to the next page Page down Move to the previous page Main Menu – Quit and do not save changes into CMOS Status Page Setup Menu and Option Page Setup Menu -- Exit current page and return to Main Menu General help, only for Status Page Setup Menu and Option Page Setup Menu...
  • Page 84 PPC-FxxA-H81 Panel PC Security – Sets User and Supervisor Passwords. Save & Exit – Selects exit options and loads default settings The following sections completely describe the configuration options found in the menu items at the top of the BIOS screen and listed above. Page 69...

  • Page 85: Main

    PPC-FxxA-H81 Panel PC 5.2 Main The Main BIOS menu ( B IOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Main Advanced Chipset...

  • Page 86: Advanced

    PPC-FxxA-H81 Panel PC The Main menu has two user configurable fields: System Date [xx/xx/xx] Use the System Date option to set the system date. Manually enter the day, month and year. System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.

  • Page 87: Acpi Settings

    PPC-FxxA-H81 Panel PC Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit System ACPI Parameters > ACPI Settings > RTC Wake Settings > CPU Configuration > SATA Configuration ---------------------- > USB Configuration >...

  • Page 88: Rtc Wake Settings

    PPC-FxxA-H81 Panel PC ACPI Sleep State [S1 only (CPU Stop Clock)] Use the ACPI Sleep State option to specify the sleep state the system enters when it is not being used. The system enters S1(POS) sleep state. The S1 only (CPU Stop EFAULT system appears off.

  • Page 89: Wake System With Fixed Time [Disabled]

    PPC-FxxA-H81 Panel PC Wake system with Fixed Time [Disabled] Use the Wake system with Fixed Time option to enable or disable the system wake on alarm event. The real time clock (RTC) cannot generate a wake Disabled EFAULT event If selected, the Wake up every day option appears Enabled allowing you to enable to disable the system to wake every day at the specified time.

  • Page 90: Cpu Configuration

    PPC-FxxA-H81 Panel PC 5.3.3 CPU Configuration Use the CPU Configuration menu ( B IOS Menu 5) to view detailed CPU specifications and configure the CPU. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced CPU Configuration Number of cores to enable in each processor package.

  • Page 91: Active Processor Cores [All]

    PPC-FxxA-H81 Panel PC CPU Speed: Lists the CPU processing speed. Processor Cores: Lists the number of the processor core Intel HT Technology: Indicates if Intel HT Technology is supported by the CPU. Intel VT-x Technology: Indicates if Intel VT-x Technology is supported by the CPU.

  • Page 92: Sata Configuration

    PPC-FxxA-H81 Panel PC EIST [Enabled] Use the EIST option to enable or disable the Enhanced Intel® SpeedStep Technology (EIST). Disables Enhanced Intel® SpeedStep Technology Disabled Enables Enhanced Intel® SpeedStep Technology Enabled EFAULT 5.3.4 SATA Configuration Use the SATA Configuration menu ( B IOS Menu 6) to change and/or set the configuration of the SATA devices installed in the system.

  • Page 93: Usb Configuration

    PPC-FxxA-H81 Panel PC SATA Mode Selection [IDE] Use the SATA Mode Selection option to determine how SATA devices operate. Configures SATA devices as normal IDE device. EFAULT Configures SATA devices as AHCI device. AHCI 5.3.5 USB Configuration Use the USB Configuration menu ( B IOS Menu 7) to read USB configuration information and configure the USB settings.

  • Page 94: F81866 Super Io Configuration

    PPC-FxxA-H81 Panel PC does not become available until a USB compatible operating system is fully booted with all USB drivers loaded. When this option is enabled, any attached USB mouse or USB keyboard can control the system even when there is no USB driver loaded onto the system.

  • Page 95: Serial Port N Configuration

    PPC-FxxA-H81 Panel PC 5.3.6.1 Serial Port n Configuration Use the Serial Port n Configuration menu ( B IOS Menu 9) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced Serial Port n Configuration Enable or Disable Serial Port (COM) Serial Port...

  • Page 96: Serial Port [Enabled]

    PPC-FxxA-H81 Panel PC Serial Port I/O port address is 3F8h and the interrupt IO=3F8h; address is IRQ3, 4 IRQ=3, 4 Serial Port I/O port address is 2C0h and the interrupt IO=2C0h; address is IRQ3, 4 IRQ=3, 4 Serial Port I/O port address is 2C8h and the interrupt IO=2C8h;...

  • Page 97: Serial Port [Enabled]

    PPC-FxxA-H81 Panel PC 5.3.6.1.3 Serial Port 3 Configuration Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port. Disable the serial port Disabled Enable the serial port Enabled EFAULT Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address.

  • Page 98: Change Settings [Auto]

    PPC-FxxA-H81 Panel PC Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address. The serial port IO port address and interrupt address Auto EFAULT are automatically detected. Serial Port I/O port address is 2E8h and the interrupt IO=2E8h;...

  • Page 99: Iwdd H/W Monitor

    PPC-FxxA-H81 Panel PC The serial port IO port address and interrupt address Auto EFAULT are automatically detected. Serial Port I/O port address is 2D0h and the interrupt IO=2D0h; address is IRQ10 IRQ=10 Serial Port I/O port address is 2C0h and the interrupt IO=2C0h;...

  • Page 100: Pc Health Status

    PPC-FxxA-H81 Panel PC Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced PC Health Status > Smart Fan Mode Configuration CPU temperature : +53 C System temperature : +45 C CPU_FAN1 Speed : 1908 RPM --------------------- SYS_FAN1 Speed : 160 RPM : Select Screen ↑...

  • Page 101: Serial Port Console Redirection

    PPC-FxxA-H81 Panel PC 5.3.8 Serial Port Console Redirection The Serial Port Console Redirection menu ( B IOS Menu 11) allows the console redirection options to be configured. Console redirection allows users to maintain a system remotely by re-directing keyboard input and text output through the serial port. Aptio Setup Utility –...

  • Page 102: Terminal Type [Ansi]

    PPC-FxxA-H81 Panel PC Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced COM1 Emulation: ANSI: Extended Console Redirection Settings ASCII char set. VT100: ASCII char set. VT100+: Terminal Type [ANSI] Extends VT100 to support Bits per second [115200] color, function keys, etc.

  • Page 103: Data Bits [8]

    PPC-FxxA-H81 Panel PC Data Bits [8] Use the Data Bits option to specify the number of data bits. Sets the data bits at 7. Sets the data bits at 8. EFAULT Parity [None] Use the Parity option to specify the parity bit that can be sent with the data bits for detecting the transmission errors.

  • Page 104: Iei Feature

    PPC-FxxA-H81 Panel PC 5.3.9 iEi Feature Use the iEi Feature menu (BIOS Menu 12) to configure One Key Recovery function. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Advanced iEi Feature Auto Recovery Function Reboot and recover Auto Recovery Function [Disabled] system automatically within 10 min, when OS...

  • Page 105: Chipset

    PPC-FxxA-H81 Panel PC 5.4 Chipset Use the Chipset menu ( B IOS Menu 14) to access the PCH and System Agent (SA) configuration menus. WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction. Aptio Setup Utility –...

  • Page 106: Pch-Io Configuration

    PPC-FxxA-H81 Panel PC 5.4.1 PCH-IO Configuration Use the PCH-IO Configuration menu ( B IOS Menu 15) to configure the PCH IO settings. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Chipset Auto Power Button Function [Disabled (ATX)] Select AC power state when power is re-applied after Restore AC Power Loss [Last State]...

  • Page 107: Table 5-2: Bios Options And Configured Usb Ports

    PPC-FxxA-H81 Panel PC USB SW1 Power [+5V DUAL] Use the USB Power SW1 BIOS option to configure the USB power source for the corresponding USB connectors (Table 5-2). Sets the USB power source to +5V Sets the USB power source to +5V dual +5V DUAL EFAULT USB SW2 Power [+5V DUAL]...

  • Page 108: Pci Express Configuration

    PPC-FxxA-H81 Panel PC 5.4.1.1 PCI Express Configuration Use the PCI Express Configuration menu (BIOS Menu 16) to configure the PCI Express slots. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Chipset PCI Express Configuration MINI-PCIE1 Setting > MINI-PCIE1 >...

  • Page 109: Pch Azalia Configuration

    PPC-FxxA-H81 Panel PC PCIe Speed [Auto] Use this option to select the support type of the PCIe Mini slots. The following options are available: Auto Default Gen1 Gen2 Detect Non-Compliance Device [Disbled] Use the Detect Non-Compliance Device option to enable or disable detecting if a non-compliance PCI Express device is connected to the PCI Express slot.

  • Page 110: Azalia (Hd Audio) [Enabled]

    PPC-FxxA-H81 Panel PC Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Chipset PCH Azalia Configuration Control Detection of the Azalia device. Azalia (HD Audio) [Enabled] Disabled = Azalia will be unconditionally disabled Enabled = Azalia will be unconditionally Enabled Auto = Azalia will be enabled if present, disabled otherwise.

  • Page 111: System Agent (Sa) Configuration

    PPC-FxxA-H81 Panel PC 5.4.2 System Agent (SA) Configuration Use the System Agent (SA) Configuration menu (BIOS Menu 19) to configure the System Agent (SA) parameters. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Chipset VT-d [Disabled] Check to enable VT-d function on MCH.

  • Page 112: Graphics Configuration

    PPC-FxxA-H81 Panel PC 5.4.2.1 Graphics Configuration Use the Graphics Configuration menu ( B IOS Menu 20) to configure the graphics settings Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Chipset Graphics Configuration Select which of IGFX/PEG/PCI Graphics Primary Display [Auto] device should be Primary DVMT Pre-Allocated...

  • Page 113: Dvmt Total Gfx Mem [Max]

    PPC-FxxA-H81 Panel PC 256M EFAULT 512M DVMT Total Gfx Mem [MAX] Use the DVMT Total Gfx Mem option to specify the maximum amount of memory that can be allocated for the internal graphics device. Configuration options are listed below. 128M 256M EFAULT 5.4.2.1.1 LCD Control...

  • Page 114: Memory Configuration

    PPC-FxxA-H81 Panel PC Primary IGFX Boot Display [VBIOS Default] Use the Primary IGFX Boot Display option to select the display device used by the system when it boots. Configuration options are listed below. VBIOS Default EFAULT HDMI LVDS 5.4.2.2 Memory Configuration Use the Memory Configuration menu (BIOS Menu 22) to display the memory information.

  • Page 115: Boot

    PPC-FxxA-H81 Panel PC 5.5 Boot Use the Boot menu ( B IOS Menu 23) to configure system boot options. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Boot Configuration Select the keyboard Bootup NumLock State [On] NumLock state...

  • Page 116: Quiet Boot [Enabled]

    PPC-FxxA-H81 Panel PC Quiet Boot [Enabled] Use the Quiet Boot BIOS option to select the screen display when the system boots. Normal POST messages displayed Disabled OEM Logo displayed instead of POST messages Enabled EFAULT Option ROM Messages [Force BIOS] Use the Option ROM Messages option to set the Option ROM display mode.

  • Page 117: Security

    PPC-FxxA-H81 Panel PC 5.6 Security Use the Security menu (BIOS Menu 24) to set system and user passwords. Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Password Description Set Administrator Password If ONLY the Administrator’s password is set, then this only limits access to Setup and is...

  • Page 118: Save Changes And Reset

    PPC-FxxA-H81 Panel PC Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Main Advanced Chipset Boot Save & Exit Save Changes and Reset Exit the system after Discard Changes and Reset saving the changes. Restore Defaults Save as User Defaults Restore User Defaults --------------------- : Select Screen...

  • Page 119: Driver Installation

    PPC-FxxA-H81 Panel PC Chapter Driver Installation Page 104...

  • Page 120: Available Software Drivers

    PPC-FxxA-H81 Panel PC 6.1 Available Software Drivers NOTE: The content of the CD may vary throughout the life cycle of the product and is subject to change without prior notice. Visit the IEI website or contact technical support for the latest updates. The following drivers can be installed on the system: Chipset Audio...

  • Page 121: Chipset Driver Installation

    PPC-FxxA-H81 Panel PC Figure 6-1: Drivers 6.3 Chipset Driver Installation To install the chipset driver, please do the following. Access the driver list. (See Section 6.2) Step 1: Click “1.Chipset”. Step 2: Double click the setup file. Step 3: When the setup files are completely extracted, the Welcome Screen in Figure Step 4: 6-2 appears.

  • Page 122: Figure 6-2: Chipset Driver Welcome Screen

    PPC-FxxA-H81 Panel PC Figure 6-2: Chipset Driver Welcome Screen Click Next to continue. Step 5: The license agreement in Figure 6-3 appears. Step 6: Read the License Agreement. Step 7: Click Yes to continue. Step 8: Page 107...

  • Page 123: Figure 6-3: Chipset Driver License Agreement

    PPC-FxxA-H81 Panel PC Figure 6-3: Chipset Driver License Agreement The Read Me file in Figure 6-4 appears. Step 9: Click Next to continue. Step 10: Figure 6-4: Chipset Driver Read Me File Page 108...

  • Page 124: Figure 6-5: Chipset Driver Setup Operations

    PPC-FxxA-H81 Panel PC Setup Operations are performed as shown in Figure 6-5. Step 11: Figure 6-5: Chipset Driver Setup Operations Once the Setup Operations are complete, click Next to continue. Step 12: The Finish screen appears. Step 13: Select “Yes, I want to restart the computer now” and click the Finish icon. Step 14: See Figure 6-6.

  • Page 125: Vga Driver Installation

    PPC-FxxA-H81 Panel PC Figure 6-6: Chipset Driver Installation Finish Screen 6.4 VGA Driver Installation To install the VGA driver, please do the following. Access the driver list. (See Section 6.2) Step 1: Click “2.VGA”. Step 2: Double click the Win32_15338 or Win64_15338 file that corresponds to your Step 3: OS version.

  • Page 126: Figure 6-7: Vga Driver Readme File

    PPC-FxxA-H81 Panel PC Figure 6-7: VGA Driver README FILE The setup files are extracted as shown in Figure 6-8. Step 5: Figure 6-8: VGA Driver Screen When the setup files are completely extracted, the Welcome Screen in Step 6: Figure 6-9 appears. Click Next to continue. Page 111...

  • Page 127: Figure 6-9: Vga Driver Welcome Screen

    PPC-FxxA-H81 Panel PC Figure 6-9: VGA Driver Welcome Screen The license agreement in Figure 6-10 appears. Step 7: Read the License Agreement. Step 8: Click Yes to continue. Step 9: Figure 6-10: VGA Driver License Agreement Page 112...

  • Page 128: Figure 6-11: Vga Driver Readme File Information

    PPC-FxxA-H81 Panel PC The Readme File Information screen in Figure 6-11 appears. Click Next to Step 10: continue. Figure 6-11: VGA Driver Readme File Information Setup Progress is performed as shown in Figure 6-12. Step 11: Figure 6-12: VGA Driver Setup Progress Page 113...

  • Page 129: Audio Driver Installation

    PPC-FxxA-H81 Panel PC Once the setup operations are complete, click the Next icon to continue. Step 12: The Finish screen appears. Step 13: Select “Yes, I want to restart the computer now” and click the Finish icon. Step 14: See Figure 6-13. Figure 6-13: VGA Driver Installation Finish Screen 6.5 Audio Driver Installation To install the Audio driver, please do the following.

  • Page 130: Figure 6-14: Audio Driver Welcome Screen

    PPC-FxxA-H81 Panel PC Figure 6-14: Audio Driver Welcome Screen Click Yes to continue. Step 6: The program begins to install. See Figure 6-15. Step 7: Figure 6-15: Audio Driver Installation When the driver installation is complete, the screen in Figure 6-16 appears. Step 8: Page 115...

  • Page 131: Lan Driver Installation

    PPC-FxxA-H81 Panel PC Figure 6-16: Audio Driver Installation Complete Select “Yes, I want to restart my computer now” and click OK. Step 9: The system reboots. Step 10: 6.6 LAN Driver Installation To install the LAN driver, please do the following. Access the driver list.

  • Page 132: Figure 6-17: Lan Driver Welcome Screen

    PPC-FxxA-H81 Panel PC Figure 6-17: LAN Driver Welcome Screen The License Agreement in Figure 6-18 appears. Step 5: Accept the agreement by selecting “I accept the terms in the license Step 6: agreement”. Click Next to continue. Step 7: Figure 6-18: LAN Driver License Agreement Page 117...

  • Page 133: Figure 6-19: Lan Driver Setup Options

    PPC-FxxA-H81 Panel PC The Setup Options screen in Figure 6-19 appears. Step 8: Select program features to install. Step 9: Click Next to continue. Step 10: Figure 6-19: LAN Driver Setup Options The Ready to Install screen in Figure 6-20 appears. Step 11: Click Install to proceed with the installation.

  • Page 134: Figure 6-20: Lan Driver Installation

    PPC-FxxA-H81 Panel PC Figure 6-20: LAN Driver Installation The program begins to install. Step 13: When the driver installation is complete, the screen in Figure 6-21 appears. Step 14: Click Finish to exit. Step 15: Figure 6-21: LAN Driver Installation Complete Page 119...

  • Page 135: Usb 3.0 Driver Installation

    PPC-FxxA-H81 Panel PC 6.7 USB 3.0 Driver Installation WARNING: Do not run this driver’s installer (Setup.exe) from a USB storage device (ie. external USB hard drive or USB thumb drive). For proper installation, please copy driver files to a local hard drive folder and run from there.

  • Page 136: Figure 6-23: Usb 3.0 Driver License Agreement

    PPC-FxxA-H81 Panel PC The license agreement in Figure 6-23 appears. Step 6: Read the License Agreement, and then click Yes to continue. Step 7: Figure 6-23: USB 3.0 Driver License Agreement The Read Me file in Figure 6-24 appears. Click Next to continue. Step 8: Page 121...

  • Page 137: Figure 6-24: Usb 3.0 Driver Read Me File

    PPC-FxxA-H81 Panel PC Figure 6-24: USB 3.0 Driver Read Me File Setup Operations are performed as shown in Figure 6-25. Step 9: Figure 6-25: USB 3.0 Driver Setup Operations Once the Setup Operations are complete, click Next to continue. Step 10: Page 122...

  • Page 138: Resistive Type Touchscreen Driver Installation

    PPC-FxxA-H81 Panel PC The Finish screen in Figure 6-26 appears. Step 11: Select “Yes, I want to restart this computer now” and click Step 12: Finish.Step Figure 6-26: USB 3.0 Driver Installation Finish Screen 6.8 Resistive Type Touchscreen Driver Installation To install the resistive type touchscreen driver, please follow the steps below.

  • Page 139: Figure 6-27: Welcome Screen

    PPC-FxxA-H81 Panel PC Figure 6-27: Welcome Screen The license agreement in Figure 6-28 appears. Step 6: Read the License Agreement. Step 7: Click I Agree to continue. Step 8: Figure 6-28: Touchscreen Driver License Agreement Select the destination folder where the setup files will be copied to (Figure 6-29). Step 9: Page 124...

  • Page 140: Figure 6-29: Choose Destination Folder

    PPC-FxxA-H81 Panel PC Click Install to start installation. Step 10: Figure 6-29: Choose Destination Folder The installation begins. See Figure 6-30. Step 11: Figure 6-30: Setup Status Page 125...

  • Page 141: Calibrating The Resistive Type Touchscreen

    PPC-FxxA-H81 Panel PC A dialog box as shown in Figure 6-31 appears. Select Yes to use the PenMount Step 12: touch features or No to use the system touch gestures. Figure 6-31: Select Touch Features When the installation is complete, the screen in Figure 6-32 appears. Click Step 13: Finish to close the setup wizard.

  • Page 142: Figure 6-33: Select Control Panel

    PPC-FxxA-H81 Panel PC Click Control Panel from the menu (Figure 6-33). Step 2: ： Figure 6-33: Select Control Panel The touchscreen control panel appears (Figure 6-34). Click Configure. Step 3: Figure 6-34: Touchscreen Control Panel The user can click Standard Calibration or Advanced Calibration to proceed Step 4: with standard or advanced calibration.

  • Page 143: Figure 6-35: Select Calibration Type

    PPC-FxxA-H81 Panel PC Figure 6-35: Select Calibration Type The calibration window in Figure 6-36 appears. The user is asked to touch the Step 5: screen at five specified points, if Standard Calibration is selected. Follow the screen guide to touch and hold each red square in the calibration window until it shows “Lift off to proceed”.

  • Page 144: Keypad Ap Installation

    PPC-FxxA-H81 Panel PC When the calibration is complete, the setup returns to the control panel. Click Step 6: OK to exit. 6.9 Keypad AP Installation The Keypad AP is an OSD control tool developed by IEI. To install and use the Keypad AP, please do the following.

  • Page 145: Figure 6-38: Select Installation Folder

    PPC-FxxA-H81 Panel PC Figure 6-38: Select Installation Folder The Confirm Installation screen in Figure 6-39 appears. Click Next to proceed Step 8: with the installation. Figure 6-39: Confirm Installation Page 130...

  • Page 146: Figure 6-40: Keypad Ap Installation Complete

    PPC-FxxA-H81 Panel PC The program begins to install. Step 9: When the installation is complete, the screen in Figure 6-40 appears. Click Step 10: Close to exit. Figure 6-40: Keypad AP Installation Complete The screen in Figure 6-41 appears. Click Yes to restart the system. Step 11: Figure 6-41: Keypad AP Installation Complete Page 131...

  • Page 147: Figure 6-42: Keypad Ap

    PPC-FxxA-H81 Panel PC To use the Keypad AP, the user must connect an audio device to the line-out Step 12: port on the bottom panel. Refer to Section 3.12.1 for an audio device connection. Click the icon on the Windows notification area to access the Keypad AP. It Step 13: allows the user to control screen brightness and audio volume.

  • Page 148: Interface Connectors

    PPC-FxxA-H81 Panel PC Chapter Interface Connectors Page 133...

  • Page 149: Peripheral Interface Connectors

    PPC-FxxA-H81 Panel PC 7.1 Peripheral Interface Connectors The PPC-FxxA-H81 panel PC motherboard comes with a number of peripheral interface connectors and configuration jumpers. The connector locations are shown in Figure 6-1 and Figure 6-2. The Pin 1 locations of the on-board connectors are also indicated in the diagrams.

  • Page 150: Internal Peripheral Connectors

    PPC-FxxA-H81 Panel PC Figure 7-2: Main Board Layout Diagram (Solder Side) 7.2 Internal Peripheral Connectors Internal peripheral connectors are found on the motherboard and are only accessible when the motherboard is outside of the chassis. The table below shows a list of the peripheral interface connectors on the PPC-FxxA-H81 motherboard.

  • Page 151: Table 7-1: Peripheral Interface Connectors

    PPC-FxxA-H81 Panel PC Connector Type Label Fan connectors (system) 4-pin wafer SYS_FAN1, SYS_FAN2 Front panel connector 14-pin header F_PANEL1 C connector 4-pin wafer Internal power button connector Push button PWR_SW1 IPMI active LED connector 2-pin header LEDCN1 iRIS module slot iRIS-2400 slot IPMI1 Keyboard and mouse connector...

  • Page 152: Power Source Connector (Cpu12V1)

    PPC-FxxA-H81 Panel PC 7.2.1 +12V Power Source Connector (CPU12V1) PIN NO. DESCRIPTION +12V +12V Table 7-2: +12V Power Source Connector ( CPU12V1) Pinouts 7.2.2 ATX Power Connector (ATX1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3V +3.3V +3.3V -12V PS_ON Power good 5VSB +12V +12V...

  • Page 153: Debug Port (Dbg_Port1)

    PPC-FxxA-H81 Panel PC 7.2.3 Debug Port (DBG_PORT1) PIN NO. DESCRIPTION CLK_PCI_TPM PLTRST_N LPC_FRAME# LPC_AD0 LPC_AD1 LPC_AD2 LPC_AD3 INT_SERIRQ +3.3V Table 7-4: Debug Port (DBG_PORT1) Pinouts 7.2.4 DIO Connector (DIO1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION Output 3 Output 2 Output 1 Output 0 Input 3 Input 2...

  • Page 154: Ec Debug Port (Lpt_Db1)

    PPC-FxxA-H81 Panel PC 7.2.5 EC Debug Port (LPT_DB1) PIN NO. DESCRIPTION EC_EPP_STB# EC_EPP_AFD# EC_EPP_PD0 EC_EPP_PD1 EC_EPP_INIT# EC_EPP_PD2 EC_EPP_SLIN# EC_EPP_PD3 EC_EPP_PD4 EC_EPP_PD5 EC_EPP_BUSY EC_EPP_PD6 EC_EPP_KSI5 EC_EPP_PD7 EC_EPP_KSI4 Table 7-6: EC Debug Port (LPT_DB1) Pinouts 7.2.6 Fan Connectors (CPU_FAN1/SYS_FAN1/SYS_FAN2) PIN NO. DESCRIPTION +12V FANIO Table 7-7: Fan Connector Pinouts...

  • Page 155: Front Panel Connector (F_Panel1)

    PPC-FxxA-H81 Panel PC 7.2.7 Front Panel Connector (F_PANEL1) FUCNTION PIN NO. DESCRIPTION FUCNTION PIN NO. DESCRIPTION BEEP_PWR Power LED Speaker PWRBTN_SW# PC_BEEP Power Button EXTRST- HDD LED Reset SATA_LED# Table 7-8: Front Panel Connector (F_PANEL1) Pinouts 7.2.8 I C Connector (CN5) PIN NO.

  • Page 156: Keyboard And Mouse Connector (Kbms1)

    PPC-FxxA-H81 Panel PC 7.2.10 Keyboard and Mouse Connector (KBMS1) PIN NO. DESCRIPTION VCC5_KBMS MSDATA MSCLK KBDATA KBCLK KBGND Table 7-11: Keyboard and Mouse Connector (KBMS1) Pinouts 7.2.11 Keypad Connector (HOTKEY_CN1) PIN NO. DESCRIPTION AUTO_DIMMING LOCK_BUTTON VOL+ VOL- BRIGHT+ BRIGHT- LCD ON_OFF Table 7-12: Keypad Connector (HOTKEY_CN1) Pinouts 7.2.12 LAN Active LED Connectors (LED_LAN1/LED_LAN2) PIN NO.

  • Page 157: Lvds Connector (Lvds1)

    PPC-FxxA-H81 Panel PC 7.2.13 LVDS Connector (LVDS1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION LVDS_A_TX0-P LVDS_A _TX0-N LVDS_A_TX1-P LVDS_A _TX1-N LVDS_A_TX2-P LVDS_A _TX2-N LVDS_A_TXCLK-P LVDS_A _TXCLK-N LVDS_A_TX3-P LVDS_A _TX3-N LVDS_B _TX0-P LVDS_B _TX0-N LVDS_B _TX1-P LVDS_B _TX1-N LVDS_B _TX2-P LVDS_B _TX2-N LVDS_B _TXCLK-P LVDS_B _TXCLK-N LVDS_B _TX3-P...

  • Page 158: Pcie Mini (Mini_Pcie1) And Msata (Msata1) Card Slots

    PPC-FxxA-H81 Panel PC 7.2.15 PCIe Mini (MINI_PCIE1) and mSATA (MSATA1) Card Slots PIN NO. DESCRIPTION PIN NO. DESCRIPTION PCIE_WAKE# VCC3 1.5V CLK- CLK+ PCIRST# VCC3 PCIRST# PERN2(SATA_RX4+) 3VDual PERP2(SATA_RX4-) 1.5V SMBCLK PETN2(SATA_TX4-) SMBDATA PETP2(SATA_TX4+) USBD- USBD+ SATA_DET4_R_N 1.5V MSATA_SEL# VCC3 Table 7-16: PCIe Mini (MINI_PCIE1) and mSATA (MSATA1) Card Pinouts Page 143...

  • Page 159: Resistive Touchscreen Connector (Touch1)

    PPC-FxxA-H81 Panel PC 7.2.16 Resistive Touchscreen Connector (TOUCH1) PIN NO. 8-Wire 4-Wire 5-Wire Right Sense Left Sense Bottom Sense Top Sense Sense (S) Right Excite Right LR (X) Left Excite Left LL (L) Bottom Excite Bottom UR (H) Top Excite UL (Y) Table 7-17: Resistive Touchscreen Connector (TOUCH1) Pinouts 7.2.17 SATA 6Gb/s Connectors (S_ATA1/S_ATA2)

  • Page 160: Sata Power Connectors (Sata_Pwr1/Sata_Pwr2)

    PPC-FxxA-H81 Panel PC 7.2.18 SATA Power Connectors (SATA_PWR1/SATA_PWR2) PIN NO. DESCRIPTION +V12S +V5S Table 7-19: SATA Power Connectors (SATA_PWR1/SATA_PWR2) Pinouts 7.2.19 SMBus Connector (CN1) PIN NO. DESCRIPTION SMB_DATA SMB_CLK Table 7-20: SMBus Connector (CN1) Pinouts 7.2.20 SPI Flash Connector (JSPI1) PIN NO.

  • Page 161: Spi Flash (Ec) Connector (Jspi2)

    PPC-FxxA-H81 Panel PC 7.2.21 SPI Flash (EC) Connector (JSPI2) PIN NO. DESCRIPTION +V3.3M_SPI_CON_EC SPI_CS#0_CN_EC SPI_SO_SW_EC SPI_CLK_SW_EC SPI_SI_SW_EC Table 7-22: SPI Flash (EC) Connector (JSPI2) Pinouts 7.2.22 U3 Firmware Programming Connector (JP1) PIN NO. DESCRIPTION MCLR VCC5_MCU ICSPCLK ICSPDAT MCU_IR AUTO_CLK AUTO_DATA Table 7-23: U3 Firmware Programming Connector (JP1) Pinouts 7.2.23 USB 2.0 Connector (USB1)

  • Page 162: External Interface Panel Connectors

    PPC-FxxA-H81 Panel PC 7.3 External Interface Panel Connectors The table below lists the rear panel connectors on the PPC-FxxA-H81 motherboard. Pinouts of these connectors can be found in the following sections. Connector Type Label ATX/AT mode switch Switch J_ATX_AT1 Audio connector (line-out and mic-in) Audio jack AUDIO1 Clear CMOS button...

  • Page 163: Serial Ports (Com1/Com2, Com3/Com4)

    PPC-FxxA-H81 Panel PC PIN NO. DESCRIPTION PIN NO. DESCRIPTION HDMI_DATA0#- HDMI_HPD HDMI_CLK+ Table 7-26: HDMI Connector (HDMI1) Pinouts 7.3.2 RS-232 Serial Ports (COM1/COM2, COM3/COM4) PIN NO. DESCRIPTION PIN NO. DESCRIPTION Table 7-27: RS-232 Serial Port Pinouts 7.3.3 USB 2.0 Connectors (USB_CON1) PIN NO.

  • Page 164: Gbe And Usb 3.0 Connectors (Lan1_Usb1)

    PPC-FxxA-H81 Panel PC PIN NO. DESCRIPTION PIN NO. DESCRIPTION USB_DATA- USB_DATA- USB_DATA+ USB_DATA+ Table 7-30: USB 2.0 Connector (LAN2_USB2) Pinouts 7.3.5 RJ-45 GbE and USB 3.0 Connectors (LAN1_USB1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION LAN1_MDI0P LAN1_MDI2P LAN1_MDI0N LAN1_MDI2N LAN1_MDI1P LAN1_MDI3P LAN1_MDI1N LAN1_MDI3N Table 7-31: RJ-45 GbE Connector (LAN1_USB1) Pinouts...

  • Page 165: Rs-422/485 Serial Port And Vga Connector (Com5/Vga1)

    PPC-FxxA-H81 Panel PC 7.3.6 RS-422/485 Serial Port and VGA Connector (COM5/VGA1) PIN NO. DESCRIPTION RS422_TX- (RS485_D-) RS422_TX+ (RS485_D+) RS422_RX+ RS422_RX- Table 7-33: RS-422/485 Serial Port (COM5) Pinouts PIN NO. DESCRIPTION PIN NO. DESCRIPTION GREEN GROUND BLUE DDCDA GROUND HSYNC GROUND VSYNC GROUND DDCCLK...

  • Page 166: Flash Descriptor Security Override Jumper (J_Flash1)

    PPC-FxxA-H81 Panel PC Jumper Name Label Type Panel voltage selection JLCD_PWR1 6-pin header Touchscreen selection JTOUCH1 4-pin header Table 7-35: Preconfigured Jumpers 7.4.1 Flash Descriptor Security Override Jumper (J_FLASH1) Description Short 2-3 Enabled Table 7-36: Flash Descriptor Security Override Jumper (J_FLASH1) Settings 7.4.2 LVDS Panel Resolution Selection Switch (JLCD_SET1) * ON=0, OFF=1;...

  • Page 167: Panel Voltage Selection Jumper (Jlcd_Pwr1)

    PPC-FxxA-H81 Panel PC 7.4.3 Panel Voltage Selection Jumper (JLCD_PWR1) Description Short 1-2 +3.3V (Default) Short 3-4 Short 5-6 +12V Table 7-38: Panel Voltage Selection Jumper (JLCD_PWR1) Settings 7.4.4 Touchscreen Selection Jumper (JTOUCH1) Type Pin 1-2 Pin 3-4 5-Wire (Default) Short Open 4-Wire and 8-Wire Open...

  • Page 168: A Regulatory Compliance

    PPC-FxxA-H81 Panel PC Appendix Regulatory Compliance Page 153...
  • Page 169 PPC-FxxA-H81 Panel PC DECLARATION OF CONFORMITY This equipment is in conformity with the following EU directives: EMC Directive (2004/108/EC, 2014/30/EU) Low-Voltage Directive (2006/95/EC, 2014/35/EU) RoHS II Directive (2011/65/EU, 2015/863/EU) Ecodesign Directive 2009/125/EC If the user modifies and/or install other devices in the equipment, the CE conformity declaration may no longer apply.
  • Page 170 PPC-FxxA-H81 Panel PC Español [Spanish] IEI Integration Corp declara que el equipo cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 2014/53/EU. Ελληνική [Greek] IEI Integration Corp ΔΗΛΩΝΕΙ ΟΤΙ ΕΞΟΠΛΙΣΜΟΣ ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 2014/53/EU.
  • Page 171 PPC-FxxA-H81 Panel PC Româna [Romanian] IEI Integration Corp declară că acest echipament este in conformitate cu cerinţele esenţiale şi cu celelalte prevederi relevante ale Directivei 2014/53/EU. Slovensko [Slovenian] IEI Integration Corp izjavlja, da je ta opreme v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 2014/53/EU.

  • Page 172: B Bios Configuration Options

    PPC-FxxA-H81 Panel PC Appendix BIOS Configuration Options Page 157...

  • Page 173: Bios Configuration Options

    PPC-FxxA-H81 Panel PC BIOS Configuration Options Below is a list of BIOS configuration options described in Chapter 5. 　 System Date [xx/xx/xx] ......................71 　 System Time [xx:xx:xx] .......................71 　 ACPI Sleep State [S1 only (CPU Stop Clock)]..............73 　 Wake system with Fixed Time [Disabled]................74 　...
  • Page 174 PPC-FxxA-H81 Panel PC 　 Power Saving Function(ERP) [Disabled]................91 　 USB SW1 Power [+5V DUAL]....................92 　 USB SW2 Power [+5V DUAL]....................92 　 PCIe Speed [Auto]........................94 　 Detect Non-Compliance Device [Disbled] .................94 　 Azalia (HD Audio) [Enabled] ....................95 　 VT-d [Disabled]........................96 　 Primary Display [Auto] ......................97 　...

  • Page 175: C Safety Precautions

    PPC-FxxA-H81 Panel PC Appendix Safety Precautions Page 160...

  • Page 176: Safety Precautions

    PPC-FxxA-H81 Panel PC WARNING: The precautions outlined in this chapter should be strictly followed. Failure to follow these precautions may result in permanent damage to the EP series. C.1 Safety Precautions Please follow the safety precautions outlined in the sections that follow: C.1.1 General Safety Precautions Please ensure the following safety precautions are adhered to at all times.

  • Page 177: Anti-Static Precautions

    PPC-FxxA-H81 Panel PC C.1.2 Anti-static Precautions WARNING: Failure to take ESD precautions during the installation of the EP series may result in permanent damage to the EP series and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the EP series.

  • Page 178: Maintenance And Cleaning Precautions

    PPC-FxxA-H81 Panel PC Outside the European Union - If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method. Within the European Union: EU-wide legislation, as implemented in each Member State, requires that waste electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste.

  • Page 179: Cleaning Tools

    PPC-FxxA-H81 Panel PC C.2.2 Cleaning Tools Some components in the EP series may only be cleaned using a product specifically designed for the purpose. In such case, the product will be explicitly mentioned in the cleaning tips. Below is a list of items to use when cleaning the EP series. ...

  • Page 180: D Watchdog Timer

    PPC-FxxA-H81 Panel PC Appendix Watchdog Timer Page 165...
  • Page 181 PPC-FxxA-H81 Panel PC NOTE: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.
  • Page 182 PPC-FxxA-H81 Panel PC NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. Example program: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BX, 05 ;time-out value is 5 seconds ;...

  • Page 183: E Hazardous Materials Disclosure

    PPC-FxxA-H81 Panel PC Appendix Hazardous Materials Disclosure Page 168...
  • Page 184 PPC-FxxA-H81 Panel PC The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 185 PPC-FxxA-H81 Panel PC 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些 元件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 (现由 GB/T 26572-2011 取代)标 准规定的限量要求以下。...

This manual is also suitable for:

Ppc-f15a-h81i-p/4g/r-r10Ppc-f15a-h81i-p/4g/pc-r10Ppc-f15a-h81i-i3/4g/r-r10Ppc-f15a-h81i-i3/4g/pc-r10Ppc-f15a-h81i-i5/4g/r-r10Ppc-f15a-h81i-i5/4g/pc-r10 ... Show all

Table of Contents
