uIBX-250
Embedded System
嵌入式系統
Quick Installation Guide/快速安裝指南
Version 1.02
Packing List / 內容清單
1 x uIBX-250 embedded system / uIBX-250 嵌入式系統
1 x Power adapter / 電源供應器
1 x Power cord / 電源線
2 x RS-232/422/485 round cable / 串口線材
2 x Mounting bracket / 固定安裝件
1 x Utility CD / 公用程式光碟
1 x One Key Recovery CD / 一鍵還原光碟
1 x QIG (Quick Installation Guide) / 快速安裝指南
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for IEI Technology uIBX-250
Summary of Contents for IEI Technology uIBX-250
- Page 1 嵌入式系統 Quick Installation Guide/快速安裝指南 Version 1.02 Packing List / 內容清單 1 x uIBX-250 embedded system / uIBX-250 嵌入式系統 1 x Power adapter / 電源供應器 1 x Power cord / 電源線 2 x RS-232/422/485 round cable / 串口線材 2 x Mounting bracket / 固定安裝件...
-
Page 2: Front Panel

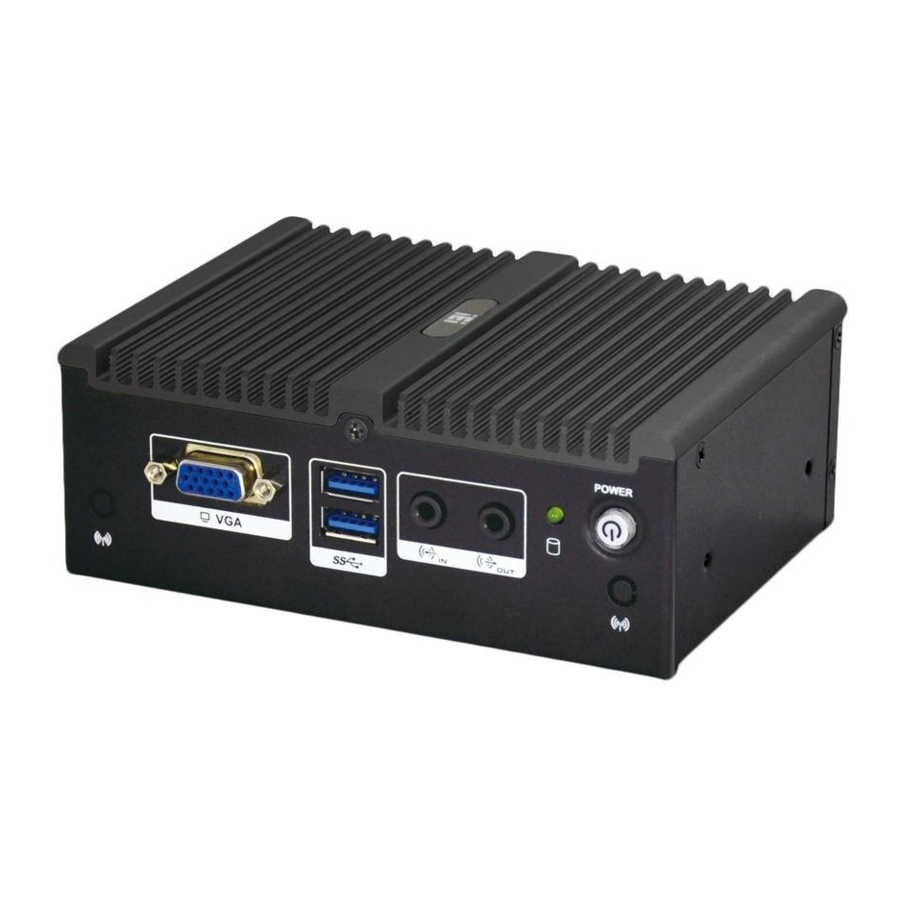

The front panel of the uIBX-250 has the following connectors and indicator. Rear Panel The rear panel of the uIBX-250 has the following connectors, button and switch. Bottom Panel The bottom panel of the uIBX-250 has screw holes for VESA mount. -
Page 3: Hdd Installation
HDD Installation 1. Remove three retention screws from the 2. Slide the HDD to connect the HDD to the bottom cover. SATA connector. 3. Secure the HDD with the bottom cover 4. Replace the bottom cover and secure it using four retention screws. using three previously removed retention screws. - Page 4 前面板 uIBX-250 的前面板配有下列連接器與指示燈： 後面板 uIBX-250 的後面板配有下列連接器、按鈕與開關： 底部 uIBX-250 底部有支援 VESA 固定設備的螺絲孔...
- Page 5 硬碟安裝 1. 將底部面板上的三顆螺絲移除。 2. 將硬碟滑入與 SATA 連接器連接。 3. 用四顆螺絲將硬碟固定在底部面板上。 4. 蓋回底板，將之前移除的三顆螺絲鎖附回去 來固定底板。 固定系統 1. 如下圖，將兩片固定安裝件分別使用兩顆螺 2. 在欲安裝系統的位置鑽孔。使用四顆螺絲 絲固定在系統的兩側。 （一邊兩顆）將系統固定在安裝面上。...
- Page 6 Specifications / 規格 CPU (SoC) Intel® Celeron® processor N3160 (2.24 GHz, quad-core) Memory/記憶體 Pre-installed 2 GB DDR3L memory (system max. 8 GB) Ethernet/乙太網路 Two Intel® I211 PCIe GbE controllers Storage/儲存 One 2.5” SATA 6Gb/s HDD/SSD bay Audio/音訊 Realtek ALC662 HD Audio codec Display/顯示...
- Page 7 Software Driver / 驅動程式安裝 All the drivers for the uIBX-250 are on the utility CD that came with the system. The utility CD contains drivers for Windows 7 and Windows 8 operating systems. Please select the corresponding drivers for the system.
- Page 8 Note 3：The “−” indicates that the restricted substance corresponds to the exemption. Headquarters America China 威強電工業電腦股份有限公司 IEI Technology USA Corp. 威强电工业电脑 IEI Integration (Shanghai) Corp. IEI Integration Corp. 上海市闵行莘庄工业区申富路 515 号 138 University Parkway, Pomona, No. 515, Shen Fu Rd., Xin Zhuang Industrial 22161 新北市汐止區中興路...
