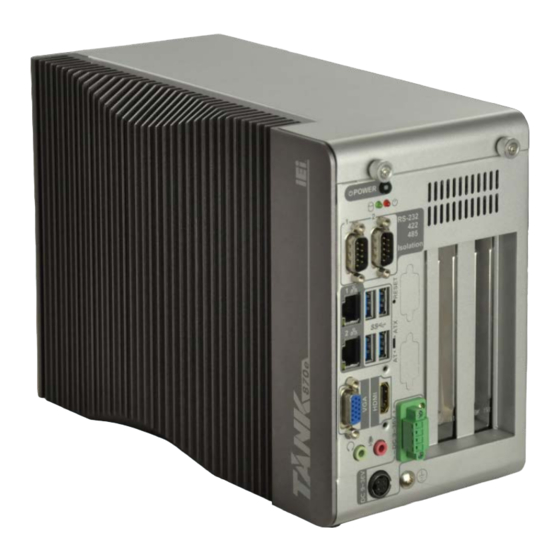

TANK-870e-H110 Embedded System
MODEL:
TANK-870e-H110
Fanless Embedded System with 6th/7th Generation Intel® Core™ Processor,
4GB DDR4 Pre-installed Memory, VGA/HDMI,
Two Gigabit Ethernet, RS-232/422/485,
RoHS Compliant
User Manual
Page I
Rev. 1.10 – July 19, 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TANK-870e-H110 Series and is the answer not in the manual?

Questions and answers

Related Manuals for IEI Technology TANK-870e-H110 Series

Summary of Contents for IEI Technology TANK-870e-H110 Series

  • Page 1 TANK-870e-H110 Embedded System MODEL: TANK-870e-H110 Fanless Embedded System with 6th/7th Generation Intel® Core™ Processor, 4GB DDR4 Pre-installed Memory, VGA/HDMI, Two Gigabit Ethernet, RS-232/422/485, RoHS Compliant User Manual Page I Rev. 1.10 – July 19, 2021...
  • Page 2 TANK-870e-H110 Embedded System Revision Date Version Changes July 19, 2021 1.10 Deleted the i7 SKUs and the 3C SKU November 4, 2020 1.03 Modified Section 1.4 Technical Specifications July 6, 2020 1.02 Modified Section 1.8 Physical Dimensions February 24, 2018 1.01 Add Section 3.3: System Fan Installation (Optional) Update Section 1.2: Model Variations...
  • Page 3 TANK-870e-H110 Embedded System Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 TANK-870e-H110 Embedded System Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product. NOTE These messages inform the reader of essential but non-critical information.

  • Page 5: Table Of Contents

    TANK-870e-H110 Embedded System Table of Contents INTRODUCTION ......................1 1.1 O ........................2 VERVIEW 1.2 M ....................2 ODEL ARIATIONS 1.3 F ........................3 EATURES 1.4 T ..................3 ECHNICAL PECIFICATIONS 1.5 F ......................5 RONT ANEL 1.6 R ....................... 6 ANEL 1.7 B ....................
  • Page 6 TANK-870e-H110 Embedded System 3.6 P ................23 OWERING FF THE YSTEM 3.7 P ........................24 OWER 3.8 O ....................25 NLINE ESOURCES SYSTEM MOTHERBOARD ..................26 4.1 O ........................ 27 VERVIEW 4.1.1 Layout ......................27 4.2 I ..............28 NTERNAL ERIPHERAL ONNECTORS 4.2.1 Backplane Power Connector (JP1) ..............
  • Page 7 TANK-870e-H110 Embedded System 4.4.3 M-SATA Switch Auto-Detect (MSATA_SW1) ........... 37 4.4.4 Power Switch Button (SW1) ................38 4.4.5 System Reset Button (RST1) ................38 BIOS ..........................39 5.1 I ......................40 NTRODUCTION 5.1.1 Starting Setup ....................40 5.1.2 Using Setup ...................... 40 5.1.3 Getting Help .....................
  • Page 8 TANK-870e-H110 Embedded System 5.4.1.1 Memory Configuration ................69 5.4.1.2 Graphics Configuration ................69 5.4.1.3 PEG Port Configuration ................72 5.4.2 PCH-IO Configuration ..................73 5.4.2.1 PCI Express Configuration ............... 74 5.4.2.2 HD Audio Configuration ................75 5.5 S ......................... 76 ECURITY 5.6 B ........................
  • Page 9 TANK-870e-H110 Embedded System List of Figures Figure 1-1: TANK-870e-H110 ......................2 Figure 1-2: TANK-870e-H110 Front Panel ..................5 Figure 1-3: TANK-870e-H110 Rear Panel ..................6 Figure 1-4: HPE-3S6 ........................7 Figure 1-5: HPE-3S7 ........................7 Figure 1-6: TANK-870e-H110 Physical Dimensions (millimeters) ..........9 Figure 3-1: Unscrew the Cover ....................
  • Page 10 TANK-870e-H110 Embedded System List of Tables Table 1-1: TANK-870e-H110 Model Variations ................2 Table 1-2: Technical Specifications ....................5 Table 1-3: Supported Signals ......................7 Table 1-4: Rated Voltage and Current ..................8 Table 3-1: RJ-45 Ethernet Connector LEDs ................22 Table 4-1: Peripheral Interface Connectors ................
  • Page 11 TANK-870e-H110 Embedded System Table 4-26: RS-232/422/485 Serial Port Connector Pinout (COM5_6) ........36 Table 4-27: VGA Connector Pinouts (VGA1) ................36 Table 4-28: Jumper ........................37 Table 4-29: AT/ATX Mode Select Jumper Settings (J_AT_ATX1) ..........37 Table 4-30: Clear CMOS Setup Jumper Settings (J_CMOS1) ..........37 Table 4-31: M-SATA Switch Auto-Detect Jumper Settings (MSATA_SW1) ......
  • Page 12 TANK-870e-H110 Embedded System BIOS Menus BIOS Menu 1: Main ........................44 BIOS Menu 2: Advanced ......................45 BIOS Menu 3: CPU Configuration ....................46 BIOS Menu 4: Trusted Computing ....................48 BIOS Menu 5: ACPI Configuration ....................49 BIOS Menu 6: SATA Configuration ..................... 50 BIOS Menu 7: F81866 Super IO Configuration ................

  • Page 13: Introduction

    TANK-870e-H110 Embedded System Chapter Introduction Page 1...

  • Page 14: Overview

    32 GB (4GB memory preinstalled). The TANK-870e-H110 includes one VGA port, one HDMI, two GbE LAN ports, four USB 3.2 Gen 1 (5Gb/s) ports and two RS-232/422/485 connectors. 1.2 Model Variations The model variations of the TANK-870e-H110 series are listed below. Model No. Expansion Slots TANK-870e-H110-i5/4G/3A 1 x PCIe by 16 &...

  • Page 15: Features

    TANK-870e-H110 Embedded System 1.3 Features The TANK-870e-H110 features are listed below:  6th/7th Gen Intel® Core™ processor platform with Intel® H110 chipset and DDR4 memory  Support dual display VGA+HDMI  On-board internal power connector for providing power to add-on cards ...
  • Page 16 TANK-870e-H110 Embedded System Specifications 1 x VGA Display 1 x HDMI 1.4 VGA: Up to 1920 x 1200@60Hz Resolution HDMI/DP: Up to 4096×2304@60Hz Audio 1 x Line-out, 1 x Mic-in Wireless 1 x 802.11 a/b/g/n/ac (optional) Expansions 3A: 1 x PCIe x16 , 2 x PCI PCI/PCIe 3B: 1 x PCIe x16 , 1 x PCIe x4, 1 x PCI 1 x Full-size PCIe Mini slot...

  • Page 17: Front Panel

    TANK-870e-H110 Embedded System Specifications CE/FCC Safety/EMC Microsoft® Windows® 8 Embedded, Supported OS Microsoft® Windows® Embedded Standard 7 E, Microsoft® Windows® 10 IoT Enterprise Table 1-2: Technical Specifications 1.5 Front Panel The front panel of the TANK-870e-H110 has the following features (Figure 1-2): Figure 1-2: TANK-870e-H110 Front Panel Connectors and buttons on the front panel include the following: ...

  • Page 18: Rear Panel

    TANK-870e-H110 Embedded System  1 x Power terminal block for 9 V ~ 36 V power input  1 x Mic-in port (pink)  1 x Line-out port (green)  2 x RS-232/422/485 serial ports (DB-9, w/2.5KV isolation protection)  2 x Gigabit Ethernet ports (RJ-45) ...

  • Page 19: Backplane Options

    TANK-870e-H110 Embedded System 1.7 Backplane Options The backplane options of the TANK-870e-H110 are shown below. Figure 1-4: HPE-3S6 Figure 1-5: HPE-3S7 The supported signals of the backplane slots are listed below. Backplane Slot Signal 2 x PCI HPE-3S6 (for 3A model) 1 x PCIe x16 PCIe x16 1 x PCI...

  • Page 20: Table 1-4: Rated Voltage And Current

    TANK-870e-H110 Embedded System The rated voltage and current of the backplanes are listed below. Rated Voltage Rated Current +5 V +12 V 3.75 A -12 V 0.1 A +3.3 V Table 1-4: Rated Voltage and Current WARNING: The system default power is 120 W. The maximum total power of the backplane to support expansion cards is 45 W.

  • Page 21: Physical Dimensions

    TANK-870e-H110 Embedded System 1.8 Physical Dimensions The physical dimensions of the TANK-870e-H110 are shown in Figure 1-6. Figure 1-6: TANK-870e-H110 Physical Dimensions (millimeters) Page 9...

  • Page 22: Unpacking

    TANK-870e-H110 Embedded System Chapter Unpacking Page 10...

  • Page 23: Anti-Static Precautions

    TANK-870e-H110 Embedded System 2.1 Anti-static Precautions WARNING: Failure to take ESD precautions during installation may result in permanent damage to the TANK-870e-H110 and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the TANK-870e-H110. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the TANK-870e-H110 or any other electrical component is handled, the following anti-static precautions are strictly adhered to.

  • Page 24: Unpacking Checklist

    TANK-870e-H110 Embedded System 2.3 Unpacking Checklist NOTE: If some of the components listed in the checklist below are missing, please do not proceed with the installation. Contact the IEI reseller or vendor you purchased the TANK-870e-H110 from or contact an IEI sales representative directly.
  • Page 25 (P/N: 63040-010120-300-RS) Fan, +12V DC, 4-pin, 40 mm x 40 mm x15 mm, RoHS (P/N: EMB-FAN-KIT02-R10) OS Image with Windows® Embedded Standard 7 E 64-bit for TANK-870e-H110 Series, with DVD-ROM, RoHS (P/N: TANK-870e-H110-WES7E64-R10) OS Image with Windows Embedded Standard 10 E...

  • Page 26: Installation

    TANK-870e-H110 Embedded System Chapter Installation Page 14...

  • Page 27: Installation Precautions

    TANK-870e-H110 Embedded System 3.1 Installation Precautions During installation, be aware of the precautions below:  Read the user manual: The user manual provides a complete description of the TANK-870e-H110, installation instructions and configuration options.  DANGER! Disconnect Power: The TANK-870e-H110 has more than one power supply connection point.

  • Page 28: Figure 3-1: Unscrew The Cover

    TANK-870e-H110 Embedded System Figure 3-1: Unscrew the Cover Step 2: Unplug the SATA signal and power cables connected to the TANK-870e-H110, and then put the cover on a flat surface (Figure 3-2). Figure 3-2: Remove the Cover from TANK-870e-H110 Step 3: Attach the HDD to the HDD bracket, and then slide the HDD to connect with the SATA connector (Figure 3-3).

  • Page 29: System Fan Installation (Optional)

    TANK-870e-H110 Embedded System Figure 3-3: HDD Installation Step 4: Secure the HDD with the HDD bracket by four retention screws (Figure 3-4). Figure 3-4: HDD Retention Screws Step 5: Reconnect the SATA signal and power cables to the TANK-870e-H110. Step 6: Reinstall the cover.

  • Page 30: Figure 3-5: Remove The Fan Bracket Cover From The System

    TANK-870e-H110 Embedded System Figure 3-5: Remove the Fan Bracket Cover from the System Step 2: Unscrew the four retention screws that secure the fan bracket to the cover. (Figure 3-6). Remove the fan bracket from the cover. Figure 3-6: Remove the Fan Bracket from the Cover Step 3: Attach the system fan to the fan bracket and secure it by four retention screws (Figure 3-7).

  • Page 31: Figure 3-7: Secure The System Fan To The Fan Bracket

    TANK-870e-H110 Embedded System Figure 3-7: Secure the System Fan to the Fan Bracket Step 4: Reinstall the fan bracket with the system fan installed to the cover and secure it by four retention screws (Figure 3-8). Figure 3-8: Reinstall the Fan Bracket to the Cover Step 5: Loosen the two thumbscrews on the front panel, slide the cover outward, and then lift the cover up gently (Figure 3-1).

  • Page 32: Mounting The System With Mounting Brackets

    TANK-870e-H110 Embedded System Step 7: Reinstall the fan bracket cover to the system and tighten the thumbscrew on the rear panel. 3.4 Mounting the System with Mounting Brackets To mount the embedded system onto a wall or some other surface using the two mounting brackets, please follow the steps below.

  • Page 33: External Peripheral Interface Connectors

    TANK-870e-H110 Embedded System 3.5 External Peripheral Interface Connectors Detailed descriptions of the connectors can be found in the subsections below. 3.5.1 AT/ATX Power Mode Selection The TANK-870e-H110 supports AT and ATX power modes. The setting can be made through the AT/ATX power mode switch on the external peripheral interface panel as shown below.

  • Page 34: Hdmi Display Device Connection

    TANK-870e-H110 Embedded System Figure 3-11: Audio Connector 3.5.3 HDMI Display Device Connection The TANK-870e-H110 has one HDMI connector. The HDMI connector transmits a digital signal to compatible HDMI display devices such as a TV or computer screen. 3.5.4 LAN Connectors The TANK-870e-H110 has two RJ-45 LAN connectors.

  • Page 35: Power Input, 4-Pin Din Connector

    TANK-870e-H110 Embedded System Figure 3-13: 4-pin Terminal Block 3.5.6 Power Input, 4-pin DIN Connector The power connector connects to the 9 V~36 V DC power adapter. Figure 3-14: Power Input Connector 3.5.7 DB-9 RS-232/422/485 Serial Port Connectors The TANK-870e-H110 has two DB-9 RS-232/422/485 connectors. 3.5.8 USB Connectors The TANK-870e-H110 has four USB 3.2 Gen 1 connectors.

  • Page 36: Power

    TANK-870e-H110 Embedded System the system. Incorrect voltages applied to the system may cause damage to the internal electronic components and may also cause injury to the user.  Power on the system: press the power button for 2 seconds  Power off the system: press the power button for 5 seconds Figure 3-15: Power Button 3.7 Power...

  • Page 37: Online Resources

    TANK-870e-H110 Embedded System WARNING: The TANK-870e-H110 only support single power input and cannot be simultaneously connected to two power sources. 3.8 Online Resources All the utilities for the TANK-870e-H110 are available on IEI Resource Download Center (https://download.ieiworld.com). Type TANK-870e-H110 and press Enter to find all the relevant software, utilities, and documentation.

  • Page 38: System Motherboard

    TANK-870e-H110 Embedded System Chapter System Motherboard Page 26...

  • Page 39: Overview

    TANK-870e-H110 Embedded System 4.1 Overview This chapter details all the jumpers and connectors of the system motherboard. 4.1.1 Layout The figures below show all the connectors and jumpers of the system motherboard. The Pin 1 locations of the on-board connectors are also indicated in the diagram below. Figure 4-1: System Motherboard (Front) Figure 4-2: System Motherboard (Rear) Page 27...

  • Page 40: Internal Peripheral Connectors

    TANK-870e-H110 Embedded System 4.2 Internal Peripheral Connectors The table below shows a list of the internal peripheral interface connectors on the system motherboard. Pinouts of these connectors can be found in the following sections. Connector Type Label Backplane power connector 4-pin molex Battery connector 2-pin wafer...

  • Page 41: Battery Connector (Bat1)

    TANK-870e-H110 Embedded System 4.2.2 Battery Connector (BAT1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION VBATT Table 4-3: Battery Connector Pinouts (BAT1) 4.2.3 BIOS Programming Connector (JSPI1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION +V3.3M_SPI_CON SPI_CS#0_CN SPI_SO_SW SPI_CLK_SW SPI_SI_SW Table 4-4: BIOS Programming Connector Pinouts (JSPI1) 4.2.4 CPU Fan Connector (CPU_FAN1) PIN NO.

  • Page 42: Ec Debug Connector (Cn3)

    TANK-870e-H110 Embedded System 4.2.6 EC Debug Connector (CN3) PIN NO. DESCRIPTION PIN NO. DESCRIPTION KSI0 KSO9 KSO0 KSO10 KSO1 KSO12 KSO2 KSI1 KSO3 KSO11 KSO4 KSI2 KSO5 KSI3 KSO6 KSO7 KSO8 Table 4-7: EC Debug Connector Pinouts (CN3) 4.2.7 EC Programming Connector (JSPI2) PIN NO.

  • Page 43: Serial Port Connectors (Com2)

    TANK-870e-H110 Embedded System 4.2.9 RS-232 Serial Port Connectors (COM2) PIN NO. DESCRIPTION PIN NO. DESCRIPTION DCD2 DSR2 RTS2 CTS2 DTR2 Table 4-10: RS-232 Serial Port Connectors Pinouts (COM2) 4.2.10 RS-232 Serial Port Connectors (COM3) PIN NO. DESCRIPTION PIN NO. DESCRIPTION DCD3 DSR3 RTS3...

  • Page 44: Tpm Connector (Tpm1)

    TANK-870e-H110 Embedded System Table 4-13: SATA Power Connectors Pinouts (CN1, CN2) 4.2.13 TPM Connector (TPM1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION LPC_FRAME# PLT_GATED_RST# VCC5 LPC_AD3 LPC_AD2 VCC3 LPC_AD1 LPC_AD0 SMB_CLK SMB_DATA V3P3A INT_SERIRQ PM_CLKRUN# LPCPD_N TPM_DRQ#0 Table 4-14: TPM Connector Pinouts (TPM1) 4.2.14 USB 2.0 connectors (USB1) PIN NO.

  • Page 45: External Interface Panel Connectors

    TANK-870e-H110 Embedded System VCC_USB Table 4-16: USB 2.0 connectors Pinouts (USB2) 4.3 External Interface Panel Connectors The table below shows a list of the external interface panel connectors on the system motherboard. Pinouts of these connectors can be found in the following sections. Connector Type Label...

  • Page 46: Ethernet And Usb 3.2 Gen 1 Connectors (Lan2_Usb2)

    TANK-870e-H110 Embedded System DESCRIPTION DESCRIPTION DATA1_N DATA2_N DATA1_P DATA2_P USB3_RX1_N USB3_RX2_N USB3_RX1_P USB3_RX2_P USB3_TX1_N_R USB3_TX2_N_R USB3_TX1_P_R USB3_TX2_P_R Table 4-19: USB 3.2 Gen 1 Port Pinouts (USB1) DESCRIPTION DESCRIPTION MDI0+ MDI0- MDI1+ MDI1- MDI2+ MDI2- MDI3+ MDI3- LINK100 LINK1000 LED_LNK#_ACT_LAN1 ILAN1_LINK_PWR Table 4-20: LAN Pinouts (LAN1) 4.3.3 Ethernet and USB 3.2 Gen 1 Connectors (LAN2_USB2) DESCRIPTION...

  • Page 47: Hdmi Connector (Hdmi1)

    TANK-870e-H110 Embedded System DESCRIPTION DESCRIPTION MDI0+_LAN2 MDI0-_LAN2 MDI1+_LAN2 MDI1-_LAN2 MDI2+_LAN2 MDI2-_LAN2 MDI3+_LAN2 MDI3-_LAN2 LINK100_LAN2 LINK1000_LAN2 LED_LNK#_ACT_LAN2 LAN2_LINK_PWR Table 4-22: LAN Pinouts (LAN2) 4.3.4 HDMI Connector (HDMI1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION HDMI_DATA2-1_L HDMI_DATA2#-1_L HDMI_DATA1-1_L HDMI_DATA1#-1_L HDMI_DATA0-1_L HDMI_DATA0#-1_L HDMI_CLK-1_L HDMI_CLK#-1_L HDMI_SCL-1 HDMI_SDA-1 +V5S...

  • Page 48: Power Connector (Pwr1)

    TANK-870e-H110 Embedded System 4.3.6 Power Connector (PWR1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION DC_IN DC_IN Table 4-25: Power Connector Pinouts (PWR1) 4.3.7 RS-232/422/485 Serial Port Connector (COM1_1) PIN NO. RS-232 RS-422 RS-485 1(10) TXD422# TXD485# 2(11) TXD422+ TXD485+ 3(12) RXD422+ 4(13) RXD422# 5(14)

  • Page 49: Jumper Settings

    TANK-870e-H110 Embedded System 4.4 Jumper Settings The jumpers on the system motherboard are listed in Table 4-28. Connector Type Label AT/ATX Mode Select switch J_AT_ATX1 Clear CMOS setup button J_CMOS1 M-SATA Switch Auto-Detect 2-pin header MSATA_SW1 Power Switch Button button System Reset Button button RST1...

  • Page 50: Power Switch Button (Sw1)

    TANK-870e-H110 Embedded System 4.4.4 Power Switch Button Description Open Normal Operation (Default) Press Power on Table 4-32: Power Switch Button Jumper Settings (SW1) 4.4.5 System Reset Button RST1 Description Open Normal Operation (Default) Press System Reset Table 4-33: System Reset Button Jumper Settings (RST1) Page 38...

  • Page 51: Bios

    TANK-870e-H110 Embedded System Chapter BIOS Page 39...

  • Page 52: Introduction

    TANK-870e-H110 Embedded System 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. NOTE: Some of the BIOS options may vary throughout the life cycle of the product and are subject to change without prior notice.

  • Page 53: Getting Help

    TANK-870e-H110 Embedded System Function Decrease the numeric value or make changes Page Up key Increase the numeric value or make changes Page Dn key Decrease the numeric value or make changes Esc key Main Menu – Quit and not save changes into CMOS Status Page Setup Menu and Option Page Setup Menu -- Exit current page and return to Main Menu General help, only for Status Page Setup Menu and Option...
  • Page 54 TANK-870e-H110 Embedded System  Save & Exit – Selects exit options and loads default settings. The following sections completely describe the configuration options found in the menu items at the top of the BIOS screen and listed above. Page 42...

  • Page 55: Main

    TANK-870e-H110 Embedded System 5.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Main Advanced Chipset...

  • Page 56: Advanced

    TANK-870e-H110 Embedded System BIOS Menu 1: Main The Main menu has two user configurable fields:  System Date [xx/xx/xx] Use the System Date option to set the system date. Manually enter the day, month and year.  System Time [xx:xx:xx] Use the System Time option to set the system time.

  • Page 57: Cpu Configuration

    TANK-870e-H110 Embedded System Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced > CPU Configuration CPU Configuration > Trusted Computing Parameters > ACPI Settings > SATA Configuration > F81866 Super IO Configuration ---------------------- > RTC Wake Settings : Select Screen >...
  • Page 58 TANK-870e-H110 Embedded System Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced CPU Configuration When enabled, a VMM can utilize the additional Type Intel(R) Core(TM) hardware capabilities i5-6500TE CPU @ 2.30GHz provided by Vanderpool 0x506E3 Technology. Speed 2300 MHz L1 Data Cache 32 kB x 4 L1 Code Cache...
  • Page 59 TANK-870e-H110 Embedded System  Intel (VMX) Virtualization Technology [Disabled] Use the Intel (VMX) Virtualization Technology option to enable or disable virtualization on the system. When combined with third party software, Intel Virtualization technology allows several OSs to run on the same system at the same time. ...

  • Page 60: Trusted Computing

    TANK-870e-H110 Embedded System 5.3.2 Trusted Computing Use the Trusted Computing menu (BIOS Menu 4) to configure settings related to the Trusted Computing Group (TCG) Trusted Platform Module (TPM). Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced Configuration Enables or Disables BIOS Security Device Support [Disable]...
  • Page 61 TANK-870e-H110 Embedded System Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced ACPI Settings Select ACPI sleep state the system will enter ACPI Sleep State [S3 (Suspend to RAM)] when the SUSPEND button is pressed. ---------------------- : Select Screen ↑...

  • Page 62: Sata Configuration

    TANK-870e-H110 Embedded System 5.3.4 SATA Configuration Use the SATA Configuration menu (BIOS Menu 6) to change and/or set the configuration of the SATA devices installed in the system. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced SATA Configuration Enable or disable SATA Device.

  • Page 63: F81866 Super Io Configuration

    TANK-870e-H110 Embedded System  Disabled Disables hot plug function. EFAULT 5.3.5 F81866 Super IO Configuration Use the F81866 Super IO Configuration menu (BIOS Menu 7) to set or change the configurations for the serial ports. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced F81866 Super IO Configuration Set Parameters of Serial...

  • Page 64: Serial Port N Configuration

    TANK-870e-H110 Embedded System 5.3.5.1 Serial Port n Configuration Use the Serial Port n Configuration menu (BIOS Menu 8) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced Serial Port n Configuration Enable or Disable Serial Port (COM) Serial Port [Enabled]...

  • Page 65: Serial Port 2 Configuration

    TANK-870e-H110 Embedded System  IO=3F8h; IRQ=3, 4, Serial Port I/O port address is 3F8h and the 5, 6, 7, 9, 10, 11,12 interrupt address is IRQ3, 4, 5, 6, 7, 9, 10, 11,12  Serial Port I/O port address is 2F8h and the IO=2F8h;...

  • Page 66: Serial Port 3 Configuration

    TANK-870e-H110 Embedded System  IO=2F8h; IRQ=3 Serial Port I/O port address is 2F8h and the interrupt address is IRQ3  Serial Port I/O port address is 3F8h and the IO=3F8h; IRQ=3, 4, interrupt address is IRQ3, 4, 5, 6, 7, 9, 10, 11,12 5, 6, 7, 9, 10, 11,12 ...

  • Page 67: Serial Port 4 Configuration

    TANK-870e-H110 Embedded System  Auto The serial port IO port address and interrupt EFAULT address are automatically detected.  Serial Port I/O port address is 3E8h and the IO=3E8h; IRQ=7 interrupt address is IRQ7  IO=3E8h; IRQ=3, 4, Serial Port I/O port address is 3E8h and the interrupt address is IRQ3, 4, 5, 6, 7, 9, 10, 11,12 5, 6, 7, 9, 10, 11,12 ...

  • Page 68: Serial Port 5 Configuration

    TANK-870e-H110 Embedded System  IO=2E8h; IRQ=3, 4, Serial Port I/O port address is 2E8h and the 5, 6, 7, 9, 10, 11,12 interrupt address is IRQ3, 4, 5, 6, 7, 9, 10, 11,12  Serial Port I/O port address is 2F0h and the IO=2F0h;...

  • Page 69: Serial Port 6 Configuration

    TANK-870e-H110 Embedded System 5.3.5.1.6 Serial Port 6 Configuration  Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.  Disabled Disable the serial port  Enable the serial port Enabled EFAULT  Change Settings [Auto] Use the Change Settings option to change the serial port IO port address and interrupt address.
  • Page 70 TANK-870e-H110 Embedded System Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced RTC Wake Settings Enable or disable System wake on alarm event. When Wake system with Fixed Time [Disabled] enabled, System will wake on the date:: hr:: min::sec specified ---------------------- : Select Screen...

  • Page 71: Serial Port Console Redirection

    TANK-870e-H110 Embedded System 5.3.7 Serial Port Console Redirection The Serial Port Console Redirection menu (BIOS Menu 10) allows the console redirection options to be configured. Console redirection allows users to maintain a system remotely by re-directing keyboard input and text output through the serial port. Aptio Setup Utility –...

  • Page 72: Console Redirection Settings

    TANK-870e-H110 Embedded System 5.3.7.1 Console Redirection Settings The Console Redirection Settings menu (BIOS Menu 11) allows the console redirection options to be configured. The option is active when Console Redirection option is enabled. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced COM1 Emulation: ANSI:...
  • Page 73 TANK-870e-H110 Embedded System  9600 The transmission speed is 9600  The transmission speed is 19200 19200  38400 The transmission speed is 38400  57600 The transmission speed is 57600  115200 The transmission speed is 115200 EFAULT  Data Bits [8] Use the Data Bits option to specify the number of data bits.

  • Page 74: Intel Txt(Lt) Configuration

    TANK-870e-H110 Embedded System  Sets the number of stop bits at 1. EFAULT  Sets the number of stop bits at 2. 5.3.8 Intel TXT(LT) Configuration Use the Intel TXT(LT) Configuration menu (BIOS Menu 12) to configure Intel Trusted Execution Technology support. Aptio Setup Utility –...

  • Page 75: Usb Configuration

    TANK-870e-H110 Embedded System 5.3.9 USB Configuration Use the USB Configuration menu (BIOS Menu 13) to read USB configuration information and configure the USB settings. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced USB Configuration Enables Legacy USB support.

  • Page 76: Iei Feature

    TANK-870e-H110 Embedded System  Disabled Legacy USB support disabled  Legacy USB support disabled if no USB devices are Auto connected 5.3.10 iEi Feature Use the iEi Feature menu (BIOS Menu 14) to configure the iEi features. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced iEi Feature Auto Recovery Function...

  • Page 77: Iwdd H/W Monitor

    TANK-870e-H110 Embedded System 5.3.11 iWDD H/W Monitor The iWDD H/W Monitor menu (BIOS Menu 15) shows the operating temperature, fan speeds and system voltages. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Advanced PC Health Status Offset from factory set Tcc activation CPU Temperature :+50 C...

  • Page 78: Smart Fan Mode Configuration

    TANK-870e-H110 Embedded System +V12S +VDDQ  Tcc Activation Offset Use the Tcc Activation Offset option to change the Tcc Activation Offset value. If CPU Temperature reaches Tcc Activation Offset then reduces CPU Frequency.  Minimum Value: 0°C  Maximum Value: 63°C 5.3.11.1 Smart Fan Mode Configuration Use the Smart Fan Mode Configuration submenu (BIOS Menu 16) to configure the smart fan temperature and speed settings.

  • Page 79: Chipset

    TANK-870e-H110 Embedded System  Auto Mode The fan adjusts its speed using these EFAULT settings: CPU_FAN1 Start Temperature CPU_FAN1 Off Temperature CPU_FAN1 Start PWM  Manual Mode The fan spins at the speed set in the manual setting  CPU_FAN1 Start/Off Temperature Use the + or –...

  • Page 80: System Agent (Sa) Configuration

    TANK-870e-H110 Embedded System Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Chipset > System Agent (SA) Configuration System Agent (SA) > PCH-IO Configuration Parameters --------------------- : Select Screen ↑ ↓: Select Item Enter Select +/-: Change Opt. General Help Previous Values Optimized Defaults Save &...

  • Page 81: Memory Configuration

    TANK-870e-H110 Embedded System  Enabled Enable VT-d support. 5.4.1.1 Memory Configuration Use the Memory Configuration submenu (BIOS Menu 19) to view memory information. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Chipset Memory Information Total Memory 4096 MB Memory Frequency 2133 MHz DIMM1 Slot...
  • Page 82 TANK-870e-H110 Embedded System Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Chipset Graphics Configuration Select which of IGFX/PEG/PCI Graphics Primary Display [Auto] device should be Primary Internal Graphics [Auto] Display Or select SG for DVMT Pre-Allocated [256M] Switchable Gfx. DVMT Total Gfx Mem [MAX] Primary IGFX Boot Display...
  • Page 83 TANK-870e-H110 Embedded System  DVMT Pre-Allocated [256M] Use the DVMT Pre-Allocated option to set the amount of system memory allocated to the integrated graphics processor when the system boots. The system memory allocated can then only be used as graphics memory, and is no longer available to applications or the operating system.

  • Page 84: Peg Port Configuration

    TANK-870e-H110 Embedded System 5.4.1.3 PEG Port Configuration Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Chipset PEG Port Configuration Enable or Disable the Root Port PEG 0 :1 :0 Not Present Max Link Speed [Auto] ---------------------- : Select Screen PEG 0 :1 :1 Not Present ↑...

  • Page 85: Pch-Io Configuration

    TANK-870e-H110 Embedded System 5.4.2 PCH-IO Configuration Use the PCH-IO Configuration menu (BIOS Menu 22) to configure the PCH parameters. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Chipset PCH-IO Configuration Select the state system should be when restoring Auto Power Button Status [Disabled(ATX)] on AC Power Loss.

  • Page 86: Pci Express Configuration

    TANK-870e-H110 Embedded System  USB Power SW1 [+5V DUAL] Use the USB Power SW1 BIOS option to configure the USB power source for the corresponding USB connectors.  Sets the USB power source to +5V  +5VDUAL Sets the USB power source to +5V dual EFAULT 5.4.2.1 PCI Express Configuration Use the PCI Express Configuration menu (BIOS Menu 23) to select the support type of...

  • Page 87: Hd Audio Configuration

    TANK-870e-H110 Embedded System  Gen3  Detect Non-Compliance Device [Disabled] Use the Detect Non-Compliance Device option to enable or disable the “detect no-compliance PCIe device” function.  Disabled Detect no-compliance PCIe device function is disabled EFAULT  Detect no-compliance PCIe device function is enabled. If Enabled will take more time at POST if it is enabled.

  • Page 88: Security

    TANK-870e-H110 Embedded System  Disabled The High Definition Audio controller is disabled.  The High Definition Audio controller is enabled. Enabled  Auto onboard High Definition Audio controller EFAULT automatically detected and enabled. 5.5 Security Use the Security menu (BIOS Menu 25) to set system and user passwords. Aptio Setup Utility –...

  • Page 89: Boot

    TANK-870e-H110 Embedded System 5.6 Boot Use the Boot menu (BIOS Menu 26) to configure system boot options. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Boot Boot Configuration Select the keyboard Bootup NumLock State [On] NumLock state Quiet Boot [Enabled] Launch PXE OpROM [Disabled]...
  • Page 90 TANK-870e-H110 Embedded System  Quiet Boot [Enabled] Use the Quiet Boot BIOS option to select the screen display when the system boots.  Normal POST messages displayed Disabled  OEM Logo displayed instead of POST messages Enabled EFAULT  Launch PXE OpROM [Disabled] Use the Launch PXE OpROM option to enable or disable boot option for legacy network devices.

  • Page 91: Save & Exit

    TANK-870e-H110 Embedded System 5.7 Save & Exit Use the Save & Exit menu (BIOS Menu 27) to load default BIOS values, optimal failsafe values and to save configuration changes. Aptio Setup Utility – Copyright (C) 2017 American Megatrends, Inc. Save & Exit Save Changes and Reset Exit the system after Discard Changes and Reset...
  • Page 92 TANK-870e-H110 Embedded System  Save as User Defaults Use the Save as User Defaults option to save the changes done so far as user defaults.  Restore User Defaults Use the Restore User Defaults option to restore the user defaults to all the setup options. Page 80...

  • Page 93: Aregulatory Compliance

    TANK-870e-H110 Embedded System Appendix Regulatory Compliance Page 81...
  • Page 94 TANK-870e-H110 Embedded System DECLARATION OF CONFORMITY This equipment is in conformity with the following EU directives:  EMC Directive (2014/30/EU)  Low-Voltage Directive (2014/35/EU)  RoHS II Directive (2011/65/EU, 2015/863/EU) If the user modifies and/or install other devices in the equipment, the CE conformity declaration may no longer apply.
  • Page 95 TANK-870e-H110 Embedded System Eesti [Estonian] IEI Integration Corp deklareerib seadme seadme vastavust direktiivi 2014/53/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. Español [Spanish] IEI Integration Corp declara que el equipo cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 2014/53/EU. Ελληνική...
  • Page 96 TANK-870e-H110 Embedded System Magyar [Hungarian] IEI Integration Corp nyilatkozom, hogy a berendezés megfelel a vonatkozó alapvetõ követelményeknek és az 2014/53/EU irányelv egyéb elõírásainak. Polski [Polish] IEI Integration Corp oświadcza, że wyrobu jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 2014/53/EU. Português [Portuguese] IEI Integration Corp declara que este equipamento está...
  • Page 97 TANK-870e-H110 Embedded System FCC WARNING This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:  This device may not cause harmful interference, and  This device must accept any interference received, including interference that may cause undesired operation.

  • Page 98: Bbios Options

    TANK-870e-H110 Embedded System Appendix BIOS Options Page 86...
  • Page 99 TANK-870e-H110 Embedded System Below is a list of BIOS configuration options in the BIOS chapter. System Date [xx/xx/xx] ......................44 System Time [xx:xx:xx] ....................... 44 Intel (VMX) Virtualization Technology [Disabled] ............. 47 Active Processor Cores [All] ....................47 EIST [Enabled] ........................47 C states [Disabled] .......................
  • Page 100 TANK-870e-H110 Embedded System USB Devices ......................... 63 Legacy USB Support [Enabled] ..................63 Auto Recovery Function [Disabled] ................... 64 PC Health Status ........................65 Tcc Activation Offset ......................66 Smart Fan control [Auto Mode] ..................66 CPU_FAN1 Start/Off Temperature ..................67 CPU_FAN1 start PWM ......................

  • Page 101: Csafety Precautions

    TANK-870e-H110 Embedded System Appendix Safety Precautions Page 89...

  • Page 102: Safety Precautions

    TANK-870e-H110 Embedded System C.1 Safety Precautions WARNING: The precautions outlined in this appendix should be strictly followed. Failure to follow these precautions may result in permanent damage to the TANK-870e-H110. Please follow the safety precautions outlined in the sections that follow: C.1.1 General Safety Precautions Please ensure the following safety precautions are adhered to at all times.

  • Page 103: Anti-Static Precautions

    TANK-870e-H110 Embedded System C.1.2 Anti-static Precautions WARNING: Failure to take ESD precautions during the installation of the TANK-870e-H110 result permanent damage TANK-870e-H110 and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the TANK-870e-H110. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the TANK-870e-H110 is opened and any of the electrical components are handled, the following anti-static precautions are strictly adhered to.

  • Page 104: Product Disposal

    TANK-870e-H110 Embedded System C.1.3 Product Disposal CAUTION: Risk of explosion if battery is replaced by and incorrect type. Only certified engineers should replace the on-board battery. Dispose of used batteries according to instructions and local regulations.  Outside the European Union–If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method.

  • Page 105: Maintenance And Cleaning

    TANK-870e-H110 Embedded System C.2.1 Maintenance and Cleaning Prior to cleaning any part or component of the TANK-870e-H110, please read the details below.  The interior of the TANK-870e-H110 does not require cleaning. Keep fluids away from the TANK-870e-H110 interior.  Be cautious of all small removable components when vacuuming the TANK-870e-H110.

  • Page 106: Derror Beep Code

    TANK-870e-H110 Embedded System Appendix Error Beep Code Page 94...

  • Page 107: Pei Beep Codes

    TANK-870e-H110 Embedded System D.1 PEI Beep Codes Number of Beeps Description Memory not Installed Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found DXE Core Firmware Volume was not found Recovery failed S3 Resume failed Reset PPI is not available D.2 DXE Beep Codes...

  • Page 108: Hazardous Materials Disclosure

    TANK-870e-H110 Embedded System Appendix Hazardous Materials Disclosure Page 96...

  • Page 109: Rohs Ii Directive (2015/863/Eu)

    TANK-870e-H110 Embedded System E.1 RoHS II Directive (2015/863/EU) The details provided in this appendix are to ensure that the product is compliant with the RoHS II Directive (2015/863/EU). The table below acknowledges the presences of small quantities of certain substances in the product, and is applicable to RoHS II Directive (2015/863/EU).

  • Page 110: China Rohs

    TANK-870e-H110 Embedded System E.2 China RoHS 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些 元件将会单独标示出来。 部件名称 有毒有害物质或元素 壳体 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11364-2014 與 GB/T26572-2011 标准规定的限量要求。 Page 98...

This manual is also suitable for:

Tank-870e-h110-i5/4g/3aTank-870e-h110-i5/4g/3b

Table of Contents
