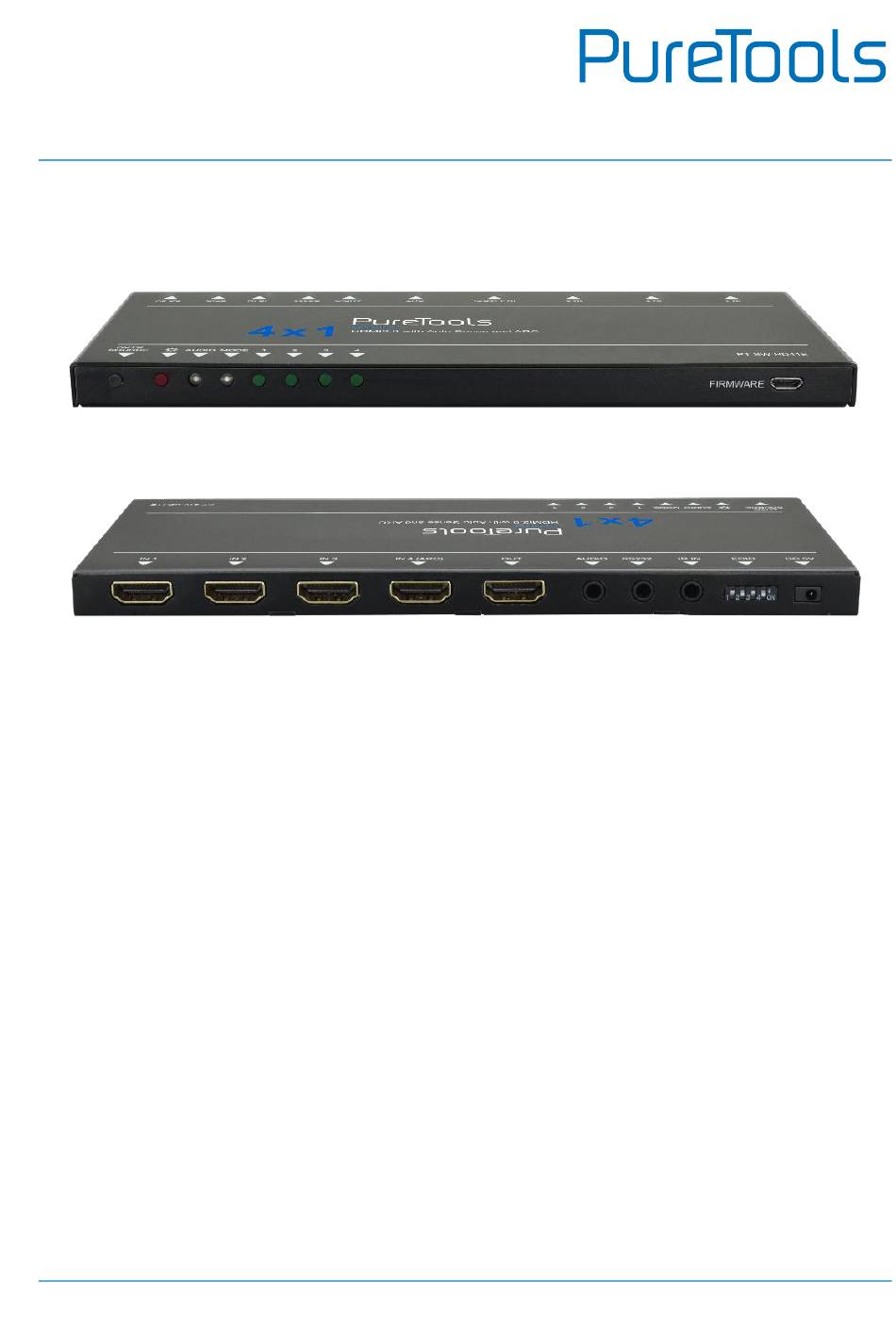

- Page 1 User Manual PT-SW-HD41E User Manual 4x1 HDMI Switcher HDMI2.0 with Auto Sense and ARC Model PT-SW-HD41E Designed in Germany © 2018 PureLink GmbH All rights reserved. V1.0...
- Page 2 User Manual PT-SW-HD41E Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
- Page 3 PT-SW-HD41E REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-SW-HD41E complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-SW-HD41E complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-SW-HD41E SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ...
-
Page 5: Table Of Contents
User Manual PT-SW-HD41E Table of Content 1. Product Introduction ........................1 1.1 Features ..........................1 1.2 Package List ........................2 2. Technical Specification ......................3 3. Panel Description ........................4 3.1 Front Panel ......................... 4 3.2 Rear Panel........................... 5 4. System Connection ........................6 4.1 Usage Precaution ...................... -
Page 6: Product Introduction

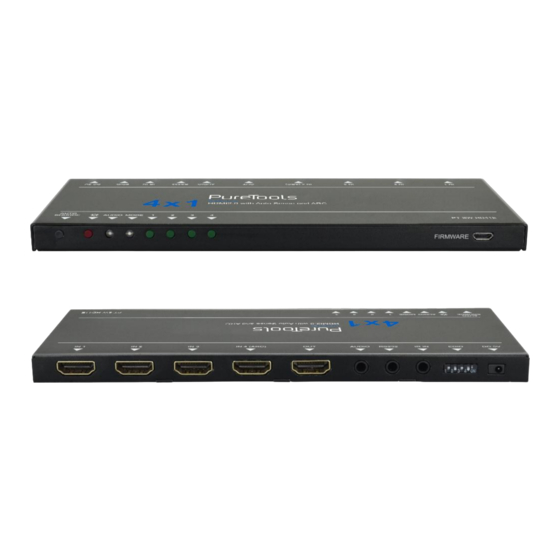

PT-SW-HD41E 1. Product Introduction The PT-SW-HD41E is an ultrathin auto switcher with four HDMI video inputs and one HDMI output. This switcher supports HDMI video resolution up to 4Kx2K@60Hz 4:4:4 HDR and multichannel audio. Except passing EDID information from the display, there are multiple built-in EDID settings to simplify an installation. -
Page 7: Package List
User Manual PT-SW-HD41E 1.2 Package List 1x HDMI2.0 4x1 Switcher 2x Mounting Ears 4x Mounting Screws 4x Plastic Cushions 1x RS232 Cable (3.5mm to DB9) 1x IR Remote 1x IR Receiver 1x Power Adapter (5V DC 1A) ... -
Page 8: Technical Specification
User Manual PT-SW-HD41E 2. Technical Specification Video Input Input (4) HDMI Input Connector (4) Female type-A HDMI HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 HDMI Standard HDCP Version Video Output Output (1) HDMI Output Connector (1) Female type-A HDMI HDMI Output Resolution... -
Page 9: Panel Description
User Manual PT-SW-HD41E 3. Panel Description 3.1 Front Panel AUTO SOURCE AUDIO MODE FIRMWARE ① Auto/Source Button: Press to switch to next input source. Press and hold at least three seconds to switch between manual mode and auto mode. -
Page 10: Rear Panel
User Manual PT-SW-HD41E 3.2 Rear Panel IN 1 IN 2 IN 3 AUDIO RS232 IR IN EDID DC 5V ① IN 1~4: Four type-A female HDMI input ports to connect HDMI sources. The input 4 port supports ARC. ② OUT: Type-A female HDMI output port to connect HDMI display. -
Page 11: System Connection
User Manual PT-SW-HD41E 4. System Connection 4.1 Usage Precaution Make sure all components and accessories included before installation. System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated ... -
Page 12: Source Button Control
User Manual PT-SW-HD41E 5. Source Button Control 5.1 Manual Switching When the switcher is in manual switching mode, the Switching Mode LED will be green, and please press Auto/Source button to switch to the next input. 5.2 Automatic Switching To enable automatic switching, press and hold the Auto/Source button for three seconds. -
Page 13: Ir Remote Control
User Manual PT-SW-HD41E 6. IR Remote Control Please connect an IR receiver to the IR input port; the IR remote is used for signal switching and it can also be used to control source and display devices based on CEC function. -
Page 14: Rs232 Control
User Manual PT-SW-HD41E 7. RS232 Control Connect the switcher to the control device (e.g. PC) with RS232 cable and set the parameters in the right manner, the control device is capable to control this switcher by RS232 commands. 7.1 RS232 Control Software Installation: Copy the control software file to the computer connected with this switcher. - Page 15 User Manual PT-SW-HD41E The interface of the control software is shown as below: Parameter configuration area Monitoring area, indicates if the command sent works. Command sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, then the RS232 commands can be sent in Command Sending Area.
-
Page 16: Rs232 Command
User Manual PT-SW-HD41E 7.2 RS232 Command Note: All commands must be ended with “<CR><LF>”. Signal Switching 7.2.1 Function Command Feedback Example Switch to HDMI input 1. >>HDMI1 <<HDMI1 >>HDMI2 <<HDMI2 Switch to HDMI input 2. >>HDMI3 <<HDMI3 Switch to HDMI input 3. -
Page 17: Audio Selection
User Manual PT-SW-HD41E Function Command Feedback Example >>SRCPause Pause <<SRCPause Stop >>SRCStop <<SRCStop >>SRCForward Fast Forward x1 >>SRCForward >>SRCBackward Fast Rewind x1 <<SRCBackward Next Section >>SRCSkipForward >>SRCSkipForward >>SRCSkipBackward Previous Section <<SRCSkipBackward >>SRCMenu Open the menu setting >>SRCMenu Go back >>SRCBack >>SRCBack... -
Page 18: Display Device Control
Volume up. >>TVVOL+ >>TVVOL+ >>TVVOL- Volume down. >>TVVOL- >>TVMUTE Mute. >>TVMUTE <<TVUNMUTE Unmute <<TVUNMUTE System Control 7.2.5 Function Command Feedback Example System reset. >>RESET >>RESET <<AUDExternal << PT-SW-HD41E << V1.0.0 << -------- Get system information. >>SYSInfo <<HDMI1 <<Auto Switch <<AUDExternal <<EDID0... -
Page 19: Edid Management
User Manual PT-SW-HD41E 8. EDID Management 8.1 Predefined EDID Setting The rear panel boasts a 4-pin DIP switch to set the predefined EDID. The ten types of embedded EDID and their corresponding switch status are shown in the below list. -
Page 20: User Defined Edid Setting
User Manual PT-SW-HD41E 8.2 User Defined EDID Setting Except directly invoking the embedded EDID, the specific EDID can be customized. There are five EDID can be customized following the below operations. 1) Rename the user defined EDID according the following format. -
Page 21: Arc Mode
User Manual PT-SW-HD41E 9. ARC Mode Audio Return Channel (ARC) allows audio from a display to pass “upstream” through an HDMI cable to an audio processing device, such as an AV amplifier. When ARC mode is active on the switcher, the ARC stream will pass to the active HDMI source device if it can process the signal. -
Page 22: Firmware Upgrade
User Manual PT-SW-HD41E 10. Firmware Upgrade Please follow the steps as below to upgrade firmware by the Micro-USB port on the rear panel: 1) Prepare the latest upgrade file (.bin) and rename it as “USERAPP.bin” 2) Connect the switcher to the PC with USB cable, and then power on the switcher. -
Page 23: Panel Drawing
User Manual PT-SW-HD41E 11. Panel Drawing 194.0mm Switcher HDMI2.0 with Auto Sense and ARC AUTO SOURCE AUDIO MODE PT-SW-HD41E FIRMWARE... -
Page 24: Troubleshooting & Maintenance
User Manual PT-SW-HD41E 12. Troubleshooting & Maintenance Problems Potential Causes Solutions Colour losing or no video signal output in HDMI The connecting cables display. Check whether the cables may not be connected are connected correctly No HDMI signal output in correctly or it may be and in working condition. -
Page 25: After-Sales Service
User Manual PT-SW-HD41E 13. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: The product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 26 User Manual PT-SW-HD41E...
- Page 27 User Manual PT-SW-HD41E...
- Page 28 User Manual PT-SW-HD41E Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
