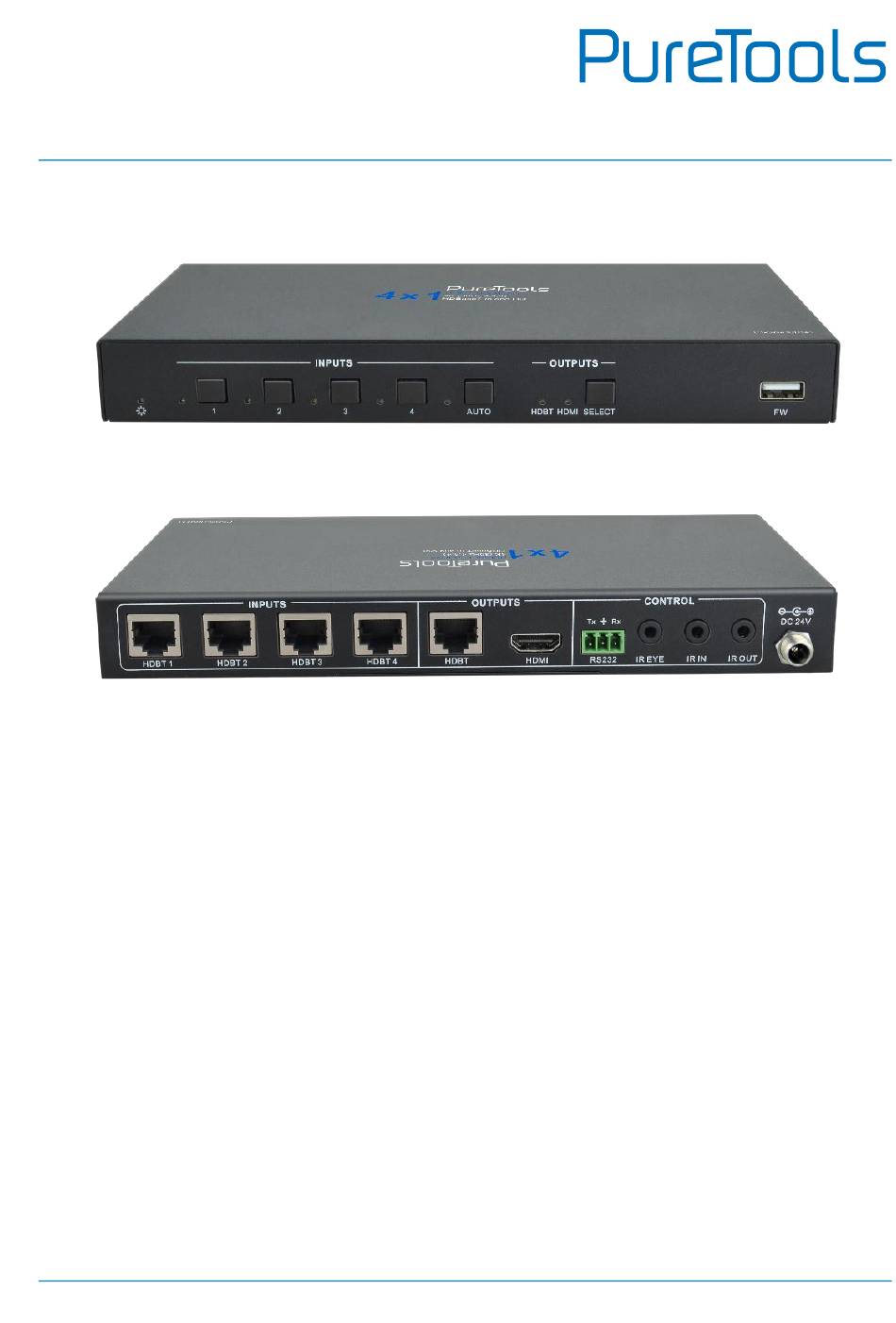

- Page 1 User Manual PT-SW-HDBT41 User Manual 4x1 HDBaseT Switcher with 4K 40m Extension Model PT-SW-HDBT41 Designed in Germany © 2019 PureLink GmbH All rights reserved. V1.0...
- Page 2 User Manual PT-SW-HDBT41 Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
- Page 3 PT-SW-HDBT41 REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-SW-HDBT41 complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-SW-HDBT41 complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-SW-HDBT41 SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ...
-
Page 5: Table Of Contents
User Manual PT-SW-HDBT41 Table of Content 1. Product Introduction ........................1 1.1 Features ..........................1 1.2 Package List ........................2 2. Technical Specification ......................3 3. Panel Description ........................4 3.1 Front Panel ......................... 4 3.2 Rear Panel........................... 5 4. System Connection ........................6 4.1 Usage Precaution ...................... -
Page 6: Product Introduction
User Manual PT-SW-HDBT41 1. Product Introduction Thanks for choosing the PT-SW-HDBT41 4x1 HDBaseT Switcher with automatic signal switching. The switcher features four HDBaseT inputs, one HDBaseT output and one HDMI output. It also supports HDMI 1.4 and video resolutions up to 4K@60Hz 4:2:0. -
Page 7: Package List
User Manual PT-SW-HDBT41 1.2 Package List 1x 4x1 HDBaseT Switcher 2x Mounting Ears 4x Mounting Screws 4x Plastic Cushions 1x Power Adapter (24V DC 1.25A) 1x User Manual Note: Please contact your distributor immediately if any damage or defect in the... -
Page 8: Technical Specification
User Manual PT-SW-HDBT41 2. Technical Specification Video Input Input (4) HDBT Input Connector (4) RJ45 HDBT Input Resolution Up to 4Kx2K@60Hz 4:2:0 Video Output Output (1) HDBT, (1) HDMI Output Connector (1) RJ45, (1) Female type-A HDMI HDBT Output Resolution... -
Page 9: Panel Description

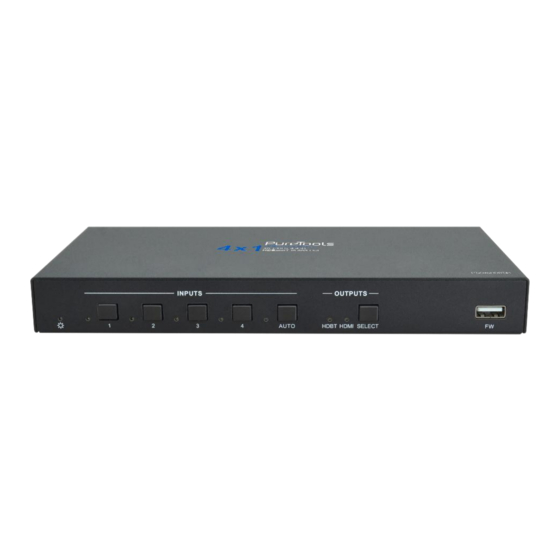

User Manual PT-SW-HDBT41 3. Panel Description 3.1 Front Panel INPUTS OUTPUTS AUTO HDBT HDMI SELECT TCP IP ① Power LED: The LED illuminates green when power is applied. ② Source Buttons and LEDs: Press button (1~4) to select the input source. The left LED illuminates blue when there is HDBT input on the corresponding channel. -
Page 10: Rear Panel
User Manual PT-SW-HDBT41 3.2 Rear Panel INPUTS OUTPUTS CONTROL DC 24V RS232 IR EYE IR IN IR OUT HDBT 1 HDBT 2 HDBT 3 HDBT 4 HDBT HDMI ① INPUTS: Four RJ45 input ports to connect compatible HDBaseT transmitters using CATx Ethernet cables. Note that the connected transmitters cannot be powered using PoC and must be powered using their power adaptors. -
Page 11: System Connection
User Manual PT-SW-HDBT41 4. System Connection 4.1 Usage Precaution Make sure all components and accessories are included before installation. System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated ... -
Page 12: Button Control
User Manual PT-SW-HDBT41 USB: HDMI: RS232: HDBaseT: HDMI IN HDBT OUT USB OUT RS232 DC 12V Laptop Central Control System PT-HDBT-1002-Tx Transmitter HDMI IN HDBT OUT USB OUT RS232 DC 12V Laptop INPUTS OUTPUTS CONTROL PT-HDBT-1002-Tx Transmitter Laptop DC 24V... - Page 13 User Manual PT-SW-HDBT41 Reboot: Once power is restored to the switcher, the last selected output will remain active. The switcher will switch to the first available active input starting at HDBT input 1. Source Removed: When an active source is removed, the switcher will switch to the ...
-
Page 14: Gui Control
User Manual PT-SW-HDBT41 6. GUI Control The switcher can also be controlled via TCP/IP. The default IP setting is: IP Address: 192.168.0.178 Subnet Mask: 255.255.255.0 Please type 192.168.0.178 in the internet browser to enter the log-in webpage: Username: admin Password: admin Please type in the user name and password, then click Login to enter the section for video switching. -
Page 15: Video Tab
User Manual PT-SW-HDBT41 6.1 Video Tab 1) Select the HDBT or HDMI output channel. 2) Click the HDBT 1-4 buttons to select the input source respectively. 3) Click the AUTO button to enable or disable auto switch mode. -
Page 16: Tags Tab
User Manual PT-SW-HDBT41 6.2 Tags Tab Modify the input button labels. -
Page 17: Rs232 Tab
User Manual PT-SW-HDBT41 6.3 RS232 Tab Baud Rate: Supports 2400, 4800, 9600, 19200, 38400, 57600 or 115200. Command: Type the command in this box to control the switcher. -
Page 18: Configuration
User Manual PT-SW-HDBT41 6.4 Configuration Turn on or off 48V PoC power output. -
Page 19: Network Tab
User Manual PT-SW-HDBT41 6.5 Network Tab Set Static IP or Dynamic Host Configuration Protocol (DHCP). Modify the static IP Address, Subnet Mask, and Gateway. -
Page 20: Password Tab
User Manual PT-SW-HDBT41 6.6 Password Tab Modify the login password. Lock or unlock the front panel buttons. -
Page 21: Gui Upgrade
User Manual PT-SW-HDBT41 6.7 GUI Upgrade Please visit at http://192.168.0.178:100 for online GUI updates. Type the username and password (the same as the GUI log-in setting, modified password will be available only after rebooting) to login to the configuration interface. After that, click Administration in the source menu to get to Upload Firmware as shown below: Select the update file and click Apply button to start the update process. -
Page 22: Rs232 Control
User Manual PT-SW-HDBT41 7. RS232 Control Connect the switcher to the control device (e.g. PC) with an RS232 cable and set the parameters according to your hardware. The control device is capable to control this switcher with RS232 commands. 7.1 RS232 Control Software Installation: Copy the control software file to the computer connected with this switcher. - Page 23 User Manual PT-SW-HDBT41 The interface of the control software is shown as below: Parameter configuration area Monitoring area, indicates if the command sent works. Command sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, then the RS232 commands can be sent in Command Sending Area.
-
Page 24: Rs232 Command
User Manual PT-SW-HDBT41 7.2 RS232 Command 7.2.1 Device Control Command Function Feedback Example KEYLOCK. Lock front panel buttons. Key Lock KEYUNLOCK. Unlock front panel buttons. Key Unlock Key Lock GETKEYS. Report the button locking status. Key Unlock RST. Reset to factory default. -
Page 25: Signal Switching
User Manual PT-SW-HDBT41 7.2.2 Signal Switching Command Function Feedback Example Switch input x to output y. HDBTx IN TO HDBT OUT x (1~4) Input Port HDBT 1 HDBT 2 SET x TO y. HDBT 3 HDBT 4 y (1~2) Output Port... -
Page 26: Baud Rate Setting
User Manual PT-SW-HDBT41 7.2.3 Baud Rate Setting Command Function Feedback Example Set the baud rate of RS232 port BAUD:2400. Baud:2400 to 2400. Set the baud rate of RS232 port BAUD:4800. Baud:4800 to 4800. Set the baud rate of RS232 port BAUD:9600. -
Page 27: Ir Control
User Manual PT-SW-HDBT41 8. IR Control If the IR EYE port is connected to an IR center control device, the switcher can be controlled by receiving IR signals from the IR center control device. The control buttons and their corresponding IR codes are shown the table below:... - Page 28 User Manual PT-SW-HDBT41 Button Name IR Code HEX (NEC) Function 0000 006C 0022 0002 015B 00AD 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0041 0016 0016 0016 0041 0016 0041 0016 0041 0016 0041...
- Page 29 User Manual PT-SW-HDBT41 Button Name IR Code HEX (NEC) Function 0000 006C 0022 0002 015B 00AD 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0041 0016 0016 0016 0041 0016 0041 0016 0041 0016 0041...
- Page 30 User Manual PT-SW-HDBT41 Button Name IR Code HEX (NEC) Function 0000 006C 0022 0002 015B 00AD 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0041 0016 0016 0016 0041 0016 0041 0016 0041 0016 0041...
-
Page 31: Firmware Upgrade
User Manual PT-SW-HDBT41 9. Firmware Upgrade Please follow the steps below to upgrade the firmware using the type-A USB port on the rear panel: 1) Prepare the latest upgrade file (.bin) and rename it as “USERAPP.bin” 2) Connect the switcher to the PC with a USB cable, and then power on the switcher. -
Page 32: Panel Drawing
User Manual PT-SW-HDBT41 10. Panel Drawing 220.00 mm INPUTS OUTPUTS CONTROL DC 24V HDBT 1 HDBT 2 HDBT 3 HDBT 4 HDBT HDMI RS232 IR EYE IR IN IR OUT INPUTS OUTPUTS AUTO HDBT HDMI SELECT TCP IP... -
Page 33: Troubleshooting & Maintenance
User Manual PT-SW-HDBT41 11. Troubleshooting & Maintenance Problems Potential Causes Solutions Colour losing or no video signal output on HDMI The connecting cables Check whether the cables display. may not be connected are connected correctly No signal output from this correctly or it may be and in working condition. -
Page 34: After-Sales Service
User Manual PT-SW-HDBT41 12. After-Sales Service If problems appear when using the product, please deal with the problems referring to this user manual. During the warranty period, any transport costs are borne by the customer. 1) Product Limited Warranty: The product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 35 User Manual PT-SW-HDBT41...
- Page 36 User Manual PT-SW-HDBT41 Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 - 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
