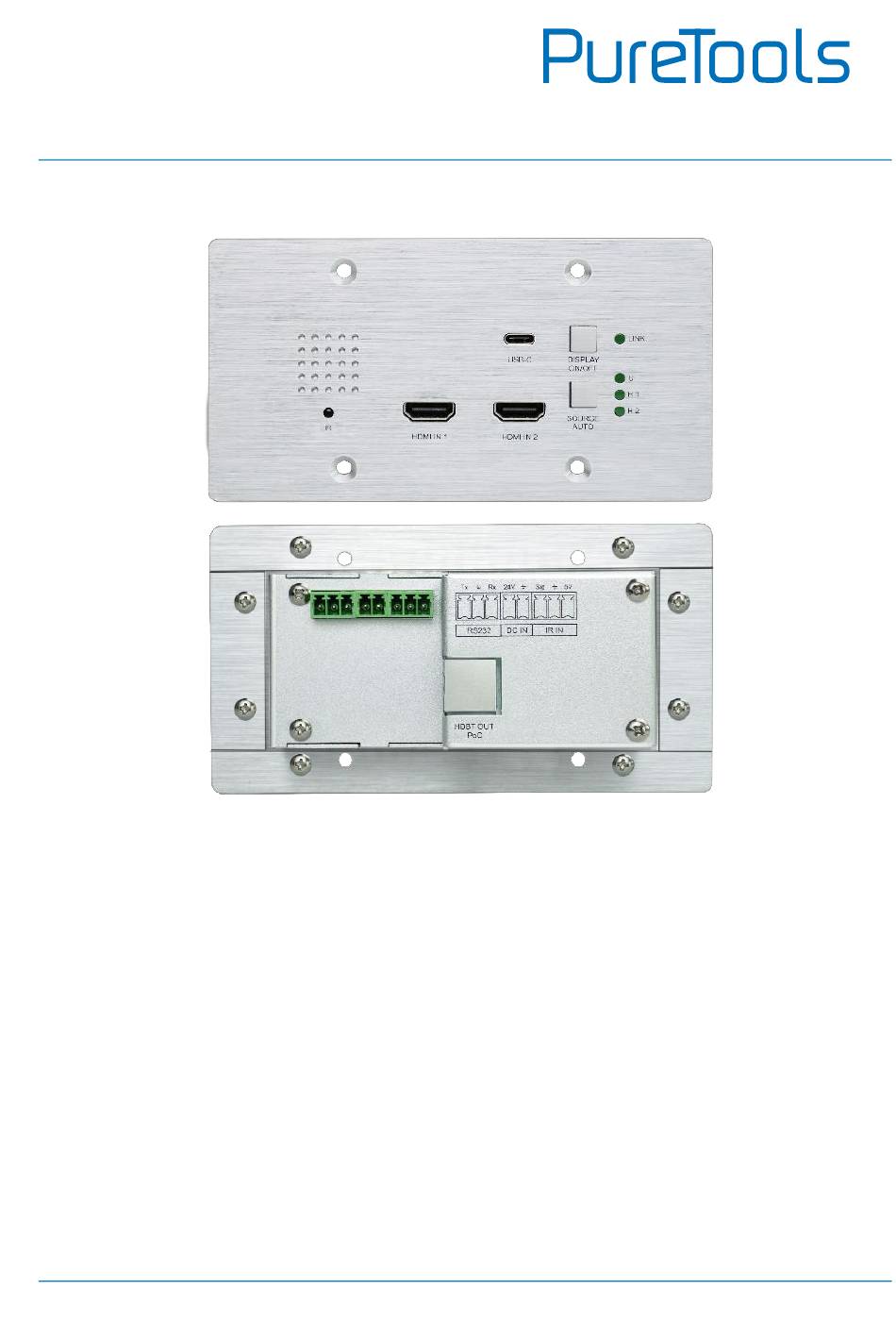

- Page 1 User Manual PT-HDBT-703-TXWP-F User Manual 3x1 HDBaseT Wallplate Transmitter, 2 x HDMI & 1 x USB C Inputs Model PT-HDBT-703-TXWP-F Designed in Germany © 2021 PureLink GmbH All rights reserved. V1.0...
- Page 2 User Manual PT-HDBT-703-TXWP-F Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
- Page 3 PT-HDBT-703-TXWP-F REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-HDBT-703-TXWP-F complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-HDBT-703-TXWP-F complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-HDBT-703-TXWP-F SAFETY PRECAUTIONS To ensure the best performance from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ⚫...
-
Page 5: Table Of Contents
User Manual PT-HDBT-703-TXWP-F Contents 1. Product Introduction ........................1 1.1 Features ..........................1 1.2 Package List ........................2 2. Specification ..........................3 3. Panel Description ........................4 3.1 Front Panel ......................... 4 3.2 Rear Panel........................... 5 3.3 Side Panel ........................... 6 4. -
Page 6: Product Introduction
PT-HDBT-703-TXWP-F 1. Product Introduction Thanks for choosing the PT-HDBT-703-TXWP-F 3x1 Wallplate Transmitter Switcher, which is designed to switch and extend HDMI or Slimport input signal to far-end display device, and the transmission distance is up to 131ft/40m at 4K and 229ft/70m at 1080P video by using a single CATx cable. -
Page 7: Package List
User Manual PT-HDBT-703-TXWP-F 1.2 Package List 1x PT-HDBT-703-TXWP-F ⚫ 1x 2-pin Terminal Block ⚫ 2x 3-pin Terminal Blocks ⚫ 1x Power Adapter (24V 1.25A) ⚫ 1x User Manual ⚫ Note: Please contact your distributor immediately if any damage or defect in the... -
Page 8: Specification
User Manual PT-HDBT-703-TXWP-F 2. Specification Input Input (2) HDMI, (1) USB-C (Slimport) Input Connector (2) Female type A HDMI, (1) Type-C USB HDMI Input Resolution Up to 4K/UHD@60Hz 4:2:0 Slimport Input Up to 4K/UHD@30Hz 4:4:4 Resolution Output Output (1) HDBT OUT... -
Page 9: Panel Description

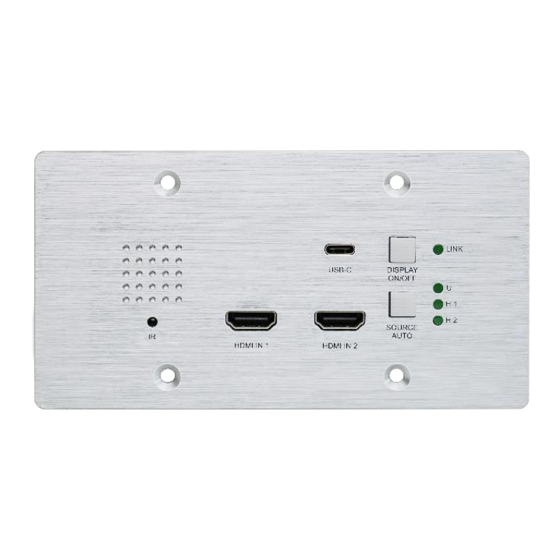

User Manual PT-HDBT-703-TXWP-F 3. Panel Description 3.1 Front Panel ① IR: Built-in IR sensor for IR learning feature. It doesn’t support IR pass-through. ② HDMI IN 1: Type-A HDMI port to connect HDMI source. ③ HDMI IN 2: Type-A HDMI port to connect HDMI source. -
Page 10: Rear Panel
User Manual PT-HDBT-703-TXWP-F ⑨ LINK LED: The LED illuminates green to indicate a successful data link with the HDBaseT receiver. 3.2 Rear Panel 2 3 4 ① HDBT (POC): RJ45 HDBaseT output port to connect to the HDBT IN port of the receiver by a CATx cable. -
Page 11: Side Panel
User Manual PT-HDBT-703-TXWP-F 3.3 Side Panel ① FIRMWARE: Micro-USB port for firmware upgrade. -
Page 12: System Connection
User Manual PT-HDBT-703-TXWP-F 4. System Connection Usage Precautions Make sure all components and accessories included before installation. ⚫ System should be installed in a clean environment with proper temperature and ⚫ humidity. All of the power switches, plugs, sockets, and power cords should be insulated and ⚫... -
Page 13: Button Control
User Manual PT-HDBT-703-TXWP-F 5. Button Control 5.1 Source Switching 1) Press the SOURCE AUTO button to switch to next source device, and then the corresponding input LED will turn green. 2) Press and hold the SOURCE AUTO button at least 3 seconds to enable auto... -
Page 14: Display Control
User Manual PT-HDBT-703-TXWP-F 5.2 Display Control 1) Press the DISPLAY ON/OFF button to turn on/off the display. 2) If the incompatible display device needs to be used with this switcher, the DISPLAY ON/OFF button can be programed by IR learning or RS232 command. For... -
Page 15: Rs232 Control Software
User Manual PT-HDBT-703-TXWP-F ② When control the far-end third party device from local control device (e.g. PC), connect the PC to the RS232 port of the switcher, and then connect the third party device (e.g. projector) to the RS232 port of receiver. The connection diagram... - Page 16 User Manual PT-HDBT-703-TXWP-F Click “OK” to close this window. The next pop-up window can also be closed with "Continue". An empty project is enough to send and receive commands easily (The default setting is always “Start with a blank project / blank script “) Click “Continue”...
- Page 17 User Manual PT-HDBT-703-TXWP-F Now you are in the main view, where commands are sent and feedback is received. The next step is to select the correct COM port of the PC. To do this, double-click on "COM1" in the corresponding setup window.
- Page 18 User Manual PT-HDBT-703-TXWP-F Select the right COM port. In order to be able to send commands, open communication with the device by clicking on "Play". (1) Then the keyboard function must be activated, so that commands can be written in the "communication window".
- Page 19 User Manual PT-HDBT-703-TXWP-F Enable the keyboard Command type in function. sending area. Click “Play” to open the communication. Monitoring area, indicates if the command sent works.
-
Page 20: Rs232 Command
User Manual PT-HDBT-703-TXWP-F 6.3 RS232 Command Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none 6.3.1 Device Control Command Function Feedback Example 50617% Restore factory default FACTORY RESET 50699% Get firmware version VERSION Vx.x.x... -
Page 21: Edid Management
User Manual PT-HDBT-703-TXWP-F 6.3.3 EDID Management The input resolution (EDID setting) can be set using RS232 commands to one of the options given in the following table. Command EDID Feedback Example 50768% 720P PCM 2CH EDID:720P, PCM 2CH EDID:720P, DOLBY/DTS PCM... -
Page 22: Cec Control
User Manual PT-HDBT-703-TXWP-F Command EDID Feedback Example EDID:1920x1200, PCM 2CH EDID:3840x2160@60, 4:2:0 8BIT EDID: USER EDID: BYPASS 6.3.4 CEC Control The switcher also supports sending of a few common CEC commands using RS232 command code. Specific CEC command can also be sent from the switcher. The RS232 commands are as given in the following table. -
Page 23: Button User-Defined
User Manual PT-HDBT-703-TXWP-F 7. Button User-defined Press the DISPLAY ON/OFF button can turn on/off the display. If the incompatible display device needs to be used, the DISPLAY ON/OFF button can be programed by IR learning feature or RS232 command. IR learning feature: ⚫... - Page 24 User Manual PT-HDBT-703-TXWP-F Programed by RS232 command: ⚫ The DISPLAY ON/OFF button also can be defined to send control characters by following the below command format. Command Function Command Example Format k=0, Set the DISPLAY ON k=1, Set the DISPLAY OFF...
-
Page 25: Panel Drawing
User Manual PT-HDBT-703-TXWP-F 8. Panel Drawing 15 1.0 0 m m 70.00 mm 42.10 mm 10 8 .6 0 m m 10 .0 0 m m... -
Page 26: Troubleshooting & Maintenance
User Manual PT-HDBT-703-TXWP-F 9. Troubleshooting & Maintenance Problems Potential Causes Solutions Color losing or no video signal output in HDMI display. The connecting cables No HDMI signal output in Check whether the cables may not be connected the device while local... -
Page 27: After-Sales Service
User Manual PT-HDBT-703-TXWP-F 10. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 28 User Manual PT-HDBT-703-TXWP-F Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 - 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
