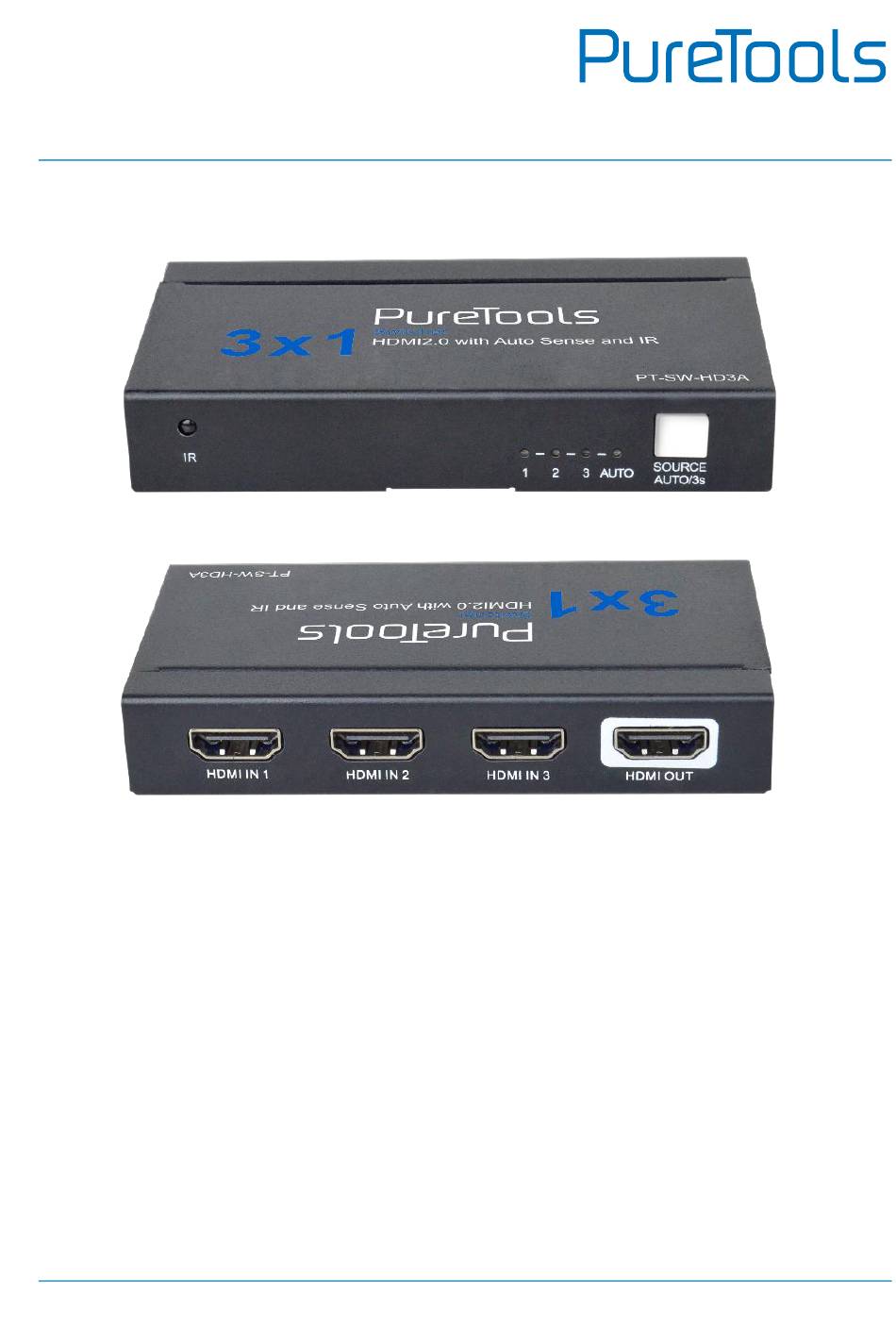

- Page 1 User Manual PT-SW-HD3A User Manual HDMI 2.0 3x1 Switcher with Auto-Switching Model PT-SW-HD3A Designed in Germany © 2019 PureLink GmbH All rights reserved. V1.0...
- Page 2 User Manual PT-SW-HD3A Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
- Page 3 PT-SW-HD3A REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-SW-HD3A complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-SW-HD3A complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-SW-HD3A SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ...
-
Page 5: Table Of Contents
User Manual PT-SW-HD3A Table of Content 1. Product Introduction ........................1 1.1 Features ..........................1 1.2 Package List ........................2 2. Technical Specification ......................3 3. Panel Description ........................4 3.1 Front Panel ......................... 4 3.2 Rear Panel........................... 5 4. System Connection ........................6 4.1 Usage Precaution ...................... -
Page 6: Product Introduction
PT-SW-HD3A 1. Product Introduction Thanks for choosing the PT-SW-HD3A HDMI 2.0 3x1 Switcher with three HDMI video inputs and one HDMI output including automatic signal switching. It supports HDMI video resolutions up to 4K@60Hz, 4:4:4 with HDR, Dolby Vision and multichannel audio support. -
Page 7: Package List
User Manual PT-SW-HD3A 1.2 Package List 1x HDMI 2.0 3x1 Switcher 1x IR Remote 1x User Manual Note: Please contact your distributor immediately if any damage or defect in the components is found. -
Page 8: Technical Specification
User Manual PT-SW-HD3A 2. Technical Specification Video Input Input (3) HDMI Input Connector (4) Female type-A HDMI HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 Video Output Output (1) HDMI Output Connector (1) Female type-A HDMI HDMI Output Resolution Up to 4Kx2K@60Hz 4:4:4... -
Page 9: Panel Description

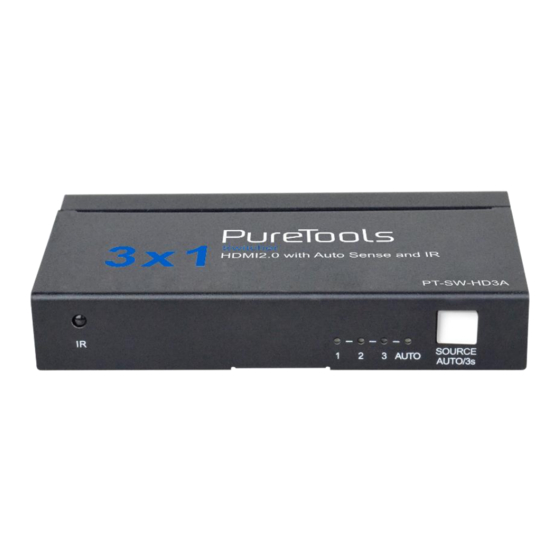

User Manual PT-SW-HD3A 3. Panel Description 3.1 Front Panel 2 3 4 IR: Built-in IR sensor to receive IR signals from the IR remote to control the ① switcher. ② INPUT 1~3 LED: The LED illuminates blue when the corresponding input channel is selected ... -
Page 10: Rear Panel
User Manual PT-SW-HD3A 3.2 Rear Panel ① HDMI IN 1~3: Three type-A female HDMI input ports to connect HDMI sources. ② HDMI OUT: Type-A female HDMI output port to connect HDMI display. -
Page 11: System Connection
User Manual PT-SW-HD3A 4. System Connection 4.1 Usage Precaution Make sure all components and accessories are included before starting the installation. System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated ... -
Page 12: Operation Of Switcher
User Manual PT-SW-HD3A 5. Operation of Switcher 5.1 Button Control 5.1.1 Manual Switching When the switcher is in manual switching mode, the AUTO LED is off. Please press the SOURCE AUTO/3S button to switch to the next input. 5.1.2 Automatic Switching Press and hold the SOURCE AUTO/3S button at least three seconds to enable automatic switching mode. -
Page 13: Ir Remote Control
User Manual PT-SW-HD3A 5.2 IR Remote Control AUTO: Enable or disable automatic switching mode. INPUTS: Press 1~3 to select the corresponding HDMI input source. 6. Panel Drawing 105.0 mm... -
Page 14: Troubleshooting & Maintenance
User Manual PT-SW-HD3A 7. Troubleshooting & Maintenance Problems Potential Causes Solutions Colour loss or no video signal output on HDMI The connecting cables display. Check whether the cables may not be connected No HDMI signal output are connected correctly correctly or it may be and in working condition. -
Page 15: After-Sales Service
User Manual PT-SW-HD3A 8. After-Sales Service If problems appear when using the product, please deal with the problems referring to this user manual. During the warranty period, any transport costs are borne by the customer. 1) Product Limited Warranty: The product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 16 User Manual PT-SW-HD3A Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 - 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
