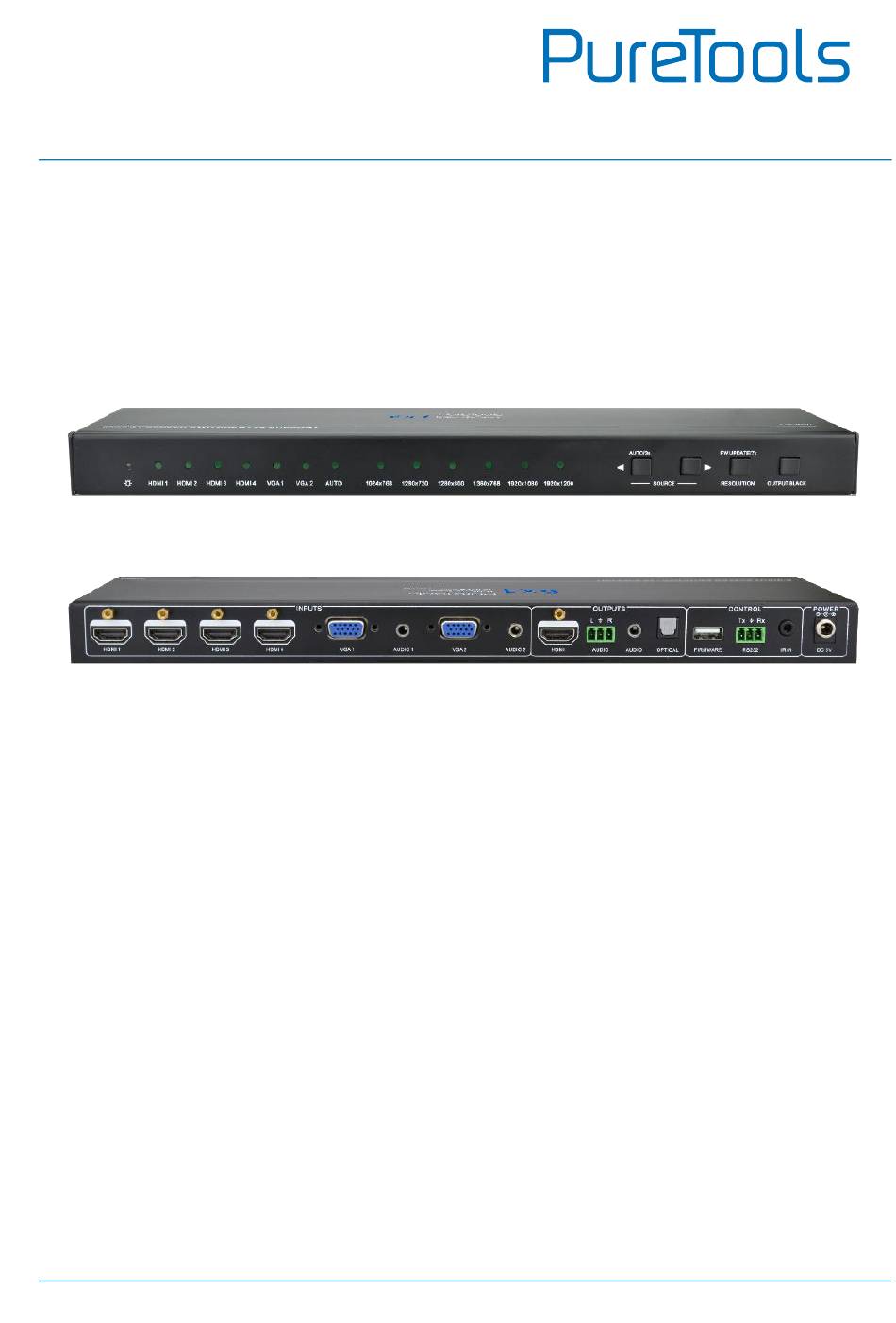

- Page 1 User Manual PT-PSW-61 User Manual Scaler Switcher Multiformat Scaling, 4K (60Hz 4:2:0), HDMI Out Model PT-PSW-61 Designed in Germany © 2017 PureLink GmbH All rights reserved. VersionV1.0...
- Page 2 User Manual PT-PSW-61 Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
- Page 3 PT-PSW-61 REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-PSW-61 complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-PSW-61 complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-PSW-61 SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment Follow basic safety precautions to reduce the risk of fire, electrical shock and ...
-
Page 5: Table Of Contents
User Manual PT-PSW-61 Contents 1. Introduction ..........................1 1.1 Introduction to PT-PSW-61 .................... 1 1.2 Feature ..........................1 1.3 Package List ........................2 2. Panel Description ........................3 2.1 Front Panel ......................... 3 2.2 Rear Panel .......................... 5 3. System Connection ........................6 3.1 Usage Precaution ...................... -
Page 6: Introduction
1. Introduction 1.1 Introduction to PT-PSW-61 The PT-PSW-61 is a compact 6x1 mini unit with 6 video inputs (4 HDMI, 2 VGA), 2 auxiliary audio inputs (switched following VGA), 1 HDMI output and 3 audio outputs (1 dual-mono analog audio, 1 3.5mm stereo audio, 1 optical audio). -
Page 7: Package List
User Manual PT-PSW-61 1.3 Package List 1 x PT-PSW-61 2 x Mounting Ears 4 x Screws 4 x Plastic Cushions 1 x Power Adapter (DC 5V 3A) 2 x 3-pin Pluggable Terminal Blocks (pitch:3.81mm) ... -
Page 8: Panel Description

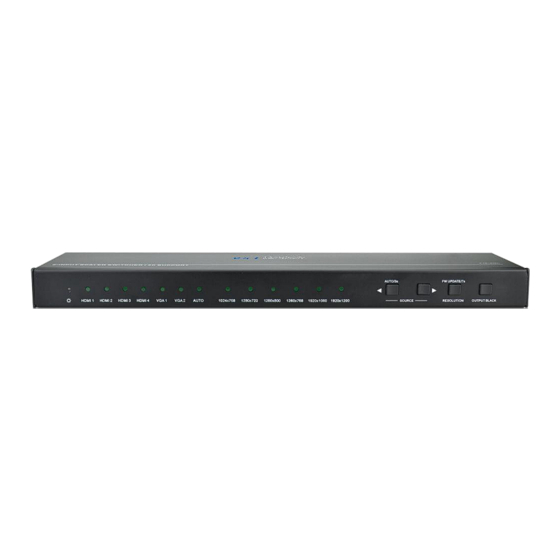

User Manual PT-PSW-61 2. Panel Description 2.1 Front Panel Name Description Indicator for power status Off when no power. ① Power LED Constantly green when the system is in working. Constantly red when the system is enter in standby. - Page 9 User Manual PT-PSW-61 Name Description Output resolution manual switching button for VGA input: selection circularly among 1920×1200, 1920×1080, 1360×768, 1280×800, 1024×768, 1280×720.default resolution:1920×1080. RESOLUTION/FW ⑥ UPDATE Firmware updating button: press and hold for 7 seconds or more to enter in software updating procedure.
-
Page 10: Rear Panel
RS232: Serial port, 3-pin pluggable terminal block, connect ③ Control with control terminal (e.g. a PC) to control PT-PSW-61. IR IN: connect to an IR Receiver, to receive IR signal send by corresponding IR remote. ④ DC 5V Connect to a DC 5V 3A power adapter. -
Page 11: System Connection
User Manual PT-PSW-61 3. System Connection 3.1 Usage Precaution System should be installed in a clean environment, preferably at ambient temperature or within given working temperature range (see page 19 for limits). All of the power switches, plugs, sockets and power cords should be insulated. -
Page 12: Connection Procedure
Step1. Connect HDMI/DVI sources (e.g. DVD) to HDMI input ports of PT-PSW-61 with HDMI cables. Step2. Connect VGA sources (e.g. DV Camera) to VGA input ports of PT-PSW-61 with VGA cables. Step3. Connect sources to the AUDIO input ports of PT-PSW-61 with audio cables. -
Page 13: System Operation
RS232 command and IR remote are able to switch mode. The auto LED turn green and keep on. The auto-switching mode abides by the following principles: New input principle Once detecting a new input signal, PT-PSW-61 would switch to this new signal automatically. - Page 14 Remove the signal of HDMI3, PT-PSW-61 will detect from HDMI1 to VGA2. And when it detects that HDMI2 is available, it will choose HDMI2 to output. Cut off the power of PT-PSW-61, then reboot. As the unit is in auto-switching mode, it will choose HDMI2 to output.
-
Page 15: Rs232 Control
Basic Setting: Firstly, connect PT-PSW-61 with an input device and an output device. Then, connect it with a computer which is installed with RS232 control software. Double-click the software icon to run this software. The icon is showed as below:... - Page 16 User Manual PT-PSW-61 The interface of the control software is showed as below: Monitoring area, indicates whether the command sent works. Command Sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, only then will you be able to send command in Command Sending...
-
Page 17: Rs232 Command
User Manual PT-PSW-61 RS232 Command 4.2.2 Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none Switch Commands Command Function Feedback Example 50701% Switch to HDMI 1 Input Switch to HDMI 1 50702% Switch to HDMI 2 Input... - Page 18 User Manual PT-PSW-61 Setup Commands Command Function Feedback Example 50604% Lock the front panel buttons Front Panel lock 50605% Unlock the front panel buttons Front Panel Unlock Set the brightness to xx (xx ranges from 502xx% Brightness: xx 0 to 99) for VGA input...
- Page 19 User Manual PT-PSW-61 Setup Commands Command Function Feedback Example 50697% Exit standby mode Wake up! 50797% Enter standby mode Go to standby! 50698% Software update 50617% Reset to factory defaults Factory Reset Change the horizontal polarity to the Hpolarity:0/1 50707%...
- Page 20 User Manual PT-PSW-61 Inquire Commands Command Function Feedback Example 50631% Check the input source Input: xx 50632% Check the output resolution Resolution: xx 50633% Check the image mode Picture Mode: xx 50634% Check the audio mode Sound Mode: xx 50635%...
- Page 21 1) Copy the file( the file must be named EDID.bin) to the root directory of a USB flash disk. 2) Plug the USB flash disk to the PT-PSW-61 Firmware port on its rear panel. 3) Send command 50769% to read EDID data from U flash disk, then, send command...
-
Page 22: Ir Control
User Manual PT-PSW-61 4.3 IR Control The unit enables to use the IR remote to control it. Here is brief description of IR remote. Standby button ① ① Enter/ exit standby mode. INPUT SOURCE HDMI 1 HDMI 2 HDMI 3 ②... -
Page 23: Firmware Updating
PT-PSW-61 4.4 Firmware Updating PT-PSW-61 supports firmware updating via USB flash disk. The procedures as follows: Step1. Copy the file “MERGE.bin” to the root directory of a USB flash disk. (Make sure the file is copied to the root directory for normal use. The “MERGE.bin” file is provided/ authorized. -
Page 24: Specification
User Manual PT-PSW-61 5. Specification Video Input (4) HDMI; (2) VGA Input Connector (4) Female Type-A HDMI; (2) Female 15Pin VGA Output (1) HDMI Output connector (1) Female HDMI Video Signal HDMI/DVI,VGA Resolution HDMI: Up to 4Kx2K; VGA: Output resolution selectable Standard Compliant with VGA&DVI HDMI1.4, HDCP 1.4... -
Page 25: Panel Drawing
Reference Humidity 10% ~ 90% Dimension (W*H*D) W347mm x H28mm x D110 mm Weight 0.63Kg Note: PT-PSW-61 supports 4k&1080p 3D HDMI signal, please adopt quality HDMI cables compliant with HDMI1.4 for reliable transmission when connecting. 6. Panel Drawing 347 mm... -
Page 26: Troubleshooting & Maintenance
User Manual PT-PSW-61 7. Troubleshooting & Maintenance Problems Causes Solutions Fail connection of power Make sure the power cord Power LED dosen’t cord connection is normal work or no response Power adapter dosen’t Please replace the power to any operation... -
Page 27: After-Sales Service
User Manual PT-PSW-61 8. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 28 User Manual PT-PSW-61 Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
