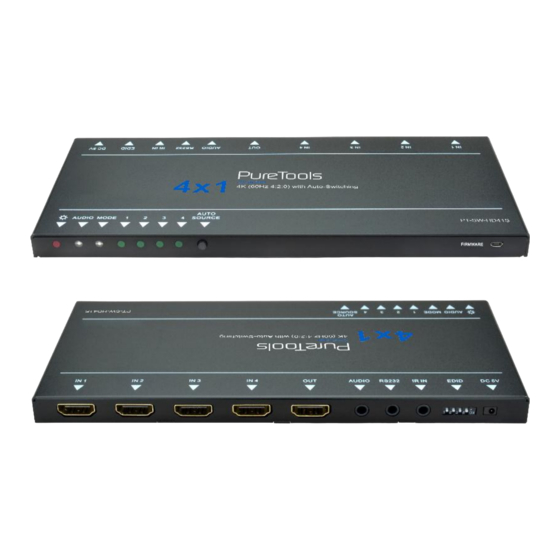

- Page 1 User Manual PT-SW-HD41S User Manual HDMI Switcher 4x1 4K (60Hz 4:2:0) with Auto-Switching Model PT-SW-HD41S Designed in Germany © 2017 PureLink GmbH All rights reserved. VersionV1.0...
- Page 2 User Manual PT-SW-HD41S Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
- Page 3 PT-SW-HD41S REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-SW-HD41S complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-SW-HD41S complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-SW-HD41S SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment Follow basic safety precautions to reduce the risk of fire, electrical shock and ...
-
Page 5: Table Of Contents
User Manual PT-SW-HD41S Contents 1. Introduction ..........................1 1.1 Introduction to PT-SW-HD41S ..................1 1.2 Feature ..........................1 1.3 Package Content ....................... 2 2. Panel Description ........................3 2.1 Front Panel ......................... 3 2.2 Rear Panel .......................... 4 3. System Connection ........................5 3.1 Usage Precaution ...................... -
Page 6: Introduction
1. Introduction 1.1 Introduction to PT-SW-HD41S The PT-SW-HD41S is a HDMI switcher accommodates 4 HDMI inputs. Select any of the inputs by front panel button or IR Remote, the corresponding indicator on the front panel will illuminate to show real-time I/O connection status. -
Page 7: Package Content
User Manual PT-SW-HD41S 1.3 Package Content 1 x PT-SW-HD41S 2 x Mounting Ears with 4 Screws 4 x Plastic Cushions 1 x IR Remote 1 x IR Receiver 1 x Power Adapter (DC 5V 1A) ... -
Page 8: Panel Description
User Manual PT-SW-HD41S 2. Panel Description 2.1 Front Panel 1 2 3 Name Description Power Illuminate red once powered on ① Bi-colored LED indicator for audio source Illuminate green when the audio is de-embedded from AUDIO ② HDMI signal Illuminate yellow when the audio is ARC ... -
Page 9: Rear Panel
ARC audio Serial control port, connect with control device (e.g. a PC) to ④ RS232 control PT-SW-HD41S. Connect with IR receiver to collect infrade signal ⑤ IR IN 4-pin EDID DIP switchers to set EDID data, “1” stands for “On”, “0”... -
Page 10: System Connection
All of the power switches, plugs, sockets and power cords should be insulated. All devices should be connected before power on. 3.2 System Diagram The following diagram illustrates typical input and output connections that can be utilized with PT-SW-HD41S: HDTV Ray-Blu DVD Game Console Camera HDMI:... -
Page 11: Connection Procedure
Step4. Connect an IR Receiver to the IR IN to enable IR control. Step5. Connect the control device (e.g. a PC) to the RS232 port to enable RS232 control. Step6. Plug a DC 5V power adapter to the power port of PT-SW-HD41S. Note: All the ports support hot-plug. -
Page 12: Arc Solution
Note: All utilized devices including the HDMI cable should support Audio Return Channel functionality when connected to Audio Return Channel-enabled devices. 3.5 Application PT-SW-HD41S has a good application in various occasions, such as computer realm, monitoring, conference room, big screen displaying, television education, command & control center and smart house etc. -
Page 13: System Control
(Default: Manual switch.) In auto-switch mode, source selection abides by the following principles: New input principle Once detecting a new input signal, PT-SW-HD41S switch to this new signal automatically. Power rebooting principle Once rebooted, PT-SW-HD41S will automatically select input 1 as input source even though there is no connection in input 1. -
Page 14: Ir Control
User Manual PT-SW-HD41S 4.2 IR Control Connect an IR receiver to the IR IN port, users can control the device via the included IR remote. Here is a brief introduction to the IR remote: MENU: Mute: press to switch on/off Audio& Video output... -
Page 15: Rs232 Control
4.3 RS232 Control PT-SW-HD41S provides with 1 3.5mm RS232 port for serial port control. Connect PT-SW-HD41S to the control device (e.g. a PC) with RS232 cable and set the parameters in the right manner, the control device is capable to control PT-SW-HD41S via designed software. - Page 16 User Manual PT-SW-HD41S The interface of the control software is showed as below: Parameter Configuration area Monitoring area, indicates Monitoring area, indicates whether the command whether the command sent works. sent works. Command Sending area Command Sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, only then will you be able to send command in Command Sending Area.
-
Page 17: Rs232 Command
User Manual PT-SW-HD41S RS232 Command 4.3.2 Baud rate: 9600; Data bit: 8; Stop bit: 1; Parity bit: none. Command Function Feedback Example Switch audio and video signal of [x]B1. AV: x -> 1 input x synchronously, x=1~4 0B0. Switch off output... -
Page 18: Edid Management
PT-SW-HD41S provides with convenient EDID management to create effective communication between the display and sources. In factory default status (Status: 0000), PT-SW-HD41S pass through the signals directly, input& output device process the signal automatically. You can change the EDID data by adjusting the 4-pin EDID DIP switcher. - Page 19 User Manual PT-SW-HD41S Custom EDID data: max at 10 sets, custom EDID data (.bin) and program the data into the device by sending command EDIDUpgrade[x].. To get the corresponding switcher status of a serial number for EDID data, convert the decimal number to binary one first.
-
Page 20: Firmware Upgrade
User Manual PT-SW-HD41S 5. Firmware Upgrade PT-SW-HD41S boasts a USB port for online firmware upgrade on the front panel. Follow these steps to upgrade firmware: Step1. Copy the upgrade software and the latest upgrade file (.bin) to PC. Step2. Connect the USB ports of PT-SW-HD41S and the PC via USB cable. -
Page 21: Specification
User Manual PT-SW-HD41S 6. Specification Product Model PT-SW-HD41S HDMI Standard HDMI 1.4, support HDMI Deep Color, full 3D & 4Kx2K@30Hz HDCP HDCP 1.4 compatible Support VESA and SMPTE Video; 480p/720p/1024x768/ Video Signal 1280x800/1080p/3840x2160@30Hz HDMI support ARC function Bandwidth 10.2Gbps IR IN, DC 5V, connect to the IR receiver and receive the IR... -
Page 22: Panel Drawing
User Manual PT-SW-HD41S 7. Panel Drawing 194 mm... -
Page 23: Troubleshooting & Maintenance
Check whether the cables may not be connected No HDMI signal output in are connected correctly correctly or it may be PT-SW-HD41S while local and in working condition. broken. HDMI input is in normal working state Splash screen in output... -
Page 24: After-Sales Service
User Manual PT-SW-HD41S 9. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). - Page 25 User Manual PT-SW-HD41S...
- Page 26 User Manual PT-SW-HD41S...
- Page 27 User Manual PT-SW-HD41S...
- Page 28 User Manual PT-SW-HD41S Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
