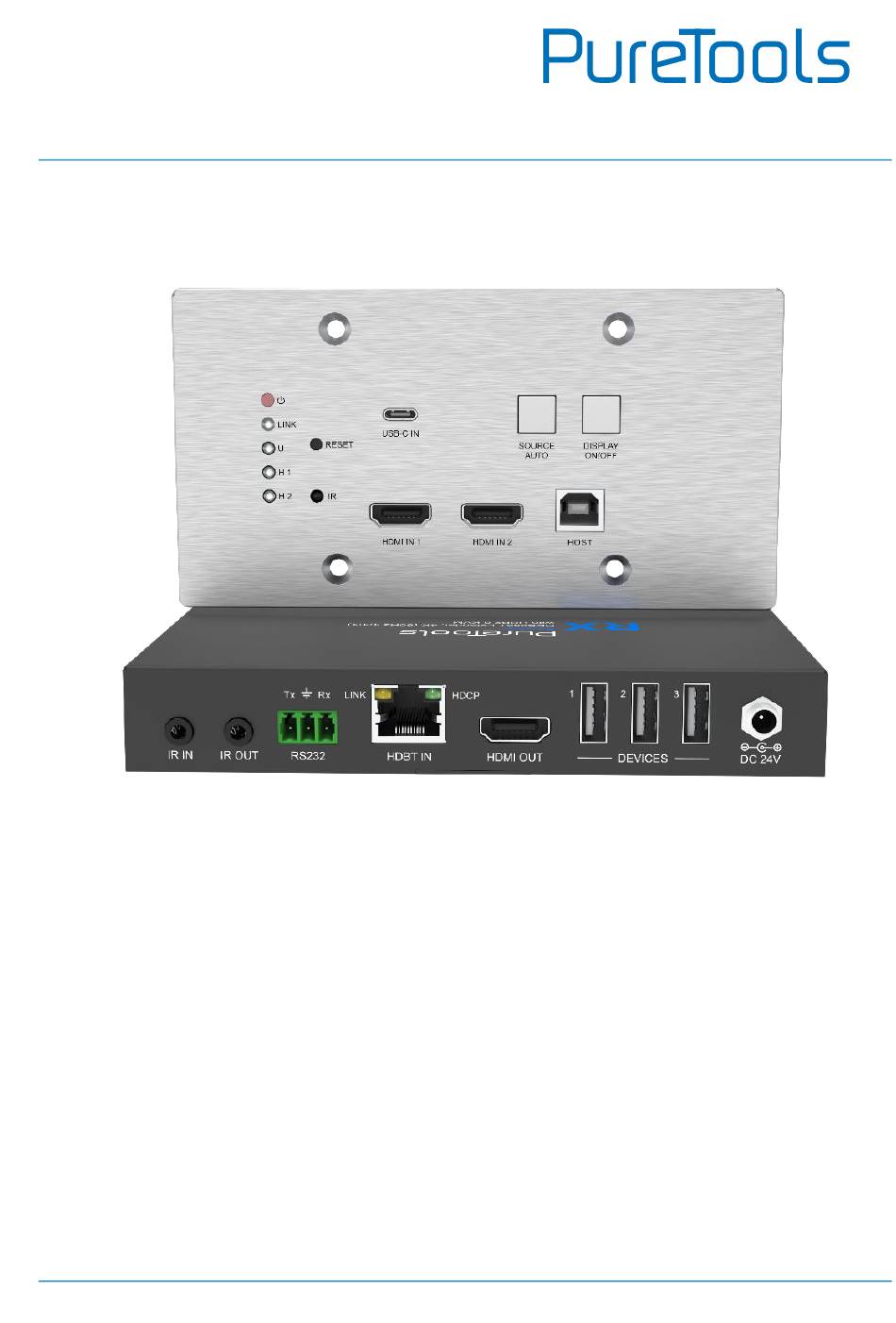

- Page 1 User Manual PT-HDBT-220WP User Manual 3x1 Wallplate Transmitter Switcher Kit Model PT-HDBT-220WP Designed in Germany © 2023 PureLink GmbH All rights reserved. VersionV1.2...
- Page 2 User Manual PT-HDBT-220WP Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
- Page 3 PT-HDBT-220WP REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-HDBT-220WP complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-HDBT-220WP complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-HDBT-220WP SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ⚫...
-
Page 5: Table Of Contents
User Manual PT-HDBT-220WP Table of Content Product Introduction ......................2 1.1 Introduction ........................2 1.2 Feature ..........................2 1.3 Package List ........................3 Panel Description ........................4 2.1 Switcher Front Panel ......................4 2.2 Switcher Rear Panel ......................6 Specification ........................... 7 System Diagram ........................ -
Page 6: Product Introduction

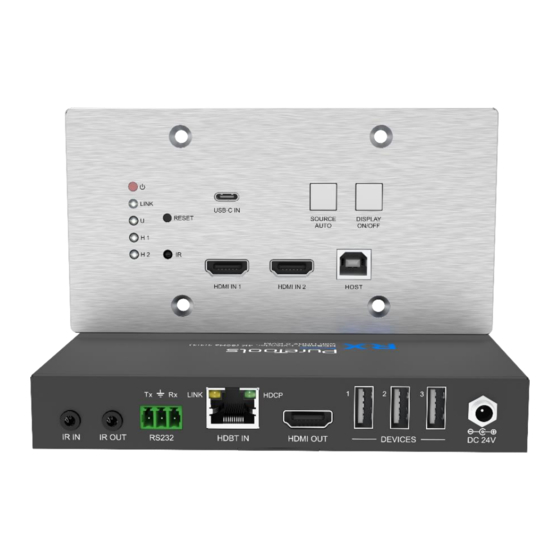

1. Product Introduction 1.1 Introduction Thank you for choosing the PT-HDBT-220WP 3x1 Wallplate Transmitter Switcher Kit, which consists of a wallplate transmitter switcher and a receiver. The kit is designed to switch and extend HDMI or USB-C source signal to far-end display device, and the transmission distance is up to 131ft/40m at 4K and 229ft/70m at 1080p video by using a single CATx cable. -
Page 7: Package List
User Manual PT-HDBT-220WP 1.3 Package List 1 x Wallplate Transmitter Switcher ▪ ▪ 1x Receiver ▪ 1 x 2-pin Terminal Blocks ▪ 2x Mounting Ears with 2 Screws 2x 3-pin Terminal Blocks ▪ ▪ 1x 3-pin Terminal Block ▪ 1x Power Adaptor (24V DC 1.25A）... -
Page 8: Panel Description
User Manual PT-HDBT-220WP 2. Panel Description Switcher Front Panel... - Page 9 User Manual PT-HDBT-220WP Name Description POWER LED The LED illuminates red when power is applied. ① The LED illuminates green when the switcher is LINK LED successfully connected to the receiver by a CATx ② cable. U: The LED illuminates green to indicate the USB-C input is selected.
-
Page 10: Switcher Rear Panel
User Manual PT-HDBT-220WP 2.2 Switcher Rear Panel Name Description ① FIRMWARE Micro-USB port for firmware upgrade. ② DC IN Connects to 24V power supply. Connects to a control device (such as PC) to send RS232 command to control this switcher by RS232, ③... -
Page 11: Specification
User Manual PT-HDBT-220WP 3. Specification Switcher Input Input (2) HDMI, (1) USB-C Input Connector (2) Female type A HDMI, (1) Type-C USB HDMI Input Resolution Up to 4K@60Hz 4:4:4 USB-C Input Resolution Up to 4K@30Hz 4:4:4 Output Output (1) HDBT OUT... - Page 12 User Manual PT-HDBT-220WP Receiver Input Input (1) HDBT Input Connector (1) RJ45 Output Output (1) HDMI Output Connector (1) Type-A female HDMI Control Control port (1) FW, (1) IR IN, (1) IR OUT, (1) RS232, (3) USB IN (1) Micro-USB, (2) 3.5mm jacks, (1) 3-pin terminal block, Control Connector (3) Type-A USB 2.0...
-
Page 13: System Diagram
User Manual PT-HDBT-220WP 4. System Diagram Transmitter Receiver HDBT OUT LINK HDCP Projector Receiver IR Emitter Keyboard Mouse Laptop MacBook Remote HDMI: USB-C: HDBaseT: IR Control: USB Control: RS232 Control: Projector Screen... -
Page 14: Ir Control
User Manual PT-HDBT-220WP 5. IR Control This product supports backwards and forwards IR, allowing IR signals to be passed over the CAT cable to the source device or the display. Source IR Control (Backwards IR) This allows you to control a source device at the display (TV) end, where the receiver Plug the IR emitter into the IR OUT port in the switcher. -
Page 15: Button Control
User Manual PT-HDBT-220WP Transmitter Receiver HDBT OUT LINK HDCP Receiver IR Emitter Projector 4K Blu-Ray Projector Remote 6. Button Control NOTE: The front panel buttons are locked by factory default. When you press any button on the front panel, it will not be able to operate and the button light will blink twice.At this time, you need to use instructions to unlock the button function, please... - Page 16 User Manual PT-HDBT-220WP Reboot: The switcher can save the last configuration before losing power. If the ⚫ last switching mode is auto switching, the switcher will automatically enter auto switching mode once rebooted, then detect all inputs and memorize their connection status for future rebooting using.
-
Page 17: Rs232 Control
User Manual PT-HDBT-220WP 7. RS232 Control 7.1 RS232 Connection According the RS232 control mode, there are three types of RS232 connection for different application. 1) When only control the switcher, please connect a control device (e.g. PC) to the RS232 port of the switcher, the connection diagram shown as below:... - Page 18 User Manual PT-HDBT-220WP 2) If the far-end third-party device (e.g. projector) need be controlled by PC, please connect the third party device (e.g. projector) to the RS232 port of receiver. The connection diagram shown as below: Transmitter Receiver HDBT OUT...
-
Page 19: Rs232 Commands
User Manual PT-HDBT-220WP 7.2 RS232 Commands After set all needed input and output devices according to the RS232 connection diagram, please install the RS232 control software (e.g. docklight) into the control PC to send RS232 command. After installing the RS232 control software, please set the parameters of COM number, baud rate, data bit, stop bit and the parity bit correctly, and then you are able to send command in command sending area. - Page 20 User Manual PT-HDBT-220WP Source Switching Command Example Command Description and Feedback Switch input to output. >SetAV H1 PARAM=H1, H2, C >SetAV C >SetAV PARAM H1 - HDMI1 <AV H1 H2 - HDMI2 <AV C C - USB-C <AV H1 >GetAV Get the current input source.
- Page 21 User Manual PT-HDBT-220WP Command Example Command Description and Feedback Enable/disable the function of >SetAutoCommand EN automatically sending RS232 commands. When detecting video input signal or not detecting any video signal, the switcher will automatically send the corresponding >SetAutoCommand PARAM RS232 command to control the display <AutoCommand True...
- Page 22 User Manual PT-HDBT-220WP Command Example Command Description and Feedback Set the number of times to send the >SetOffMsgLoopCnt 1 >SetOffMsgLoopCnt PARAM DISPLAY OFF RS232 command. <OffMsgLoopCnt 1 PARAM=1 ~ 2 >GetOffMsgLoopCnt Set the number of times to send the >GetOffMsgLoopCnt DISPLAY OFF RS232 command.
- Page 23 User Manual PT-HDBT-220WP Command Example Command Description and Feedback Set EDID. >SetInPortEdid 0 PARAM = 0 ~ 9 0 - Bypass 1 - 1920x1080@60 8bit Stereo 2 - 1920x1080@60 8bit High Definition Audio 3 - 3840x2160@30Hz 8bit Stereo Audio 4 - 3840x2160@30Hz Deep Color High >SetInPortEdid PARAM...
- Page 24 User Manual PT-HDBT-220WP Third-party Device Control Command Example Command Description and Feedback >SetPowerOnSendCha r_5:1234 Send the ASCII command "XXXX" to the remote third-party device while the switcher is powered on. PARAM = 1~7. Represents the baud rate of the third-party device.
-
Page 25: Button User-Defined
User Manual PT-HDBT-220WP 8. Button User-defined Press the DISPLAY ON/OFF button can turn on/off the display. If the incompatible display device needs to be used, the DISPLAY ON/OFF button can be programed by IR learning feature or RS232 command. IR learning feature: ⚫... - Page 26 User Manual PT-HDBT-220WP Programed by RS232 command: ⚫ The DISPLAY ON/OFF button also can be defined by the following commands. The command is ended without <CR><LF> Command Example Command Description and Feedback >SetPowerOnSendCha r_5:1234567 Set the ASCII RS232 command "XXXX" to be sent to the third-party device (e.g.
- Page 27 User Manual PT-HDBT-220WP Command Example Command Description and Feedback >SetPowerOnSendHex Set the HEX RS232 command "XX XX" to be _5:30 31 32 33 sent to the third-party device (e.g. projector) when the DISPLAY ON button has been pressed. >SetPowerOnSendHex_ PARAM = 1~7. Baud rate of the third-party <Baudrate: 9600...
-
Page 28: After-Sales Service
User Manual PT-HDBT-220WP 9. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail). -
Page 29: Firmware Upgrade
User Manual PT-HDBT-220WP Firmware Upgrade Please follow the below steps to upgrade firmware of switcher or receiver by the Micro-USB port: 1) Prepare the latest upgrade file (.bin) of switcher or receiver and rename it as “FW_MERG.bin” on PC. 2) Power off the switcher or receiver and connect the Micro-USB (FW) port of switcher or receiver to the PC with USB cable. -
Page 30: Asking For Assistance
User Manual PT-HDBT-220WP Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
