- Page 1 User Manual PT-SW-HD3 User Manual HDMI 2.0 Bi-directional Switcher 4K (60Hz 4:4:4) HDR Model PT-SW-HD3 Designed in Germany © 2017 PureLink GmbH All rights reserved. VersionV1.0...
-
Page 2: Fcc Statement
User Manual PT-SW-HD3 Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. - Page 3 PT-SW-HD3 REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-SW-HD3 complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-SW-HD3 complies with Directives 2014/30/EU and 2014/35/EU.
-
Page 4: Safety Precautions
User Manual PT-SW-HD3 SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment Follow basic safety precautions to reduce the risk of fire, electrical shock and ... -
Page 5: Package Content
User Manual PT-SW-HD3 Introduction to PT-SW-HD3 The PT-SW-HD3 is an ultra-thin bidirectional 3x1/1x3 HDMI2.0 switcher with 4 HDMI ports. The switcher supports HDMI resolutions up to 4K@60Hz 4:4:4. Feature Supports HDMI2.0 4k@60Hz 4:4:4. HDCP2.2 compliant. Supports bi-directional switching. -
Page 6: Panel Description

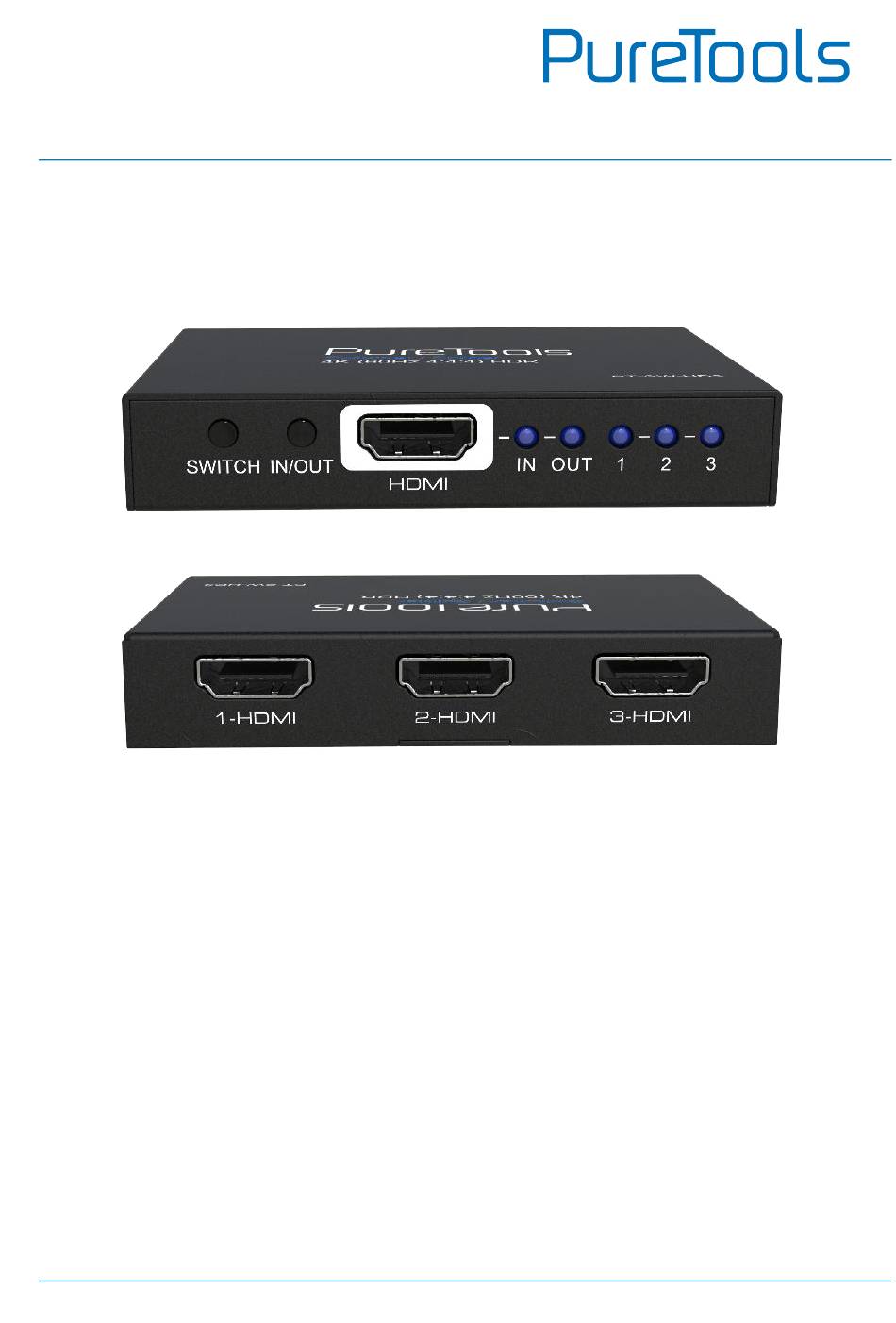

User Manual PT-SW-HD3 Panel Description 1-HDMI 2-HDMI 3-HDMI ① SWITCH: Press this button to switch 1-HDMI, 2-HDMI, or 3-HDMI as input or output. ② IIN/OUT: Press this button to select the HDMI(③) as input or output. ③ HDMI: Connect with HDMI source or display. -
Page 7: Specification
User Manual PT-SW-HD3 Specification Video (4) HDMI Input & Output Connector (4) 19-pin type-A female HDMI General Max Resolution 4Kx2K@60Hz 4:4:4 HDMI Standard HDMI2.0 HDCP Compliance HDCP2.2 pass-through EDID Management Built-in EDID Power Consumption 4W (Max) -10~40℃ Operation Temperature -15~55℃... -
Page 8: System Diagram
User Manual PT-SW-HD3 System Diagram Blu-Ray HDTV HDMI IN: HDMI OUT: 1-HDMI 2-HDMI 3-HDMI 1-HDMI 2-HDMI 3-HDMI Blu-Ray Laptop Game Console Projector HDTV WhiteBoard... - Page 9 User Manual PT-SW-HD3 After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for two years (The purchase invoice shall prevail).
- Page 10 User Manual PT-SW-HD3...
- Page 11 User Manual PT-SW-HD3...
-
Page 12: Asking For Assistance
User Manual PT-SW-HD3 Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
