User Manual
PT-PSW-21KVM
User Manual

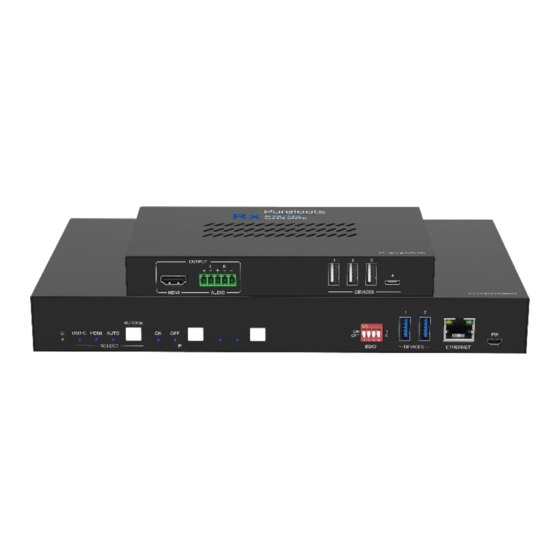

2x2 HDBaseT 3.0 KVM Extender Set
Model PT-PSW-21KVM
Designed in Germany
© 2022 PureLink GmbH All rights reserved.
VersionV1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PT-PSW-21KVM and is the answer not in the manual?

Questions and answers

Summary of Contents for PureTools PT-PSW-21KVM

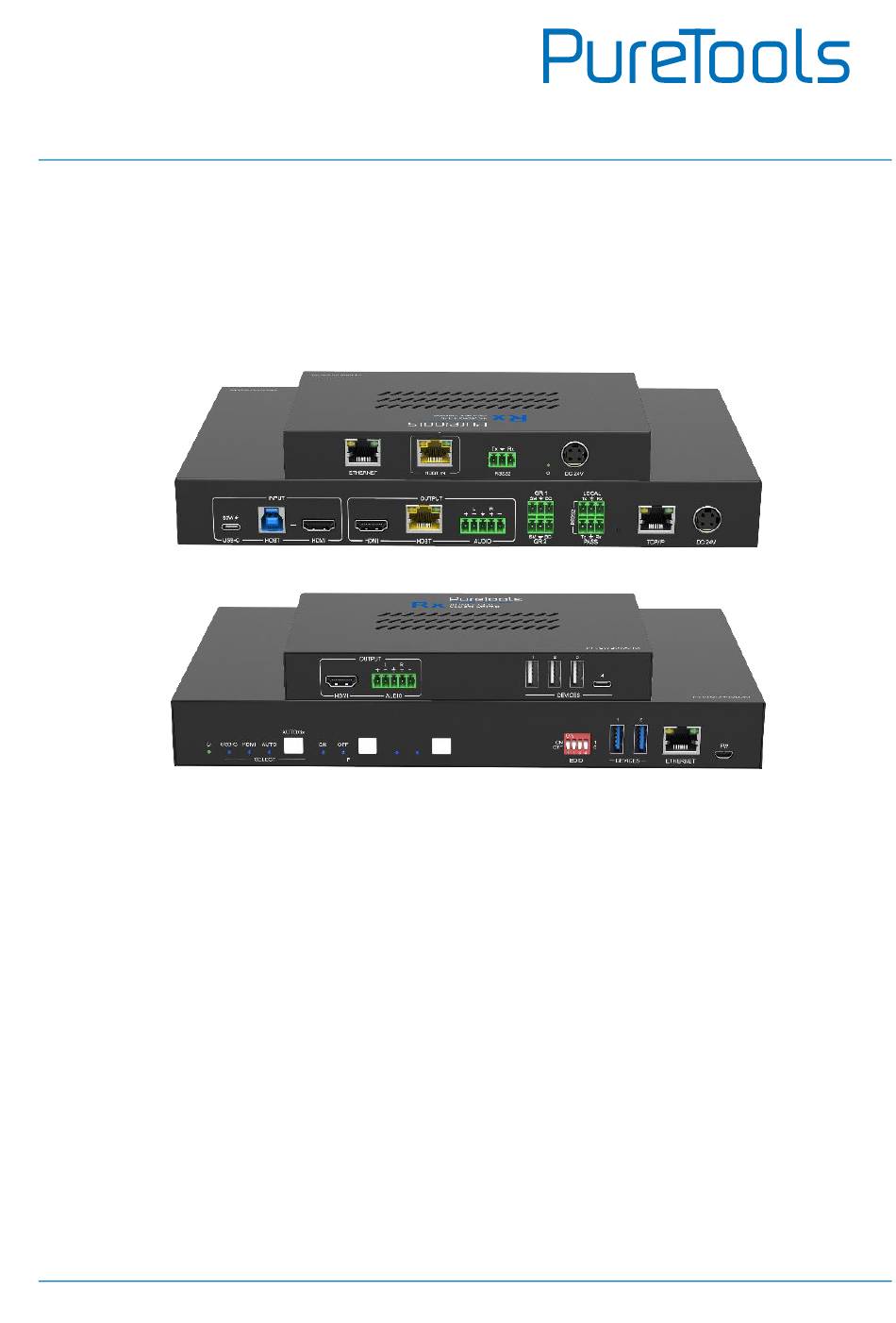

  • Page 1 User Manual PT-PSW-21KVM User Manual 2x2 HDBaseT 3.0 KVM Extender Set Model PT-PSW-21KVM Designed in Germany © 2022 PureLink GmbH All rights reserved. VersionV1.0...
  • Page 2 User Manual PT-PSW-21KVM Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
  • Page 3 PT-PSW-21KVM REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-PSW-21KVM complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-PSW-21KVM complies with Directives 2014/30/EU and 2014/35/EU.
  • Page 4 User Manual PT-PSW-21KVM SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ⚫...
  • Page 5: Table Of Contents

    User Manual PT-PSW-21KVM Content 1.Product Introduction ........................3 1.1 Introduction ......................... 3 1.2 Feature ..........................3 1.3 Package List........................3 2. Panel Description......................... 4 2.1 Tranmitter ..........................4 2.1.1 Front Panel ......................4 2.1.2 Rear Panel ......................5 2.2 Receiver ..........................6 2.2.1 Front Panel ......................
  • Page 6 User Manual PT-PSW-21KVM 5.6 Access Tab ........................16 5.7 Update Tab ........................17 6. RS232 Control ........................... 18 6.1 RS232 Control Software ....................18 6.2 RS232 Command ......................23 6.2.1 System control ....................23 6.2.2 Source control ..................... 27 7. System Diagram ........................32 8.
  • Page 7: Product Introduction

    1.Product Introduction 1.1 Introduction PT-PSW-21KVM is an 18Gbps 2x1 switcher extension kit, which supports up to 4K/60/4:4:4, HDR10 and Dolby Vision, HDCP 2.2. It features uncompressed transmission of 18Gbps signals up to 100m. At the same time, it can be connected to peripheral KVM equipment, which is very useful in video conference applications.
  • Page 8: Panel Description

    User Manual PT-PSW-21KVM 2. Panel Description 2.1 Tranmitter 2.1.1 Front Panel Name Description 1 x green indicator light, the light is always on when the Power LED ① machine is working, and it goes out when the power is off ⚫...
  • Page 9: Rear Panel

    User Manual PT-PSW-21KVM 2.1.2 Rear Panel Name Description USB-C 1 x USB-C 3.0 input, support external 60W charging ① HOST 1 x USB-B 3.0, connect to HOST devices such as laptops ② HDMI IN 1 x HDMI input, connect to HOST devices such as laptops ③...
  • Page 10: Receiver

    User Manual PT-PSW-21KVM 2.2 Receiver 2.2.1 Front Panel OUTPUT DEVICES HDMI HDMI AUDIO AUDIO Name Description ⚫ 1 x HDMI output; OUTPUT ① ⚫ 1 x 5-pin balanced audio output, HDMI output audio de-embedding 3 x USB-A 2.0, 1 x USB-C, connect keyboard, mouse, DEVICES ②...
  • Page 11: Edid Management

    User Manual PT-PSW-21KVM 3. EDID Management EDID are control by the EDID DIP switch, the specific description is as follows: 0000 Learn the display EDID in the default mode: read the EDID of the TX ⚫ HDMI output and RX HDMI output, and output the EDID with the lower resolution of the two, if you can’t learn it, then use the built-in...
  • Page 12: Specification

    User Manual PT-PSW-21KVM 4. Specification Transmitter Receiver Video Video Input (1) HDMI IN, (1) USB-C IN (1) HDBT IN (1) Type-A female HDMI Video Output Connector (1) RJ45 (1) Type-C HDMI: Up to 4K@60Hz 4:4:4 HDR10, Dolby Vision Input Resolution...
  • Page 13 User Manual PT-PSW-21KVM < -80 dB, 10 kHz sine at 0 dBFS level (or max level before Crosstalk Isolation clipping) < 0.3 dB, 1 kHz sine at 0 dBFS level (or max level before L-R Level Deviation clipping) 1k ohm and higher (supports 10x paralleled 10k ohm...
  • Page 14: Gui Control

    User Manual PT-PSW-21KVM 5. GUI Control The switcher can be controlled via TCP/IP. The default IP settings are: IP Address: 192.168.0.178 Subnet Mask: 255.255.255.0 TCP/IP port: 4001 TCP/IP Commands are same as RS232 192.168.0.178 Type in the internet browser, it will enter the below log-in webpage:...
  • Page 15: Video Tab

    User Manual PT-PSW-21KVM 5.1 Video Tab Choose the HDMI, USB-C or Auto source according to actual usag ⚫ 5.2 Configuration Tab 5.2.1 EDID Choose the desired EDID format or define the appropriate EDID format. ⚫...
  • Page 16: Auto Downscale

    User Manual PT-PSW-21KVM 5.2.2 Auto Downscale Enable or disable the auto Downscale in TX or RX output. ⚫ 5.2.3 Tags Choose and enter the tags, then click confirm to change the tags. ⚫...
  • Page 17: Cec Tab

    User Manual PT-PSW-21KVM 5.3 CEC Tab 5.3.1 Input Select the function and press to control the input ⚫ 5.3.2 Output Select the function button and press to control the output ⚫...
  • Page 18: User-Defined

    User Manual PT-PSW-21KVM 5.3.3 User-defined Define the Trigger of input and output ⚫ 5.4 RS232 Tab...
  • Page 19: Network Tab

    Command Ending: NULL, CR, LF or CR+LF can be chosen. ⚫ Command: Type the command in the box to control the third-party device which ⚫ is connected to the RS232 port of the PT-PSW-21KVM. 5.5 Network Tab Static IP or Dynamic Host Configuration Protocol (DHCP). ⚫...
  • Page 20: Access Tab

    User Manual PT-PSW-21KVM 5.6 Access Tab Modify the login username and password. ⚫ Lock or unlock the front panel buttons. ⚫ Enable or disable GUI automatic log-off mode. ⚫ Configure accounts user2 and user3 ⚫ ⚫ Factory default reset...
  • Page 21: Update Tab

    User Manual PT-PSW-21KVM 5.7 Update Tab Factory Default: set the equipment to factory default setting. ⚫ Firmware Update: update FW to the equipment. ⚫...
  • Page 22: Rs232 Control

    User Manual PT-PSW-21KVM 6. RS232 Control 6.1 RS232 Control Software Here take the software docklight as an example. Installation ⚫ Please download the latest Software Version from the link below: https://docklight.de/download/Docklight.zip Then follow the installation wizard for installation on Windows 7 and 10.
  • Page 23 User Manual PT-PSW-21KVM Click “Continue” to close this window. Now you are in the main view, where commands are sent and feedback is received. The next step is to select the correct COM port of the PC. To do this, double-click on...
  • Page 24 User Manual PT-PSW-21KVM Double click on “COM1” to change to the right COM port. In the following window, select the drop-down menu labeled "Send / Receive on Comm Channel", select the appropriate COM port and then click on "OK" at the bottom right corner.
  • Page 25 User Manual PT-PSW-21KVM Select the right COM port. In order to be able to send commands, open communication with the device by clicking on "Play". Then the keyboard function must be activated, so that commands can be written in the "communication window".
  • Page 26 User Manual PT-PSW-21KVM Enable the Command keyboard type in sending area function. Click “Play” to open the communication. Monitoring area, indicates if the command sent works.
  • Page 27: Rs232 Command

    User Manual PT-PSW-21KVM 6.2 RS232 Command Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none The switcher can be controlled by sending the following RS232 commands: Note: Please remember to end the commands with the ending symbols “.” or “;”.
  • Page 28 User Manual PT-PSW-21KVM POWOFF. Turn on standby mode Power OFF! SIGNALTRG[xx]MODE When setting the Set Trigger Mode To 5V. detection mode xx=1, it is 5V detection, and when it is 2, it is TMDS detection. SIGNALTRGSTA. Query the method of Get Trigger Mode Is 5V.
  • Page 29 User Manual PT-PSW-21KVM STA. Status query PT-PSW-21KVM V1.0.0 PWON! HDBT 01 Power ON! HDMI OUT 01 Down Scale OFF! HDMI OUT 02 Down Scale OFF! HDMI Out Switch Auto Mode! Get Trigger Mode Is 5V. System Unlock! Baudrate9600! GUI_IP:192.168.0.200! HDMI Out Switch To 02!
  • Page 30 User Manual PT-PSW-21KVM RS232ONSAVE:[Y],[x Save the display Save PON xx]. terminal boot Command:YYYYY,Baudrate Is command sent when 9600! the input is detected. Y is the baud rate, 1--2400; 2--4800; 3--9600; 4--19200; 5--38400; 6-57600; 7 --115200; xxx is the command data...
  • Page 31: Source Control

    User Manual PT-PSW-21KVM 6.2.2 Source control Command Description Command & Feedback Example TVON. Turn on TV by CEC control CEC_TV_POWON! CEC Output 01 Send Success. CEC Output 02 Send Success. TVOFF. Turn off TV by CEC control CEC_TV_POWOFF! CEC Output 01 Send Success.
  • Page 32 User Manual PT-PSW-21KVM DS[x]OFF. Turn off the DOWN SCALE of HDMI OUT 01 Down Scale the HDMI output. OFF! (Compatible with [X]/[XX]) HDMI OUT 02 Down Scale [x] Value 0-2 or 00-02, 0 OFF! means all output STA_IN. Source connection status LINK N N /+[X]/[YY]:XXX.
  • Page 33 User Manual PT-PSW-21KVM EDIDUpgrade[xx The serial port upgrades Input XX/User Define EDID EDID data. Upgrade OK By RS232 Or GUI! 1. [xx] represents the input port, the value is 00-02 and U. [xx]=00-02 means to customize the EDID of the...
  • Page 34 User Manual PT-PSW-21KVM EDID/[xx]/[yy]. The input port xx uses the Input 02 EDID Upgrade OK built-in EDID numbered yy. By 01 Internal EDID! [xx] represents the input port, the value 00-02, 00 represents all input ports, 01-02 separately represents input 1-2;...
  • Page 35 User Manual PT-PSW-21KVM Baudrate[XXX]. Set control baud rate. [XXX] Set Local RS232 Baudrate Is Support 115200, 57600, 9600! 38400, 19200, 9600 CEC[I/O][AA][BB I/O: means input or output CEC Input 01 Send Success! ][CC][DD]. port, AA, BB, CC, DD are all CEC Output 01 Send Success! hexadecimal data;...
  • Page 36: System Diagram

    User Manual PT-PSW-21KVM 7. System Diagram The following diagram illustrates typical input and output connections that can be utilized with the KVM switcher.
  • Page 37 User Manual PT-PSW-21KVM...
  • Page 38: After-Sales Service

    User Manual PT-PSW-21KVM 8. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for three years (The purchase invoice shall prevail).
  • Page 39 User Manual PT-PSW-21KVM...
  • Page 40: Asking For Assistance

    User Manual PT-PSW-21KVM Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
