- Page 1 User Manual PT-HUB-100 User Manual USB-C ProAV Dock 100W PD, Dual 4K Output, USB3.2 and Gbe support Model PT-HUB-100 Designed in Germany © 2023 PureLink GmbH All rights reserved. VersionV1.0...
- Page 2 User Manual PT-HUB-100 Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
- Page 3 PT-HUB-100 REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-HUB-100 complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-HUB-100 complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-HUB-100 SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. ⚫ Unpack the equipment carefully and save the original box and packing material for possible future shipment ⚫...
-
Page 5: Table Of Contents
User Manual PT-HUB-100 Table of contents 1.Product Introduction ......................... 1 1.1 Introduction ........................1 1.2 Feature ..........................1 1.3 Package List ........................1 2. Panel Description ........................2 3. Specification..........................3 4. MST and SST..........................4 5. System Diagram ........................6 6. -
Page 6: Product Introduction

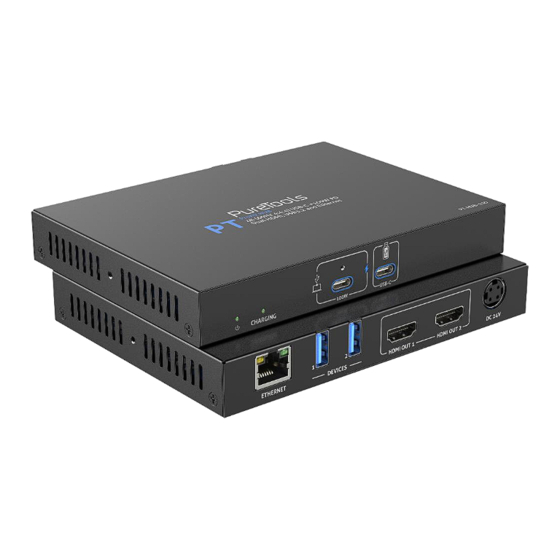

1.Product Introduction 1.1 Introduction The PT-HUB-100 is a professional USB-C alt mode docking station made for ProAV installation. It is designed to convert a USB-C full feature input to a maximum of two 4K 60Hz (4:4:4) HDMI video outputs. It also offers support for USB 3.2 Gen2 and legacy USB 2.0 data transfer as well as up to 100W Power delivery. -
Page 7: Panel Description
User Manual PT-HUB-100 2. Panel Description Name Description ① Power LED Illuminates green when the power is connected. ② Charging LED Illuminates green when USB-C is charging externally. 1x USB-C port, connect to video source; USB-C IN ③ (100W) Supports 100W power charging for connecting source device. -
Page 8: Specification
User Manual PT-HUB-100 3. Specification Transmitter Video Input USB-C IN Input Connector USB Type-C Input Resolution Up to 4K 60Hz (4:4:4) Output 2x HDMI OUT Output Connector 2x HDMI Type-A Output Resolution Up to 4K 60Hz (4:4:4) General HDCP Version Input: HDCP 2.3, HDCP 2.2&1.4 compliant, follow display... -
Page 9: Mst And Sst
User Manual PT-HUB-100 4. MST and SST In MST* mode, the HDMI outputs support up to 4K@60 4:4:4 resolution. The commonly used and tested resolutions are as follows: 3840*2160@60Hz 4:4:4/RGB 8bit 3840*2160@50Hz 4:4:4/RGB 8bit 3840*2160@30Hz 8bit 3440*1440@30/60Hz 2560*1440@60Hz 2560*1080@60Hz 1920*1080@60/50/30/25/24Hz 8bit... - Page 10 User Manual PT-HUB-100 In SST** mode, the HDMI outputs support up to 4K 60Hz (4:4:4) resolution. The commonly used tested resolutions are as follows: 4096*2160 24Hz 4:4:4 8bit 1680*1050@60Hz 4:4:4 8/10bit 3840*2160@60/50Hz 4:4:4 8bit 1400*1050@60Hz 4:4:4 10bit 3840*2160@60/50Hz 4:2:0 8bit...
-
Page 11: System Diagram
User Manual PT-HUB-100 5. System Diagram The following diagram illustrates the typical input and output connections that can be utilized with this product:... -
Page 12: After-Sales Service
User Manual PT-HUB-100 6. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for three years (The purchase invoice shall prevail). -
Page 13: Asking For Assistance
User Manual PT-HUB-100 Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
