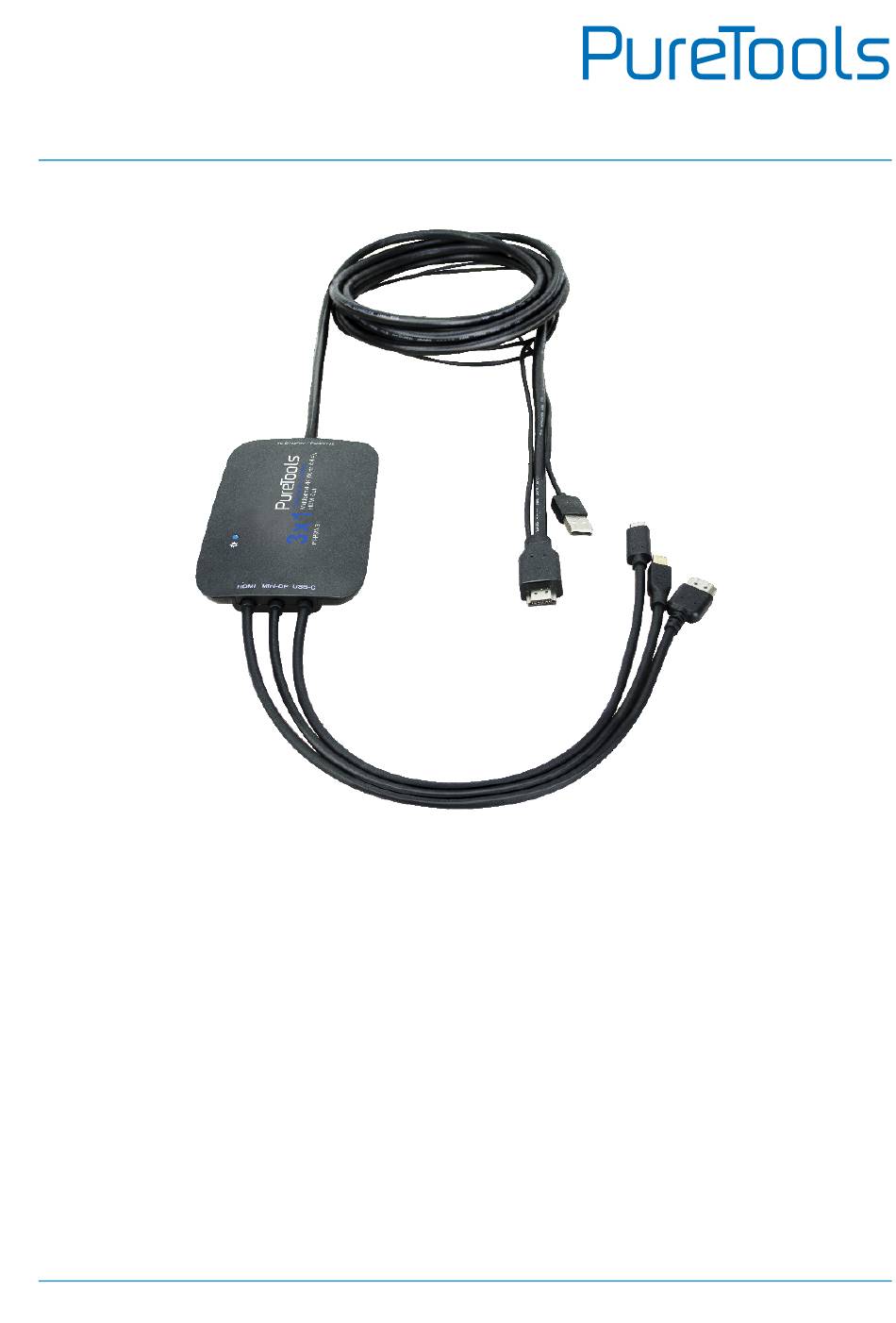

- Page 1 User Manual PT-PSW-31I User Manual HDMI 2.0 3x1 Multi-format Presentation Switcher Model PT-PSW-31I Designed in Germany © 2019 PureLink GmbH All rights reserved. V1.0...
-
Page 2: Fcc Statement
User Manual PT-PSW-31I Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage. - Page 3 PT-PSW-31I REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-PSW-31I complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-PSW-31I complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-PSW-31I SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ...
-
Page 5: Product Introduction
The PT-PSW-31I is an HDMI 2.0 3x1 Multi-format Presentation Switcher converting AV signal from HDMI, Mini DP and USB-C inputs to HDMI output. The PT-PSW-31I is a green low energy consumption product which has a various application in different places, such as classroom, small meeting room, lecture hall, and etc. -
Page 6: Panel Description
User Manual PT-PSW-31I Panel Description Presentation Switcher Multiformat 4K (60Hz 4:4:4), HDMI Out PT-PSW-31I ① Type-A HDMI input port to connect the device with HDMI output. ② Mini DP input port to connect Mac MINI or other devices with Mini DP output. -
Page 7: System Connection
User Manual PT-PSW-31I System Connection The following diagram illustrates typical input and output connections that can be utilized with this switcher: Presentation Switcher Multiformat 4K (60Hz 4:4:4), HDMI Out PT-PSW-31I Display Laptop Mac Mini MacBook... -
Page 8: Technical Specification
User Manual PT-PSW-31I Technical Specification Input Connector Type (1) Type-A HDMI, (1) Mini DP, (1) Type-C USB HDMI Video Resolution Up to 4K@60Hz 4:4:4, HDR Mini DP Video Resolution Up to 4Kx2K@30Hz 4:4:4 USB-C Video Resolution Up to 4Kx2K@30Hz 4:4:4 LPCM 7.1 audio, Dolby Atmos®... -
Page 9: After Sales Service
User Manual PT-PSW-31I After-Sales Service If problems occur while operating the product, please use the troubleshooting and maintenance information in this manual to deal with these problems. Any transport costs are borne by the user during the warranty period. 1) Product Limited Warranty: The product will be free from defects in materials and workmanship for two years (purchase invoice date shall prevail). - Page 10 User Manual PT-PSW-31I...
- Page 11 User Manual PT-PSW-31I...
- Page 12 User Manual PT-PSW-31I Asking for Assistance Technical Support: Phone: +49 5971 800299 -0 Fax: +49 5971 800299 -99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10 D - 48432 Rheine www.purelink.de...
