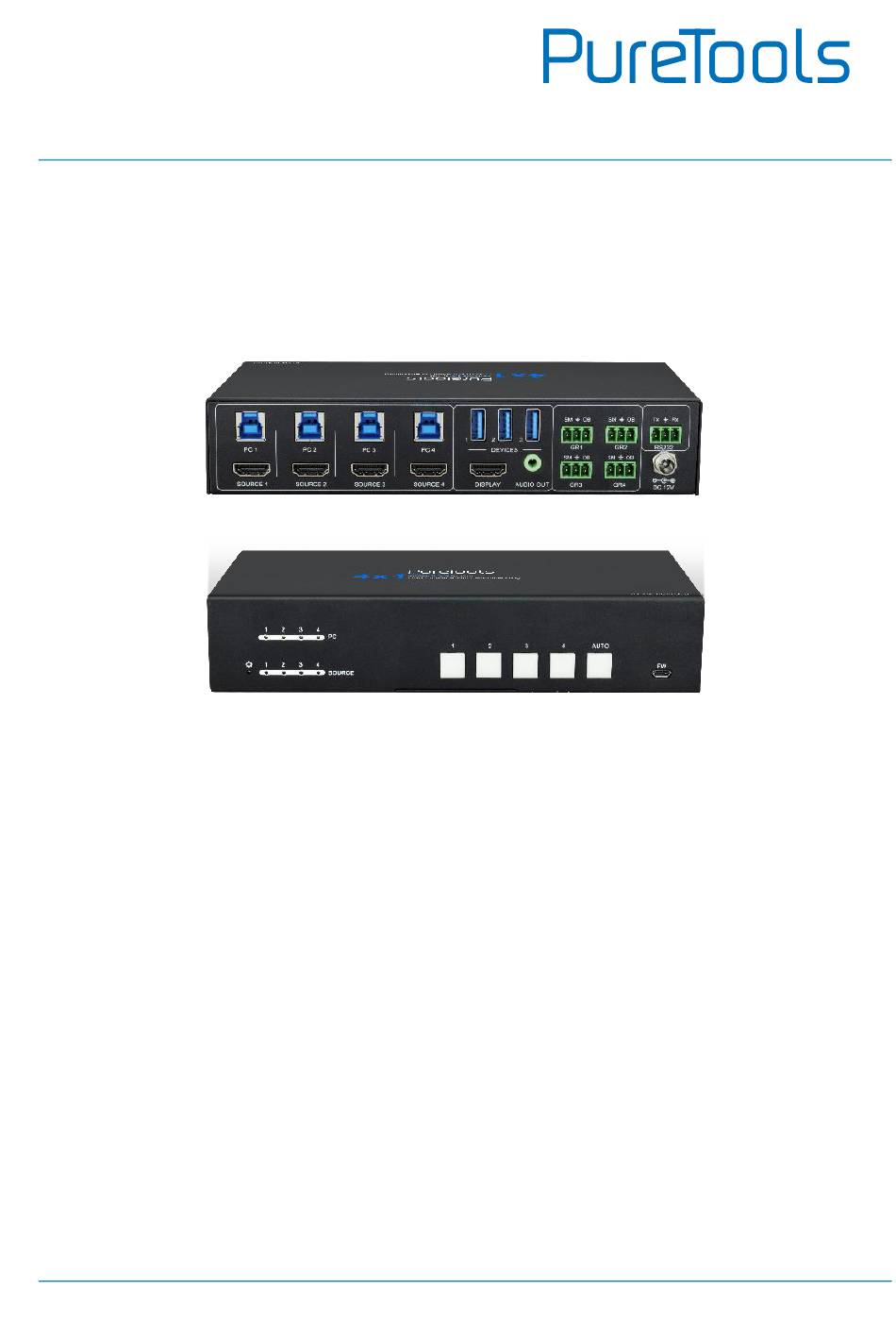

- Page 1 User Manual PT-SW-HD41USB User Manual 4x1 4K HDMI with KVM Switcher Model PT-SW-HD41USB Designed in Germany © 2022 PureLink GmbH All rights reserved. VersionV1.0...
- Page 2 User Manual PT-SW-HD41USB Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only. Different model layouts and specifications are subject to the physical product. This manual is for operation instructions only, not for any maintenance usage.
- Page 3 PT-SW-HD41USB REACH | 1907/2006/EU ROHS | 2011/65/EU PureLink hereby declares that this product PureTools PT-SW-HD41USB complies with Directives 1907/2006/EU und 2011/65/EU. EMC / LVD (Electro Magnetic Compatibility / Low Voltage Directive) PureLink GmbH hereby declares that this product PureTools PT-SW-HD41USB complies with Directives 2014/30/EU and 2014/35/EU.
- Page 4 User Manual PT-SW-HD41USB SAFETY PRECAUTIONS To ensure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material ⚫...
-
Page 5: Table Of Contents
User Manual PT-SW-HD41USB Content 1.Product Introduction ........................2 1.1 Introduction ......................... 2 1.2 Feature ..........................2 1.3 Package List........................2 2. Panel Description......................... 3 2.1 Front Panel ......................... 3 2.2 Rear Panel .......................... 4 3. Specification..........................5 4. System Diagram .......................... 7 5. -
Page 6: Product Introduction
1.Product Introduction 1.1 Introduction Thanks for choosing the professional PT-SW-HD41USB 4x1 Switcher. The switcher features four HDMI video inputs and one HDMI output. It supports HDMI video resolution up to 4K@60Hz 4:4:4 HDR 10 and Dolby Vision. The switcher provides one... -
Page 7: Panel Description

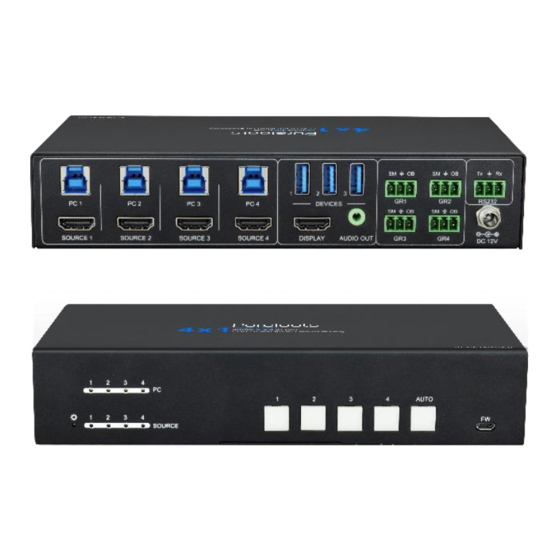

User Manual PT-SW-HD41USB Note: Please contact your distributor immediately if any damage or defect in the components is found. 2. Panel Description 2.1 Front Panel AUTO SOURCE Name Description The LED illuminates red when power is applied ① POWER LED Total four LEDs, any one of which illuminates blue ②... -
Page 8: Rear Panel
User Manual PT-SW-HD41USB 2.2 Rear Panel PC 1 PC 2 PC 3 PC 4 DEVICES RS232 SOURCE 1 SOURCE 2 SOURCE 3 SOURCE 4 DISPLAY AUDIO OUT DC 12V Name Description Four type-A female HDMI input ports to connect ①... -
Page 9: Specification
User Manual PT-SW-HD41USB 3. Specification Video Input Input (4) SOURCE 1~4 Input Connector (4) Female type-A HDMI HDMI Input Resolution Up to 4K@60Hz 4:4:4, HDR10, Dolby Vision HDMI Standard HDCP Version Video Output (1) DISPLAY Output Output Connector (1) Female type-A HDMI... - Page 10 User Manual PT-SW-HD41USB Noise Level -80dB Control (1) FW, (4) PC 1~4, (3) DEVICES 1~3, (4) GR 1~4, (1) Control RS232 (1) Micro-USB, (4) Type-B USB, (3) Type-A USB, (5) Control Connector 3-pin Terminal Blocks General Bandwidth 18Gbps Operation Temperature -10℃...
-
Page 11: System Diagram
User Manual PT-SW-HD41USB 4. System Diagram Usage Precaution ⚫ Make sure all components and accessories included before installation. ⚫ System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated ⚫... -
Page 12: Button Control
User Manual PT-SW-HD41USB 5. Button Control 5.1 Manual Switching Press button 1~4 to the corresponding HDMI input source. 5.2 Auto Switching Press AUTO to enable auto switch mode, and then the button LED will illuminate blue. When in auto mode, the switcher follows the rules in the certain circumstances: The switcher will automatically switch to the first available active input ⚫... -
Page 13: Rs232 Control
User Manual PT-SW-HD41USB 7. RS232 Control 7.1 RS232 Control Software Here take the software docklight as an example. Installation ⚫ Please download the latest Software Version from the link below: https://docklight.de/download/Docklight.zip Then follow the installation wizard for installation on Windows 7 and 10. - Page 14 User Manual PT-SW-HD41USB with a blank project / blank script“) Click “Continue” to close this window. Now you are in the main view, where commands are sent and feedback is received. The next step is to select the correct COM port of the PC. To do this, double-click on...
- Page 15 User Manual PT-SW-HD41USB Double click on “COM1” to change to the right COM port. In the following window, select the drop-down menu labeled "Send / Receive on Comm Channel", select the appropriate COM port and then click on "OK" at the bottom right corner.
- Page 16 User Manual PT-SW-HD41USB Select the right COM port. In order to be able to send commands, open communication with the device by clicking on "Play". Then the keyboard function must be activated, so that commands can be written in the "communication window".
- Page 17 User Manual PT-SW-HD41USB Enable the Command keyboard type in sending area function. Click “Play” to open the communication. Monitoring area, indicates if the command sent works.
-
Page 18: Rs232 Command
User Manual PT-SW-HD41USB 7.2 RS232 Command Note: All commands need to be ended with “<CR><LF>”. Device Control 7.2.1 Command Example and Command Description Feedback #GET_FIRMWARE_VERS Get the software version. @V1.0.0 Unlock the front panel buttons @FRONT PANEL #SET_KEYPAD_LOCK 0 (Factory default). - Page 19 User Manual PT-SW-HD41USB Command Example and Command Description Feedback @HDMI IN SWITCH TO @OUTPUT_HDCP 0! @INPUT_SIGNAL_DETEC TION 0! @IIS OUT ON! @SWITCHMODE 0! @USB SWITCH MODE TO 0! @USB SWITCH TO 1! @AUTO PANEL UNLOCKED! @RS232 BAUDRATE IS @FACTORY DEFAULT! @WUH4-HUB @V1.0.0...
-
Page 20: Signal Switching
User Manual PT-SW-HD41USB Signal Switching 7.2.2 Command Example and Command Description Feedback @HDMI IN SWITCH TO #SET_AV H1 Switch to HDMI source 1. @HDMI IN SWITCH TO #SET_AV H2 Switch to HDMI source 2. @HDMI IN SWITCH TO #SET_AV H3 Switch to HDMI source 3. -
Page 21: Audio Setting
User Manual PT-SW-HD41USB Command Example and Command Description Feedback #SET_USB_SWITCH_MO Set USB switching mode to #SET_USB_SWITCH_MO DE 0 follows the video switching. DE 0 Set USB switching mode to #SET_USB_SWITCH_MO @SET USB SWITCH command control by DE 1 MODE 1! “#SET_SWITCH_USB”. - Page 22 User Manual PT-SW-HD41USB Command Example and Command Description Feedback #GET_EDID_MODE Get the EDID mode. @EDID_MODE 0000! @EDID HEX STRING OF '0000': Get the EDID value. 00 FF FF FF FF FF FF 00 #EDIDR [PARAM] [PARAM]= 0000~0011. 41 0C F2 08 50 12 00 …...
-
Page 23: Baud Rate Setting
User Manual PT-SW-HD41USB Baud Rate Setting 7.2.5 Command Example and Command Description Feedback @RS232 BAUDRATE IS #SET_RS232_BAUD 1 Set RS232 baud rate to 9600. @RS232 BAUDRATE IS #SET_RS232_BAUD 2 Set RS232 baud rate to 19200 @RS232 BAUDRATE IS #SET_RS232_BAUD 3... -
Page 24: Firmware Upgrade
User Manual PT-SW-HD41USB 8. Firmware Upgrade Please follow the steps as below to upgrade firmware by the FW port on the front panel: 1) Prepare the latest upgrade file (.bin) and rename it as “FW_MERG.bin” on PC. 2) Power off the switcher, and connect the FW port of switcher to the PC with USB cable. -
Page 25: Troubleshooting & Maintenance
User Manual PT-SW-HD41USB 9. Troubleshooting & Maintenance Problems Potential Causes Solutions Bad quality of the Try another high quality connecting cable. cable. Output image with white noise. Make sure the connection Fail or loose connection. is good Check with oscilloscope or... -
Page 26: After-Sales Service
User Manual PT-SW-HD41USB 10. After-Sales Service If there appear some problems when running the product, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: This product will be free from defects in materials and workmanship for three years (The purchase invoice shall prevail). - Page 27 User Manual PT-SW-HD41USB...
-
Page 28: Asking For Assistance
User Manual PT-SW-HD41USB Asking for Assistance Technical Support: Phone: +49 5971 800299 - 0 Fax: +49 5971 800299 – 99 Technical Support Hours: 8:30 AM to 5:00 PM Monday thru Thursday 8:30 AM to 4:00 PM Friday Write to: PureLink GmbH Von-Liebig-Straße 10...
