- Page 1 I N S T A L L A T I O N A N D O P E R A T I O N M A N U A L GAS GRIDDLE GP513 GP514 GP516 GP518 For use in GB & IE 229284-19...
- Page 2 800 263 1455 (Toll Free) NEW ZEALAND Moffat Limited Web: www.moffat.co.nz E.Mail: sales@moffat.co.nz Main Office: (tel): 0800 663328 UNITED KINGDOM Blue Seal Web: www.blue-seal.co.uk E.Mail: sales@blue-seal.co.uk Sales: (tel): +44 121 327 5575 (fax): +44 121 327 9711 Spares: (tel): +44 121 322 6640...
-
Page 3: Table Of Contents

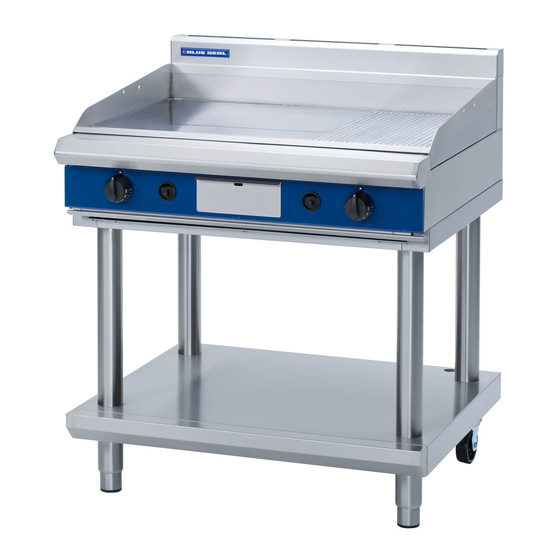

Contents Blue Seal Gas Griddle GP513 Gas Griddle, 450mm. GP514 Gas Griddle, 600mm. GP516 Gas Griddle, 900mm. GP518 Gas Griddle, 1200mm. Introduction ..................... 2 Specifications ................... 3 Model Numbers Covered in this Specification General Gas Supply Requirements Gas Connection Dimensions ....................6 Installation .................... -
Page 4: Introduction
Introduction We are confident that you will be delighted with your BLUE SEAL GAS GRIDDLE, and it will become a most valued appliance in your commercial kitchen. To ensure you receive the utmost benefit from your new BLUE SEAL GAS GRIDDLE, there are two important things you can do. -
Page 5: Specifications
GP514 - LS Gas Griddle 600mm wide on Leg Stand. GP516 - B Gas Griddle 900mm wide Bench Model. GP516 - CB Gas Griddle 900mm wide with Cabinet Base. GP516 - LS Gas Griddle 900mm wide on Leg Stand. GP516 - RB Gas Griddle 900mm wide with Refrigerated Base. -
Page 6: Gas Supply Requirements
Specifications Gas Supply Requirements - Australia Natural Gas LP Gas (Propane) GP513 GP514 GP516 GP518 GP513 GP514 GP516 GP518 Input Rating (N.H.G.C.) 40 MJ/hr 53 MJ/hr 80 MJ/hr 108 MJ/hr 40 MJ/hr 53 MJ/hr 80 MJ/hr 108 MJ/hr Supply Pressure 1.13 - 3.40 kPa... -
Page 7: Gas Connection
0.90 kPa 0.85 kPa 0.90 kPa 0.45 kPa Gas Connection ¾” BSP Male LP Gas (Propane) Butane GP513 GP514 GP516 GP518 GP513 GP514 GP516 GP518 Input Rating (N.H.G.C.) 40 MJ/hr 53 MJ/hr 80 MJ/hr 108 MJ/hr 40 MJ/hr 53 MJ/hr... -
Page 8: Dimensions
Dimensions Dimensions for Bench Models = Rating Plate Location for this option. GP513 - B GP514 - B GP516 - B GP518 - B... - Page 9 Dimensions Dimensions for Cabinet Base Models = Rating Plate Location for this option. GP513 - CB GP514 - CB GP516 - CB GP518 - CB...
- Page 10 Dimensions Dimensions for Leg Stand Models = Rating Plate Location for this option. GP513 - LS GP514 - LS GP516 - LS GP518 - LS...
- Page 11 Dimensions Dimensions for Refrigeration Base Models = Rating Plate Location for this option. GP516 - RB GP518 - RB...
-
Page 12: Installation
Blue Seal Gas Griddles are designed to provide years of satisfactory service and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. This appliance must be installed in accordance with National installation codes and in addition, in accordance with relevant National / Local codes covering gas and fire safety. -
Page 13: Clearances
Gas Connection NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY AN QUALIFIED PERSON. Blue Seal Gas Griddles do not require an electrical connection, as they function totally on gas supply only. It is essential that gas supply is correct for appliance to be installed and that adequate supply pressure and volume is available. - Page 14 Installation Regulator connections are " BSP female. Connection to appliance is " BSP male. (Refer to ‘Specifications’ section for gas supply location dimensions). NOTE: A Manual Isolation Valve must be fitted to individual appliance supply line. Correctly locate appliance into its final operating position and using a spirit level, adjust legs so that unit is level and at correct height.
-
Page 15: Operation
/ operator. Blue Seal Gas Griddles have been designed to provide simplicity of operation and 100% safety protection. Improper operation is almost impossible, however bad operation practices can reduce the life of the gas griddle and produce a poor quality product. -
Page 16: Lighting Pilot Burner
Operation Lighting Pilot Burner These griddles are fitted with a pilot as a standard option and flame failure protection, which is incorporated for each main burner, by way of a thermo-electric system. Flame failure protection will shut ‘Off’ gas supply to that burner in the event that pilot for that burner goes out, so that un-burnt gas is not expelled. - Page 17 Operation Re-Setting Overtemp Device (All UK and Optional Non-UK Models). This griddle is fitted with an overtemp device which isolates gas supply to burners should gas control system or thermostat malfunction, thus preventing griddle overheating. If pilot fails to ignite after several attempts, ensure that overtemp is checked to ensure that it has not tripped.
-
Page 18: Cleaning And Maintenance
Cleaning and Maintenance General Caution Always turn ‘Off’ gas supply before cleaning. This appliance is not water proof. Do not use water jet spray to clean interior or exterior of this appliance. Clean griddle regularly. A clean appliance looks better, will last longer and will perform better. Carbonised grease on surface or on griddle plate will hinder transfer of heat from cooking surface to food. -
Page 19: Daily Cleaning
Cleaning and Maintenance Daily Cleaning Grease drawer should be checked and emptied frequently to prevent overflow and spillage. Remove grease drawer while still warm so that grease is in a liquid state. Empty any grease from drawer and wash thoroughly in same manner as any cooking utensil. Clean Control Panel with a damp cloth lightly moistened with a solution of mild detergent and water. - Page 20 Cleaning and Maintenance a. Remove and clean grease collection drawer frequently to prevent over spills. b. Clean griddle surface thoroughly with supplied scraper tool. c. Allow plate to cool, then clean with a scrubbing brush, a mild non-abrasive detergent and water. d.
-
Page 21: Fault Finding
Fault Finding This section provides an easy reference guide to the more common problems that may occur during the operation of your equipment. The fault finding guide in this section is intended to help you correct, or at least accurately diagnose problems with your equipment. Although this section covers the most common problems reported, you may encounter a problem not covered in this section. -
Page 22: Gas Conversion And Specifications
Gas Conversion and Specifications Conversion Procedure Caution Ensure Appliance is isolated from gas supply before commencing servicing. NOTE: These conversions should only be carried out by qualified persons. All connections must be checked for leaks before re-commissioning appliance. Adjustment of components that have adjustments / settings sealed (e.g. paint sealed) can only be adjusted in accordance with following instructions and shell be re-sealed before re -commissioning this appliance. - Page 23 Gas Conversion and Specifications Gas Regulator NOTE, Pin rotated for Natural Gas NOTE: Gas regulator supplied convertible between Natural Gas and LP Gas, but it’s outlet pressure is fixed ex-factory and NOTE, Pin rotated is NOT to be adjusted. for LPG Cap Nut - Town Gas Only.
-
Page 24: Gas Specifications
Gas Conversion and Specifications Gas Specifications - Australia Natural Gas LP Gas (Propane) GP513 GP514 GP516 GP518 GP513 GP514 GP516 GP518 Main Burner Injector 3.00mm 3.60mm 3.00mm 2.85mm 1.80mm 2.10mm 1.80mm 1.70mm Pilot Burner Injector 0.41 0.25 Low Fire Adjustment 1 Turn 'Out' c.c.w. - Page 25 Gas Conversion and Specifications - UK Only Category: (20, 37). 2H3P Flue Type: Natural Gas (G20) Propane (G31) GP513 GP514 GP516 GP518 GP513 GP514 GP516 GP518 Main Burner Injector 3.00mm 3.40mm 3.00mm 2.85mm 1.80mm 2.10mm 1.80mm 1.70mm Pilot Burner Injector 0.41...
- Page 26 Gas Conversion and Specifications - All Other Markets Natural Gas Town Gas (**) GP514 GP513 GP514 GP516 GP518 GP513 GP516 GP518 (***) Main Burner Injector 3.00 3.60 3.00 2.85 5.50 7.20 5.50 5.20 Pilot Burner Injector 0.41 0.75 Low Fire Adjustment 1 Full Turn Counter Clockwise from the 'Fully In' Position.
-
Page 27: Replacement Parts List
Pilot Injector (LPG / Butane) 0.25. 026393 Pilot Injector (Town Gas) 0.75. General 228400 Grease Drawer (GP514 / GP516 / GP518). 236813 Grease Drawer (GP513). 227850 Leg 150mm (Adjustable) (Flush Stud) - CB and RB Models. 227851 Leg 150mm (Adjustable) (Extended Stud) - LS Models. - Page 28 GP513 236779 236778 236780 236781 236779 236778 GP514 232029 232028 232030 232031 232025 232024 GP516 232033 232032 232034 232035 232033 232032 GP518 232037 232036 232038 232039 232037 232036 (*) - GP514 Town Gas model is available ex-factory on request only.
