Electric Dedicated Griddle Range
Electric Dedicated Griddle Range

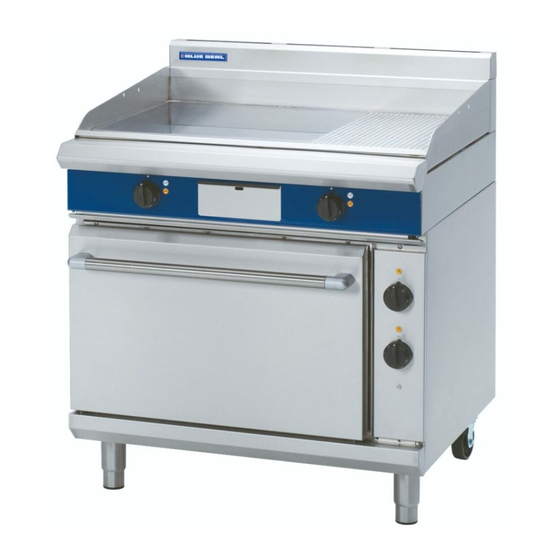

Blue Seal Evolution Series Electric Dedicated Griddle Ranges
Amendment 6
E P 5 0 6 / E P 5 6
E P 5 0 6 / E P 5 6
S e r v i c e M a n u a l
S e r v i c e M a n u a l
© Moffat Ltd, August 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVOLUTION Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Blue Seal EVOLUTION Series

Summary of Contents for Blue Seal EVOLUTION Series

  • Page 1 S e r v i c e M a n u a l S e r v i c e M a n u a l Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...
  • Page 2 ALL INSTALLATION AND SERVICE REPAIR WORK MUST BE CARRIED OUT BY QUALIFIED PERSONS WARNING: ONLY. IMPORTANT: MAKING ALTERATIONS MAY VOID WARRANTIES AND APPROVALS. Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...

  • Page 3: Table Of Contents

    Contents Contents This manual is designed to take a more in depth look at the Blue Seal Electric Dedicated Griddle Ranges for the purpose of making the units more understandable to service people. There are settings explained in this manual that should never require to be adjusted, but for completeness and those special cases where these settings are required to change, this manual gives a full explanation as to how, and what effects will result.
  • Page 4 Specifications Dimensions EP56 up to Lot No. 0816999 Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...

  • Page 5: Specifications

    Specifications Dimensions EP506 and EP56 from Lot No. 0817000) Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...
  • Page 6 Electrical supply connection point is located at the rear of the appliance, approximately 74mm from the right hand side and 501mm from the rear and 150mm from the floor. When connecting a Blue Seal electric appliance to the main supply, ensure that the following is carried out:- ...

  • Page 7: Installation

    Blue Seal Electric Griddle / Electric Static Convection Oven Ranges are designed to provide years of satisfactory service and correct installation is essential to achieve the best performance, efficiency and trouble-free operation.
  • Page 8 The supplier of this appliance will be able to recommend a suitable person.  Make sure that the electrical supply is turned off before any service or maintenance work is carried out. Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...

  • Page 9: Operation

    Top & Bottom Position Elements Position Power Indicator Position Lamp (Clear) Position Position HIGH Position Oven Thermostat Control Knob ๐ OFF Position 50°C to 300°C Temperature Graduations Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...
  • Page 10 Lamps (Clear) Heating Indicator Lamps (Amber) Oven Thermostat Control Knob Heating Indicator ๐ Lamp (Amber) OFF Position 50°C to 300°C Power Indicator Lamp (Clear) Temperature Graduations Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...

  • Page 11: Maintenance

    Maintenance BLUE SEAL ELECTRICAL DEDICATED GRIDDLE RANGES - MAINTENANCE SCHEDULE Business Name and Address: Date: Service Report No. Phone: Fax: Serial No. Clients Order No. Serviceman:  Model: Blue Seal Electric Dedicated Griddle Ranges. Remarks. Inspect exterior condition of unit.

  • Page 12: Fault Finding Guide

    No heat control. Thermostat faulty. Replace thermostat. (Refer Fault Diagnosis 5.2.1). (Refer Service Section 6.2.1). No indicator light. Faulty indicator. Replace indicator. (Refer Service Section 6.2.5). Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...
  • Page 13 Fan motor faulty. Replace fan motor. (Refer Fault Diagnosis 5.2.5). (Refer Service Section 6.3.8). Capacitor faulty Replace capacitor. (Refer Fault Diagnosis 5.2.5). (Refer Service Section 6.3.3). Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...

  • Page 14: Fault Diagnosis

    Set thermostat to 180°C. Close oven door and allow oven thermostat to regain temperature. If temperature overshoots by 50°C and continues rising, switch ‘Off’ oven and replace thermostat. Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...
  • Page 15 If capacitor is infinite resistance straight away then is open- circuit - replace capacitor. If resistance never goes very high, capacitor is leaky - replace capacitor. Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...
  • Page 16 ALL INSTALLATION AND SERVICE REPAIR WORK MUST ONLY BE CARRIED OUT BY QUALIFIED PERSONS. WARNING: ENSURE SUPPLY IS SWITCHED OFF BEFORE SERVICING. ALWAYS TEST AFTER SERVICE REPAIRS. Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...

  • Page 17: Access

    Transfer wires to the new thermostat. Fit new thermostat and re-assemble in reverse order. NOTE: When re-assembling, it is important that the thermostat phials are correctly located. Screw Figure 6.1.2 Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...

  • Page 18: Selector Switch

    Replace and re-assemble in reverse order. Figure 6.2.3 Fit new element and re-assemble in reverse order. NOTE: When re-assembling, important that thermostat phials are correctly located. Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...

  • Page 19: Service Procedures

    Transfer wires from old to new capacitor. Undo screws securing capacitor to frame and remove capacitor. Replace and re-assemble in reverse order. 2 Screws Figure 6.3.1b Re-assemble in reverse order. Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...

  • Page 20: Energy Regulator (Static Ovens / Convection Ovens From Lot No 0817000)

    32.9 ohms. Bottom Front Element 25.6 ohms. Figure 6.3.5 Bottom Rear Element 25.6 ohms. Push new neon in from front of control panel, and reconnect wires. Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...

  • Page 21: Oven Fan (Convection Ovens Only)

    Before putting the control panel back on make sure that microswitch is clicking on and off with the opening and Three Screws closing of the oven door. Figure 6.3.8 Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...

  • Page 22: Oven Door

    Figure 6.3.10b Lift out door in a rising half circular motion similar to the orientation of the door when closing (refer to Figs 6.3.10c,d,e). Figure 6.3.10e Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...

  • Page 23: Oven Door Springs

    Fig 6.3.11d above. Spring 6.3.12 Oven Door Hinges Hinge Refer to the instruction sheet supplied with hinge kit. Figure 6.3.11c Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...

  • Page 24: Adjustment / Calibration

    Adjust the calibration nut located at the base of the thermostat shaft. - To increase griddle temperature, turn the calibration nut anticlockwise. - To decrease griddle temperature, turn the calibration Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...

  • Page 25: Accessories

    Cooktop Electric Griddle Cooktop Electric Griddle To Cooktop Griddle To Chargrill To Target Top To Griddle To Cooktop Electric To Griddle Toaster To Cooktop Electric - Griddle Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...
  • Page 26 EP506 / EP56 - Door Assembly ..........................27 8.2.3 EP506 - Static Oven Electrical Assembly ......................28 8.2.4 EP56 - Convection Oven Electrical Assembly ....................... 29 Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...

  • Page 27: Electric Griddle - 900Mm

    *RPL Number of units in service 229021 TERMINAL BLOCK 229245 ELEMENT 2000W 5-10 229145 SWITCH EGO 42-04400-008 229146 10-50 THERMOSTAT 55-34054-060 229353 OVERTEMP THERMOSTAT 360°C Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...

  • Page 28: Electric Ovens - Ep506 / Ep56

    227893 OVEN SIDE RACK RH (From Lot No. 0817xxx) 5-10 227892 OVEN SIDE RACK LH 10-50 232355 OVEN BAFFLE UPGRADE KIT (From Lot No. 0817xxx) Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...

  • Page 29: Exploded Parts Diagrams

    DOOR HINGE KIT(INCLUDES 2 x ITEMS 15 & 16) 5-10 - - - - - - PART OF 15 ABOVE 10-50 232819 COMPLETE DOOR ASSEMBLY 900mm Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...

  • Page 30: Ep506 - Static Oven Electrical Assembly

    *RPL Number of units in service 229021 TERMINAL BLOCK 228941 TERMINAL BLOCK BRACKET 5-10 229145 SWITCH EGO 42-04400-008 10-50 229146 THERMOSTAT 55-34054-060 013989 REGULATOR EGO ENERGY Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...

  • Page 31: Ep56 - Convection Oven Electrical Assembly

    Exploded Parts Diagrams 8.2.4 EP56 - Convection Oven Electrical Assembly ROTATION ANTI-CLOCKWISE WHEN LOOKING INSIDE OVEN Up to Lot No. 0816xxx From Lot No. 0817xxx Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...
  • Page 32 ENERGY REGULATOR 240V 50HZ (From Lot No. 0817xxx) 232211 CONTROL PANEL DRIP GUARD KIT (not illustrated) Recommended Parts Level *RPL Number of units in service 5-10 10-50 Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...
  • Page 33 THERMOSTAT THERMOSTAT 229146 229146 OVERTEMP OVERTEMP THERMOSTAT THERMOSTAT 229353 NEON GREEN 229353 NEON GREEN 227962 227962 EARTH STUD SWITCH SWITCH 3/16" 229145 229145 CONTROL PANEL Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...
  • Page 34 Wiring Diagrams 9.2 Static Ovens (EP506) Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...

  • Page 35: Wiring Diagrams

    Wiring Diagrams 9.3 Convection Ovens (EP56) up to Lot No. 0816999 Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...
  • Page 36 Wiring Diagrams 9.4 Convection Ovens (EP56) from Lot No. 0817000 Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...

  • Page 37: Circuit Schematics

    Circuit Schematics 10.1 Static Oven (EP506) Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...
  • Page 38 Circuit Schematics 10.2 Convection Oven (To Lot No. 0816999) 10.3 Convection Oven (From Lot No. 0817000) Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...

  • Page 39: Service Contacts

    3765 Champion Blvd Tel Sales 1800 551 8795 Winston-Salem 336 661 9546 NC27115 NATIONAL COVERAGE FOR SERVICE OR MAINTENANCE DIAL FREE CALL 866 673 7937 (USA ONLY). Blue Seal Evolution Series Electric Dedicated Griddle Ranges © Moffat Ltd, August 2015 Amendment 6...
