Gas Cooktops / Convection Gas Ranges
G54 / G56 / G58
Service Manual

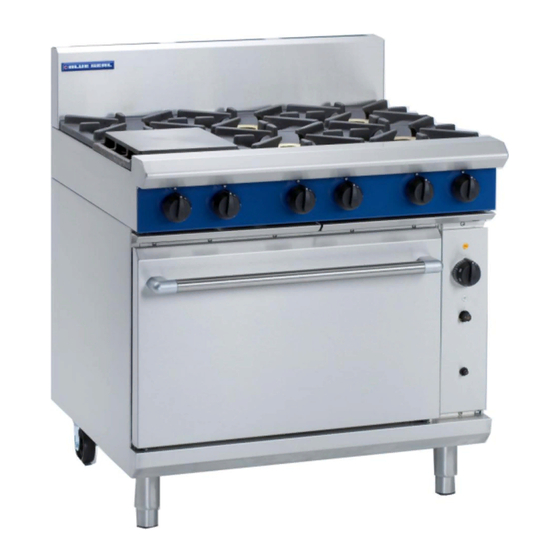

Blue Seal Evolution Series Gas Convection Ranges
© Copyright Moffat Ltd. 21 June 2016
Amendment 13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Evolution Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Blue Seal Evolution Series

Summary of Contents for Blue Seal Evolution Series

  • Page 1 Gas Cooktops / Convection Gas Ranges G54 / G56 / G58 Service Manual Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 2 ALL INSTALLATION AND SERVICE REPAIR WORK MUST BE CARRIED OUT BY QUALIFIED PERSONS WARNING: ONLY. IMPORTANT: MAKING ALTERATIONS MAY VOID WARRANTIES AND APPROVALS. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 3: Table Of Contents

    Contents Contents This manual is designed to take a more in depth look at Blue Seal Gas Convection Ranges for the purpose of making the units more understandable to service people. There are settings explained in this manual that should never require to be adjusted, but for completeness and those special cases where these settings are required to change, this manual gives a full explanation as to how, and what effects will result.
  • Page 4 Specifications Dimensions G54 Cook Top Options G54D Cook Top Options G54C Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 5: Specifications

    Specifications Dimensions G56D, G56C, G56B & G56A Models Cook Top Options G56D Cook Top Options G56C Cook Top Options G56A Cook Top Options G56B Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 6 Specifications Dimensions G58D, G58C, G58B & G58A Models Cook Top Options G58D Cook Top Options G58C Cook Top Options G58B Cook Top Options G58A Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 7 (Refer to ‘Gas Conversion’ section for details). Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016...
  • Page 8 (**) TOWN GAS Only - Adjust burner operating pressure using adjustable gas regulator supplied.  Refer to ‘Gas Conversion and Specifications’ section of this manual for further details. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 9 430mm Oven Racks Oven Rack Size 530mm x 650mm (2x1 Gastronorm) Number of rack positions Number of racks supplied Oven Weights (Net) 180kg 208kg Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 10 Installation Installation Requirements Blue Seal gas Range Convection Ovens are designed to provide years of satisfactory service, and correct installation is essential to achieve the best performance, efficiency and trouble-free operation. This appliance must be installed in accordance with National installation codes and in addition, in accordance with relevant National / Local codes covering gas, electrical and fire safety.

  • Page 11: Installation

    Check all gas connections for leakages using soapy water or other gas detecting equipment. Warning O NOT USE A NAKED FLAME TO CHECK FOR GAS LEAKAGES Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 12 Check the Oven Fan operation. Ensure that the operator has been instructed in the areas of correct lighting, operation, and shutdown procedure for the appliance. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 13: Operation

    Open Burner Option OFF Position HIGH Flame Fig 3 LOW Flame Rear Burner Piezo Igniter (Oven) Front Burner (Indicators located above the Gas Control Knobs). Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 14: Explanation Of Control System

    Fault Finding charts will make reference to the corrective action required, or refer to the Fault Diagnosis section and / or Service section to assist in correction of the fault. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 15: Maintenance

    Maintenance 4.1 Routine Maintenance BLUE SEAL CONVECTION GAS RANGES - MAINTENANCE SCHEDULE Business Name and Address: Date: Service Report No: Phone: Fax: Serial No: Clients Order No. Serviceman:  Model: Blue Seal Convection Gas Range Remarks Inspect exterior condition of unit.
  • Page 16 Clean or replace pilot injector. (Refer Service Section 6.2.3 / 6.3.6). Gas control valve faulty. Replace gas control valve. (Refer Service Section 6.2.5 / 6.3.5). Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 17 (Refer Fault Diagnosis 5.2.1). (Refer Service Section 6.2.4 / 6.3.4). Gas control magnet faulty. Replace gas control magnet. (Refer Fault Diagnosis 5.2.1). (Refer Service Section 6.3.7). Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 18 Pilot goes out when control knob released. Incorrect gas pressure. Check supply / adjust pressure. (Refer Specifications Section). Faulty gas control valve. Replace gas control valve. (Refer Service Section(6.4.1). Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 19 Incorrect supply pressure. Check supply / adjust pressure. knob released. (Refer Specifications Section). Low fire adjustment incorrect. Adjust low fire setting. (Refer Service Section 6.6.4). Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 20 Pilot flame too small. Correct fault. (Refer fault: Small Pilot Flame). Thermocouple faulty. Replace thermocouple. (Refer Fault Diagnosis 5.2.1). (Refer Service Section 6.5.11). Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 21 (Refer Service Section 6.6.6). Door does not close. Tray in way of door. Correctly position tray in rack. Door tension setting incorrect. Adjust door tension setting. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 22 Gas magnet faulty If thermocouple milli-voltage is above 10mV, and the pilot still will not hold, the gas magnet is faulty - replace the gas magnet. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 23: Fault Finding

    If capacitor is infinite resistance straight away then it is open-circuit - replace the capacitor. If resistance never goes very high, the capacitor is leaky - replace the capacitor. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 24 Ensure gas and electrical supplies are switched ‘Off’ before commencing servicing.  Always Check / Test for gas leaks on completion of Service Repairs on the Gas System. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 25: Service Procedures

    Griddle Low Fire Adjustment ........................47 6.6.5 Door Microswitch Adjustment ........................47 6.6.6 Convection Oven Thermostat Adjustment ...................... 47 6.6.7 Convection Oven Burner Aeration ......................... 48 Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 26: Access

    Disconnect H.T lead from piezo. hob. Disconnect indicator light connections on rear of control Remove the control panel. panel. Drip Tray Two Screws Screw Figure 6.1.1 Figure 6.1.2 Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 27: Replacement - Open Burners (Up To Ser No. 718549)

    Remove two screws securing burner venturi and remove burner venturi and replace. Re-assemble in reverse order. NOTE: Ensure when re-assembling, burner bowls are Figure 6.2.1c seated correctly on cap screw heads. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 28: Open Burner Injector

    2 Pilot Burner reverse order. Shield Screws Ensure when re-assembling, that burner bowls are seated correctly on locating pins. Figure 6.2.3a Remove burner guard (refer 6.2.1). Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 29: Open Burner Thermocouple

    Do not over-tighten. NOTE: When screwing thermocouple back into gas control, once threaded up tighten up another ¼ turn only.Do not over-tighten. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 30: Replacement - Open Burners (From Ser No. 718550)

    Replace and re-assemble in reverse order. Figure 6.3.1b Remove control panel (refer 6.1.1 access). Disconnect gas valves from gas connections. Disconnect Gas Connections Figure 6.3.1c Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 31: Open Burner Venturi

    Re-assemble in reverse order. NOTE: When screwing thermocouple back into gas control, once threaded up tighten up another ¼ turn only. Do not over-tighten. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 32: Open Burner Gas Control

    Do not over-tighten. Pilot Tube Pilot Assy Pilot Supply Remove Tube Screw Figure 6.3.6c Clean or replace as necessary, re-assemble in reverse order. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 33: Gas Control Magnet (Cooktop Burners Only)

    Figure 6.3.7c Burner Mounting Rail, loosely fit 2 pilot burner shield securing screws to prevent damage to the Replace and re-assemble in reverse order. thermocouple. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 34: Replacement-Griddle Burner

    Clean or replace as necessary, and re-assemble in Remove the magnet from gas control valve. reverse order. Gas Control Valve Magnet Rear Nut Figure 6.4.2b Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 35: Griddle Pilot Burner

    ¼ turn only. Do not over-tighten. Pilot Supply Tube Figure 6.4.6 Clean or replace as necessary, and re-assemble in reverse order. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 36: Griddle Pilot Burner Thermocouple

    Ignitor. Unscrew securing nut and withdraw Piezo Ignitor from control panel. Replace and re-assemble in reverse order. Piezo Igniter Securing Nut Figure 6.4.10 Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 37: Replacement - Oven

    Figure 6.5.1e Bottom Lintel Replace and re-assemble in reverse order. Figure 6.5.1b Remove burner securing screw from rear of burner. Remove Screw Figure 6.5.1c Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 38: Oven Burner Injector

    Withdraw pilot assembly from front of oven (refer section 6.5.3). Unscrew and remove spark electrode from pilot burner bracket. Replace and re-assemble in reverse order. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 39: Oven Pilot Thermocouple

    Do not over-tighten. Figure 6.5.7 Replace motor and re-assemble in reverse order. NOTE: Always replace the motor mounting bushes when replacing the motor. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 40: Oven Burner H.t Lead

    Transfer bracket from old gas control to new gas control, re-assemble in reverse order. Figure 6.5.9 Remove piezo ignitor and replace, re-assemble in reverse order. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 41: Thermostat

    Before re-fitting the control panel, ensure that the micro- switch is clicking ‘On’ and ‘Off’ when the oven door is opened and closed. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 42: Oven Door

    Figure 6.5.15b Lift out door in a rising half circular motion similar to the orientation of the door when closing. Figure 6.5.15e Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 43: Oven Door Hinges & Springs (Units Up To Lot No.0838999)

    Lever outer panel off base NOTE: If access to tensioning nut is restricted, by Figure 6.5.16c screw shown above, slacken off screw shown to allow better access. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 44 Door Retrofit Pivot Pins are a force fit and should be tapped in until shoulder of pin is flush with side of door frame. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 45: Oven Door Hinges & Springs (Units From Lot No.0839001)

    Rivets Rivets Self Tapping Screws Figure 6.5.17b Measure and note measurement from tensioning nut to end of threaded spline. Measure this Distance Figure 6.5.17c Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 46 Arm Assy Refit door outer panel to inner panel and secure at either side with rivets (S/S Avinox 5mm rivets {NXP61-01611} or similar). Figure 6.5.17f Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 47 Locking Pin Place protective material here. Figure 6.5.17j Refit oven door and remove locking rods and protective cardboard. Ensure that door operates correctly. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 48: Adjustment / Calibration

    Adjust the aeration slide as required. Aeration Screw Main Burner Aeration Slide Figure 6.6.3 The most efficient flame is clear blue / green in colour. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 49: Griddle Low Fire Adjustment

    Open and close door to ensure microswitch has been If oven temperature needs to be decreased, adjusted correctly. ensure thermostat ‘Max’ temperature position before carrying out any adjustment. Re-assemble in reverse order. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 50: Convection Oven Burner Aeration

    Loosen aeration slide screw. Adjust aeration slide as required. Aeration Screw Aeration Slide Figure 6.6.7 The most efficient flame is clear blue / green in colour. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 51: Accessories

    LPG / Propane (G31) 231910 231916 G56 RANGE NAT (G20) 231911 231917 LPG / Propane (G31) 231912 231918 G58 RANGE NAT (G20) 231913 231919 Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 52 To Target Top Cooktop Griddle To Chargrill SIMMER PLATE 227016 228893 Cooktop Griddle To Cooktop Griddle To Griddle To Griddle Toaster To Cooktop Electric- Griddle Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 53: Exploded Parts Diagrams

    Main Assembly ............................70 8.4.2 Door Assembly ............................71 8.4.3 Gas Assembly .............................. 72 8.4.4 Fan Motor Assembly ............................ 74 8.4.5 Racks ................................75 Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 54: Convection Range Cooktop

    OPEN BURNER 300mm MODULE (F) KIT (Does not include Knobs or Pot Stands). 230674 OPEN BURNER 300mm MODULE (F) KIT - UK Only (Does not include Knobs or Pot Stands). Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 55: Cooktop Open Burners (Pf Models) - Up To Ser. No. 718549

    OPEN BURNER 300mm MODULE (PF) KIT (Does not include Knobs or Pot Stands). 230676 OPEN BURNER 300mm MODULE (PF) KIT - UK Only (Does not include Knobs or Pot Stands). Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 56: Cooktop Open Burners (F Models) - From To Ser. No. 718550

    OPEN BURNER 300mm MODULE (PF) KIT (Does not include Knobs or Pot Stands). 236239 OPEN BURNER 300mm MODULE (PF) KIT - UK Only (Does not include Knobs or Pot Stands). Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 57: Cooktop Open Burners (Pf Models) - From To Ser. No. 718550

    Exploded Parts Diagrams 8.1.4 Cooktop Open Burners (PF Models) - from Ser. No. 718550 Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 58 OPEN BURNER 300mm MODULE (PF) KIT - UK Only (Does not include Knobs or Pot Stands). Recommended Parts Level *RPL Number of Units In-Service 5-10 10-50 Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 59: Cooktop Griddle Burners

    PILOT BURNER INJECTOR 0.23mm (LPG / PROPANE / BUTANE) 018067 PILOT BURNER INJECTOR 0.60mm (TOWN GAS) 018744 PIEZO IGNITION ELECTRODE 228713 GRIDDLE MODULE KIT Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 60: G54 Oven Assembly

    POT STAND SPACER 750 230110 CONTROL PANEL 230282 SPILL TRAY 750mm WA 229890 SILL WA 750mm 228401 SIDE PANEL RH 228078 SIDE PANEL LH 227960 BLUESEAL BADGE Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 61: Door Assembly

    DOOR HINGE KIT (INCLUDES 2 x ITEMS 21 & 22) - - - - - - PART OF 21 ABOVE 232822 COMPLETE DOOR ASSEMBLY 750mm Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 62: Gas Assembly

    Exploded Parts Diagrams 8.2.3 G54 Gas Assembly Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 63 PILOT MOUTING BRACKET 232211 CONTROL PANEL DRIP GUARD KIT (Not illustrated) 230661 PILOT SHIELD (Not Shown) 228531 REGULATOR (Natural Gas / LPG Gas [Propane-Convertible) 3/4”BSP F/F, Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 64: Fan Motor Assembly

    MOTOR KIT (INCLUDES ITEMS 65, 67, 68 & 71) 010859 MOUNTING - STEPPED 013586 TERMINAL BLOCK PA32 026161 CABLE CLAMP PA268RO 010909 CAPACITOR 019207 TERMINAL BLOCK LABEL 230256 ELECTRICAL GEAR PLATE Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 65: Racks

    PILOT VIEWING HOLE LID 748001 SCREW M5 x 16 748016 NUT M5 NYLOC 227892 OVEN SIDE RACK LH 232355 OVEN BAFFLE UPGRADE KIT (From Lot No. 0817xxx) Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 66: G56 Oven Assembly

    SPILL TRAY 900mm WA BSEAL (1 Piece New Style). 229733 SILL WA 900mm 228401 SIDE PANEL RH 228078 SIDE PANEL LH 227960 BLUESEAL BADGE Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 67: Door Assembly

    DOOR SPRING KIT (INCLUDES 2 SPRINGS) 232402 DOOR HINGE KIT (INCLUDES 2 x ITEMS 20 & 21) 227968 PART OF 20 ABOVE 232819 COMPLETE DOOR ASSEMBLY 900mm Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 68: Gas Assembly

    Exploded Parts Diagrams 8.3.3 G56 Gas Assembly Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 69 018744 ELECTRODE 228349 PILOT MOUTING BRACKET 232211 CONTROL PANEL DRIP GUARD KIT (not illustrated) 228531 REGULATOR (Natural Gas / LPG Gas [Propane-Convertible) 3/4”BSP F/F, Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 70: Fan Motor Assembly

    MOTOR KIT (INCLUDES ITEMS 65, 67, 68 & 71) 010859 MOUNTING - STEPPED 013586 TERMINAL BLOCK PA32 026161 CABLE CLAMP PA268RO 010909 CAPACITOR 019207 TERMINAL BLOCK LABEL 230256 ELECTRICAL GEAR PLATE Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 71: Racks

    SCREW M5 x 16 748016 NUT M5 NYLOC 228054 OVEN SOLE PLATE EXTENSION 227892 OVEN SIDE RACK LH 232355 OVEN BAFFLE UPGRADE KIT (From Lot No. 0817xxx) Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 72 SPILL TRAY WA 1200mm RH, BSEAL (1 Piece New Style). 229892 SILL WA 1200mm 228401 SIDE PANEL RH 228078 SIDE PANEL LH 227960 BLUESEAL BADGE Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 73 DOOR SPRING KIT (INCLUDES 2 SPRINGS) 232402 DOOR HINGE KIT (INCLUDES 2 x ITEMS 20 & 21) 227968 PART OF 20 ABOVE 232819 COMPLETE DOOR ASSEMBLY 900mm Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 74 Exploded Parts Diagrams 8.4.3 G58 Gas Assembly Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 75 228349 PILOT MOUTING BRACKET 232211 CONTROL PANEL DRIP GUARD KIT (not illustrated) 228531 REGULATOR (Natural Gas / LPG Gas [Propane] - Convertible) 3/4”BSP F/F, Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 76: Fan Motor Assembly

    MOTOR KIT (INCLUDES ITEMS 65, 67,68 & 71) 010859 MOUNTING - STEPPED 013586 TERMINAL BLOCK PA32 026161 CABLE CLAMP PA268RO 010909 CAPACITOR 019207 TERMINAL BLOCK LABEL 230256 ELECTRICAL GEAR PLATE Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 77 SCREW M5 X 16 748016 NUT M5 NYLOC 228054 OVEN SOLE PLATE EXTENSION 227892 OVEN SIDE RACK LH 232355 OVEN BAFFLE UPGRADE KIT (From Lot No. 0817xxx) Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 78: Wiring Diagram

    Wiring Diagram G54 / G56 / G58 Wiring Diagram Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 79: Service Contacts

    NC27115 Tel Sales 1800 551 8795 +1 336 661 9546 NATIONAL COVERAGE FOR SERVICE OR MAINTENANCE DIAL FREE CALL 866 673 7937 (USA ONLY). Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 80: Appendix A: Hob Type Conversion

    (See Fig 5) and carefully remove the burner module from the cook top. Burner Cap Fig 4 Front Burner Securing Screws Burner Bowl Fig 1 Fig 5 Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 81 3. Secure the burner module in position in the burner box with 2 screws at the front (See Fig 10) and rear (See Fig 13).of the burner. Fig 13 Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 82 7. On completion of conversion, carry out a complete commissioning of appliance as shown in 'Installation' section of 'Installation and Operation Manual' for this appliance. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 83: Appendix B: Gas Type Conversion

    NOTE: The 'Low Fire Screw' should be sealed with coloured paint on completion of low fire adjustment. Low Fire Screw Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 84 Adjust low fire adjustment screw on open burner gas control valves to obtain desired flame size. NOTE: The 'Low Fire Screw' should be sealed with coloured paint on completion of low fire adjustment. Low Fire Screw Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 85 Adjust low fire adjustment screw on open burner gas control valves to obtain desired flame size. NOTE: The 'Low Fire Screw' should be sealed with coloured paint on completion of low fire adjustment. Low Fire Screw Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 86 Refit sole plate(s) and lower lintel. NOTE: There is no 'Low Fire' adjustment on the gas control valve for the GC Oven.  Refit the oven control panel. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 87 Carry out a ‘Commissioning’ check of the appliance as shown in Installation Section of this manual. Ensure any adjustments done to components that have adjustments / settings paint sealed, these are to be re-sealed. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016...
  • Page 88 Operating pressure is ex-factory set through the appliance regulator and is not to be adjusted, apart from when carrying out gas conversion, if required. (Refer to the ‘Gas Conversion’ section for details). Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016...
  • Page 89 Operating pressure is ex-factory set through the appliance regulator and is not to be adjusted, apart from when carrying out gas conversion, if required. (Refer to the ‘Gas Conversion’ section for details). Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016...
  • Page 90 (**) TOWN GAS Only - Adjust burner operating pressure using adjustable gas regulator supplied.  Refer to ‘Gas Conversion and Specifications section of this manual for further details. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...

  • Page 91: Appendix C: Remove Hob From Range

    Lift out door in a rising half circular motion similar to the orientation of the door when closing. Fig 2 Cardboard under locking Metal rod through locking hole. rod. Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 92 Remove 3 screws at bottom edge of hob back panel (Refer Fig 4). Fig 4 Step 5: Gas Connection Disconnect gas connection at rear of unit (Refer Fig 5). Fig 5 Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
  • Page 93 Carry out the reverse to re-assemble. *Check for gas leaks*. Fig 6 Step 7: Dimensions after dismantling. *Width dimension will vary according to size of range*. Fig 7 Blue Seal Evolution Series Gas Convection Ranges © Copyright Moffat Ltd. 21 June 2016 Amendment 13...
