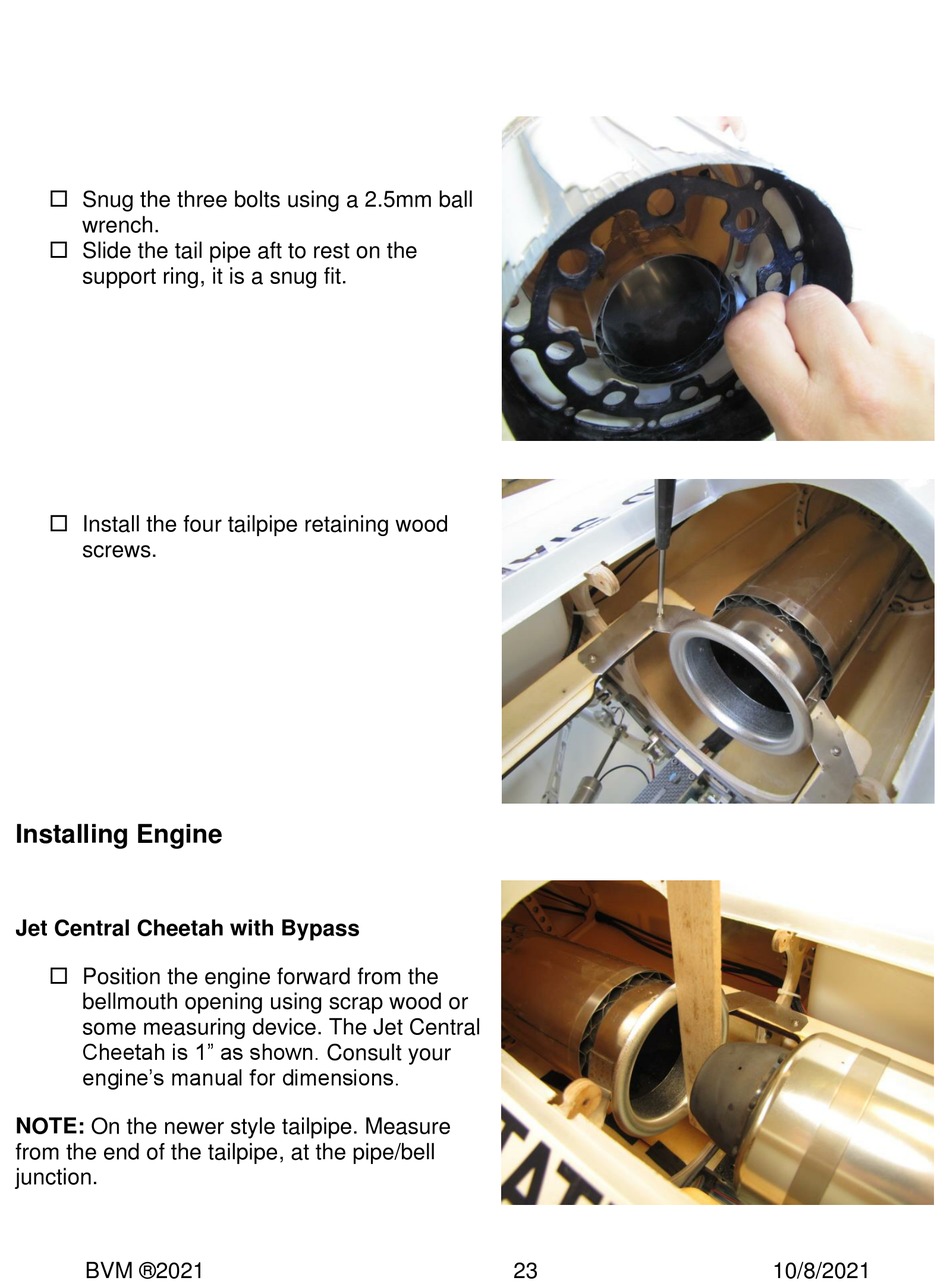

Snug the three bolts using a 2.5mm ball
wrench.
Slide the tail pipe aft to rest on the
support ring, it is a snug fit.
Install the four tailpipe retaining wood
screws.
Installing Engine
Jet Central Cheetah with Bypass
Position the engine forward from the
bellmouth opening using scrap wood or
some measuring device. The Jet Central
Cheetah is 1" as shown. Consult your
engine's manual for dimensions.
NOTE: On the newer style tailpipe. Measure
from the end of the tailpipe, at the pipe/bell
junction.
BVM ®2021
23
10/8/2021
