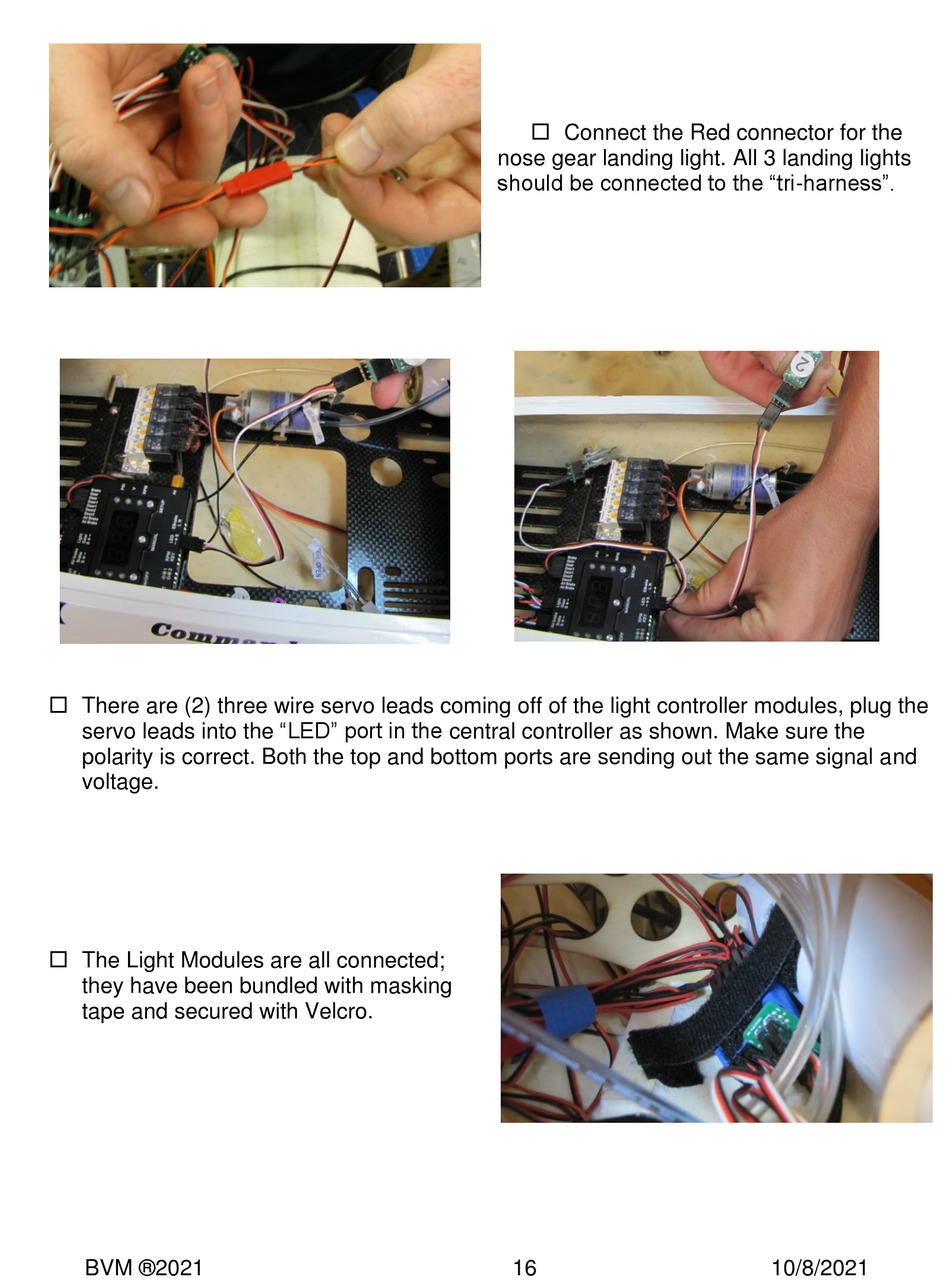

There are (2) three wire servo leads coming off of the light controller modules, plug the
servo leads into the "LED" port in the central controller as shown. Make sure the
polarity is correct. Both the top and bottom ports are sending out the same signal and
voltage.
The Light Modules are all connected;
they have been bundled with masking
tape and secured with Velcro.
BVM ®2021
Connect the Red connector for the
nose gear landing light. All 3 landing lights
should be connected to the "tri-harness".
16
10/8/2021
