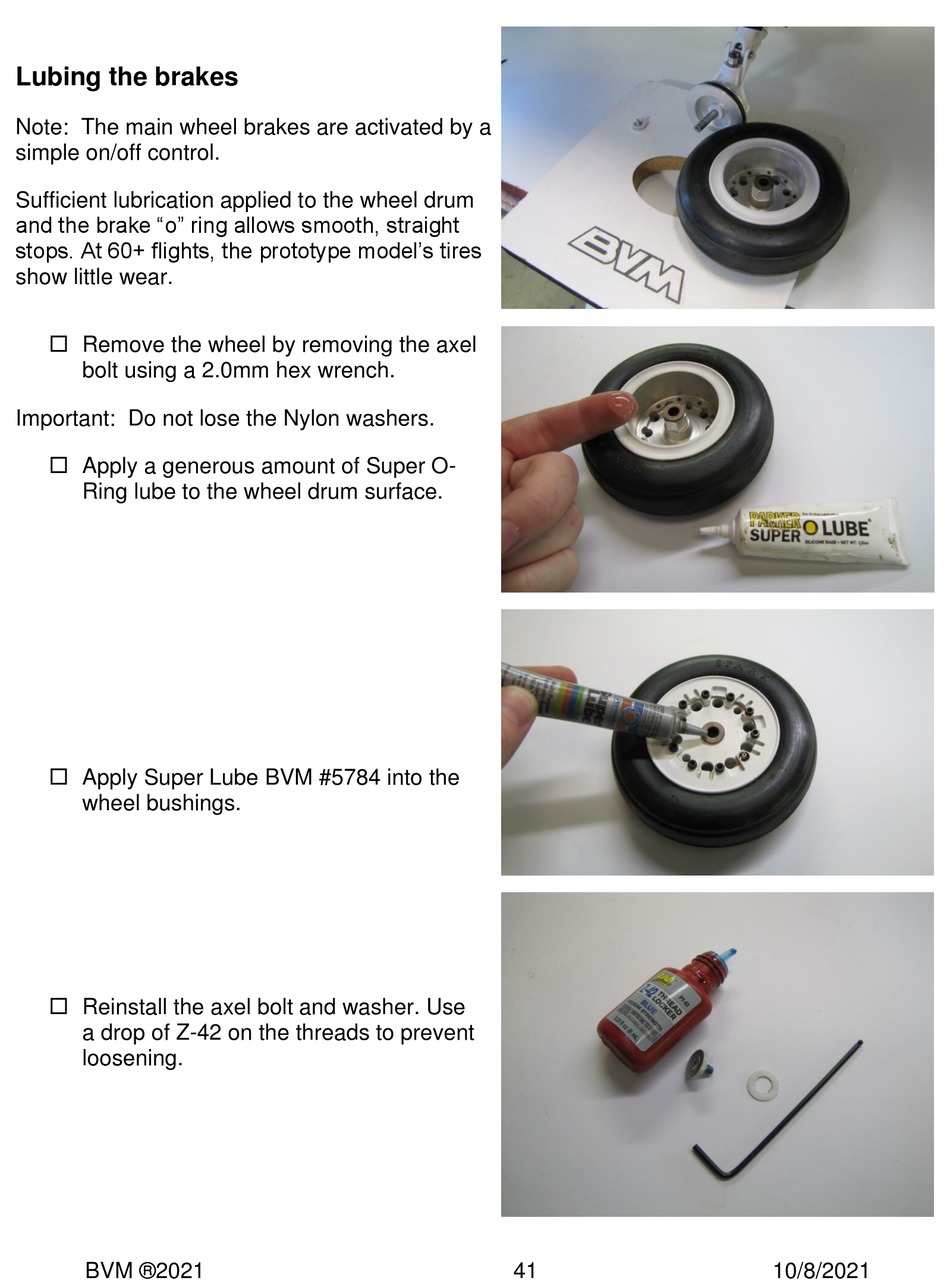

Lubing the brakes

Note: The main wheel brakes are activated by a
simple on/off control.
Sufficient lubrication applied to the wheel drum
and the brake "o" ring allows smooth, straight
stops. At 60+ flights, the prototype model's tires
show little wear.
 Remove the wheel by removing the axel
bolt using a 2.0mm hex wrench.
Important: Do not lose the Nylon washers.
 Apply a generous amount of Super O-
Ring lube to the wheel drum surface.
 Apply Super Lube BVM #5784 into the
wheel bushings.
 Reinstall the axel bolt and washer. Use
a drop of Z-42 on the threads to prevent
loosening.
BVM ®2021 41 10/8/2021
