F-16 Light Schematic - BVM GO FLY GOLD PNP F-16 C Manual

 The "GEAR" wire coming from the main
controller goes to your Receivers gear
channel. The "LED" wire coming from the
main controller goes to your Receivers
channel of your choice, this will be the
channel to control your lights The "LED"
channel coming from the RX has three
positions, Off, NAV Only, and NAV and
Landing lights.

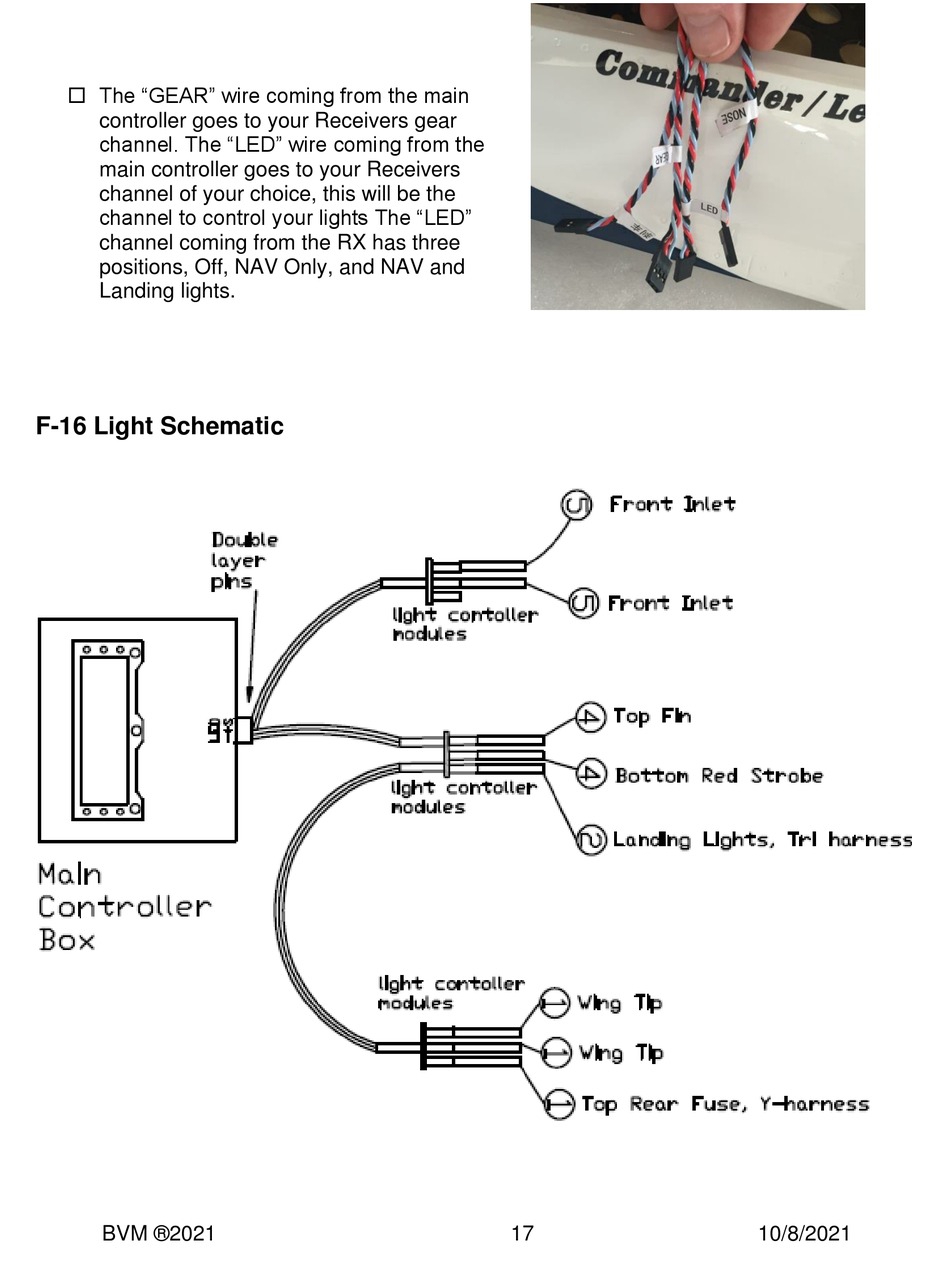

F-16 Light Schematic
