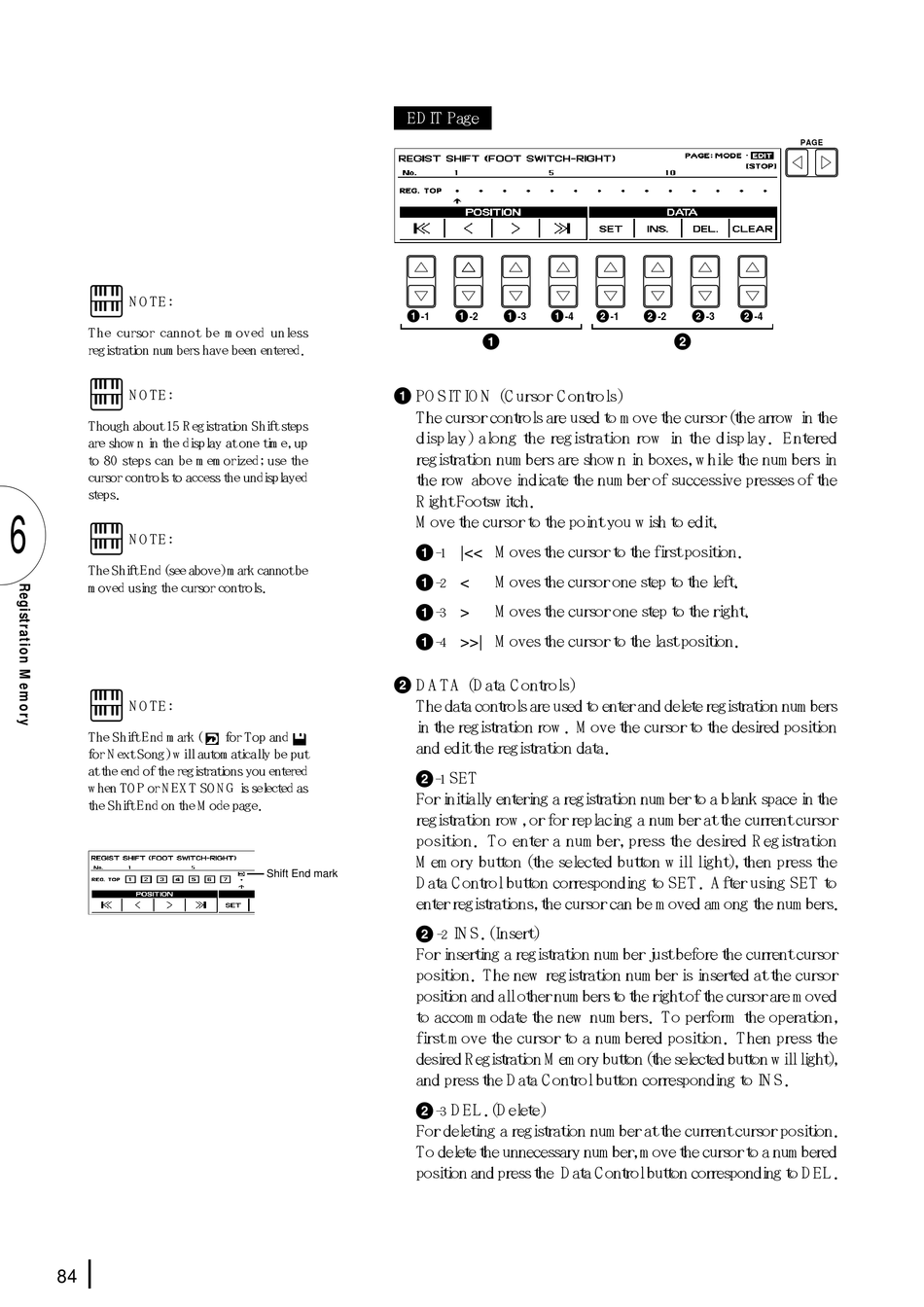

Yamaha Electone EL-900 Owner's Manual page 84

NOTE:
The cursor cannot be moved unless
registration numbers have been entered.
NOTE:
Though about 15 Registration Shift steps
are shown in the display at one time, up
to 80 steps can be memorized; use the
cursor controls to access the undisplayed
steps.
6
NOTE:
The Shift End (see above) mark cannot be
moved using the cursor controls.
NOTE:
The Shift End mark (
for Next Song) will automatically be put
at the end of the registrations you entered
when TOP or NEXT SONG is selected as
the Shift End on the Mode page.
84
1 POSITION (Cursor Controls)
2 DATA (Data Controls)
for Top and
Shift End mark
EDIT Page
1 1 1 1
-1 -2 -3 -4
1
The cursor controls are used to move the cursor (the arrow in the
display) along the registration row in the display. Entered
registration numbers are shown in boxes, while the numbers in
the row above indicate the number of successive presses of the
Right Footswitch.
Move the cursor to the point you wish to edit.
1
|<< Moves the cursor to the first position.
-1
1
Moves the cursor one step to the left.
<
-2
1
> Moves the cursor one step to the right.
-3
1
>>| Moves the cursor to the last position.
-4
The data controls are used to enter and delete registration numbers
in the registration row. Move the cursor to the desired position
and edit the registration data.
2
SET
-1
For initially entering a registration number to a blank space in the
registration row, or for replacing a number at the current cursor
position. To enter a number, press the desired Registration
Memory button (the selected button will light), then press the
Data Control button corresponding to SET. After using SET to
enter registrations, the cursor can be moved among the numbers.
2
INS. (Insert)
-2
For inserting a registration number just before the current cursor
position. The new registration number is inserted at the cursor
position and all other numbers to the right of the cursor are moved
to accommodate the new numbers. To perform the operation,
first move the cursor to a numbered position. Then press the
desired Registration Memory button (the selected button will light),
and press the Data Control button corresponding to INS.
2
DEL. (Delete)
-3
For deleting a registration number at the current cursor position.
To delete the unnecessary number, move the cursor to a numbered
position and press the Data Control button corresponding to DEL.
2 2 2 2
-1 -2 -3 -4
2
PAGE
