9 CHARACTER CODE TABLES

The characters displayed on the customer display are defined by the character code
tables. Character codes from 00h (hexadecimal) to 1Fh (hexadecimal) are non-
displayable control codes.
The standard ASCII code table displayable characters are from 20h (hexadecimal) to
7FH (hexadecimal) and are the same for all font set selections.
For Logic Controls and some other command sets, a few characters among
character codes from 20h to 7Fh can be changed by selecting the international
symbol set. Refer to International Symbol code table for details.
Character codes 80h to FFh are special characters. Different command sets may
have different sets of character fonts. The Logic Controls pole display command set
contains 12 sets of font codes selectable by command. Refer to the font code tables
for details.
With Logic Controls command set, both International symbol and font setting can be
saved into power on default.
9.1 ASCII FONT PAGE & INTERNAL SIGN FONT TABLE

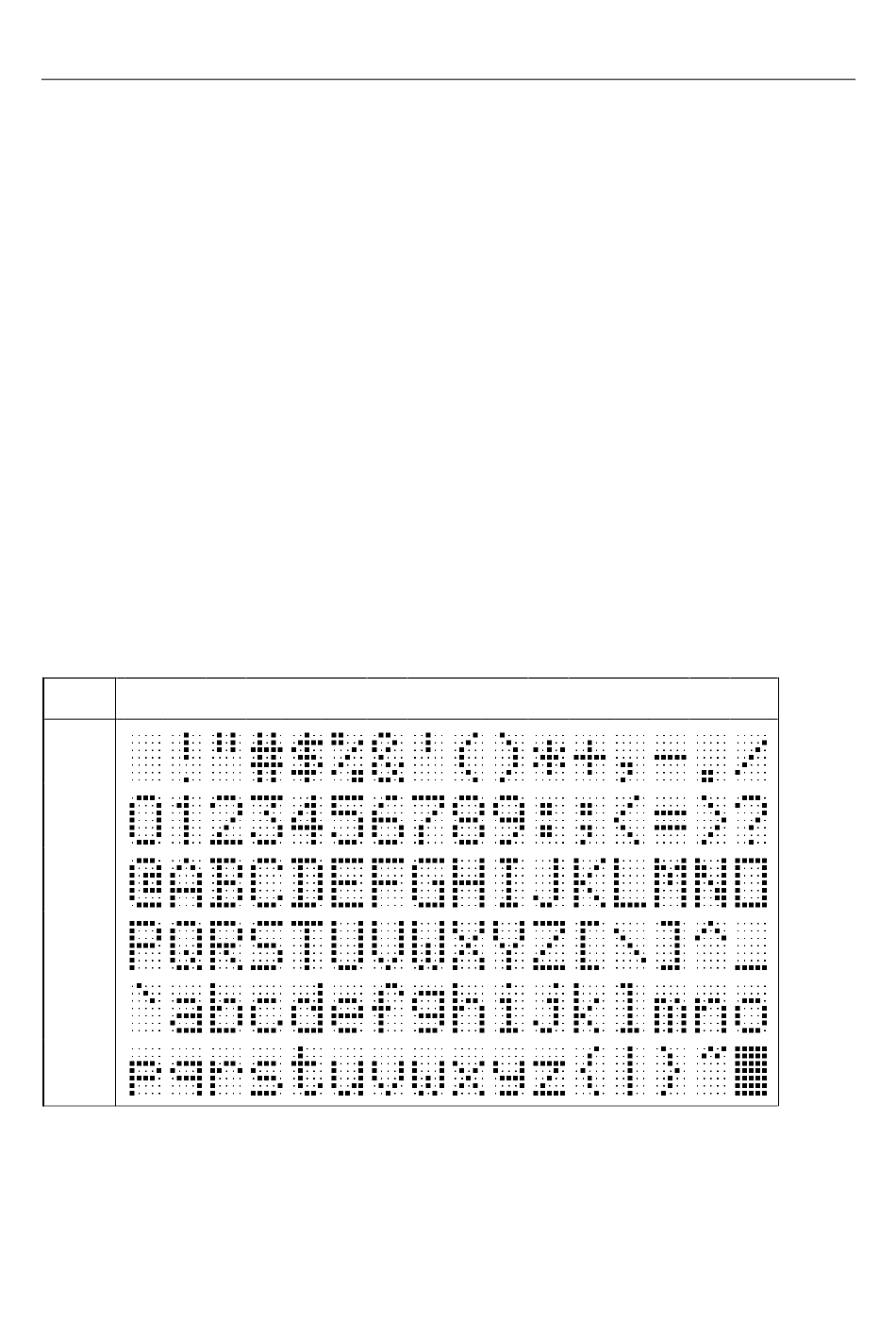

ASCII font set
0 1 2 3 4 5 6 7 8 9 A B C D E F
20h
30h
40h
50h
60h
70h
48
