5.2 Serial Port Configuration
The pole displays with serial interface were factory configured for serial RS232C
interface using the following protocol:
· Baud Rate:
· Data Bits:
· Stop Bit:
· Parity:
The baud rate is programmable with the software utility.
Configuration options are as follows:
2400
4800
9800
19200

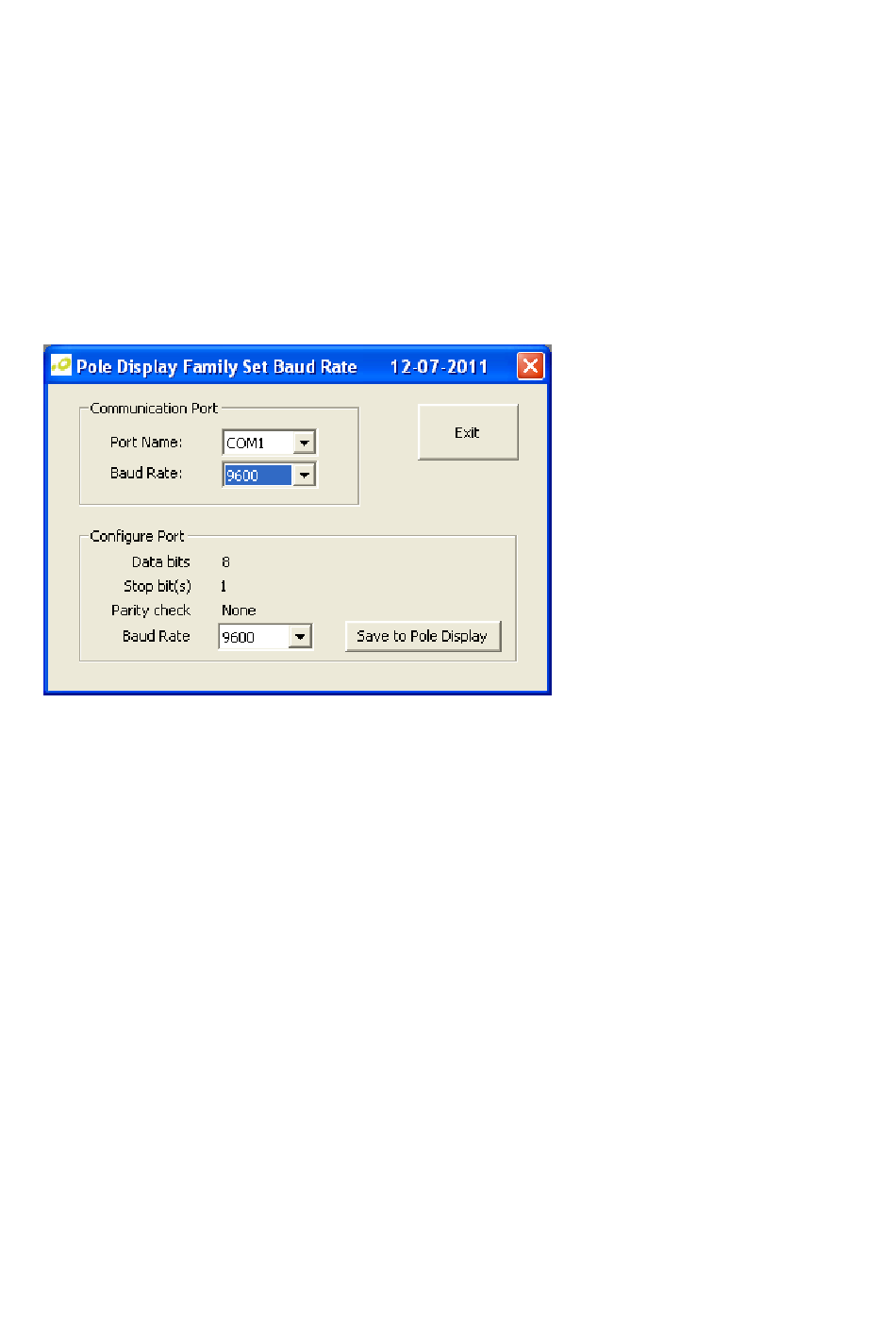

1. Select the port name and the baud rate in the "Communication Port" group
box. The baud rate must match the baud rate data shown on the pole display.
2. Select the baud rate in the "Configure Port" group box.
3. Click "Save to Pine Display" to save the configuration into the display.
Then the pole display will be reset automatically, and show the new baud rate saved.
9600
8
1
None
14
