２．Overview
２－１．Characteristics
GDB-5K30 is a driver for a 5-phase stepping motor with DC +24V input.
It can drive a 5-phase stepping motor with 0.35A/phase and 0.75A/Phase.
Step angles can be selected from eighteen step angles ranging from 1 division to
8000 division of the basic angle.
HOLD CURRENT and DRIVE CURRENT can be set up.
● Applicable motors and setting for each motor are given in the table
"10-4. Applicable Motors".
２－２．Product Configuration
● GDB-5K30
J1、J2、J3、J4用のハウジング及びコンタクトは付属品ではありません。 J1, J2, J3 of the housing and the contact is not in accessories.

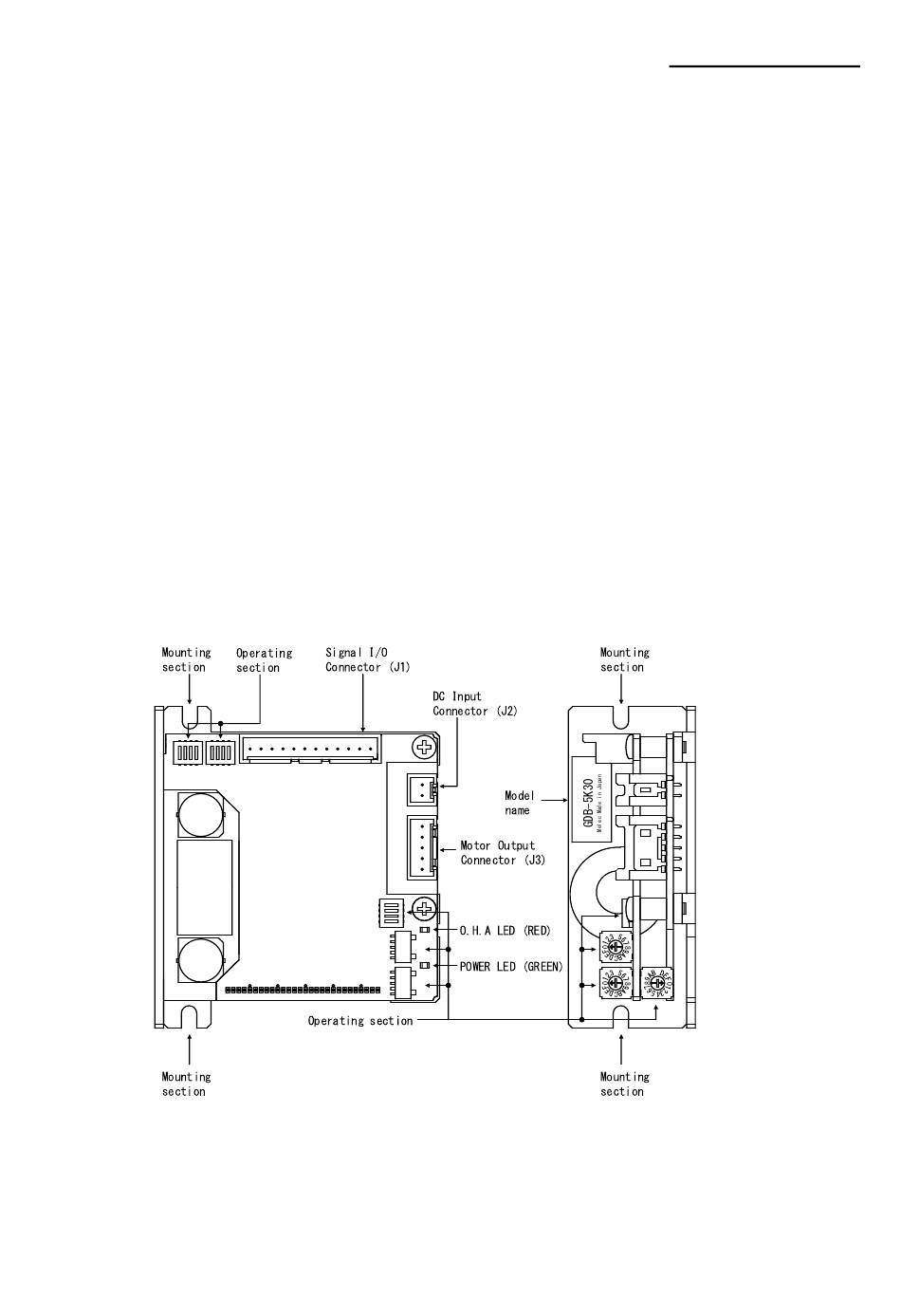

２－３．Appearance
One unit(main frame)
