Melec GDB-5K30 Instruction Manual page 14

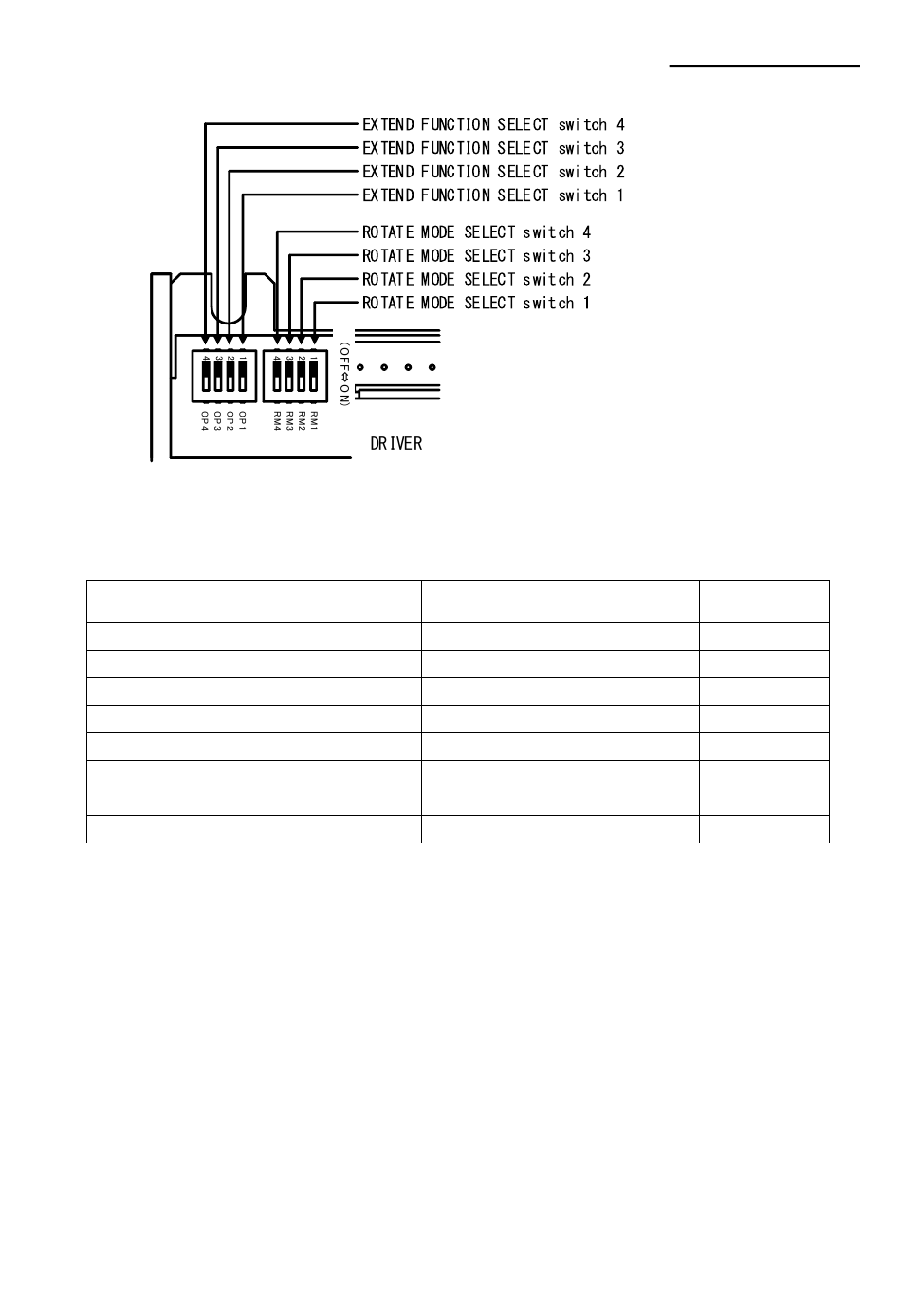

Name of Operating Section
ROTATE MODE SELECT switch 4
4
ROTATE MODE SELECT switch 3
3
ROTATE MODE SELECT switch 2
2
ROTATE MODE SELECT switch 1
1
EXTEND FUNCTION SELECT switch 4
4
EXTEND FUNCTION SELECT switch 3
3
EXTEND FUNCTION SELECT switch 2
2
EXTEND FUNCTION SELECT switch 1
1
Function
Select ROTATE MODE
Select ROTATE MODE
Select ROTATE MODE
Select ROTATE MODE
Select EXTEND FUNCTION
Select EXTEND FUNCTION
Select EXTEND FUNCTION
Select EXTEND FUNCTION
-14-
GDB-5K30
Instructions Manual
Factory Setting
RM4:〔OFF〕
RM3:〔OFF〕
RM2:〔OFF〕
RM1:〔OFF〕
OP4:〔OFF〕
OP3:〔OFF〕
OP2:〔OFF〕
OP1:〔OFF〕
