２．Overview
２－１．Characteristics
ADB-5F41EL is a step-out detection function driver for a 5-phase stepping motor
with DC +24V input.
It can drive a 5-phase stepping motor with 0.75A/phase and 1.4A/phase.
Step angles can be selected from six step angles ranging from a 1/1,1/2,
1/4,1/10,1/20,1/40 division of the basic angle.
HOLD CURRENT and DRIVE CURRENT can be set up.
It offers a 5-phase stepping motor with incremental encoder
(Sanyo Denki Co., Ltd.) at our company.
２－２．Product Configuration
●ADB-5F41EL
J1、J2、J3、J4用のハウジング及びコンタクトは付属品ではありません。 J1, J2, J3, J4 of the housing and the contact is not in accessories.

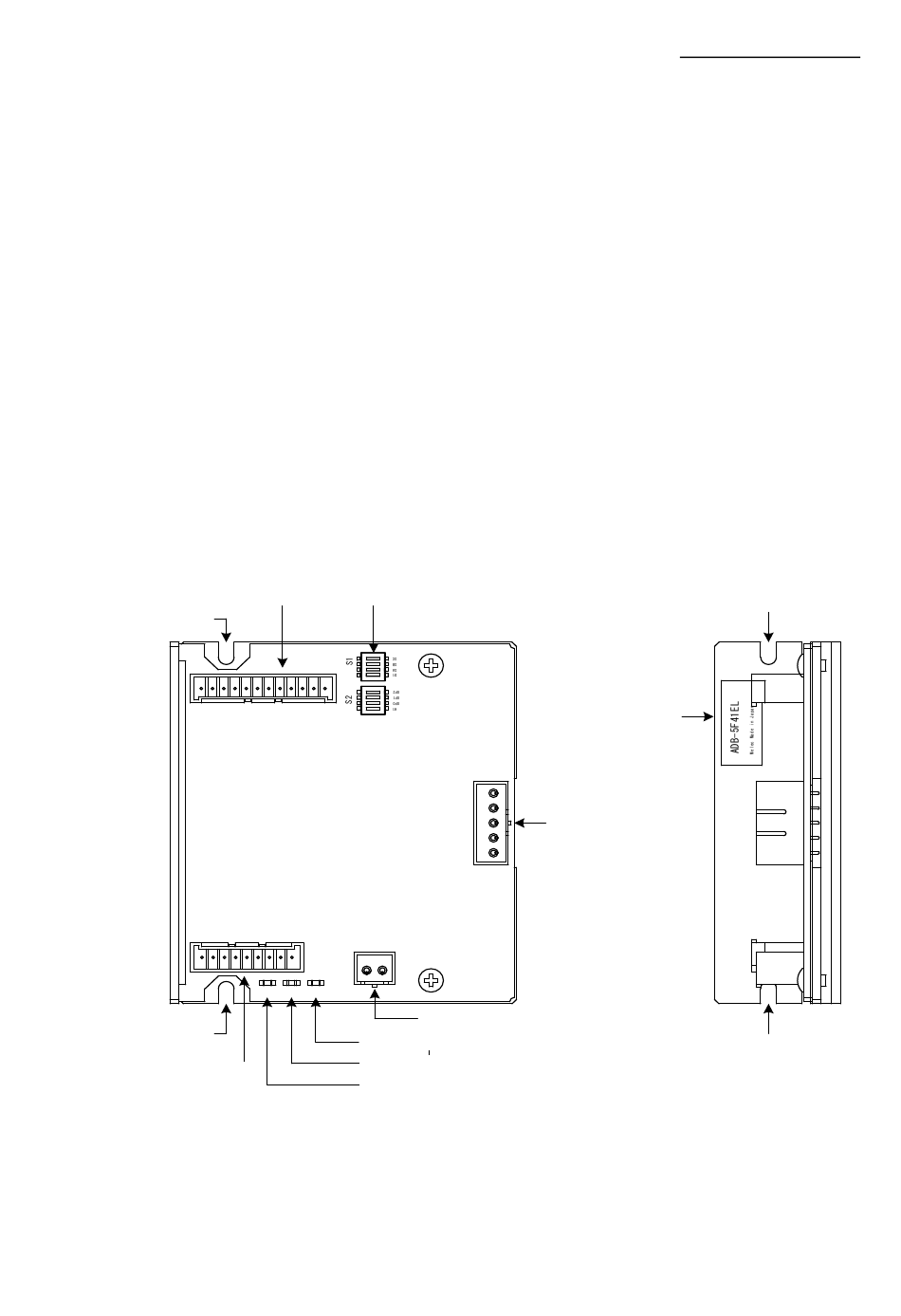

２－３．Appearance
Signal Input Connector(J1)
Mounting section
Mounting section
Encoder I/O Connector （Ｊ４）

Operating section

ALM POWER ENC
DC Input Connector (J2)
ENC LED(GREEN)
POWER LED(GREEN)
ALM LED(RED)
One unit(main frame)
Motor Output
Connector (J3)
-9-
ADB-5F41EL
Instructions Manual
Mounting section
Model
name
Mounting section
