2.Overview
2-1.Characteristics
GD-5510-01 is a driver for a 5-phase stepping motor with single-phase 100-115V input.
It can drive a 5-phase stepping motor ranging from 0.75A/phase ~ 1.4A/phase.
Ten step angles can be selected from angles ranging from a 1/1 division to
a 1/800 division of the basic angle.
HOLD CURRENT and DRIVE CURRENT can be set up.
HIGH-SPEED TORQUE can be selected for the motor.
● Applicable motors and setting for each motor are given in the table
"10-5. Applicable Motors".
2-2.Product Configuration
The product consists of the main frame and the accessories.
● GD-5510-01
(Complete with terminal block covers)
● Housing for J1 (51103-1200:Molex)
● Contact for J1 (50351-8100:Molex)

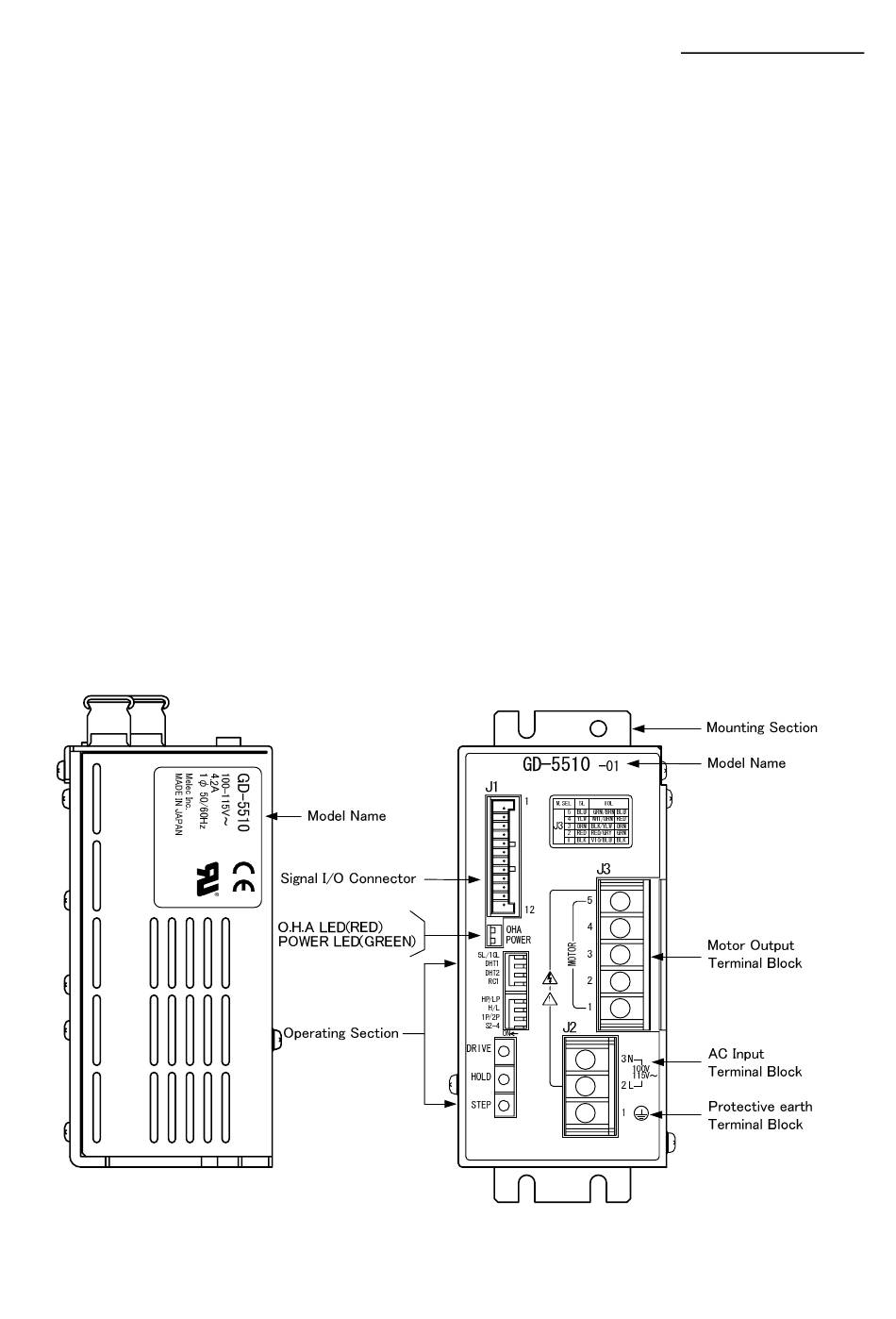

2-3.Appearance
One unit
One unit
(accessory)
14 contacts (accessories,2 for spares)
-11-
GD-5510-01
Instructions Manual
