１０－６．Conforming to Europe standards
(1) Low voltage directive
This product is not subject to the EC's Low Voltage Directive by the following.
・ This product should be installed within an enclosure.
・ For the driver's power supply, use a DC power supply with reinforced insulation
on its primary and secondary sides.
(2) EMC directive
This product declares the CE marking based on the EMC Directive by oneself.
● Applicable Standards
EN61000-6-4
EN61000-6-2
● This product conducted EMC measurement with the system configuration for EMC.
・ EMC characteristic may vary depending on the configuration of the equipment that
contains the driver or stepping motor. Be sure to conduct EMC measurement with
the product assembled in your equipment.

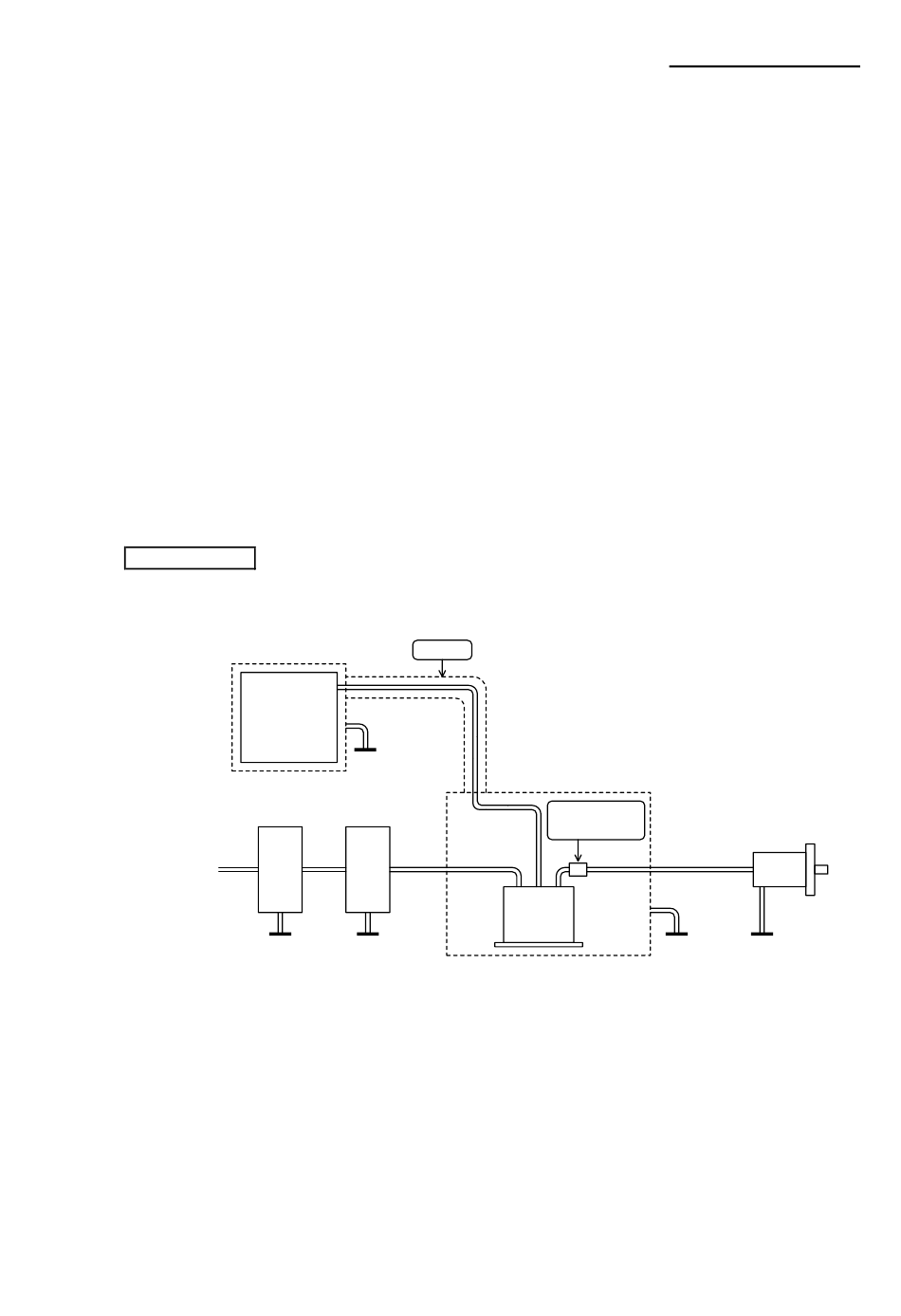

Configuration
The metallic enclosure and shielded wires and ferrite core work to shield noise.
Metal Enclosure
AC line filter
AC input
User
Controller
(Protective
class Ⅱ)
Grounding
DC Power supply
Grounding Grounding
Shield
Metal Enclosure
Ferrite core
(2 turn)
DRIVER
