２．Overview
２－１．Characteristics
ADB-2F50B is a driver for a 2-phase stepping motor with DC+24V input.
Driving method is bipolar constant current type.
It can drive a 2-phase stepping motor of bipolar winding ranging from
2.0 /phase to 3.0/phase.
Step angles can be selected from fourteen step angles ranging from 1 division to
100 division of the basic angle.
HOLD CURRENT and DRIVE CURRENT can be set up.
２－２．Product Configuration
The product consists of the main frame and the accessories.
●ADB-2F50B
●Housing for J1 (51103-1000:Molex)
●Housing for J2 (51067-0200:Molex)
●Housing for J3 (51067-0400:Molex)
●Contact for J1 (50351-8100:Molex)
●Contact for J2,J3 (50217-9101:Molex)

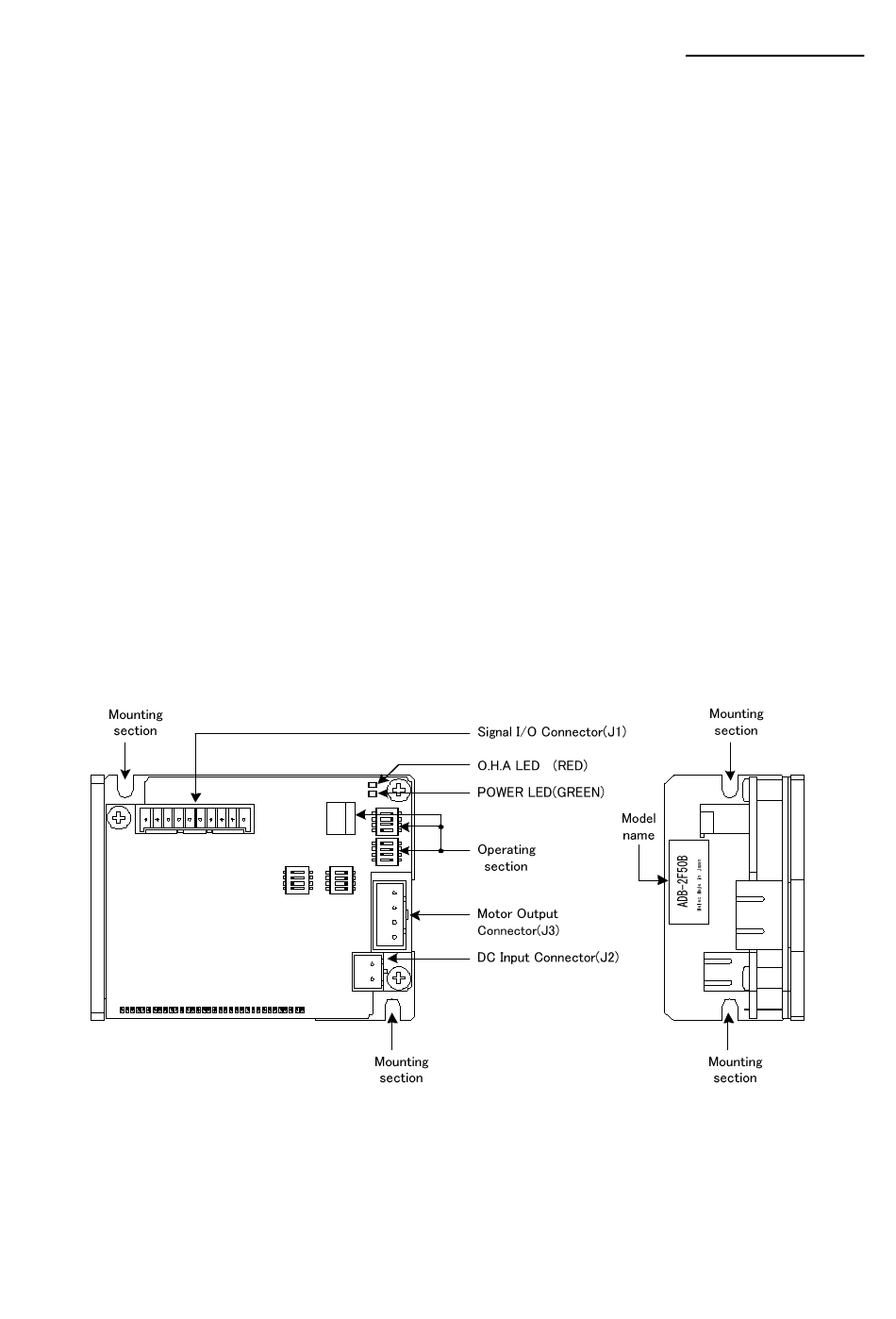

２－３．Appearance
One unit
One unit
One unit
One unit
12 contacts (accessories,2 for spares)
8 contacts (accessories,2 for spares)
-10-
ADB-2F50B
Instructions Manual
(accessory)
(accessory)
(accessory)
