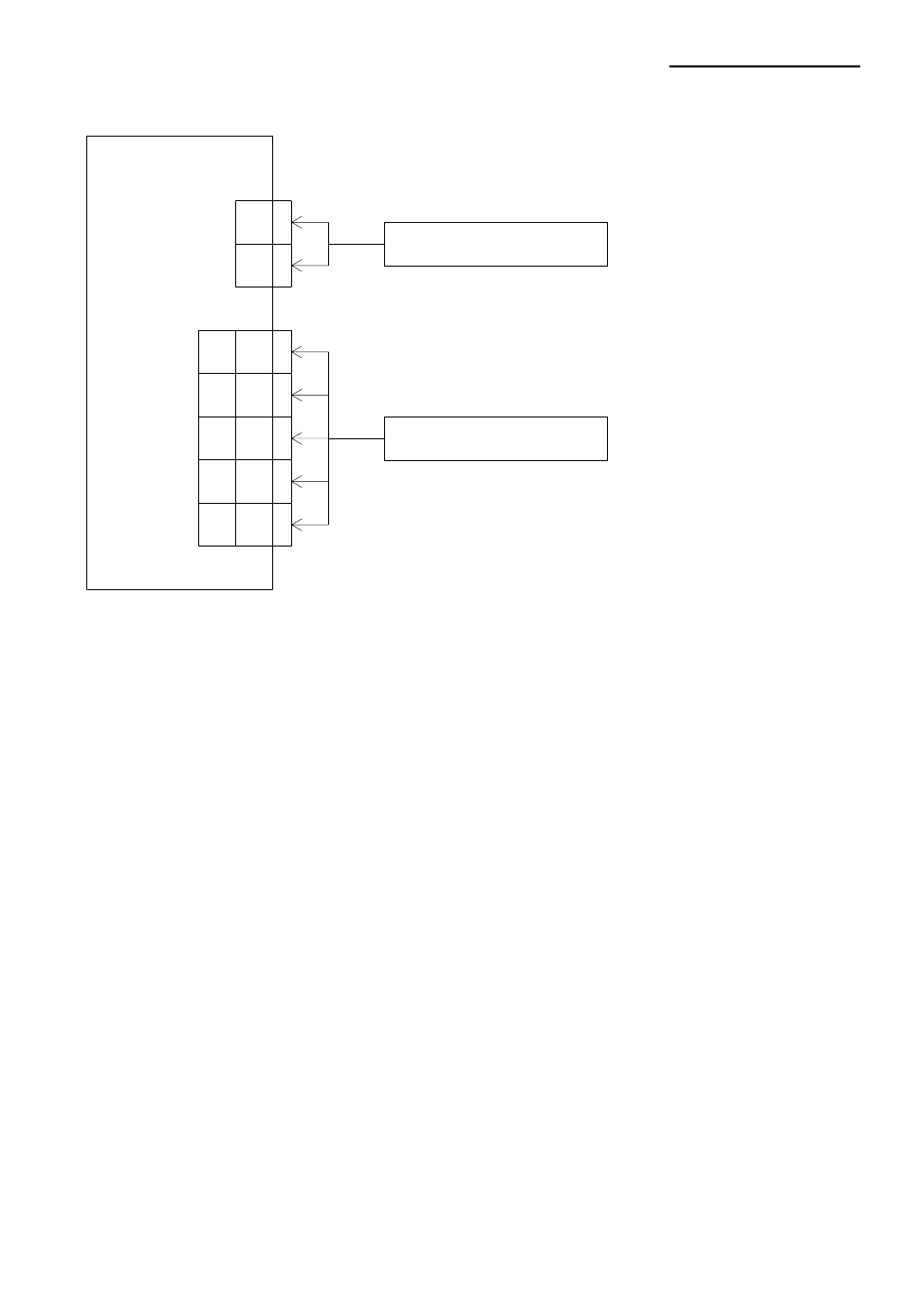

３－２．DC Input/Motor Output Connector（Ｊ２，Ｊ３）
DRIVER
J2
DC+24V DC+ 1
0V DC- 2
J3
VIO
BLU
RED
GRY
BLK
YLW
WHT
ORN
GRN
BRN
３－３．POWER LED
POWER LED(GREEN) comes on upon inputting power.
３－４．O.H.A LED
O.H.A LED（RED）comes on when internal temperature
of the driver has reached approx. 70℃ or more.
DC input terminal
●Power input terminal.
DC power supply is connected.
BLK 1
GRN 2
ORN 3 Motor output terminal
●Outputs current to drive the motor.
RED 4
BLU 5
