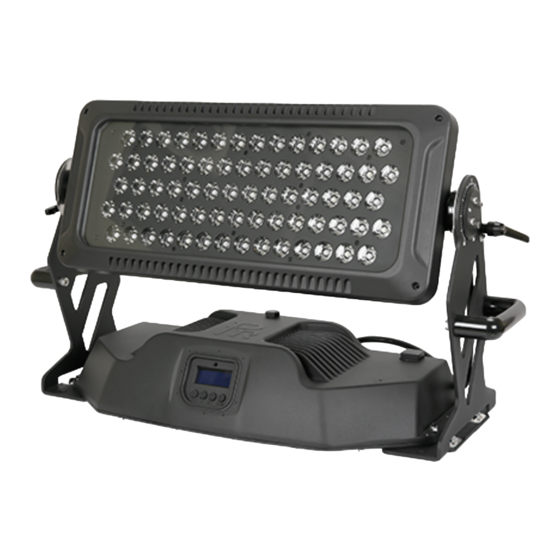

- Page 1 This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com 1 / 18...
- Page 2 INDEX SAFE USAGE OF THE PROJECTOR INSTALLING THE PROJECTOR CONTROL SYSTEM AND POWER CONNECTIONS DMX TERMINATOR SETUP OPTIONS-PROJECTOR CONFIGURATION TO SET THE DMX START ADDRESS OPERATION MENU DMX PROTOCOL INDICATION OF LED DISPLAY MAINTENANCE TROUBLESHOOTING TECHNICAL DATA ELECTRICAL DIAGRAM COMPONENT ORDER CODES Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change without notice.
-
Page 3: Safe Usage Of The Projector
SAFE USAGE OF THE PROJECTOR When unpacking and before disposing of the carton, check there is no transportation damage before using the projector. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The projector can be used indoors and outdoors, IP67. -
Page 4: Install The Projector
INSTALL THE PROJECTOR Take 2 clamps and safety cord out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning. -
Page 5: Dmx Terminator
DMX TERMINATOR In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain. -
Page 6: Setup Options-Projector Configuration
SETUP OPTIONS-PROJECTOR CONFIGURATION Projector configuration can be set conveniently via push-button switch and LED display. Launch the projector and press button ENTER for more than 5 seconds to unlock the panel, the LCD will show the function menu of the projector, each main menu has its submenus and each submenu has a specific function. For details, please see the “OPERATION MENU”... -
Page 7: Operation Menu
OPERATION MENU 1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL AddR （XXX:1~512） (DMX address) (Standard mode) (DMX mode) (Extended mode) (Default: STd) SHRT (Short mode) dISP (Display setting) (Shut off digital CRT without (Default: ON) pressing buttons in 5 minutes) OFF(Brightness control is Brightness level control setting OFF ) - Page 8 COL1 (Colour 1) (Number: 0~14 COL2 (Colour 2) (Number: 0~14) ET XX (User memory,ET01~ET16） COL3 (Colour 3) (Number: 0~14) COL4 (Colour 4) (Number: 0~14) HOUR Current time setting MINU HOUR T-ON Power on time setting MINU HOUR T-OF Timer value and brightness Power off time setting MINU value setting...
-
Page 9: Dmx Protocol
DMX PROTOCOL Short Standard Extended FUNCTION DESCRIPTION mode mode mode Dimmer 000-255 Dimming from dark to light Dimmer Fine 000-255 Dimmer in 16 Bit precision No effect Colour Temperature Colour temperature adjustment from 001-255 3200K to 10000K No effect 001-015 Colour Temperature 3200K 016-031 Colour Temperature 5600K... - Page 10 096-111 Preset memory 7 112-127 Preset memory 8 128-143 Preset memory 9 144-159 Preset memory 10 160-175 Preset memory 11 176-191 Preset memory 12 192-207 Preset memory 13 208-223 Preset memory 14 224-239 Preset memory 15 240-255 Preset memory 16 No effect 001-015 User memory 1...
- Page 11 240-255 Speed 16, the slowest Note: **** Channel priority from high to low is as the following: preset memory, user memory, RGBW dimming, HSV dimming, macro channel; ****When high priority channel is used, low priority channel is no effect. 11/18...
-
Page 12: Maintenance
INDICATION OF LED DISPLAY DMX signal is OK Decimal point of the first character No DMX signal Master / slave signal is OK Decimal point of the third character No master / slave signal When setting master mode Decimal point of the fourth character When setting slave mode Parameters that LED digital tubes display Flash... - Page 13 ARC LED 3108, TECHNICAL DATA VOLTAGES: 100~240VAC, 50/60Hz POWER CONSUMPTION: 350W@220V LED: Power consumption 108 （27R＋27G＋27B+27W） Quantity Manufacturers rated lifespan 50000 Hours COLOURS: RGBW colours mixing Linearly colour temperature correction 10000K~3200K DIMMER: 0-100% linearly adjustable STROBE: 1~20F.P.S LENS ANGLE: 45° (optional 8°, 15°) BEAM ANGLE: 56°...
- Page 14 HOUSING: High-intensity die-casting aluminum, IP67 WORK ENVIRONMENT TEMPERATURE: -20°C~40°C WEIGHT: 17kg SIZES: See it below LIGHT OUTPUT:...
- Page 15 Optional lens 8°: Optional lens 15°: 15/18...
- Page 16 "# "# '( )*+,( & & '( )*+,( & ! $0...
-
Page 17: Component Order Codes
COMPONENT ORDER CODES NAME PART NO. QUANTITY REMARK 070070049 40° LED LENS 070070054 8°（optional） LED LENS 070070047 15°（optional） LED LENS 120080030 SIGNAL CABLE 1.7m,male 120080031 1.7m,female SIGNAL CABLE SIGNAL CABLE 120080032 0.3m,male 120080033 0.3m,female SIGNAL CABLE 120080034 1m,female POWER CORD 192010142 POWER SUPPLY 230060083... - Page 18 PR LIGHTING LTD. PR New Hi-tech Science Park, 1582 Xingye Avenue Nancun Panyu, Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 321030014A Version: 20121214 18/18...
