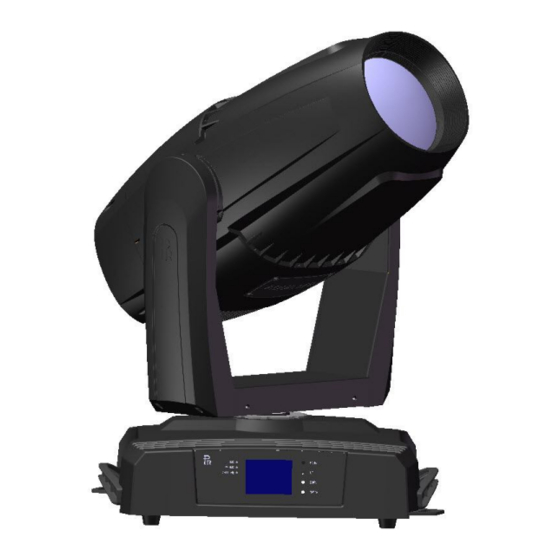

AQUA LED 600 SPOT
PR-8178
This product manual contains important information about the safe installation and use of this projector.
Please read and follow these instructions carefully and keep this manual in a safe place for future reference.
PR LIGHTING LTD.
http://www.pr-light ing.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQUA LED 600 SPOT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PR Lighting AQUA LED 600 SPOT

Summary of Contents for PR Lighting AQUA LED 600 SPOT

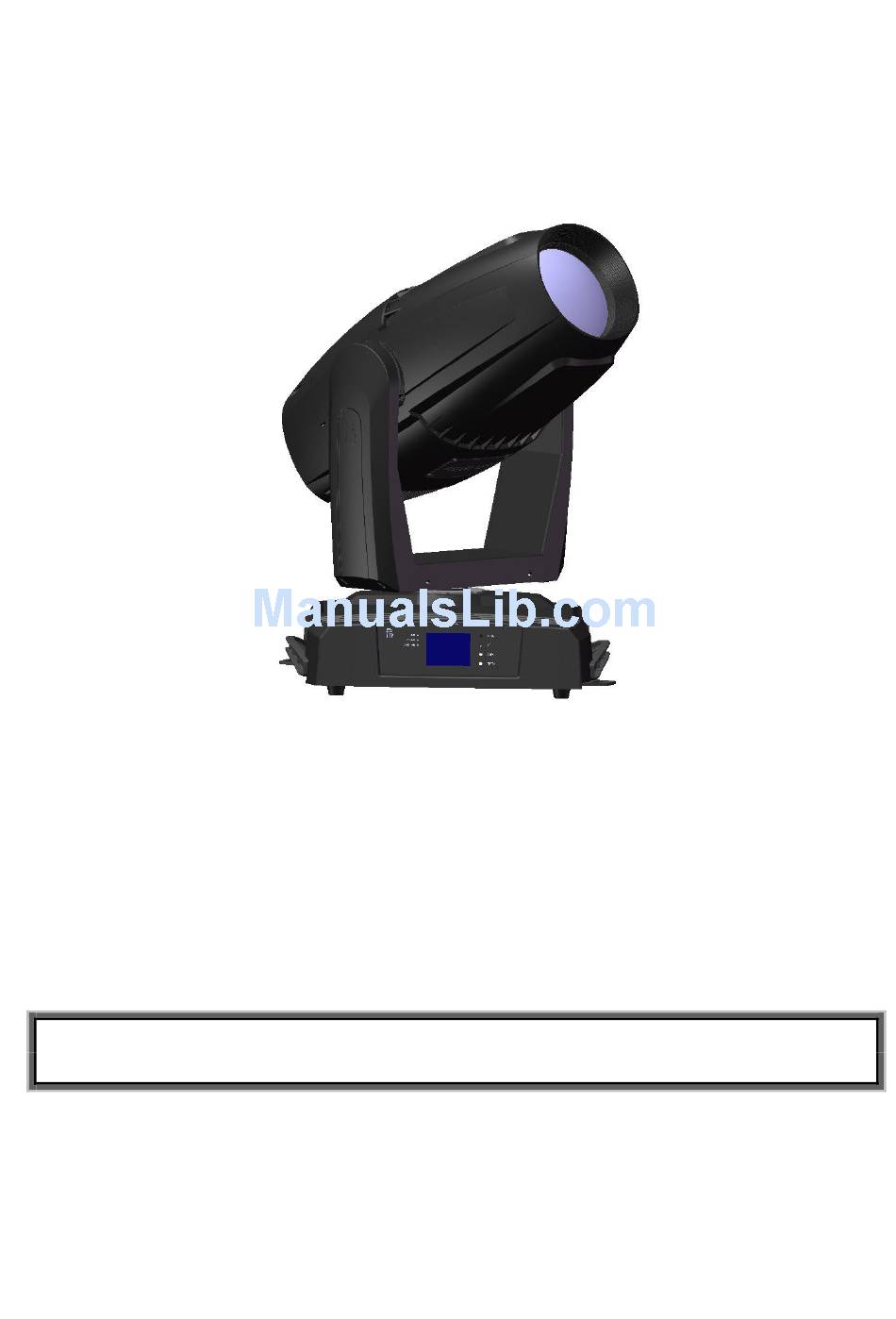

  • Page 1 AQUA LED 600 SPOT PR-8178 This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD.

  • Page 2: Table Of Contents

    Any damage caused by improper use will not be assumed by the manufacturer and / or dealer. Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty.

  • Page 3: Safety And Warnings

    1. SAFETY AND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. Goggles Warning User Electrical Protective Flames High Manual shock Gloves Temperature When unpacking , check if there is transportation damage before using the projector.

  • Page 4: Cleaning And Maintenance

    There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety ● cord supplied through the safety cord holes for safety support. Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from ●...

  • Page 5: Troubleshooting

    TROUBLESHOOTING ● PROBLEM ACTION  Check the fuse on the power socket. The projector doesn’t switch on  Check the lamp.  The lamp is on but the projector doesn’t respond Make sure that the fixture’s start address is right ...

  • Page 6: Power Connections

    Take 2 clamps and 2 safety cords out from the package and mount 2 clamps on the underside of fixture with 4 retainers attached to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNING on the underside of the base as shown above) Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning.

  • Page 7: Dmx Terminator

    NO.1 NO.2 NO.n DMX Controller DMX Terminator DMX512 Input Output Input Output Input DMX TERMINATOR ● In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals.

  • Page 8: Setup And Configuration

    Lock the tilt and unfasten 4 inner hexagon screws in the small cover of the head. Open the cover and you’ll see the structures as the figures above. For the replacement of color filters, use the fingers to remove the filters and place new ones. For the rotating gobos: remove the rotator by hand;...

  • Page 9: Stand-Alone Mode

    The setup of it is below: Enter into the projector’s menu. Select the menu “Config Settigns” via the bottoms of UP and DOWN Select DMX control Mode---- Wireless First (Note: do not select XLR ONLY),then wireless indication in the front panel will be on, meaning wireless control function is activated. Only after the projector is linked with a transmitter, can it receive wireless signal sent by the transmitter.

  • Page 10: Operation Menu

    6. OPERATION MENU level Menu level menu level menu level menu PortSet DMX Address Set 1-512 Universe Set 0-5120 0-255 0-255 IP Address Set 0-255 0-255 Subnet Mask1 0-255 Subnet Mask 2 0-255 Subnet Mask Set Subnet Mask 3 0-255 Subnet Mask 4 0-255 Gateway IP1...
  • Page 11 Slave Master/Slave （Default：Slave） Master Off After Delay Display Mode （Default：Off After Delay） On Always Display Contrast 1-31 （Default：16） Pan Amend 0-255 Tilt Amend 0-255 Unlink Wireless Reset Lamp Hours Reset User Data Reset Option Set Factory Settings Parameter Transm Touch Regulate Option Set Step Color Positions...
  • Page 12 Power On Hours Main Board XXX Pan & Tilt XXX Driver 1 XXX Software Version Driver 2 XXX Driver 3 XXX Fan Board X.X.X Temperature Head Sensor XX Main Board XX Pan & Tilt XX Driver 1 XX Driver 2 XX Driver 3 XX Fan Board X.X.
  • Page 13 Prism-R Hall OK/Er Self Test Test Mode Open Strobe Strobe1 Strobe2 White Color1 Color2 Color3 Colour Wheel Color4 Color5 Color6 Rotation ReverseRotation White Iris 1 Iris Iris 2 Iris 3 White R1-gobo1 R1-gobo2 R1-gobo3 R1-gobo4 R1-gobo5 R1-gobo6 Rotating gobo1 Rotating Reverse Rotating R1G shake1 R1G shake2...
  • Page 14 R1G shake6 Stop Gobo Rotating1 Rotating Reverse Rotating White R2-gobo1 R2-gobo2 R2-gobo3 R2-gobo4 R2-gobo5 R2-gobo6 Rotating gobo2 Rotating Reverse Rotating R2G shake1 R2G shake2 R2G shake3 R2G shake4 R2G shake5 R2G shake6 Stop Gobo Rotating2 Rotating Reverse Rotating Prism Have Stop Rotating Prism Rotating...
  • Page 15 Have Dimming 0-255 Cyan 0-255 Yellow 0-255 Magenta 0-255 0-255 Focus 0-255 Zoom 0-255 Pan Location 0-255 Tilt Location 0-255 Pan & Tilt Speed 0-255 OperationMode DMX Operation Preset Memory User Memory Strobe 0-255 Diming 0-255 Dim Speed 0-255 CYM Maco 0-255 Cyan 0-255...
  • Page 16 CH19 Effect Rotating 0-255 CH20 Frost 0-255 CH21 Focus 0-255 CH22 Zoom 0-255 CH23 Pan Location 0-255 CH24 Titl Location 0-255 CH25 X&Y Speed 0-255 CH26 Keep Time 0-255 X*40mS Remark: 1. In the synchronous control of multiple projectors parameters can be transmitted from the master including: DMX mode, display setting, operation mode(user memory);...
  • Page 17 7. DMX PROTOCOL Short Standard Extended Function DMX Value Description Mode mode Mode Strobe 001-127 Pulse Strobe from slow to fast 128-255 Strobe from slow to fast Linear dimmer from dark to bright Dimmer 000-255 （0-100%） Dimmer Fine 000-255 Dimmer in 16 Bit Dimmer 000-255 From slow to fast...
  • Page 18 101-109 Color 5/Color 6 110-118 Color 6 119-127 Color 6/White Forward rainbow effect from slow to 128-191 fast 192-255 Reverse rainbow effect from slow to fast Iris 000-255 Linear Iris from big to small Iris Fine 000-255 Iris in 16 Bit 000-010 No Iris Macro Iris Macro 1:From big to small（speed...
  • Page 19 037-054 Gobo 2 055-073 Gobo 3 074-091 Gobo 4 092-109 Gobo 5 110-127 Gobo 6 128-156 Forward rotation from slow to fast 157-185 Reverse rotation from slow to fast 186-196 Gobo1 shake from slow to fast 197-208 Gobo2 shake from slow to fast 209-220 Gobo3 shake from slow to fast 221-232...

  • Page 20: Led Indication

    speed 000-047 Reserved Control Reset (Stop for 5S) 048-255 Note: 1. The DMX channel priority from high to low: Focus, Zoom, Prism, Frost; 2. While the higher priority DMX channels are in use, lower ones won’t work; 8. LED INDICATION DMX signal OK Green No DMX signal...
  • Page 21 0-100% linear CTO system GOBOS: 2 rotating gobo wheels: each has 6 exchangeable gobos+ white, metal or glass gobos Bi-directional rotation with variable speeds, indexing function, shaking At variable speeds, Bi-directional scrolling at variable speeds Rotating gobo wheel1: Rotating gobo wheel2: Gobo’s outer size: 37.5mm Image size: 26mm PRISM...
  • Page 22 MOVEMENT Pan 0~540 ° Tilt 0~270° , with auto-positioning correction BEAM ANGLE Linear Zoom: 8°～ 56°, with 16 bit control CONTROL International standard DMX512 signal, 3 pin and 5 pin interfaces RDM Protocol ART-Net protocol 25 channels in short mode,31 channels in standard mode, 38channles in extended mode Stand-alone mode Self test mode OTHER FUNCTIONS:...
  • Page 23 SIZES: LIGHT OUTPUT: 8°lux 37613 9403 4179 2351 1505 1045 56°lux 1065 56° ° DISTANCE(m) 0.71 1.42 2.14 2.85 3.56 4.27 8°DIAMETER(m) 56°DIAMETER(m) 4.94 9.87 14.81 19.75 24.69 29.62 23/30...

  • Page 24: Circuit Diagram And Pcb Connections

    10. CIRCUIT DIAGRAM AND PCB CONNECTIONS CIRCUIT DIAGRAM ● 24/30...

  • Page 25: Pcb Connections

    PCB CONNECTIONS ● Master Board of PR-8178 Name Battery Power Wireless Signal Input Signal Output Thermal Sensor（Reserved） PWM Output Lamp Striking signal output Art-Net LED Drive r Board of PR-8178 Name PWM Dimming FET Dimming Power Driver Output Driver Output Driver Output Adaptor board for LED module of PR-8178 Name...
  • Page 26 Pan and Tilt Board of PR-8178 Name Hall Sensor for Pan Hall Sensor for Tilt Pan Motor Power Tilt Motor Tilt Encoder Pan Encoder Signal Output Signal Input Voltage Increasing Board of PR-8178 Name 48V output 24V Input 8 channel fan control board of PR-8178 Name Power Signal In...
  • Page 27 10 Channel Motor Driver Board of PR-8178 Name 1-10 Motor Driver Power Signal In Signal Out Thermal Sensor PWM Output 16-23 Hall Sensor 27/30...
  • Page 28 11. COMPONENT ORDER CODES NAME CODE NUMBER REMARK POWER SWITCH 192010206 A350e-24P 192010207 RSP-750-48 POWER SWITCH LED ENGINE MODULE 150020305 LED ENGINE MODULE FAN 030060109 MGT9224MB-W32-IP68 COLOR WHEEL FAN 030040098 AB0524HB-DOF BASE FAN 030060064 RBH7530B2 LED DRIVER BOARD FAN 030060084 MGA6024YB-O10 LENS FAN 030060050...
  • Page 29 29/30...
  • Page 30 PR LIGHTING LTD. 1582 Xingye Avenue, Nancun Panyu Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 P/N: 320020460 Version: 20170312 30/30...

This manual is also suitable for:

Pr-8178

Table of Contents
