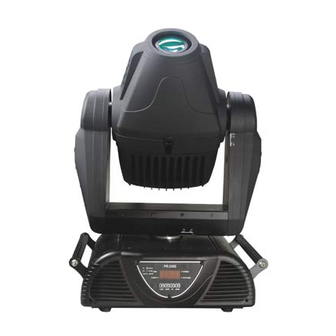

Msr moving head club light
Hide thumbs

Advertisement

Table of Contents

SOLO 575P
PR-2586
This product manual contains important information about the safe installation and use of this
projector. Please read and follow these instructions carefully and keep this manual in a safe place
for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SOLO 575 and is the answer not in the manual?

Questions and answers

Related Manuals for PR Lighting SOLO 575

Summary of Contents for PR Lighting SOLO 575

  • Page 1 SOLO 575P PR-2586 This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD. http://www.pr-lighting.com...

  • Page 2: Table Of Contents

    INDEX SAFE USAGE OF THE PROJECTOR INSTALLING THE PROJECTOR FITTING THE LAMP POWER SUPPLY – MAINS CONTROL CONNECTIONS DMX TERMINATOR SETUP OPTIONS-PROJECTOR CONFIGURATION TO SET THE DMX START ADDRESS FUNCTIONS DISPLAY REPLACING GOBOS CHANGING BELTS DMX PROTOCOL MAINTENANCE LUBRICATION KEEPING THE PROJECTOR CLEAN TROUBLESHOOTING TECHNICAL DATA ELECTRICAL DIAGRAM...

  • Page 3: Safe Usage Of The Projector

    SAFE USAGE OF THE PROJECTOR When unpacking and before disposing of the carton check there is no transportation damage before using the projector. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The projector is for indoor use only, IP20.

  • Page 4: Fitting The Lamp

    INSTALL THE PROJECTOR SAFETY CORD (2PCS) SAFETY WARNING CORD To pass 2 SAFETY CORDS through 4 HOLES for safety! HOLE CLAMPS (2PCS) RETAINERS (2PCS PER CLAMP) HANDLES (2PCS) 4 HOLES FOR SAFETY CORD WARNING To pass 2 SAFETY CORDS through 4 HOLES for safety! SAFETY CORD HOLE PASSING THROUGH...

  • Page 5: Power Supply – Mains

    POWER SUPPLY-MAINS Connect the power cord as follows: L (live) =brown E (earth) =yellow/green N (neutral) =blue Use the plug provided to connect the mains power to the projector paying attention to the voltage and frequency marked on the panel of the projector. It is recommended that each projector be supplied separately so that they may be individually switched on and off.

  • Page 6: Dmx Terminator

    DMX TERMINATOR In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain.

  • Page 7: Functions Display

    FUNCTIONS DISPLAY SET ADDR. (Default: 001) ADDR. 001 RESET MENU RESET OR NOT CONFIG. MENU SET DMX EXT. CHANNEL (Default : ON) DMX EXT. CHANNEL ENABLED DMX EXT. CHANNEL DISABLED SET DMX CONTROL CHANNEL (Default : ON) DMX CONTROL CHANNEL ENABLED DMX CONTROL CHANNEL DISABLED SET LAMP CONTROL MODE (Default:CTRL) BY CONTROL CHANNEL...
  • Page 8 DISPLAY MENU(Default: ON) LCD OF PANEL DISPLAY MODE LCD IS ON LCD IS OFF AFTER DELAY LCD IS DARK INFORMATION MENU DISPLAY LAMP'S USING TIME OR SET TO 0 DISPLAY LAMP'S USING TIME SET TO 0 OR NOT DISPLAY PROJECTOR'S USING TIME (CANNOT RESET) DISPLAY PROJECTOR'S USING TIME DISPLAY TEMPERATURE DISPLAY MAIN PCB'S TEMPERATUER...

  • Page 9: Replacing Gobos

    REPLACING GOBOS ROTATING GOBO RETAINING SPRING GOBO GOBO HOLDER ROTATED GOBO WHEEL SPRING ROTATED GOBO WHEEL Lock Tilt. Free 2 latch catches on the cover and slip off the front cover. You could see the structure as shown in the above figure. For gobos replacement on the rotated gobo wheel: take an appropriate tool to tug up spring and take out the rotating gobo with its holder;...

  • Page 10: Dmx Protocol

    DMX PROTOCOL Channel Function DMX Value Description 000-009 Blackout 010-020 Open 021-034 Strobe 1 035-048 Strobe 2 049-062 Strobe 3 063-076 Strobe 4 077-090 Strobe 5 091-104 Strobe 6 105-118 Strobe 7 Strobe 119-132 Strobe 8 133-146 Strobe 9 147-160 Strobe 10 161-174 Strobe 11...
  • Page 11 097-104 Colour filter 5/colour filter 6 105-112 Colour filter 6 113-120 Colour filter 6/white 121-127 White 128-133 Rotation speed 1 (slowest) Rotation speed 2 134-139 Rotation speed 3 140-145 Rotation speed 4 146-151 152-157 Rotation speed 5 Rotation speed 6 158-163 Rotation speed 7 164-169...
  • Page 12 224-231 Reverse rotation speed 4 232-239 Reverse rotation speed 3 240-247 Reverse rotation speed 2 248-255 Reverse rotation speed 1 (slowest) 000-051 White 052-102 Prism 1 Prism Wheel 103-153 Prism 2 154-204 205-255 Frost 000-120 0~540º index 121-127 Rotation speed 1 128-135 Rotation speed 2 136-143...

  • Page 13: Maintenance

    MAINTENANCE If the projector’s lens becomes damaged or broken it should be replaced. If the lamp becomes damaged or deformed in any way it must be replaced. If the light from the lamp appears dim this would normally indicate that it is reaching the end of its life and it should be changed at once, aged lamps run to the extremity of their life might explode.

  • Page 14: Technical Data

    TECHNICAL DATA VOLTAGES: 100/120/200/220/230/240V AC, 50Hz or 60Hz to order POWER CONSUMPTION: 650W@220V LAMP: PHILIPS MSR 575/2 Colour Temperature 7200°K Socket GX9.5, single ended Manufacturers Rated Lamp Life 1000 Hours replacement COLOURS: 1 colour wheel 6 dichroic colours plus white Adjustable speed with rainbow effect at variable speeds GOBOS: 1 Rotating gobo wheel:...
  • Page 15 BEAM ANGLE: 14°～27°, linearly adjustable CONTROL: DMX512, 3 pin interfaces 16 channels HOUSING: Composite plastic, IP20 WEIGHT: 200/220/230/240V : 33Kg 100/120V： 36Kg SIZES: See at below 595 610 LIGHT OUTPUT: 27° （ lux ） 6020 1500 14° （ lux ） 10930 2730 1210...

  • Page 16: Electrical Diagram

    ELECTRICAL DIAGRAM TILT 16/18...

  • Page 17: Component Order Codes

    COMPONENT ORDER CODES NAME PART NO. QUANTITY REMARK 040030053 220/230V TRANSFORMER 040030052 100/120V THERMOSTAT 190010035 KSD020 120℃/15A/250V CAPACITOR 140010043 70µF/370V BALLAST 040070059 230V/50-60Hz, 575W IGNITOR 040090035 575~1200W 3~5KV MAINS FILTER 193020005 20A/250V FUSE 270041054 65TS 10A/250V 6.35*30 LAMP 100050058 MSR 575W/2 PAN&TILT DRIVE BELT 290151221 HTD459-3M-6...
  • Page 18 PR LIGHTING LTD. 571 Yingbin Road, Dashi, Panyu, Guangzhou 511430, China TEL: +86-20-8478 1888 FAX: +86-20-8478 6023 P/N: 321010250 Last Revision: 03:11:2006 18/18...
