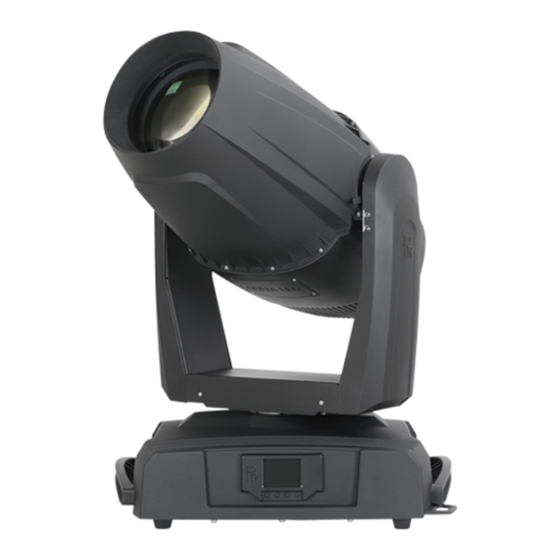

AQUA LED 1800 FRAMING
PR-8169
This product manual contains important information about the safe installation and use of this projector.
Please read and follow these instructions carefully and keep this manual in a safe place for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AQUA LED 1800 FRAMING and is the answer not in the manual?

Questions and answers

Related Manuals for PR Lighting AQUA LED 1800 FRAMING

Summary of Contents for PR Lighting AQUA LED 1800 FRAMING

  • Page 1 AQUA LED 1800 FRAMING PR-8169 This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. PR LIGHTING LTD.

  • Page 2: Table Of Contents

    Any future technical changes are not subject to further notice. Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date but the light source is not within the warranty.

  • Page 3: Safety And Warnings

    1. SAFETY AND WARNINGS NOTE Before a projector’s installation, power-on, operation and maintenance, please carefully read the safety information hereinafter! The following safety signs are used in the user manual. Warning User Electrical Goggles Protective Flames High Manual shock Gloves Temperature When unpacking , check if there is transportation damage before using the projector.

  • Page 4: Instructions

    All power cords must conform to related safety and regulations ● Do not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other ● electrical parts’ life will be shortened . The projector is of class IP65, and not used in the environment higher than it. ●...

  • Page 5: Lubrication

    To avoid internal damage, sun light or other light mustn’t penetrate into the projector via front lens ● whether it runs or not Do not use alcohol or other organic solvent to clean the housing to avoid damage. ● Do not use any solvent with chemical elements to clean color filters or hot mirror. ●...

  • Page 6: Power Connections

    Warning please run the safety cords through 2 safety cord holes to ensure safety Take 2 clamps and 1 safety cords out from the package and mount 2 clamps on the underside of fixture with 4 retainers attached to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNING on the underside of the base as shown above) Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning.

  • Page 7: Dmx Terminator

    Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. XLR plugs and sockets mustn’t be connected in any way other than mentioned in the above figure. The projector accepts digital control signals in protocol DMX512 (1990).

  • Page 8: Setup And Configuration

    Fix gobo wheel Rotating gobo wheel Color wheel Lock tilt and unfasten 4 screws of the small cover of the head. Open the cover and you’ll see the structure as above. 1→2. It’s installation Replacement of the color filter. Pull out the color filter directly by hand as the figure hereinafter in the sequence is in reverse sequence as the removal（2→1）.

  • Page 9: Dmx Start Address

    Projector configuration can be set conveniently via push button and color touch screen. Launch the projector and press button ENTER for more than 5 seconds to unlock the panel, the LCD will show the function menu of the projector, each main menu has its submenus and each submenu has a specific function. For details, please see the “OPERATION MENU”...

  • Page 10: Operation Menu

    SLAVE SLAVE MASTER 主机 从机 从机 回路插 DMX CONTROLLER DMX TERMINATOR 输入 输出 输入 输出 输入 INPUT INPUT OUTPUT OUTPUT INPUT 6. OPERATION MENU 1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL 5th LEVEL 1-477 1-474 DMX Address 1-458 Default IP Address 2.X.X.X /10.X.X.X Address IP Address...
  • Page 11 Un-Link Wireless Really Un-Link? Confirm/ Cancel Defaults Restore Defaults? Confirm/ Cancel Pan DMX Invert OFF/ ON Tilt DMX Invert OFF/ ON Pan/Tilt Settings Pan Tilt Swap OFF/ ON XY Feedback OFF/ ON Pan/Tilt mode Speed/Time Iris Invert OFF/ ON Zoom Invert OFF/ ON Invert Settings Option Settings...

  • Page 12: Dmx Protocol

    Dimmer XXX … Factory Test Change Operation Mode? Confirm/ Cancel DMX Mode Preset Memory Change Operation Mode? Confirm/ Cancel User Memory 1 Change Operation Mode? Master Mode User Memory 2 Change Operation Mode? Operation Mode Preset Memory Change Operation Mode? User Memory 1 Change Operation Mode? Stand-Alone Mode...
  • Page 13 Colour Macro 10 Colour Macro 11 Colour Macro 12 Colour Macro 13 Colour Macro 14 Colour Macro 15 Colour Macro 16 Colour Macro 17 Colour Macro 18 Colour Macro 19 Colour Macro 20 Colour Macro 21 Colour Macro 22 Colour Macro 23 Colour Macro 24 Colour Macro 25 Colour Macro 26...
  • Page 14 Colour Macro 53 Colour Macro 54 Colour Macro 55 Colour Macro 56 Colour Macro 57 Colour Macro 58 Colour Macro 59 Colour Macro 60 Colour Macro 61 Colour Macro 62 Colour Macro 63 Colour Macro 64 Colour Macro 65 Colour Macro 66 Colour Macro 67 Colour Macro 68 Colour Macro 69...
  • Page 15 Colour Macro 96 CMY colour mixing from slow to fast Cyan Cyan (Linear 0-100%) Cyan Fine Cyan in 16 Bit precision Yellow Yellow (Linear 0-100%) Yellow Fine Yellow in 16 Bit precision Magenta Magenta (Linear 0-100%) Magenta Fine Magenta in 16 Bit precision Linear adjust from high to low CTO Fine CTO in 16 Bit precision...
  • Page 16 Iris in 16 bit Iris in 16 bit precision Iris Macro Iris Macro disabled Iris Macro1: from big to small with speed from slow to fast Iris Macro2: from small to big with speed from slow to fast Iris Macro3: Iris contracts from slow to fast Iris Macro4(Macro1 at random) with speed from slow to fast Iris Macro5(Macro2 at random) with speed from slow to fast Iris Macro6(Macro3 at random) with speed from slow to fast...
  • Page 17 Gobo4 shake from slow to fast Gobo5 shake from slow to fast Gobo6 shake from slow to fast Rotating gobo wheel rotation Indexing 0-360° Clockwise rotation from slow to fast Stop Anti-clockwise rotation from slow to fast Rotating gobo wheel rotation in 16 bit Rotating gobo wheel fine rotation Framing blade 1 left Framing blade 1 left linearly closing from big to small...
  • Page 18 Framing module indexing(0-360degrees) Stop Framing module clockwise rotation from slow to fast Stop Framing module anti-clockwise rotation from slow to fast Framing module rotation in 16 bit Framing module fine rotation Prism No Prism Prism Prism rotation Prism index Prism stops Rotation speed from slow to fast Stop rotating Reverse rotation speed from slow to fast...
  • Page 19 Power/Special functions No function: Reserved To activate following functions, stay in DMX value for at least 5 s Graphic display On Graphic display Off Reserved Reserved Fan standard mode Fan theater mode Reserved Fast speed dimmer Mid speed dimmer Slow speed dimmer Gamma curve 2.0 Gamma curve 2.2 Gamma curve 2.4...

  • Page 20: Logos On The Screen

    1. Fan error can automatically turn the LED lamp off. 2. Note: "Speed Mode" means Pan and Tilt will move from Point A to Point B at their respective maximum speeds."Time Mode" means both Pan and Tilt will arrive at designated point at the same time. It's advised Time Mode be used if the projector runs circles or in oblique lines.

  • Page 21: Technical Data

    Timeout Check if wiring, positioning parts and motors are normal Effect wheel Rotation Pan Board Error Check signal wire Tilt Board Error Check signal wire Driver Board 1 Error Check signal wire Driver Board2 Error Check signal wire Driver Board3 Error Check signal wire Blade Board...
  • Page 22 GOBOS 1 rotating gobo wheel: 6 exchangeable+ white, glass or metal gobos Bi-directional rotation, indexing, shake with varied speeds, bi-directional scrolling with varied speeds Rotating gob wheel: Rotating gobo external size: 37.5mm Image size 24mm ; fixed gobo size 36.3mm Image size 23mm 1 fixed gobo wheel 7 exchangeable gobos+ white...
  • Page 23 Dimmer frequency(1.2K~2.5K) good for high speed 4K video camera IRIS Linear iris 5-100% with macros STROBE Double shutter blades, 0.3~25 F.P.S HEAD MOVEMENT Pan 540º , Tilt 270º with auto position correction BEAM ANGLE Beam angle: 6° ～ 58° Rotation Gobo wheel : 8°～ 48° Fixed Gobo wheel : 6°～...

  • Page 24: Circuit Diagram And Pcb Connections

    56Kg SIZES: LIGHT OUTPUT: 56°Lux 6°Lux DISTANCE (m) 6°DIAMETER(m) 0 56°DIAMETER(m) 11. CIRCUIT DIAGRAM AND PCB CONNECTIONS CIRCUIT DIAGRAM ●...

  • Page 25: Pcb Connections

    PCB CONNECTIONS ●...
  • Page 26 Display board Name 485 Signal Reserved DMX 512 Signal Wireless Power Input Reserved Internet Input Driver board 1 Name LED driver Output LED driver Output PWM Input 48V Input + 48V Input - Pan and Tilt board Name Pan & Tilt encoder Magnet sensors for pan and tilt DMX signal input DMX signal output...
  • Page 27 Fan board Name PWM Fan Output PWM Output PWM Output 11-12 485 Signal 13-15 Reserved Temperature Power Input Name Driver board3 Zoom Motor Focus Motor Prism In/Out Motor Prism rotation Motor Frost Motor Reserved Magnet sensors Zoom Magnet sensors Focus Prism/Prism rotation magnet sensor Reserved 13-14...
  • Page 28 Driver board 3 Name Rotating gobo wheel rotation motor Effect wheel In/Out motor Gobo rotation motor Effect wheel rotation motor Rotating gobo wheel magnet sensor Gobo rotation sensor Power Input 9-10 485 Signal Input 485 Signal Output 13-14 Reserved Driver board 4 Name 485 Signal 6-11...

  • Page 29: Component Order Codes

    Framing module board Name Framing motor2 Framing motor 1 Reserved Reserved Reserved Reserved Software flashing interface Reserved 24V Input Framing Motor 8 Framing Motor 7 Framing Motor 6 Framing Motor 5 Framing Motor 4 Framing Motor 3 12. COMPONENT ORDER CODES NAME PART NO.
  • Page 30 MOTOR FOR COLOR WHEEL 030040060 MOTOR FOR CMY 030040211A MOTOR FOR CTO MOTOR FOR PAN 030040252 MOTOR FOR TILT CONTROL PANEL 230061226B PAN DRIVER BOARD 230061231 TILT DRIVER BOARD 230061232 ENCODER BOARD 230060932 LED MODULE DRIVER BOARD (3 230061244 CHANNEL) MODULE DRIVER BOARD(3...
  • Page 32 Guangzhou, 511442 China TEL: +86-20-3995 2888 FAX: +86-20-3995 2330 PR lighting will try its best to offer accurate and overall information about a product’s technical data. Any changes won’t be notified if necessary. Patented Products. Counterfeiting Will be Prosecuted! P/N: 320020903...
