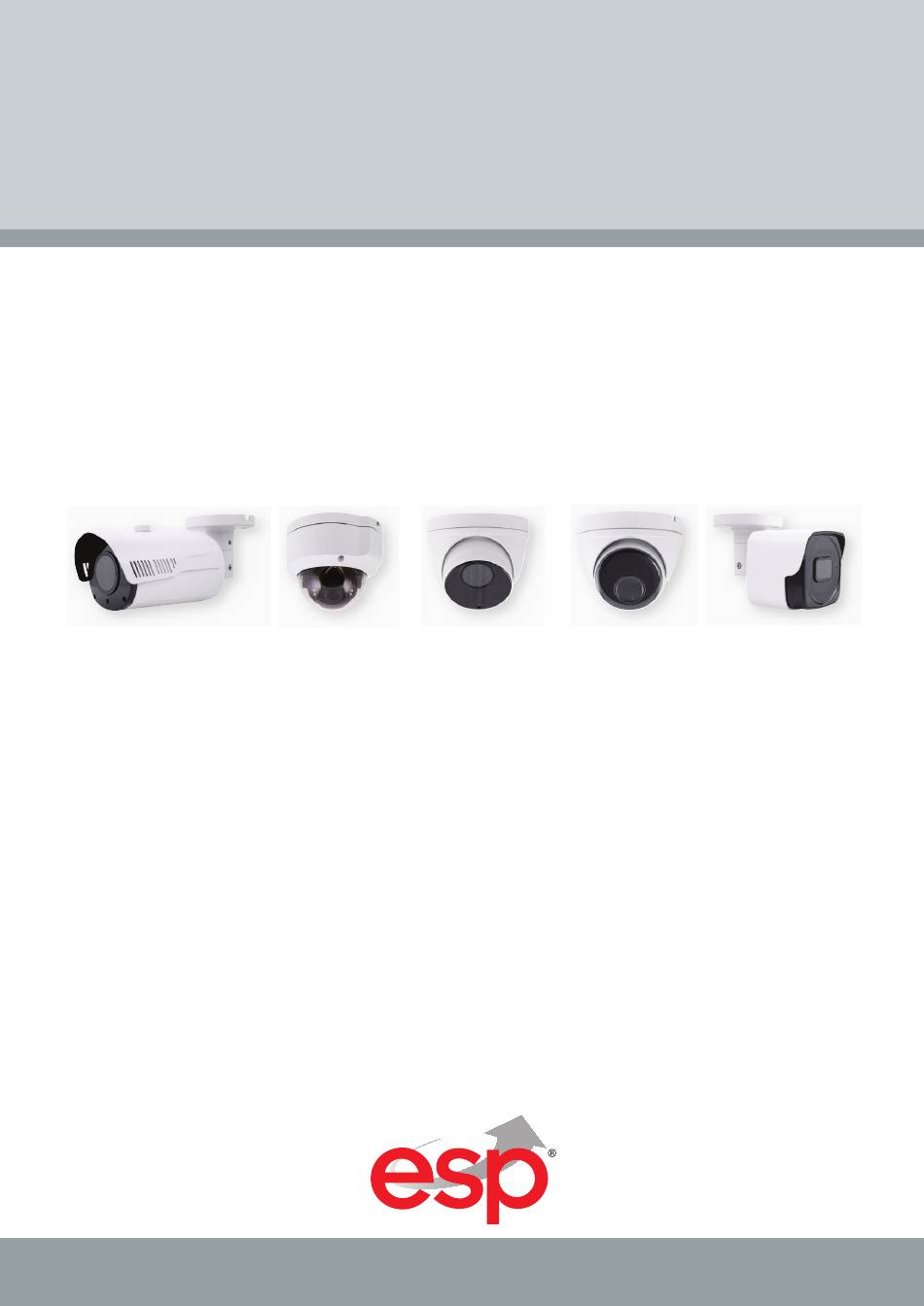

- Page 1 IP Camera Manual www.es puk . c om...
- Page 2 User Manual...
-
Page 3: Table Of Contents
User Manual Contents Introduction................................3 1. Overview................................4 1.1 Range of Application..........................4 1.2 Product Description..........................5 1.3 Operation Environment.........................5 2. Device Connection............................6 3. Device Operation Instructions........................7 3.1 Check Connection..........................7 3.2 Searching Device...........................8 3.3 Installation of Controls and Login to System...................11 3.3.1 Preview............................ - Page 4 User Manual 7.2 I/O Alarm (if applicable)........................26 7.3 Lens Blocking............................26 8. Device................................27 8.1 SD Card（optional function）......................27 8.2 Audio..............................28 8.3 Logs............................... 28 9. System Parameters........................... 29 9.1 Basic Information..........................29 10. Advanced..............................32 10.1 System Update..........................32 10.2 Default Parameters........................... 32 10.3 System Maintenance........................
-
Page 5: Introduction
User Manual Introduction Thank you for using our network camera products. Our network camera products are integrated and developed for network video monitoring, including Storage Network Bullet, Wireless Storage Network Bullet, IR Network Dome, IR Network Weather-Proof Cameras and High-Speed Network Ball. High-performance single SOC chips are used in media processor for audio/video acquisition, compression and transmission/transfer. -
Page 6: Overview
User Manual 1. Overview 1.1 Range of Application The network cameras with powerful image processing capacity may be applied at various public places such as mall, supermarket, school, factory and workshop, as well as in environments requiring HD video image such as bank and traffic control system, as shown below: Monitoring Center... -
Page 7: Product Description

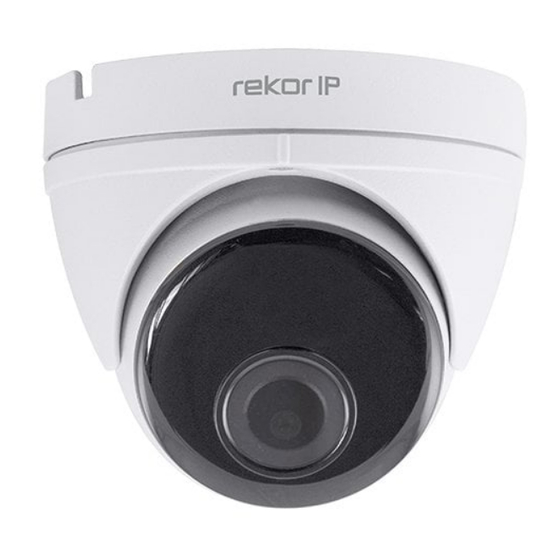

User Manual 1.2 Product Description An IP camera is a digital online surveillance camera embedded with Web server and capable of independent operation, giving user access to real-time monitoring through web browser or client software from any place across the world. IP camera is based on the latest Hisilicon solution, an integrated media processing platform for audio/video acquisition, compression and network transmission on a single board. -
Page 8: Device Connection
User Manual 2. Device Connection IP camera can be connected in two ways: 1. Connection to PC Connect IP camera to PC via straight-through network cable, with power input connected to a DC 12V adaptor, and set the IP addresses of the PC and IP camera in one network segment. The IP camera will communicate with PC within one minute after being powered on if the network operates normally. -
Page 9: Device Operation Instructions
User Manual 3. Device Operation Instructions 3.1 Check Connection The default factory IP address for IP camera is 192.168.1.168 and the subnet mask is 255.255.255.0. Allocate to your computer an IP address in the same network segment as the IP camera, for example, 192.168.1.69, and a same subnet mask as that of the IP camera. -
Page 10: Searching Device
User Manual 3.2 Searching Device Tips: IPC Device Search may be used for device searching across network segments. Before running IPC Device Search, click on the local connection icon at the lower right corner of the desktop; 1. Add IP addresses of several network segments in TCP/IP setting for local connection (as shown below). - Page 11 User Manual Online device searching procedure 1. Run IPC Device Search by double clicking icon . It will search and display any online IPC and its IP address, port number, number of channels, device type and version, subnet mask, gateway, MAC address and connection pattern.
- Page 12 User Manual Upgrade： it can offer 1pcs or more than 1pcs IP camera upgrade.Please choose the IP camera you want to upgrade in the left frame,Open the icon to choose the software you want ,put in the user name and password, the press the right corner button to upgrade.
-
Page 13: Installation Of Controls And Login To System
User Manual 3.3 Installation of Controls and Login to System Before using IE (Internet Explorer) browser to access the IP camera for the first time, related plug-in components must be installed by following the procedure below: Access IP address of the IP camera to automatically load the controls from it. In a pop-up plug-in installation dialog box, choose an installation option to perform the installation process. - Page 14 User Manual In the login box you can choose a language for the IE client. Enter your user name (admin by default) and password (admin by default) and then press OK to open a preview frame as shown below: Some buttons in the preview frame are described below. : Color setting button, for setting of color, brightness, contrast, saturation and sharpness of the frame.
-
Page 15: Playback（Optional Function
User Manual for returning to the login page. :Video preview switch enable/disable, original preview frame ratio, automatic preview frame ratio, full preview frame from the left to the right. : Preview control buttons - Zoon-In/Out, Open Video, Snap and Sound On/Off, Mircophone arranged from the left to the right. -
Page 16: Parameter Setting
User Manual 4 Parameter Setting 4.1 Display Configuration Click on Parameter Setting to open the page as below (preview setting page by default): Name of channel: name of the IP camera Display of channel: Choose to display or conceal it. Time display: Choose to display or conceal it. -
Page 17: Image Control
User Manual 4.2 Image Control Click on Image Control in Display Configuration to open the following page: IR-Cut Model: Classified into GPIO Automatic, Colored, and Black-White models. Delay: IR-cut switching delay. Image Flip-Over: including flip horizontal , flip vertical , Corridor mode and Angle rotation (0°、180°) Image Control: backlight compensation, 3D noise reduction, WDR, automatic gain, shutter speed, exposure time and de-moist model. -
Page 18: Video Blocking
User Manual 4.3 Video Blocking Click on Video Blocking in Display Configuration to open the following page: Procedure of setting video blocking: Check Enable Video Blocking Press down and hold the left mouse button and drag out a area for video blocking (up to four areas at one time) Click on Save to enable the video blocking area. -
Page 19: Roi (If Applicable)
User Manual 4.4 ROI (if applicable) Click on ROI in Display Configuration to open the following page: Procedure of setting ROI: Choose an area of application Press down and hold the left mouse button and drag out a ROI area (only one ROI can be set for each area) Click on Save to apply the ROI area. -
Page 20: Record Parameters
User Manual 5.Record Parameters 5.1Rec Parameters Click Rec Parameters under the menu Record, go to below page This function is to control the record, pre record and record type (main stream and substream) 5.2Schedule Click Schedule under the menu Record, then go to the page as below As image: one grid in the table is 30 minutes, green is normal record, yellow is motion detection alarm, red is I/0 User can setup according to private requirement to choose different record type and time。... -
Page 21: Network Parameters
User Manual 6. Network Parameters 6.1 Network Parameters Click on Network Parameters in Network Parameter Menu to open the following page: Networking mode: DHCP (Automatically Acquired), Manually Configured and PPPOE; the default is Manually Configured Media port: Media port for IPC Web port: Web port for IPC IP address: IP address of IPC Subnet mast: Subnet mast of IPC... -
Page 22: Bit Stream Setting
User Manual 6.2 Bit stream setting Click on Bit Stream Setting in Network Parameter Menu to open the following page: By default the available bit streams are: main bit stream, sub-bit stream and cell phone bit steam. You can set resolution, frame rate, video encoding, encoding level, audio, I frame interval, variable frame rate and bit stream size respectively for main bit stream, sub-bit stream and cell phone bit steam. -
Page 23: E-Mail Configuration
User Manual 6.3 E-Mail Configuration Click on E-Mail Configuration in Network Parameter menu to open the following page: E-Mail Configuration: mail service setting - used with alarm function to upload images snapped to the mail server. Enable e-mail: Enable or disable e-mail function. SSL：... -
Page 24: Ddns Configuration
User Manual 6.4 DDNS Configuration Click on DDNS Configuration in Network Parameter menu to open the following page: DDNS configuration: Dynamic DNS configuration - used with server for access from an extranet. Enable DDNS: Enable or disable it. Address of server: Choose "3322". Name of host: Enter the name of active server User name: Name of the user Password: Password of the user... -
Page 25: Ip Filtering
User Manual 6.5 IP Filtering Click on IP Filtering in Network Parameter menu to open the following page: Filtering mode: Three modes are available (Allow all IP connections, Allow all IP connections as set, Forbid IP connection as set). Add: Add any allowed or forbidden IP address Delete: Delete any IP address added previously 6.6 RTSP Click on RTSP in Network Parameter menu to open the following page:... -
Page 26: Ftp
User Manual RTSP Port: The default port number is 554, and can be changed to another value between 1024 and 65535. Modification to the parameter will restart the system. Operation Instructions: For IP cameras of 3MP/4MP/5MP/8MP Series: rtsp://IP:Port/ch00/A A:0 (main bit stream), 1(sub-bit stream), 2 (cell phone bit stream) For IP cameras of 2MP Series: rtsp://IP:Port /A A:0 (main bit stream), 1(sub-bit stream), 2 (cell phone... -
Page 27: Alarm Parameter
User Manual 7. Alarm Parameter 7.1 Mobile Detection Click on Mobile Detection in Alarm Parameter menu to open the following page: Procedure of setting Mobile Detection: Check Enable Mobile Detection. Press down and hold the left mouse button and drag out an area for mobile detection. Set the sensitivity for mobile detection (ranging from 1 to 8;... -
Page 28: I/O Alarm (If Applicable)
User Manual 7.2 I/O Alarm (if applicable) Click on I/O Alarm in Alarm Parameter menu to open the following page: I/O Alarm Input: Enable or disable I/O alarm. I/O Alarm Output Time: Set I/O alarm output time (10s, 20s, 40s, 60s) Recording Delay Time: After checking Enable Triggered Recording, you can set recording delay time (5S/10S/20S/30S) 7.3 Lens Blocking... -
Page 29: Device
User Manual 8. Device It includes SD Card （ optional function ） Logs and Audio. Their interfaces and functions are described below. 8.1 SD Card（optional function） Click SD Card under the menu Device, then go to below page Insert SD card to device, system will auto detect the total capacity and balance capacity of SD card and give The information of time to record SD Card Overwrite:when the capacity of SD card is 0, new recorad will overlap previous record(this... -
Page 30: Audio
User Manual 8.2 Audio Click on Audio in Device menu to open the following page: Procedure of setting Audio: Check Open Audio option to access audio setting, and set audio input/output volume (ranging 0~10), and then click on Save to save the parameters set. (Note: For application of audio function, the audio option in Bit Stream Setting needs to be enabled) 8.3 Logs Click on Logs in Device menu to open the following page:... -
Page 31: System Parameters
User Manual Log Type: Eight types of logs are available - system logs, network logs, parameter logs, alarm logs, user logs, recording logs, storage logs and all logs). Choose the starting and ending date/time for retrieval. Click on "Search" to retrieve and display related logs in the table below. Click on "Delete"... - Page 32 User Manual DST: Check Daylight Savings Time (DST) option to enable DST correction. The device will correct the time based on the time deviation as set. NTP: Check Enable NTP option, input the address of time server and choose a time zone and then save the setting. The system will correct time in accordance with the time server.
- Page 33 User Manual 9.3 System Information Click on System Information in System Parameters menu to open the following page: Here some system information on the device will be displayed, including device type, MAC address and software version. You can visit mobile app through P2P QR code directly。...
-
Page 34: Advanced
User Manual 10. Advanced It includes System Update, Default Parameters and System Maintenance. Their interfaces and functions are described below. 10.1 System Update Click on System Update in Advanced menu to open the following page: Update will be unavailable if the update files do not match the target device. 10.2 Default Parameters Click on Default Parameters in Advanced menu to open the following page: Check relevant options and click on Save to recover the default factory settings for the options as... -
Page 35: System Maintenance
User Manual 10.3 System Maintenance Click on System Maintenance in Advanced menu to open the following page: 、 Here you can set regular restart or manual restart of the device. 11. Intelligent Only certain camera models include the Intelligent functionality. 11.1 Smart Schedule one grid in the table is 30 minute,User can setup according to private requirement to choose different record type and time。... -
Page 36: Smart Analysis
User Manual 11.2 Smart Analysis This page can correctly show the different time period’s line crossing count ( including different years , months and weeks’ line crossing count). User can search the video according to the recording types, alarm types and the beginning time of the recording. -
Page 37: Line Crossing Detection（Lcd
User Manual Sensitive：Sensitive level, range is 1-4, default to 2. If the detected object sensitivity is more high, the moving Object can be detected easily. Meanwhile, the false detection rate is higher. Suggest to use default level。 Scene：Scene setup, user can choose Indoor or outoddor according to real situationEnable I/O Out： Trigger alarm then if will be I/O output Send Email ：If trigger alarm, send the Email to notify, the Email setup need to set in Remote Setting –Network-Email... -
Page 38: Stationary Object Detection
User Manual If trigger alarm, send the Email to notify, the Email setup need to set in Remote Setting –Network-Email Record：if to do record Rule Number： ：Max set 4 rule numberRule Switch： The switch to every rule Rule Type： Setup to each rule, A->B means can detect A to B direction moving, B->A means can detect B to A direction moving, A ←→B means can detect two directions moving. -
Page 39: Pedestrian Detection(Pd)
User Manual Rule Type： Setup to each rule, A->B means can detect A to B direction moving, B->A means can detect B to A direction moving, A ←→B means can detect two directions moving. 11.6 Pedestrian Detection(PD) Function description: in the preview page, detect the moving pedestrian. 【Switch】... -
Page 40: Face Detection（Fd
User Manual 11.7 Face Detection（FD） Function description: in the preview page, detect the moving face. 【Switch】 ：Enable/ Disable 【 Latch Time 】 ： when trigger alarm, the external alarm device output alarm time, can selected time period is 5S,10S, 20S, 30S. 【Post Recording】... -
Page 41: Cross Counting(Fd)
User Manual 11.8 Cross Counting(FD) Function description: in the preview page, detect and line crossing count the moving object and pedestrian. 【Switch】 ：Enable/ Disable 【 Latch Time 】 ： when trigger alarm, the external alarm device output alarm time, can selected time period is 5S,10S, 20S, 30S. - Page 42 User Manual...
- Page 43 User Manual...
- Page 44 User Manual...
