ESP GuardCam LED Manual

Combined security camera led floodlight system
Hide thumbs Also See for GuardCam LED:

Advertisement

Quick Links

C O M B I N E D S E C U R I T Y C A M E R A L E D F L O O D L I G H T S Y S T E M

Advertisement

loading
Need help?

Need help?

Do you have a question about the GuardCam LED and is the answer not in the manual?

Questions and answers

Related Manuals for ESP GuardCam LED

Summary of Contents for ESP GuardCam LED

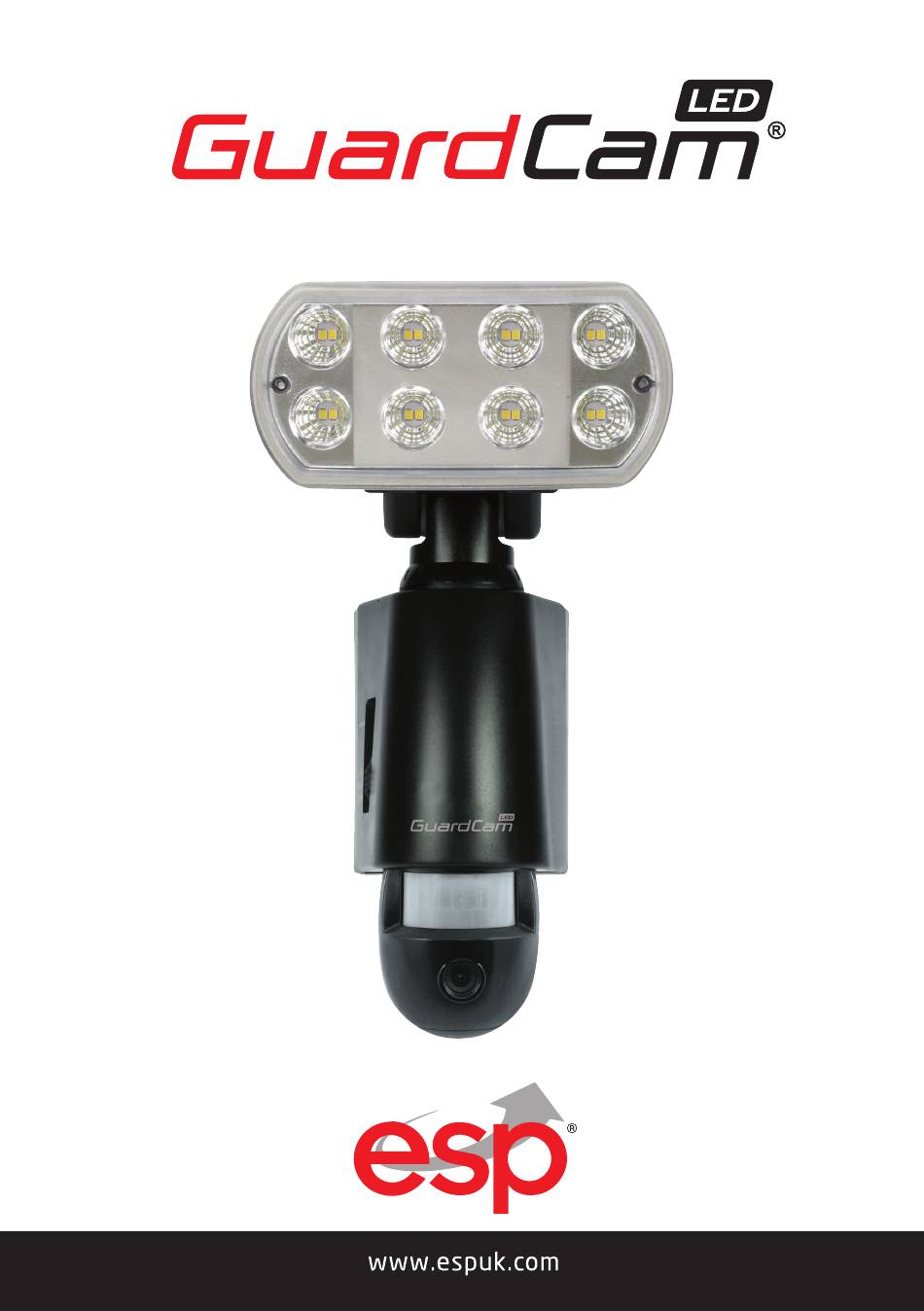

  • Page 1 C O M B I N E D S E C U R I T Y C A M E R A L E D F L O O D L I G H T S Y S T E M...

  • Page 2: Table Of Contents

    Setting the date and time of GuardCam LED . . . . . . . . . . . . . . . .

  • Page 3: Overview

    Overview High power LED PIR lens Camera lens FIG . 1 FIG . 2 Installation IMPORTANT IF IN ANY DOUBT ABOUT THE INSTALLATION OF THIS PRODUCT, CONSULT A QUALIFIED ELECTRICIAN - This product must be grounded - Do not mount the unit against inflammable surfaces - The motion detector will not operate correctly if it is installed: •...
  • Page 4 Note: It is recommend to mount 2M above the ground for optimum performance, do not mount the fixture below 1.2M. See below figure for details of performance range. Detection range: 10M x 160°...
  • Page 5 Installing GuardCam LED 1 . Place plastic masonry plugs into desired surface aligning holes as shown below . Using an electric screwdriver, fasten mounting plate directly to surface using screws . 2 . Feed the cable through the back mounting box and bush the cable entry to avoid abrasion to the cable .

  • Page 6: Setting The Date And Time Of Guardcam Led

    Setting the Date and Time: In order for the correct time & date to display on recorded files; • Take the supplied micro SD card & place it in the SD / USB adaptor • Place the adaptor in a spare USB port on PC / Laptop •...

  • Page 7: Insert/Remove Micro Sd Card

    Insert/remove Micro SD Card: 1 . Unscrew the underside cover using provided Allen key , then insert the Micro SD card until it automatically locks into place . 2 . The Micro SD card is placed at the bottom of the motion sensor . To remove Micro SD card, please push in SD once to eject, then pull out .

  • Page 8: Adjusting The Settings

    Adjusting the Settings Time Control Turn the time control to”+” side to increase the illumination time (7 minutes max .), turn the control to “-“ side to reduce the illumination time (5 seconds min .) . Sensitivity Control Adjust the detector range of Passive Infrared Motion Sensor (2M ~ 10M) Selecting Working Mode: Mode 1 - Light + camera + speaker: all day detection...
  • Page 9 Audio Mode Pre-set default is “silent mode”, push one time for “pre-recorded message”, push again for “dog barking”. Push one more time for the message you just recorded. Reset Button Restores functions to default settings, press this button in case of system malfunction.
  • Page 10 Recording your own messages (see fig . 9) Guardcam LED will allow you to record two messages of your own for delivery on detection . To achieve a good quality playback it is best practice to make these recordings prior to final installation speaking clearly in an environment free from background noise .

  • Page 11: Viewing Recorded Files

    Viewing Recorded Files Viewing image by computer through a card reader. 1. Open the PIR housing from the bottom. 2. To remove Micro SD card, please push in SD once to eject, then pull out. 3. Put the Micro SD Card into a card reader, connect PC and card reader by USB cable (not included) and open any media player to view the video.
  • Page 12 Telephone: 01527 51 51 50 Elite Security Products Fax: 01527 51 51 43 Unit 7, Target Park, Shawbank Rd email: info@espuk .com Lakeside, Redditch B98 8YN E&OE - Errors and omissions excepted . A18...
