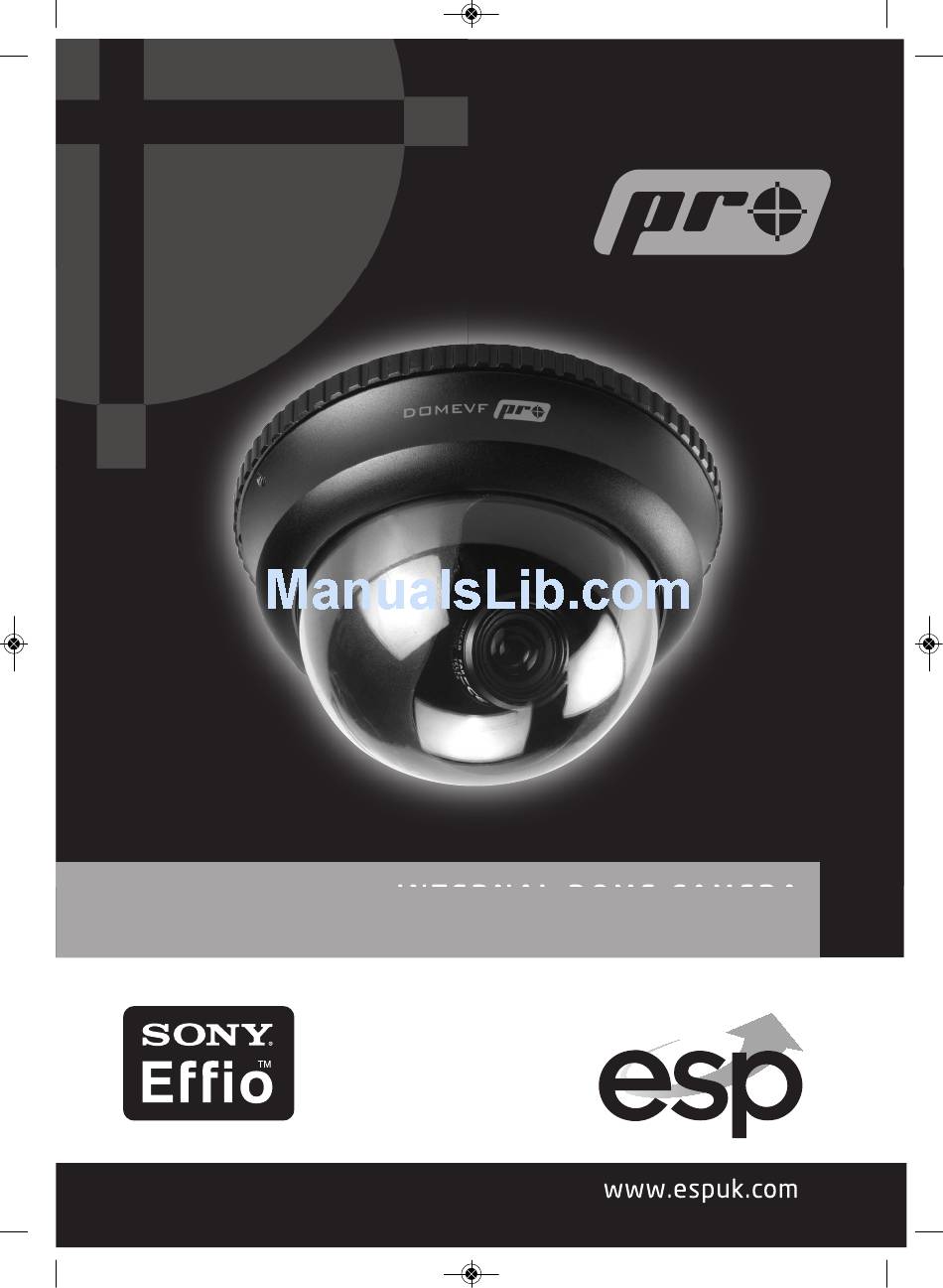

- Page 1 DOMEVFPro Manual_Layout 2 01/05/2013 14:38 Page 1 DOMEVF I N T E R N A L D O M E C A M E R A U S E R M A N U A L...
- Page 2 DOMEVFPro Manual_Layout 2 01/05/2013 14:38 Page 2...
-
Page 3: Technical Specification
DOMEVFPro Manual_Layout 2 01/05/2013 14:38 Page 3 DOMEVF I N T E R N A L D O M E C A M E R A 700 TVL 2.8-12mm varifocal lens Sony Effio-E image sensor OSD control button 12v DC 120mA TECHNICAL SPECIFICATION 700TVL Image sensor... -
Page 4: Lens Adjustment
DOMEVFPro Manual_Layout 2 01/05/2013 14:38 Page 4 In addition to up to 700 TVL resolution the Pro range of internal and external CCTV cameras all feature the multi-function Sony Effio E processor. Whilst in many situations you will find an “out of the box installation” will give excellent results the Effio Processor will enable you to make adjustments to the cameras final output to provide an excellent image in the most demanding situations. -
Page 5: On Screen Display (Osd) Set Up
DOMEVFPro Manual_Layout 2 01/05/2013 14:38 Page 5 ON SCREEN DISPLAY (OSD) SET UP The on-screen menu can be operated by the OSD control button shown. Move the button up, down, left or right to access options and press the button to activate the options. Please find below a list of the most useful functions found within the Effio E processor. - Page 6 DOMEVFPro Manual_Layout 2 01/05/2013 14:38 Page 6 BACKLIGHT Multiple ways to control high levels of back lighting disturbing the viewing area such as sunlight or external lighting Standard back light control A clever version of BLC that will automatically blank out any areas of very high light source within the viewing area whilst allowing normal images from surrounding areas BLC off...
- Page 7 DOMEVFPro Manual_Layout 2 01/05/2013 14:38 Page 7 Day-Night Determines the level of light required to move from day mode to night mode Night-Day Determines the level of light required to move from night mode to day mode 2DNR Reduces digital noise created by high light or colour in the viewing area to improve image quality Activates level of DNR from sources associated to light (Y) and colour (C)
- Page 8 DOMEVFPro Manual_Layout 2 01/05/2013 14:38 Page 8 Elite Security Products Unit 7, Target Park, Shawbank Rd Telephone: 01527 515150 Lakeside, Redditch B98 8YN email: info@espuk.com...
