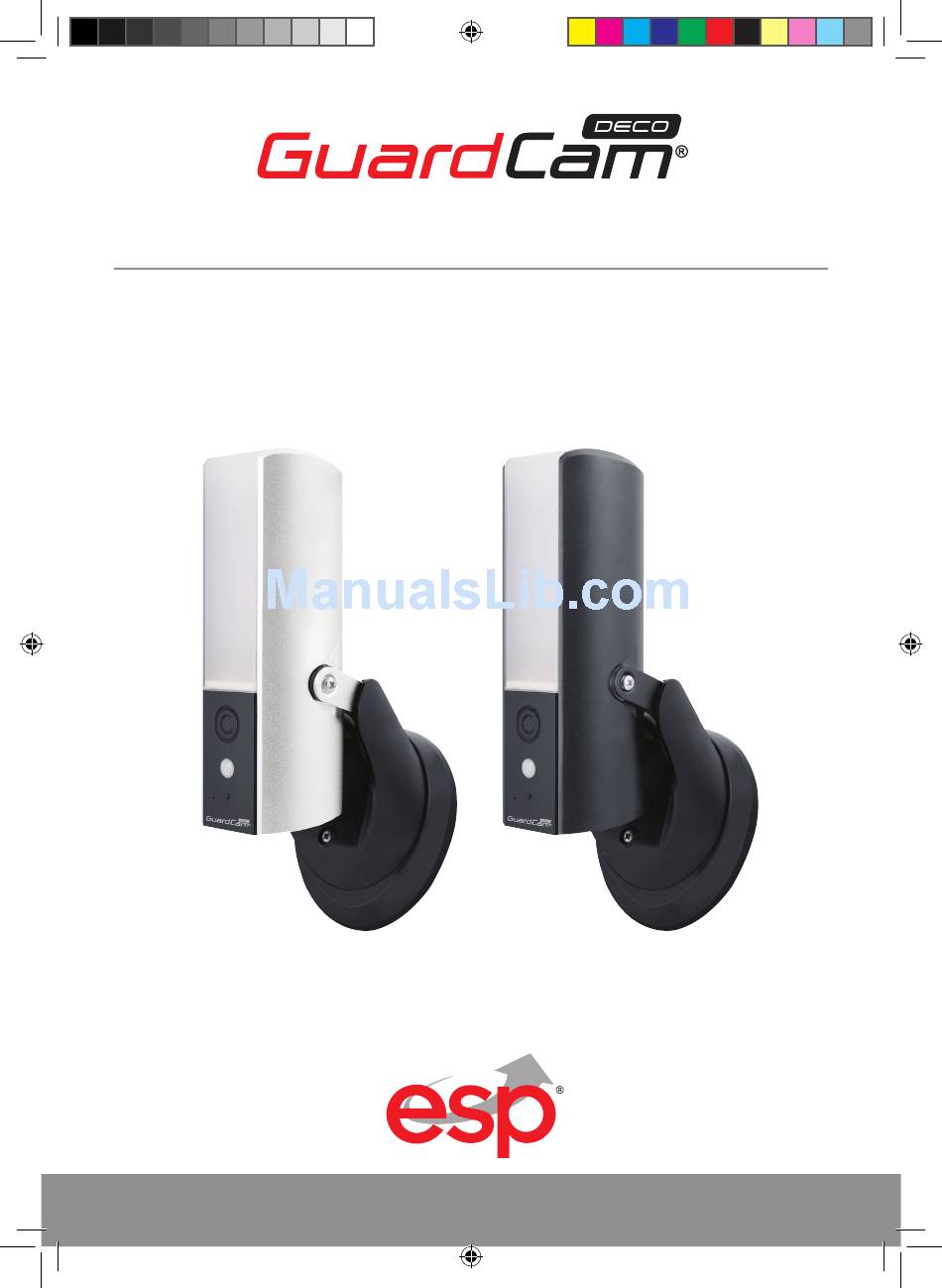

GUARDCAMDECO:
COMBINED WI-FI SECURITY CAMERA LED FLOODLIGHT SYSTEM
PRODUCT MANUAL
www.espuk.com
1
GUARDCAMDECO Manual.indd 1
12/03/2018 14:23:51

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GuardCamDeco and is the answer not in the manual?

Questions and answers

Peter Griffiths
April 23, 2025

the wi fi message HD 001816 INCORRECT PASSWORD appears on my i phone im trying to pair with several guardcams. is there a way to factory reset them please

1 comments:
Mr. Anderson
May 11, 2025

To factory reset the ESP GuardCamDeco and resolve the HD 001816 INCORRECT PASSWORD message:

1. Long press the reset button on the device for 5 seconds.
2. This will restore all settings to factory default, including the password.
3. After reset, the default password will be "123456".
4. You will need to reconfigure the camera after the reset.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for ESP GuardCamDeco

  • Page 1 GUARDCAMDECO: COMBINED WI-FI SECURITY CAMERA LED FLOODLIGHT SYSTEM PRODUCT MANUAL www.espuk.com GUARDCAMDECO Manual.indd 1 12/03/2018 14:23:51...
  • Page 2: Kit Content

    / iPad2 / Mini iPad with iOS 7.0 or above. Android: 1.5G dual core processor dual core processor with 1G RAM or above. Storage: Class 10 memory card. Bandwidth: 1Mbps or above upload/download speed suggested. GUARDCAMDECO Manual.indd 2 12/03/2018 14:23:51...
  • Page 3: Installation Tips

    For Android, the APP must be left running in the background to receive any service from the Door Station. ESP are unable to guarantee that every device will be compatible with any ESP product and software supplied. Specific models of phone, tablet or other device, the hardware it contains, the service provider, the types of data services offered and specific phone / device plan will all affect the performance of PC / mobile device for remote viewing.
  • Page 4: Product Overview

    PRODUCT OVERVIEW FRONT VIEW UNDERSIDE VIEW GUARDCAMDECO Manual.indd 4 12/03/2018 14:23:51...
  • Page 5: Device Installation

    Disconnect power at fuse or circuit breaker before proceeding to the installation. Plug the N&L pole connector in to the junction box. The unit is double insulated, therefore does not require a earth/ground connection. Rear of GuardcamDECO base GUARDCAMDECO Manual.indd 5 12/03/2018 14:23:51...
  • Page 6 1. Fasten the junction box to the wall. Make sure that the UP sign is at the top. 2. Connect the power cable to the junction box. 3. Place the device securely on the junction box. 4. Fasten the screw by using the hex key provided. GUARDCAMDECO Manual.indd 6 12/03/2018 14:23:51...
  • Page 7 Adjust the brightness to prefer level once the camera has setup completed. 7. It is recommended to install the lighting camera at the flat surface of the wall or position to have better waterproof protection. GUARDCAMDECO Manual.indd 7 12/03/2018 14:23:52...
  • Page 8: App Installation

    Please download and install the “ESP GuardcamDECO” APP to the smart-phone/ tablet 1. Apply power to the GuardcamDECO, after 1 minute the unit will produce its own Wi-Fi hotspot. 2. Via the settings on the smart-phone/ tablet connect to the Wi-Fi hotspot, the SSID will begin HD-XXXXXX.
  • Page 9 APP INSTALLATION (CONTINUED) 9. The APP will now display the GuardcamDeco’s camera image; Please follow the additional steps to connect the device to the intended network. 10. Select the camera icon and then the setting option 11. Select the ‘Advanced’ setting and use the default Admin Password ‘123456’...
  • Page 10: Main Page Overview

    Tap the camera to enter Live-View. Add a device Access to; advanced settings, delete device & recorded file list Refreshes connections & settings of all devices in the list. Information: Access WAPP/App firmware version information and app PIN Lock setup. GUARDCAMDECO Manual.indd 10 12/03/2018 14:23:52...
  • Page 11 SETTING and additional setup selection icons will appear. Tap to exit. Access Advanced Setting Delete Device Event List: View and playback the list of motion triggered event(s) GUARDCAMDECO Manual.indd 11 12/03/2018 14:23:52...
  • Page 12: Push Notification

    To Enable; 1. Launch Settings from your Home screen. 2. Tap Notifications. 3. Find & select ‘ESP GuardcamDECO’ 4. Adjust the notification settings, such as On/Off, Sounds, Alert Display, etc. Note: It takes time for the changes to take effect in iOS.
  • Page 13 Tap to Start/Stop recording. The recorded video file will be stored in the memory card of your camera. Tap once to speak with visitor in hand-free mode, tap again to mute. Manual Alarm trigger. Return to main page. GUARDCAMDECO Manual.indd 13 12/03/2018 14:23:53...
  • Page 14: Viewing Your Snapshots

    Snapshots will be named with the time stamp and saved into the Photo Gallery > snapshot folder mobile device. Events The recorded video file(s) on your camera is automatically saved to the memory card inserted in the camera. Tap the to access the edit menu. GUARDCAMDECO Manual.indd 14 12/03/2018 14:23:53...
  • Page 15 When you record a video clip from your camera. You can pause/play the video during the playback, to deactivate/activate the audio function. Delete Tap the edit icon, then select the file(s) you would like to delete from list. GUARDCAMDECO Manual.indd 15 12/03/2018 14:23:53...
  • Page 16 Note: During the download process, system will stop both the live view and recording functions. APP will automatically inform any user accessing the camera that the system is busy and the connection has been terminated. GUARDCAMDECO Manual.indd 16 12/03/2018 14:23:54...
  • Page 17: Advanced Setting

    It may take a few minute for some routers to update the registered devices. When you complete advanced settings and return to device list, please wait for a while allowing your router to finish the camera registration. GUARDCAMDECO Manual.indd 17 12/03/2018 14:23:54...
  • Page 18: Basic Settings

    The drop-down list shows the world time zone. Select the time zone that will work the best for you. If your date/time is during the daylight saving time period, please check the Daylight Saving box to adjust the system time properly. GUARDCAMDECO Manual.indd 18 12/03/2018 14:23:54...
  • Page 19: Wifi Setting

    Enter the SMTP port 465 User-name XXX@gmail.com Enter your email address Password XXXXXXXX Enter the password for this Gmail account Enter the email address for the recipient who Email to XXX@gmail.com receives the email alert. GUARDCAMDECO Manual.indd 19 12/03/2018 14:23:54...
  • Page 20: Video Settings

    The Low Light Enhancement Mode is for improving the night view video image by providing 5 levels to select from (5 = brightest). SENSITIVITY SETTINGS Detection Mode PIR is hardware-based biomass detection. LIGHTING SETTINGS This function allows you set up the lighting auto mode. There are 2 mode you can choose. GUARDCAMDECO Manual.indd 20 12/03/2018 14:23:54...
  • Page 21: Sd Card Settings

    Please reboot the unit after formatting the SD card . Device Settings This section shows the device information about the camera, including device version, total size and available size of the memory card. GUARDCAMDECO Manual.indd 21 12/03/2018 14:23:54...
  • Page 22: Troubleshooting

    • Make sure the sensitivity setting is turned ON (please refer to the Sensitivity Setting section). Motion detection is not working or over-react • In motion detection mode, a moving object within the camera viewing angle is necessary to trigger the motion sensor for recording GUARDCAMDECO Manual.indd 22 12/03/2018 14:23:54...
  • Page 23 • System will clock itself when connect to the internet. Make sure the system is connected properly to the internet. You may use your mobile device to access the system to see if remote view is functioning properly. GUARDCAMDECO Manual.indd 23 12/03/2018 14:23:54...
  • Page 24: Production Specification

    6/iPad air with iOS 10.0 or Above Android requirement Android 5 or Above 1.5GHz dual core or above Hardware requirement 1GB or above internal memory General Parameter Power Requirements 80~260V Operating Temperature -10°C~+50°C Storage Temperature -20°C~+60°C GUARDCAMDECO Manual.indd 24 12/03/2018 14:23:54...
  • Page 25 GUARDCAMDECO Manual.indd 25 12/03/2018 14:23:54...
  • Page 26 SILVER VERSION GUARDCAMDECO Manual.indd 26 12/03/2018 14:23:56...
  • Page 27 BLACK VERSION GUARDCAMDECO Manual.indd 27 12/03/2018 14:23:57...
  • Page 28 Elite Security Products Telephone: 01527 51 51 50 Unit 7, Target Park, Shawbank Rd Fax: 01527 51 51 43 email: info@espuk.com Lakeside, Redditch B98 8YN E&OE - Errors and omissions excepted. B18 www.espuk.com GUARDCAMDECO Manual.indd 28 12/03/2018 14:23:57...
