GUARDCAMLEDWIFI:
COMBINED WI-FI SECURITY CAMERA LED FLOOD LIGHT SYSTEM
PRODUCT MANUAL
1
www.espuk.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the GuardCamLED WIFI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ESP GuardCamLED WIFI

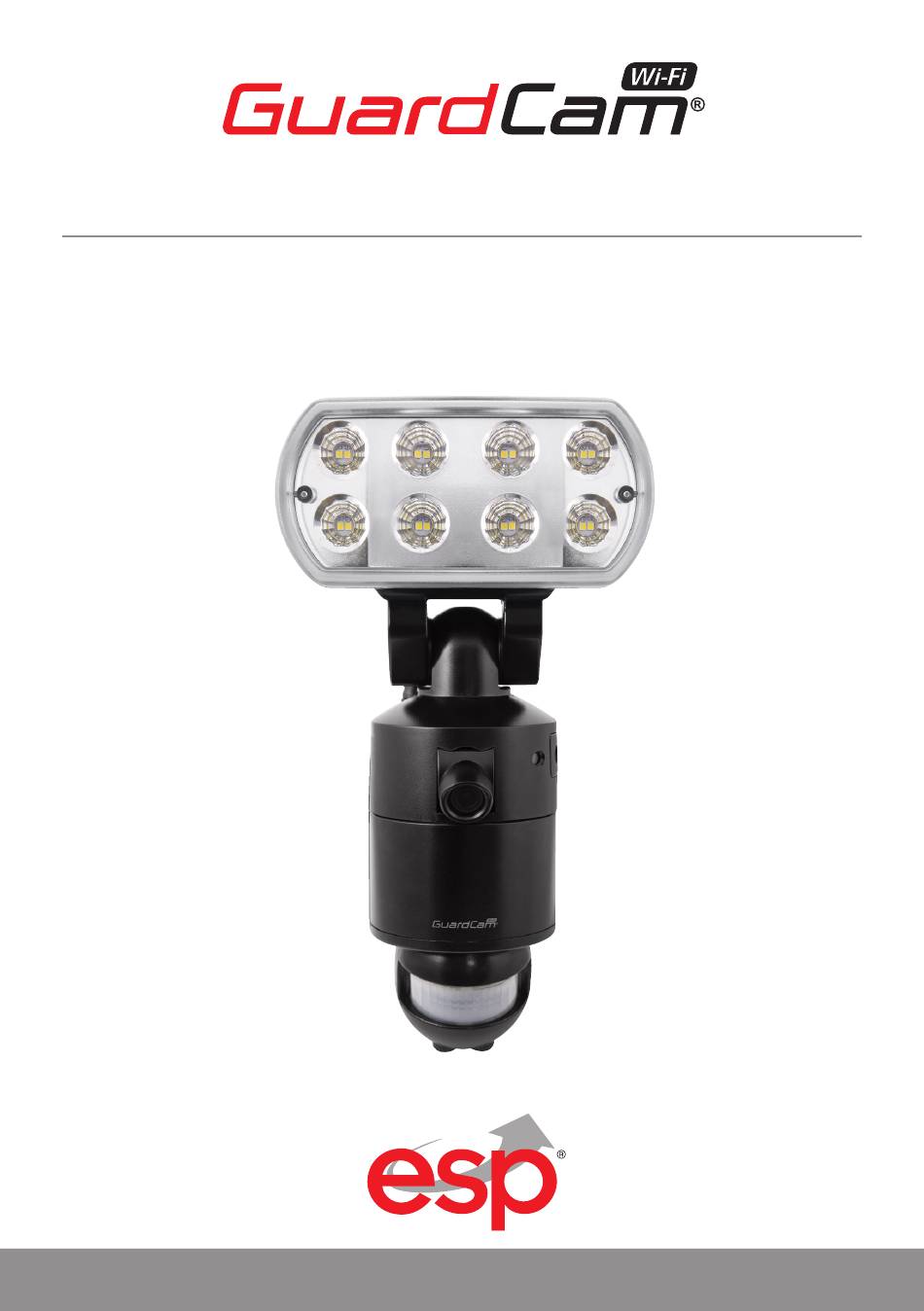

  • Page 1 GUARDCAMLEDWIFI: COMBINED WI-FI SECURITY CAMERA LED FLOOD LIGHT SYSTEM PRODUCT MANUAL www.espuk.com...
  • Page 2: Table Of Contents

    KIT CONTENT GUARDCAMDECO: COMBINED WI - F I S E CURI T Y CAMERA L ED F LOODL IGHT S Y S T EM PRODUCT MANUAL www.espuk.com GuardCamLED WIFI GuardCamLED WIFI 1 x Allen Key Micro SD Card 2 x Screws...
  • Page 3: Product Overview

    PRODUCT OVERVIEW FIG.1 FIG.2 INSTALLATION TIPS IMPORTANT IF IN ANY DOUBT ABOUT THE INSTALLATION OF THIS PRODUCT, CONSULT A QUALIFIED ELECTRICIAN - This product must be grounded - Do not mount the unit against inflammable surfaces - The motion detector will not operate correctly if it is installed: •...
  • Page 4 Note: It is recommend to mount 2M above the ground for optimum performance, do not Note: It is recommend to mount 2M above the ground for optimum performance, do not mount mount the fixture below 1.2M. See below figure for details of performance range. the fixture below 1.2M.
  • Page 5: Installing Guardcamled Wi-Fi

    INSTALLING GUARDCAMLED WI-FI It is strongly recommended APP & registration is complete prior to permanently fixing the installation. After APP registration, where possible temporarily power the device to check a strong Wi-Fi signal is being received at the intended installation site. Wi-Fi devices rely on a strong and stable signal from the network.
  • Page 6 Brown Blue Please allow 1 minute warm-up time after switching on * Push the RESET button located on top of the housing after switching on. PDF !" "pdfFactory Pro" #$%&' www.pdffactory.com Antenna Reset Remove plastic lens cover from camera after installation.
  • Page 7: Insert/Remove Micro Sd Card

    INSERT/REMOVE MICRO SD CARD: 1. Unscrew the cover using provided Allen key , then insert the Micro SD card until it automatically locks into place. 2. To remove Micro SD card, please push in SD card once to eject, then pull out...
  • Page 8: Adjusting The Settings

    ADJUSTING THE SETTINGS: Time Control Turn the time control to”+” side to increase the illumination time (7 minutes max.), turn the control to “-“ side to reduce the illumination time (5 seconds min.). AC CABLE OUTLET -Time+ LUX Control Adjust the ambient light at which the PIR will activate the LED floodlight Status LED It takes 60 seconds from power up for the unit to...
  • Page 9 Reset Button Restores functions to default settings, press this button in case of system malfunction. ANTENNA RESET...
  • Page 10: Network Set-Up

    Power should be applied, and the warm-up period of one minute has elapsed. 2. APP DOWNLOAD Download and install the “ESP GuardcamDECO APP to your device. 3 HOTSPOT CONNECTION (1) Go to the Wi-Fi setting on the mobile device.
  • Page 11 For Android, the APP must be left running in the background to receive any service from the product. ESP are unable to guarantee that every device will be compatible with any ESP product and software supplied.
  • Page 12: App Overview / Lighting Settings

    APP OVERVIEW / LIGHTING SETTINGS LED Lamp ON/OFF FOLLOW THE STEPS BELOW FOR EVENT PLAYBACK 1. Tap and then the 2. Select the time interval from the event list. 3. Tap to select the event for playback. 4. If you want to store the files in mobile device, tap to download.
  • Page 13 SCAN QR CODE FOR FULL GUARDCAMLED WI-FI MANUAL WHICH INCLUDES ADVANCED APP MENU...
