Summary of Contents for ESP HDVC36FDW
Page 1

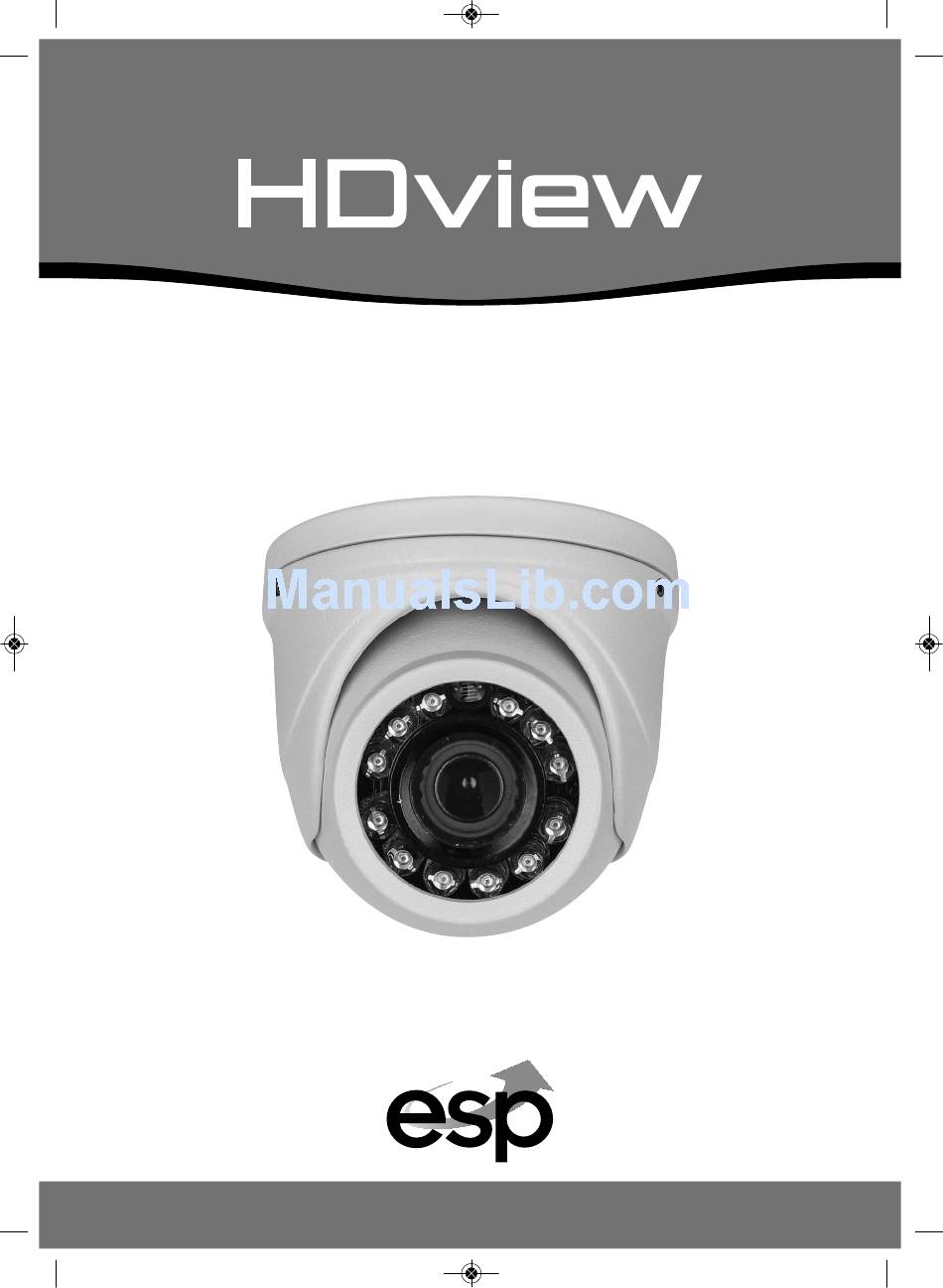

HDVC36FDW Manual.qxp_Layout 2 24/03/2015 09:55 Page 1 H D V C 36 F D W T R U E H D 1 . 3 M P 7 2 0 P D O M E C C T V C A M E R A U S E R M A N U A L w w w.
Page 2
HDVC36FDW Manual.qxp_Layout 2 24/03/2015 09:55 Page 2 HDVC36FDW TRUE HD 1.3MP 720P DOME CCTV CAMERA In addition to the 720P HD resolution the HDview range of CCTV cameras all feature the multi-function on screen display (OSD) settings. Whilst in many situations you will find an ‘out of the box installation’ will give excellent results the OSD settings will enable you to make adjustments to the cameras final output to provide an excellent image in the most demanding situations.
Page 3
HDVC36FDW Manual.qxp_Layout 2 24/03/2015 09:55 Page 3 LENS Leave in MANUAL setting. EXPOSURE Multiple setting options to control how the camera reacts to a light source SHUTTER Set up of the shutter speed to handle different light conditions. The AUTO setting is recommended for regular light conditions.
HDVC36FDW Manual.qxp_Layout 2 24/03/2015 09:55 Page 4 Technical Specification Pick up Element 1/3" SONY CMOS IR Distance 10 Meters Effective Pixels (H×V) NTSC/ PAL:1280(H)x720V) IR Status Under 10 Lux by CDS Horizontal Resolution 720P IR Power On CDS AUTO Control/ICR Minimum Illumination 0.1 Lux/F2.0...
