Printer Maintenance
3. Squeeze the white plastic bushing together on both sides of the platen to release
from the sheet metal and lift the platen assembly up and out of the printer.
4. Replace the assembly with a new platen assembly making sure that the bushings
snap into the sheet metal.
5. Reattach the cutter or tear assembly taking care to locate the top lip of the assembly
to the hook detail in the sheet metal.
Figure 4-8
4-6

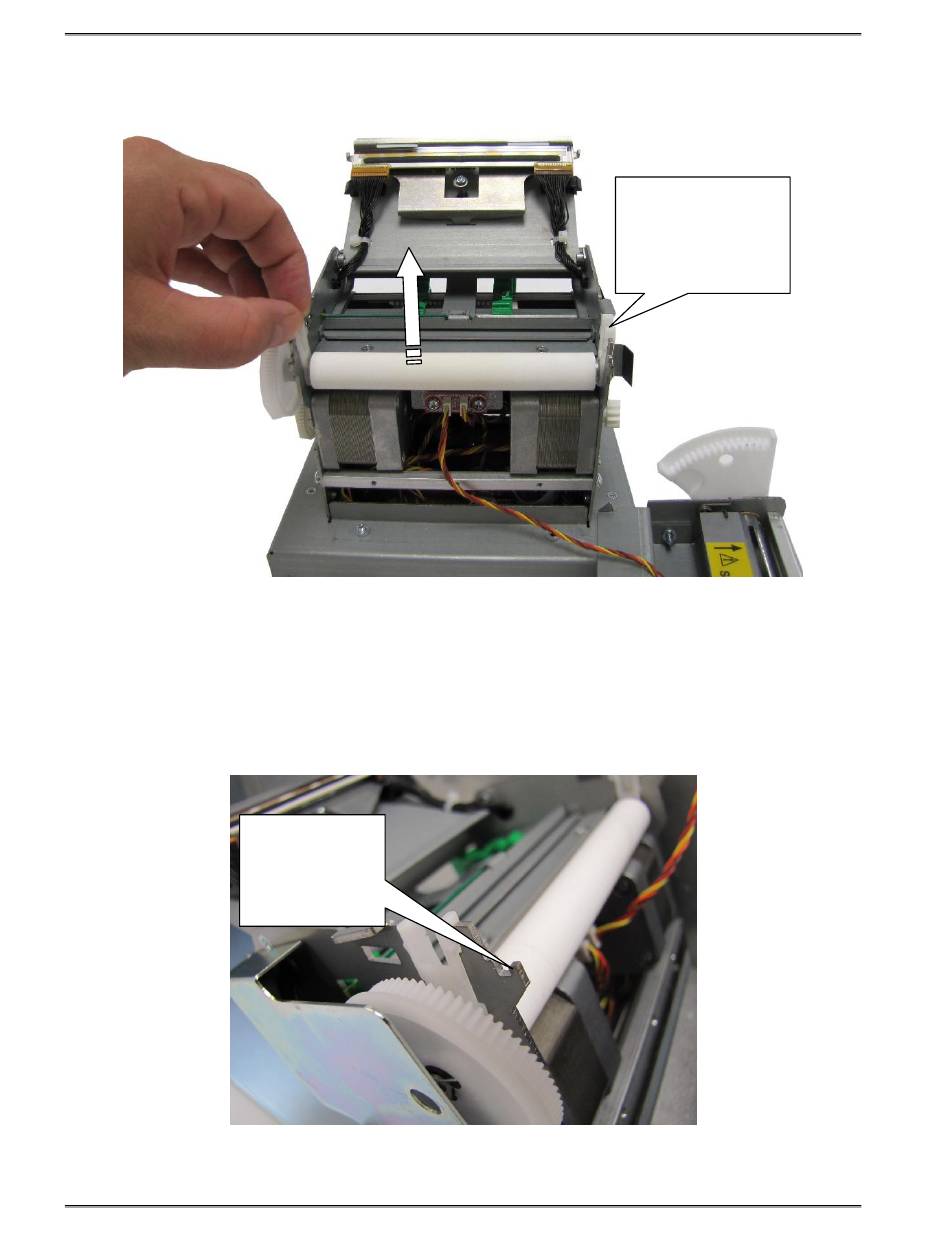

Figure 4-7 Removing the Platen
Hook detail that
the cutter or tear
assemblies are
attached
Cutter or Tear Assembly Mounting Hook
Squeeze the tabs
together on both
sides and lift the
roller out of the
printer.
