Chapter 3
> usb 1-1: new USB device strings: Mfr=1, Product=2, SerialNumber=0
> usb 1-1: Product: 485
> usb 1-1: Manufacturer: Microcom
> cdc_acm: 1-1:2.0: This device cannot do calls on its own. It is not a modem.
> cdc_acm: 1-1:2.0: ttyACM0: USB ACM device
> usbcore: registered new interface driver cdc_acm
> cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
4. As observed in the output of "dmesg", the printer has been enumerated as
"/dev/ttyACM0". This would be the device path used to access the printer.
3.5

Host USB Interface

The Host USB connector on the rear panel of the printer is used for updating the printer's
application, Bootloader, and the fonts stored in the printer. Contact your Sales
Representative for additional information.
3.6

Ethernet Communication Interface

The printer is configured with a 10/100 BASE T Ethernet that is configured for DHCP out of
the box. After one minute of idle time after a power up, if a connection is not established,
the printer will switch to a static IP Address of 192.168.200.3 with a Subnet of
255.255.255.0 on port 9100.
The printer also has a resident Web Server running on IP 192.168.200.3 that may be used
to configure the printer as well.
3.7

Cash Drawer Option

The printer provides a DB15 connector to support the use of 24v cash drawer applications.
The Draw Kick-out solenoid current must be 1 amp or less to avoid current overloads. This
option is only available when using the FGL Emulation mode.
485TM Operator's Manual - 880063-0100
Pin 1 - DR1
Pin 2 - DO
Pin 3 - DR2

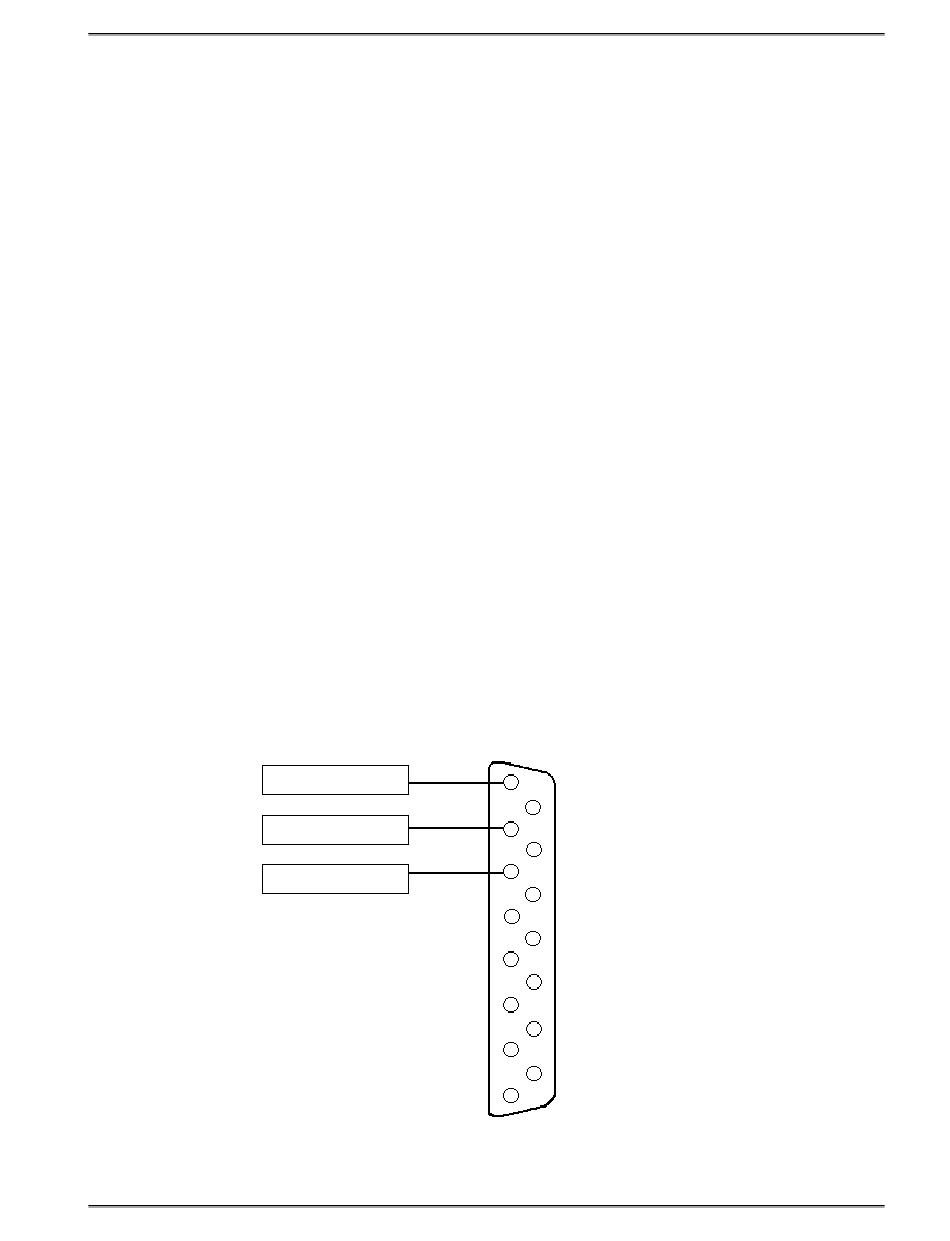

Figure 3-4 Cash Drawer Pin-out
Getting Started
3-5
