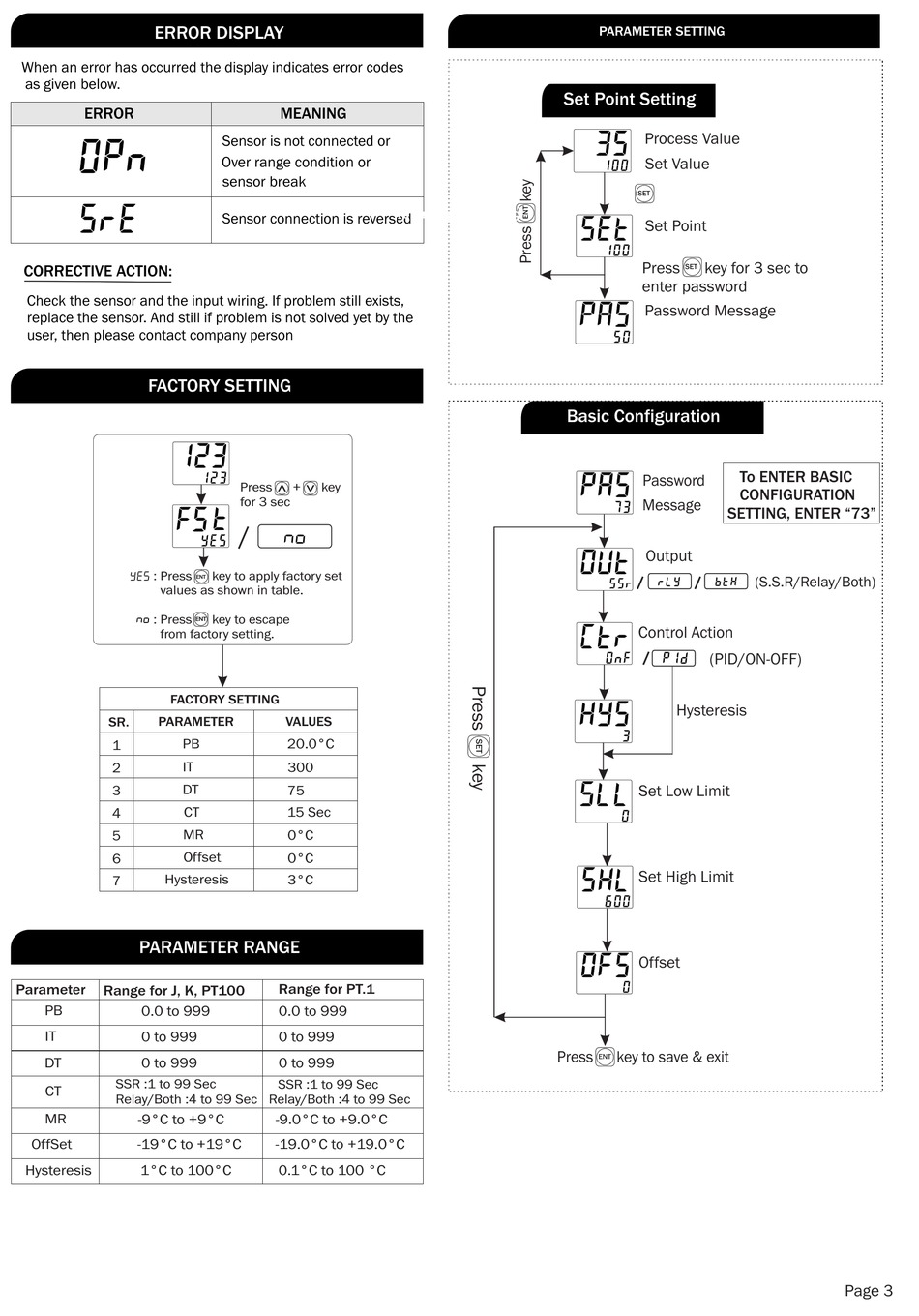

MULTISPAN TC-221P Quick Start Manual page 3

ERROR DISPLAY
When an error has occurred the display indicates error codes
as given below.
ERROR
CORRECTIVE ACTION:
Check the sensor and the input wiring. If problem still exists,
replace the sensor. And still if problem is not solved yet by the
user, then please contact company person
FACTORY SETTING
yes : Press
values as shown in table.
no
: Press
from factory setting.
FACTORY SETTING
SR. PARAMETER
PB
1
IT
2
DT
3
CT
4
MR
5
Offset
6
Hysteresis
7
PARAMETER RANGE
Parameter
Range for J, K, PT100
PB 0.0 to 999
IT 0 to 999
DT 0 to 999
SSR :1 to 99 Sec
CT
Relay/Both :4 to 99 Sec Relay/Both :4 to 99 Sec
MR
-9°C to +9°C
OffSet -19°C to +19°C
Hysteresis 1°C to 100°C
MEANING
Sensor is not connected or
Over range condition or
sensor break
Sensor connection is reversed
Press + key
for 3 sec
no
key to apply factory set
ENT
key to escape
ENT
VALUES
20.0°C
300
75
15 Sec
0°C
0°C
3°C
Range for PT.1
0.0 to 999
0 to 999
0 to 999
SSR :1 to 99 Sec
-9.0°C to +9.0°C
-19.0°C to +19.0°C
0.1°C to 100 °C
Set Point Setting
PARAMETER SETTING
Press
PARAMETER SETTING
Process Value
Set Value
SET
Set Point
Press key for 3 sec to
SET
enter password
Password Message
Basic Configuration
Password
Message
SETTING, ENTER "73"
Output
Control Action
(PID/ON-OFF)
Hysteresis
Set Low Limit
Set High Limit
Offset
key to save & exit
ENT
To ENTER BASIC
CONFIGURATION
(S.S.R/Relay/Both)
Page 3
