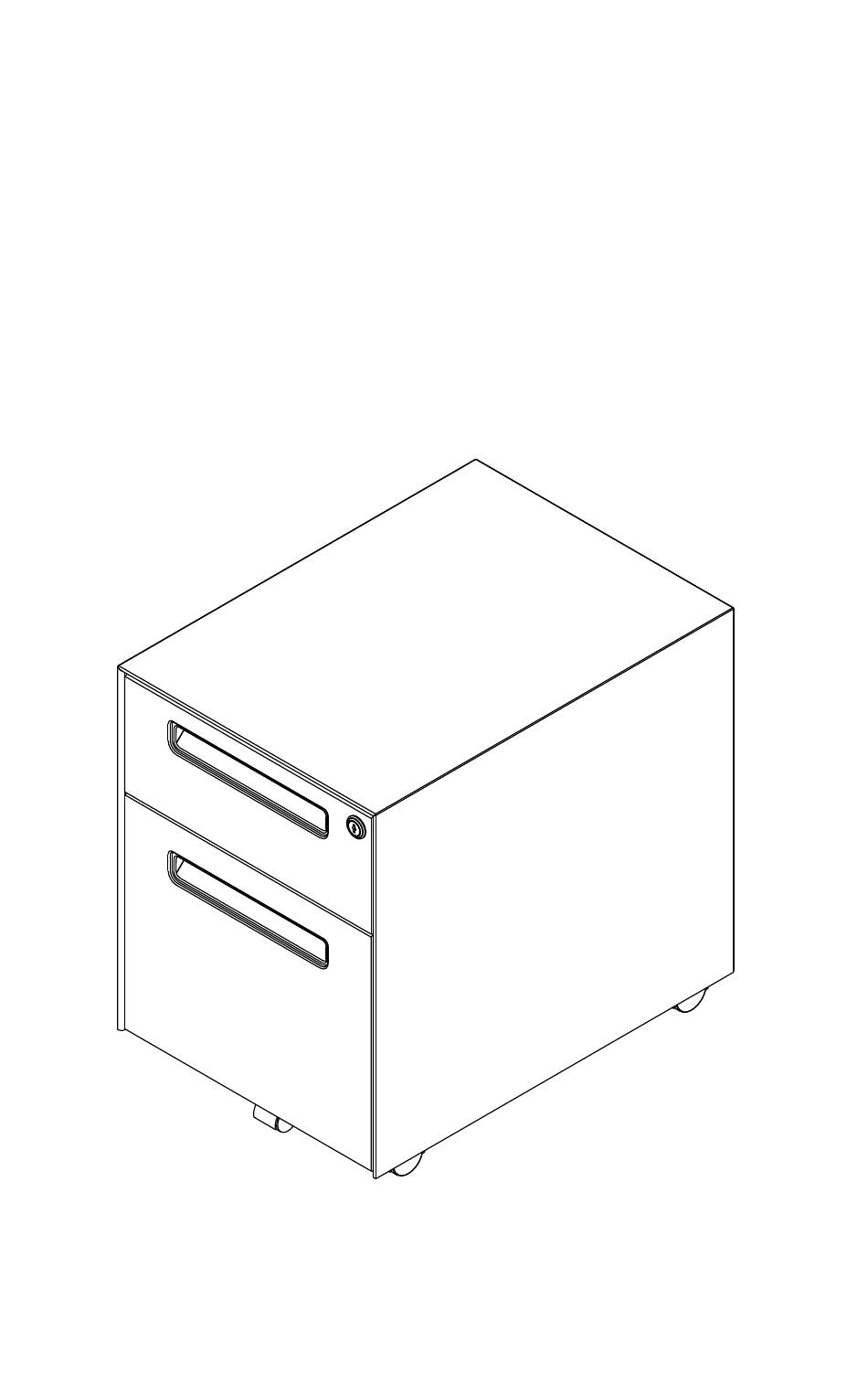

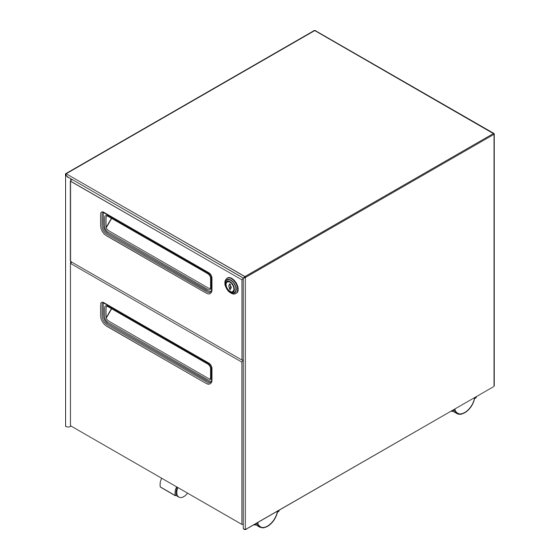

- Page 1 Mobile Pedestal HOME EDITION ASSEMBLY INSTRUCTIONS File with flexibility. Our two-drawer mobile pedestal stores everything you need and can move out of the way while still being within reach. C6597 Rev A www.sitonit.net...
- Page 2 Mobile Ped HOME EDITION ASSEMBLY INSTRUCTIONS Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact your local distributor for assistance. To report any issues with this product, contact our customer experience team at: (866) 764-4111 or shopcx@sitonit.net.
- Page 3 Mobile Ped HOME EDITION ASSEMBLY INSTRUCTIONS Parts • • Pedestal (1) Drawer Caster (1) • • Caster (4) 0.8" Washer (4) Drawer Caster Pedestal Casters HARDWARE 0.8" Washers C6597 Rev A www.sitonit.net...
- Page 4 Mobile Ped HOME EDITION ASSEMBLY INSTRUCTIONS Step 1: Screw the casters through the provided washers and into the base of the pedestal. 1:1 HARDWARE 0.8" Washer www.sitonit.net C6597 Rev A...
- Page 5 Mobile Ped HOME EDITION ASSEMBLY INSTRUCTIONS Step 2: Tighten the casters' nuts with a wrench. Caster's Nut TOOLS Wrench C6597 Rev A www.sitonit.net...
- Page 6 Mobile Ped HOME EDITION ASSEMBLY INSTRUCTIONS Step 3: Insert the drawer caster into the underside of the drawer. www.sitonit.net C6597 Rev A...
- Page 7 Mobile Ped HOME EDITION ASSEMBLY INSTRUCTIONS Step 4: Tighten the nut on the drawer caster. Caster's Nut TOOLS Wrench C6597 Rev A www.sitonit.net...
