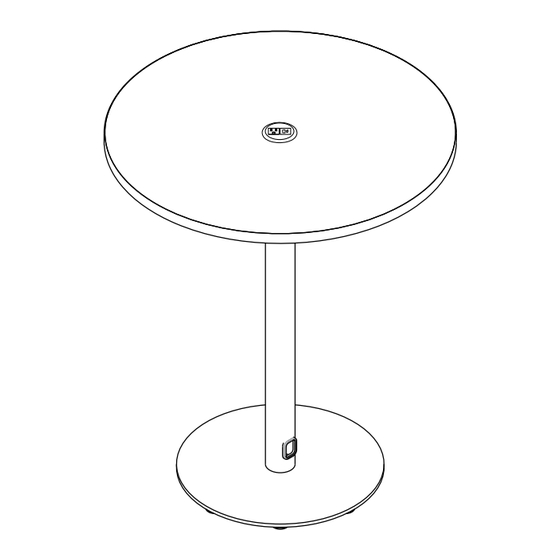

Parallon

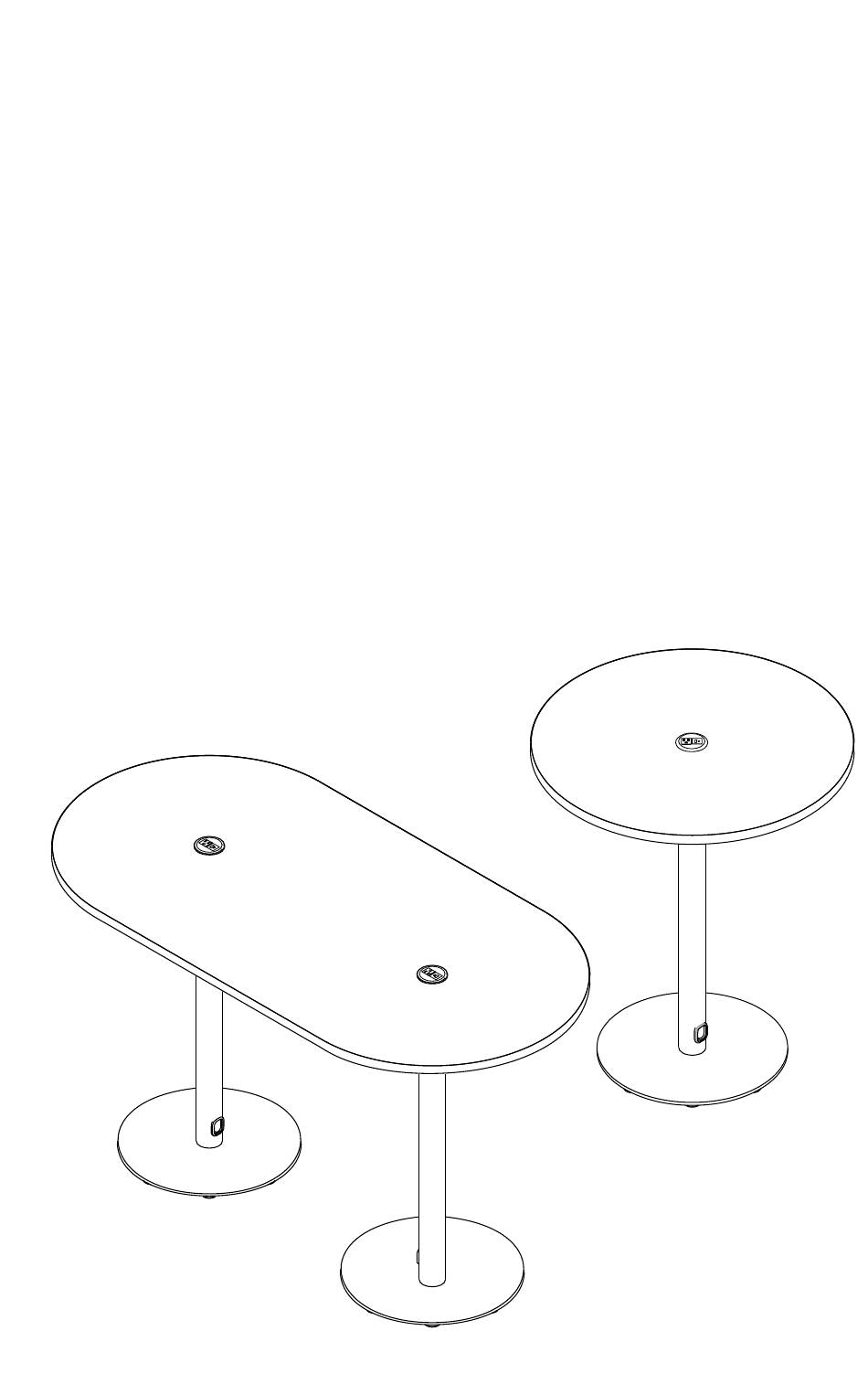

POWER READY MEETING,
CAFÉ AND OCCASIONAL DISC-BASE TABLE
ASSEMBLY INSTRUCTIONS
Everything to the table.
When you want cohesion in spaces large,
small, shared or separate, there's Parallon.
It's a single collection with a singular look,
offering an array of choices for a variety of
environments—and all the features to fit.
Ensure design is never a distraction in the
places where everyone needs to focus. Our
Parallon line of café and occasional tables
provides a unified and streamlined look from
room to room.
|
|
C6621 Rev A
www.sitonit.net
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Parallon and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SitOnit Seating Parallon

  • Page 1 Ensure design is never a distraction in the places where everyone needs to focus. Our Parallon line of café and occasional tables provides a unified and streamlined look from room to room. C6621 Rev A...
  • Page 2: Recommended Tools

    Parallon MEETING/CAFÉ/OCCASIONAL TABLE ASSEMBLY INSTRUCTIONS Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact your local distributor for assistance. To report any issues with this product, contact our customer experience team at: (888) 274-8664 or sitonit@exemplis.com.
  • Page 3 Parallon MEETING/CAFÉ/OCCASIONAL TABLE ASSEMBLY INSTRUCTIONS Parts (Double all component parts for racetrack and rectangular tabletops. • Tabletop (1, round, square, rectangle or racetrack) • Column (1) • Disc Base (1) • Power Cone (1) • Power Module (1, optional) Round •...
  • Page 4 Parallon MEETING/CAFÉ/OCCASIONAL TABLE ASSEMBLY INSTRUCTIONS Step 1: Remove the plastic nut from the power module. Note: If power module was not purchased, go to Step 4 on page 7. Repeat all steps twice if installing the dual disc base table.
  • Page 5 Parallon MEETING/CAFÉ/OCCASIONAL TABLE ASSEMBLY INSTRUCTIONS Step 2: Insert the power module in through the top-side of the tabletop. C6620 Rev A www.sitonit.net...
  • Page 6 Parallon MEETING/CAFÉ/OCCASIONAL TABLE ASSEMBLY INSTRUCTIONS Step 3: Flip the tabletop over and tighten the plastic nut back onto the power module. Note: Place the tabletop on top of packaging to prevent damage to the power module. www.sitonit.net C6620 Rev A...
  • Page 7 Parallon MEETING/CAFÉ/OCCASIONAL TABLE ASSEMBLY INSTRUCTIONS Step 4: Slide the power cone onto the column. C6620 Rev A www.sitonit.net...
  • Page 8 Parallon MEETING/CAFÉ/OCCASIONAL TABLE ASSEMBLY INSTRUCTIONS Step 5: Attach the power cone to the column. TOOLS 1:1 HARDWARE ⁄ " Hex Socket, ⁄ Drive ⁄ " x ⁄ " Bolt (Pack P) Hex Shank to Square Drive Adapter www.sitonit.net C6620 Rev A...
  • Page 9 Parallon MEETING/CAFÉ/OCCASIONAL TABLE ASSEMBLY INSTRUCTIONS Step 6: Feed the power cord through the hole in the power cone and route it through the opening at the bottom of the column. Note: If power module was not purchased, skip this step.
  • Page 10 Parallon MEETING/CAFÉ/OCCASIONAL TABLE ASSEMBLY INSTRUCTIONS Step 7: Attach the power cone to the underside of the tabletop. TOOLS 1:1 HARDWARE #12 x 1" Screw (Pack A) #3 Phillips Bit www.sitonit.net C6620 Rev A...
  • Page 11 Parallon MEETING/CAFÉ/OCCASIONAL TABLE ASSEMBLY INSTRUCTIONS Step 8: Attach the disc base to the columns. TOOLS 1:1 HARDWARE ⁄ " Hex Socket, ¼" Drive ⁄ ⁄ " Bolt (Pack B) Hex Shank to Square Drive Adapter C6620 Rev A www.sitonit.net...
  • Page 12 Parallon MEETING/CAFÉ/OCCASIONAL TABLE ASSEMBLY INSTRUCTIONS Step 9: Turn the table upright with the help of another person and if applicable, press the optional grommet into the cutout. Note: Use packaging to prevent damage to the disc base when turning the table upright.
