Parallon

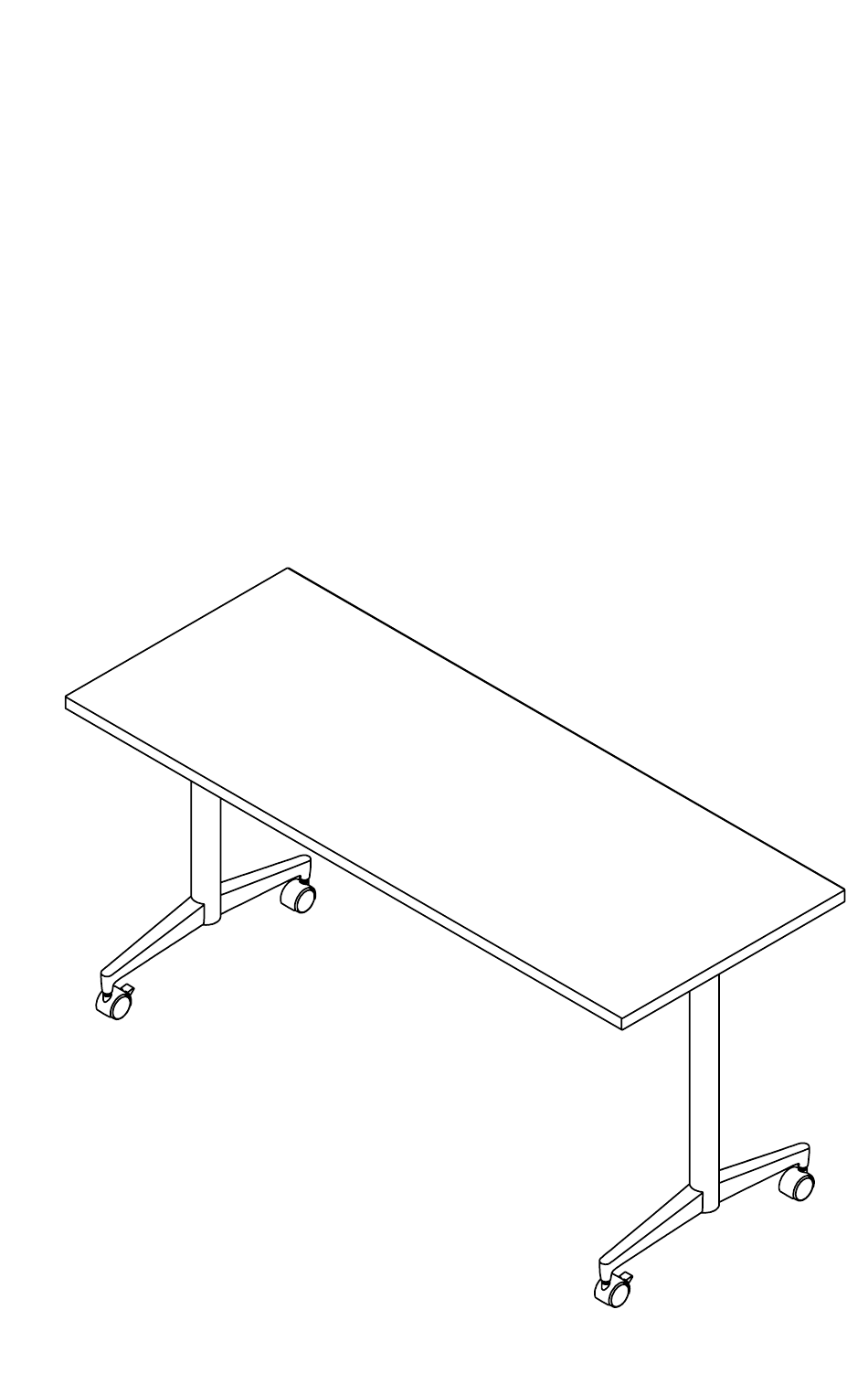

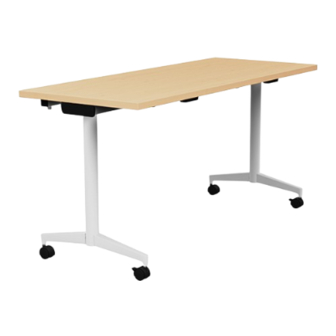

FIXED TOP T-LEG TABLE
ASSEMBLY INSTRUCTIONS
Everything to the table.
When you want cohesion in spaces large, small, shared or separate, there's
Parallon. It's a single collection with a singular look, offering an array of
choices for a variety of environments—and all the features to fit.
Ensure design is never a distraction in the places where everyone needs to
focus. Our Parallon line of training tables provides a unified and streamlined
look from room to room.
C6568 Rev D
|
www.sitonit.net
|
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Parallon and is the answer not in the manual?

Questions and answers

Related Manuals for SitOnit Seating Parallon

Summary of Contents for SitOnit Seating Parallon

  • Page 1 Everything to the table. When you want cohesion in spaces large, small, shared or separate, there’s Parallon. It’s a single collection with a singular look, offering an array of choices for a variety of environments—and all the features to fit.
  • Page 2 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact your local distributor for assistance. To report any issues with this product, contact our customer experience team at: (888) 274-8664 or sitonit@exemplis.com.

  • Page 3: Recommended Tools

    Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Recommended Tools • • Cordless Drill/Driver ⁄ " Deep Well Hex Socket, ¼" Drive • • #3 Phillips Bit Hex Shank to ¼" Square Drive Adapter • ⁄ " Hex Bit • ¼" Drive Universal Joint •...
  • Page 4 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Parts: Top and Frame • • Tabletop (1, rectangular, Tabletop (1, rectangular, half round or trapezoid) half round or trapezoid) • • Top Plates (2) Top Plates (2) • • Grommet (optional) Grommet (optional) •...
  • Page 5 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Parts: Columns and Feet • • Column (2) Pack B: • ⁄ " × 1 ⁄ " Bolt (4) • Foot (4) • ⁄ " Nut (4) • Caster (4, optional) • Foot Attachment Plate (4)
  • Page 6 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Step 1: Attach the top plates to the columns. ⁄ " x 1" Screw Top Plate Align the top support and feet. Column 1:1 HARDWARE TOOLS ⁄ x 1" Screw (Pack C) ⁄ Hex Drill Bit C6568 Rev D www.sitonit.net...
  • Page 7 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Step 2: Attach the column assemblies to the tabletop. #12 x 1" Screw Top Plate Pilot Hole 1:1 HARDWARE TOOLS #12 x 1" Screw (Pack A) #3 Phillips Bit C6568 Rev D www.sitonit.net...
  • Page 8 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Step 3: Slide the bolt through the foot attachment plate and column. Foot Attachment Plate ⁄ ⁄ " Bolt Hole Column 1:1 HARDWARE ⁄ ⁄ " Bolt (Pack B) C6568 Rev D www.sitonit.net...
  • Page 9 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Step 4: Slide the foot over the bolt. ⁄ ⁄ " Bolt Foot C6568 Rev D www.sitonit.net...
  • Page 10 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Step 5: Hold the bolt in place and tighten the nut. Socket Universal Joint Adapter TOOLS 1:1 HARDWARE ⁄ " Deep Well Hex Socket, Universal Joint ¼" Drive ⁄ Nut (Pack B) Hex Shank to Square Drive Adapter C6568 Rev D www.sitonit.net...
  • Page 11 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Step 6: Unscrew the glides to level as needed. Alternatively, insert the optional casters into the feet and tighten the nuts. Brake Install the two casters with brakes on the same side as the pull handles.
  • Page 12 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Step 7: Turn the table upright with the help of another person and if applicable, press the optional grommets into the cutouts. Grommet Cutout C6568 Rev D www.sitonit.net...
  • Page 13 Everything to the table. When you want cohesion in spaces large, small, shared or separate, there’s Parallon. It’s a single collection with a singular look, offering an array of choices for a variety of environments—and all the features to fit.
  • Page 14 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Read the entire instruction manual before you start installation and assembly. If you have any questions regarding any of the instructions or warnings, please contact your local distributor for assistance. To report any issues with this product, contact our customer experience team at: (888) 274-8664 or sitonit@exemplis.com.
  • Page 15 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Recommended Tools • • Cordless Drill/Driver ⁄ " Deep Well Hex Socket, ¼" Drive • • #3 Phillips Bit Hex Shank to ¼" Square Drive Adapter • ⁄ " Hex Bit • Universal Joint, ¼" Drive •...
  • Page 16 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Parts: Top and Frame • Tabletop (1, rectangular, half round or trapezoid) • Top Plates (2) • Grommet (optional) • Pack A: • #12 × 1" Screw (17) • Pack C: • Rectangular ¼" × 1" Screw (8)
  • Page 17 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Parts: Columns and Feet • • Column (2) Pack B: • ⁄ " Nut (2) • Long Foot (2) • ⁄ " × 1 ⁄ " Bolt (Unused) • Short Foot (2) • Foot Attachment Plate (Unused) •...
  • Page 18 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Step 1: Attach the top plates to the columns. ⁄ " x 1" Screw Top Plate Align the top support and feet. Column 1:1 HARDWARE TOOLS ⁄ x 1" Screw (Pack C) ⁄ Hex Drill Bit C6618 Rev A www.sitonit.net...
  • Page 19 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Step 2: Attach the column assemblies to the tabletop. #12 x 1" Screw Top Plate Pilot Hole 1:1 HARDWARE TOOLS #12 x 1" Screw (Pack A) #3 Phillips Bit C6618 Rev A www.sitonit.net...
  • Page 20 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Step 3: Insert the column support into the column and hold it in place. Steps 3–5 will be repeated again on the opposite column. 1:1 HARDWARE Column Support (Pack D) C6618 Rev A www.sitonit.net...
  • Page 21 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Step 4: Insert the bolt into the shorter leg, then through the column and column support. Steps 3–5 will be repeated again on the opposite column. 1:1 HARDWARE ⁄ ⁄ " Screw C6618 Rev A...
  • Page 22 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Step 5: In the long leg, tighten a nut over the bolt. Steps 3–5 will be repeated again on the opposite column. Note: A 1/4" hex key can be used to hold the head of the screw when tightening.
  • Page 23 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Step 6: Unscrew the glides to level as needed. Alternatively, insert the optional casters into the feet and tighten the nuts. Brake Install the two casters with brakes on the same side as the pull handles.
  • Page 24 Parallon FIXED TOP TABLE ASSEMBLY INSTRUCTIONS Step 7: Turn the table upright with the help of another person and if applicable, press the optional grommets into the cutouts. Grommet Cutout C6618 Rev A www.sitonit.net...
