complements
Section:
HEIGHT ADJUSTMENT TABLES (COMPLEMENTS)
Description:
HEIGHT ADJUSTMENT TABLE - COUNTER - BALANCE - TROUBLE SHOOTING
Rectangular - Counter-Balance (YHRE), Rectangular with Split
Surface - Counter-Balance (YHRS), Corner - Counter-Balance
(YHCC), Corner with Split Surface - Counter-Balance (YHCS)
R2
C
D
A
K
NOTE: Worksurface with
Grommet shown.
Please refer to Page 7 for
Operation Guide.
Maximum load for the
Table is 120 lbs. excluding
the Worksurface.

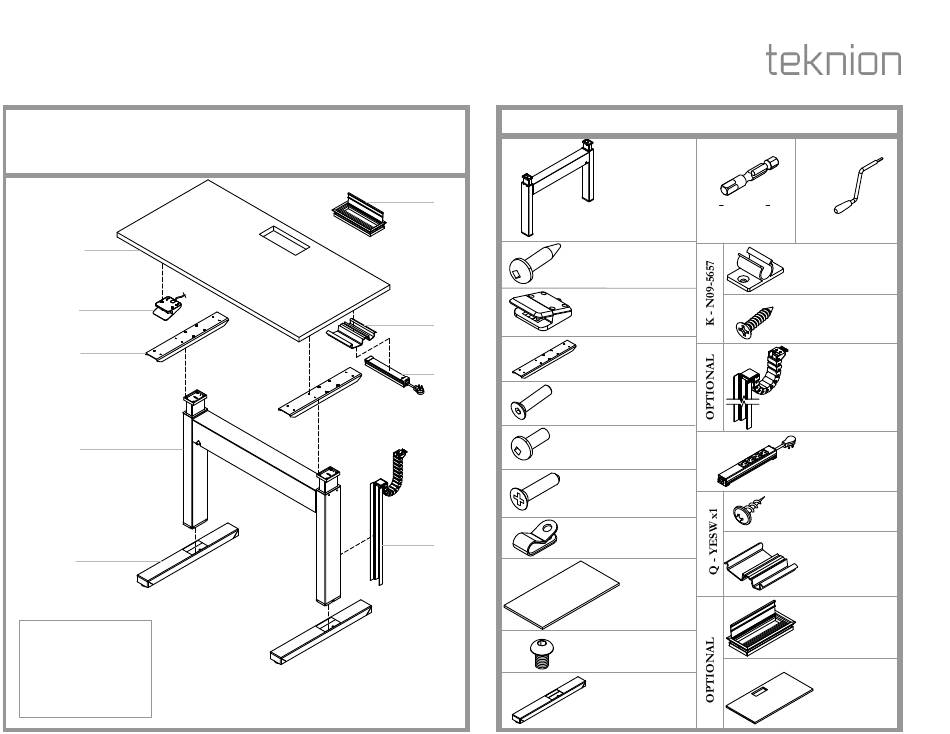

Installation Guides
Part and Product Identification
A - H Frame
R1
B - #10 x 3/4" Typ.
Pan Quad
(E01-0991) x4
C - Release
Mechanism
(N09-6178) x1
Q2
D - Strut
P
E - B18.3.5M-M6 x 1.0
x12 Socket
(E01-1027) x8
F - #12 x7/8" WD
Screw Pan Quad
(E04-0087) x12
G - 6 x 5/8" WD
Screw Flat Quad
(E04-0090) x1
H - 3/16" Wire Clamp
(B02-0598) x1
O
I - Worksurface
(C05-9749_N) x1
J - M10 x 1.5mm
Button Head Screw
(E01-1022) x4
K - Feet
(N09-5680) x2
Date:
Sept 2019
COM_101d
1
1
L -
" Hex to
" SQ
4
4
Adapter
(D06-4272) x1
N1 - Wire Clip
N2 - #6, 5/8" FHPS,
(A16-4031) x1
O - E-Chain Vertical
Q1 - Self-Tap Screw
(FS8-5-16-PB) x4
Q2 - Brackets
R1 - Rectangular Table
R2 - Worksurface
Page No:
1 of 16
Rev. No: 6
M - Crank Handle
(D06-4116) x1
(B02-0566) x4
Zinc
(E07-0148) x8
Wire Manager
(YEEC) x1
P - Power Bar
(I04-0116) x1
(B03-2394)
With Cut-Out x3
Without Cut-Out x2
Grommet
(D05-0068) x1
with Cut-Out
(C05-9749_R) x1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YHRE and is the answer not in the manual?

Questions and answers

Summary of Contents for Teknion YHRE

  • Page 1 HEIGHT ADJUSTMENT TABLE - COUNTER - BALANCE - TROUBLE SHOOTING COM_101d Rev. No: 6 Rectangular - Counter-Balance (YHRE), Rectangular with Split Part and Product Identification Surface - Counter-Balance (YHRS), Corner - Counter-Balance (YHCC), Corner with Split Surface - Counter-Balance (YHCS) A - H Frame "...
  • Page 2: Attach Feet

    complements Installation Guides Section: HEIGHT ADJUSTMENT TABLES (COMPLEMENTS) Date: Sept 2019 Page No: 2 of 16 Description: HEIGHT ADJUSTMENT TABLE - COUNTER - BALANCE - TROUBLE SHOOTING COM_101d INSTALL STRUTS ATTACH FEET NOTE: H-Frame up-side-down. STEP 1: Install Struts on H-Frame with Screws as shown. STEP 2: Flip H-Frame up-side-down.
  • Page 3 complements Installation Guides Section: HEIGHT ADJUSTMENT TABLES (COMPLEMENTS) Date: Sept 2019 Page No: 3 of 16 Description: HEIGHT ADJUSTMENT TABLE - COUNTER - BALANCE - TROUBLE SHOOTING COM_101d WORKSURFACE ASSEMBLY STEP 3: Keep H-Frame and Worksurface up-side-down. Align pilot holes on Struts with the Worksurface as shown, then secure them with Screws.
  • Page 4: Paddle Assembly

    complements Installation Guides Section: HEIGHT ADJUSTMENT TABLES (COMPLEMENTS) Date: Sept 2019 Page No: 4 of 16 Description: HEIGHT ADJUSTMENT TABLE - COUNTER - BALANCE - TROUBLE SHOOTING COM_101d PADDLE ASSEMBLY ATTACH HANDLE HOLDER NOTE: Please refer to Specification Drawing for location to install Paddle. Paddle installing on right handed side of the Table shown.
  • Page 5 complements Installation Guides Section: HEIGHT ADJUSTMENT TABLES (COMPLEMENTS) Date: Sept 2019 Page No: 5 of 16 Description: HEIGHT ADJUSTMENT TABLE - COUNTER - BALANCE - TROUBLE SHOOTING COM_101d INSERT HANDLE STORE HANDLE Underside View NOTE: Please refer to Operation Guides for Table height adjustment instructions.
  • Page 6 complements Installation Guides Section: HEIGHT ADJUSTMENT TABLES (COMPLEMENTS) Date: Sept 2019 Page No: 6 of 16 Description: HEIGHT ADJUSTMENT TABLE - COUNTER - BALANCE - TROUBLE SHOOTING COM_101d LEVELING INSERT GROMMET & ATTACH E-CHAIN LEVELER If E-Chain is specified, please refer to Installation Guide No.
  • Page 7 complements Installation Guides Section: HEIGHT ADJUSTMENT TABLES (COMPLEMENTS) Date: Sept 2019 Page No: 7 of 16 Description: HEIGHT ADJUSTMENT TABLE - COUNTER - BALANCE - TROUBLE SHOOTING COM_101d BRACKET INSTALLATION (WITH GROMMET) BRACKET INSTALLATION ( WITHOUT GROMMET) STEP 10a: Use provided self-tap Screws to fasten Brackets under the Worksurface. STEP 10b: Use provided self-tap Screws to fasten Brackets under the Worksurface.
  • Page 8: Side View

    complements Installation Guides Section: HEIGHT ADJUSTMENT TABLES (COMPLEMENTS) Date: Sept 2019 Page No: 8 of 16 Description: HEIGHT ADJUSTMENT TABLE - COUNTER - BALANCE - TROUBLE SHOOTING COM_101d SIDE VIEW FRONT VIEW (TABLE WITH GROMMET) FRONT VIEW (TABLE WITHOUT GROMMMET) NOTE: Make sure the Bracket will not interfere with the Cross Bar on the H-frame.
  • Page 9 complements Installation Guides Section: HEIGHT ADJUSTMENT TABLES (COMPLEMENTS) Date: Sept 2019 Page No: 9 of 16 Description: HEIGHT ADJUSTMENT TABLE - COUNTER - BALANCE - TROUBLE SHOOTING COM_101d ATTACH POWER BAR (WITH GROMMET) ATTACH POWER BAR ( WITHOUT GROMMET) Underside View Underside View STEP 11: Attach Power Bar into the Bracket as shown.
  • Page 10 complements Installation Guides Section: HEIGHT ADJUSTMENT TABLES (COMPLEMENTS) Date: Sept 2019 Page No: 10 of 16 Description: HEIGHT ADJUSTMENT TABLE - COUNTER - BALANCE - TROUBLE SHOOTING COM_101d SIDE VIEW FRONT VIEW (TABLE WITH GROMMET) NOTE: The Bracket should be clipped at the center of Power Bar. FRONT VIEW (TABLE WITHOUT GROMMET) Detail View NOTE: Make sure the Power Bar is fully clipped into the Bracket.
  • Page 11 complements Installation Guides Section: HEIGHT ADJUSTMENT TABLES (COMPLEMENTS) Date: Sept 2019 Page No: 11 of 16 Description: HEIGHT ADJUSTMENT TABLE - COUNTER - BALANCE - TROUBLE SHOOTING COM_101d WIRING (TABLE WITH GROMMET) Underside View STEP 12a: Please refer to the above diagram for Cable routing for Table with Grommet.
  • Page 12 complements Installation Guides Section: HEIGHT ADJUSTMENT TABLES (COMPLEMENTS) Date: Sept 2019 Page No: 12 of 16 Description: HEIGHT ADJUSTMENT TABLE - COUNTER - BALANCE - TROUBLE SHOOTING COM_101d WIRING (TABLE WITHOUT GROMMET) Underside View STEP 12b: Please refer to the above diagram for Cable routing for Table without Grommet.
  • Page 13 complements Installation Guides Section: HEIGHT ADJUSTMENT TABLES (COMPLEMENTS) Date: Sept 2019 Page No: 13 of 16 Description: HEIGHT ADJUSTMENT TABLE - COUNTER - BALANCE - TROUBLE SHOOTING COM_101d COUNTER-BALANCE ADJUSTMENT (INITIAL SET-UP) CHARGING INSTRUCTIONS: 1. INSTALL THE TABLE WORKSURFACE. 2. PRESS AND HOLD THE RELEASE PEDAL. 3.
  • Page 14 complements Installation Guides Section: HEIGHT ADJUSTMENT TABLES (COMPLEMENTS) Date: Sept 2019 Page No: 14 of 16 Description: HEIGHT ADJUSTMENT TABLE - COUNTER - BALANCE - TROUBLE SHOOTING COM_101d PRESS TABLE USING RELEASE MECHANISM NOTE: Rotate Counter-Balance Adjustment Handle toward "-" if it's too tight, rotate toward "+"...
  • Page 15: Adjust Height

    complements Installation Guides Section: HEIGHT ADJUSTMENT TABLES (COMPLEMENTS) Date: Sept 2019 Page No: 15 of 16 Description: HEIGHT ADJUSTMENT TABLE - COUNTER - BALANCE - TROUBLE SHOOTING COM_101d ADJUST HEIGHT ADDING WEIGHT NOTE: Worksurface should be easy to move up and down. Please refer to Step 2 on Page 8 to add or release pressure on Counter-Balance if necessary.
  • Page 16 3. Improper use and set up will impact the warranty. 4. If the product is not functioning properly after Troubleshooting, please contact your authorized Teknion dealer. Maximum load for the table is 120 lbs. excluding the Worksurface.

This manual is also suitable for:

YhrsYhccYhcs
